T4 - Post
Post



General

Series: T4

Brand: Platek
Platek products

Division: Exterior
Exterior products

Mounting Type: Post
Post products

Mounting Location: Above Ground
Above Ground products

Subcategory: Pedestrian
Pedestrian products



Physical

Shape: Rectangle

Length (mm): 240

Length (in): 9 716

Width (mm): 140

Width (in): 5 12

Height (mm): 3000

Height (in): 118 18

Light Distribution: Direct

Screws: A4 stainless steel

Diffuser: 4mm extra-clear flat tempered glass

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ
see color chart below

Fixture Material: Extruded Aluminum



Electrical

Lamp Type: LED

Input Wattage (W): 39

Total Output Wattage (W): 36

Dimming: Non-Dimming / Phase Dimming (120vac Only)

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 1050

Upon Request: (Not included - see components [IP65 or higher enclosure to be supplied by others]): Remote: 0-10Vdc dimming



LED

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 3820 / 3970

Nominal Lumen (lm): 4900 / 5145

CRI: >80 CRI

Lamp Life (hrs): 60000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK10





T4 Base Model Number: E9B180-

Series Description

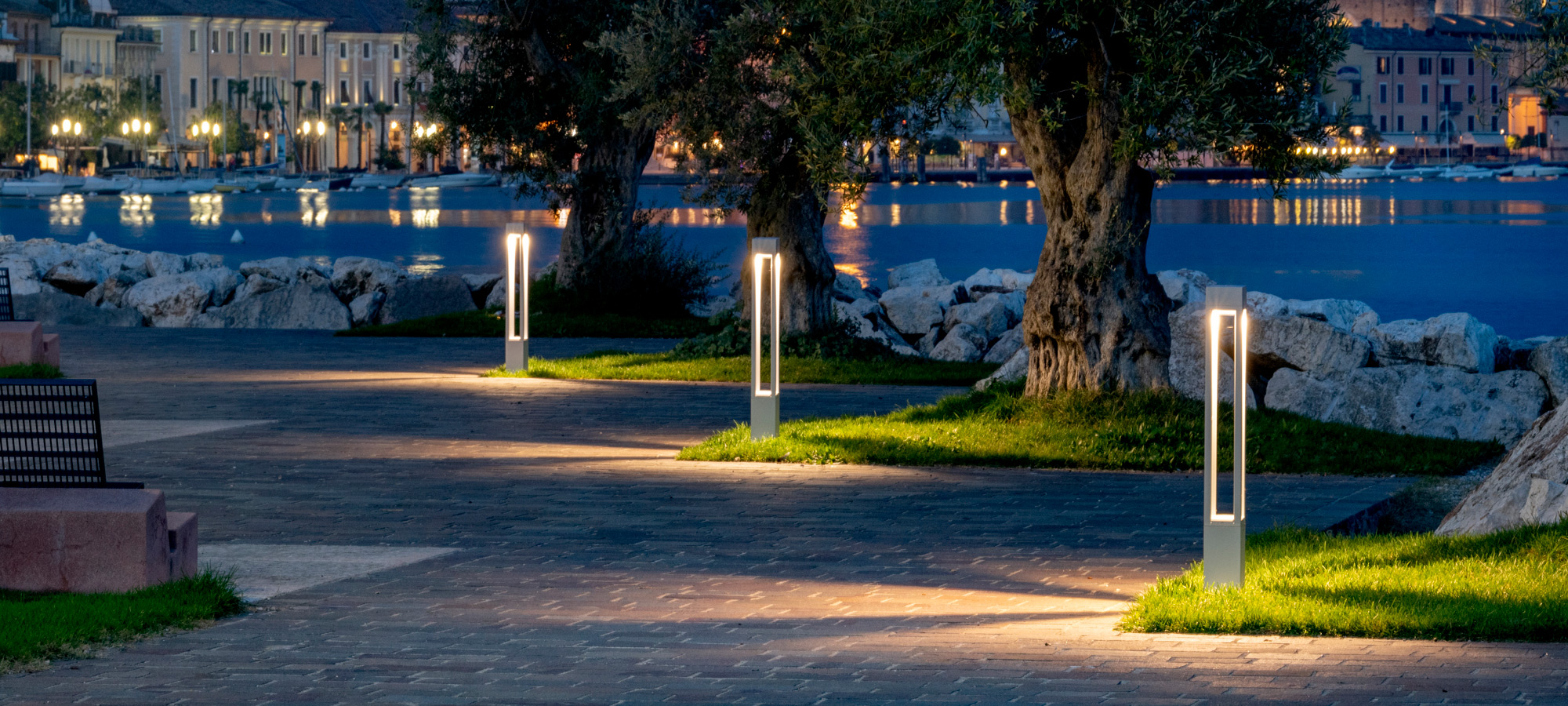

T4 is a family of posts by the rationalist design. T4 is a small architectural exterior lighting structure: at power-on, this ephemeral structure disappears from sight, transforming into two beams of geometrical light which creates a suggestive alternation of light and shadow on the floor. T4 is an efficient tool for the lighting of open spaces, pedestrian areas and urban zones.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
 by  – 3 1/2″ x 1 1/16″ ,  offers LED lighting solutions | Zaneen Architectural DTM0501050EP ERP - ESP050W-1050-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 44.1W - 1050mA - 120 / 277Vac - LED power supply -Used with ENCP6 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
Tube by Platek – 9 1/4″ x 18 3/4″ ,  offers high performance and quality material | Zaneen Exterior E9A25100 Tube - Tie Rod For 4000Mm Tube - 406mm - 4 Legs
ENCP6 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

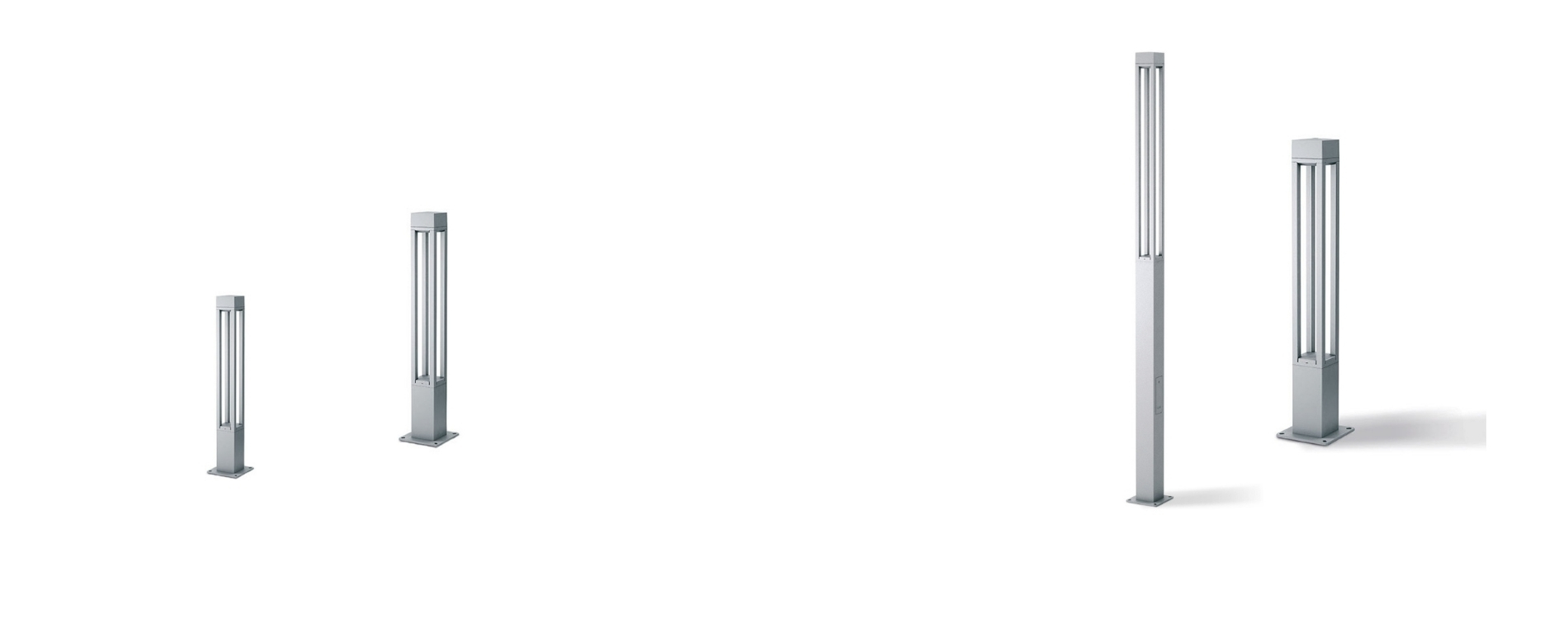

Also Available within Series

T4 by Platek – 9 7/16″ x 47 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B178- T4 - 1200 Post - 21W LED - 3000K / 4000K - 120/277Vac - 50/60Hz - IP65
T4 by Platek – 9 7/16″ x 86 5/8″ Post, Pedestrian offers high performance and quality material | Zaneen Exterior E9B179- T4 - 2200 Post - 28W LED - 3000K / 4000K - 120/277Vac - 50-60Hz - IP65
T4 by Platek – 9 7/16″ x 118 1/8″ Post, Pedestrian offers high performance and quality material | Zaneen Exterior E9B180- T4 - 3000 Post - 39W LED - 3000K / 4000K - 120/277Vac - 50/60Hz - IP65
T4 by Platek – 9 7/16″ x 141 3/4″ Post, Pedestrian offers high performance and quality material | Zaneen Exterior E9B181- T4 - 3600 Post - 39W LED - 3000K / 4000K - 120/277Vac - 50/60Hz - IP65

Downloads

T4 by Platek – 9 7/16″ x 118 1/8″ Post, Pedestrian offers high performance and quality material | Zaneen Exterior

T4 by Platek – 9 7/16″ x 118 1/8″ Post, Pedestrian offers high performance and quality material | Zaneen Exterior / Line art

Direct
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

3820 / 3970
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 20 joules impact (equivalent to 5.0kg mass dropped from 400mm above the surface)


Fixture Finishes

BLK - Black WHI - White GRY - Gray COR - Corten ANT - Anthracite BRZ - Bronze
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.

Features
