Series: Team

Subseries: Team Square

Partner: Platek

Division: Exterior

Installation: Surface

Product Type: Step Light

Mounting Location: Wall

Light Distribution: Asymmetric

Physical

Shape: Square

Length (mm): 140

Length (in): 5 ¹⁄₂

Height (mm): 140

Depth (mm): 30

Height (in): 5 ¹⁄₂

Depth (in): 1 ³⁄₁₆

Weight (kg): 0.6

Weight (lbs): 1.32

Screws: A4 stainless steel

Diffuser: Opal - PMMA

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ

see color chart below

Fixture Material: Extruded Aluminum

Electrical

Lamp Type: LED

Input Wattage (W): 9.4

Total Output Wattage (W): 7.9

Dimming: Non-Dimmable / 0-10V Dimming

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage – Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 24

Constant Voltage (V): 24

Upon Request: Remote: 0-10Vdc dimming / Phase dimming 120Vac / Non-dimming 120/277Vac

LED

Color Temperature (°K): 2700 / 3000 / 4000

Max. Delivered Lumen (lm): 395 / 395 / 415

Nominal Lumen (lm): 800 / 800 / 832

CRI: >80 CRI

Lamp Life (hrs): 60000

Optical

Optic°: Asymmetrical

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP66

IK Rating: IK08

Bug Rating: B0 U0 G0

Team Model Number: E9W601-

Specify

Base Model Number:
E9W601-

Team Square - Surface - 9.4W LED - 2700 / 3000 / 4000°K - Opal - PMMA

Final Option Selection

Color Temperature

Finish Options

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Model Number: E9W601- -

Get Spec Sheet

Key Features

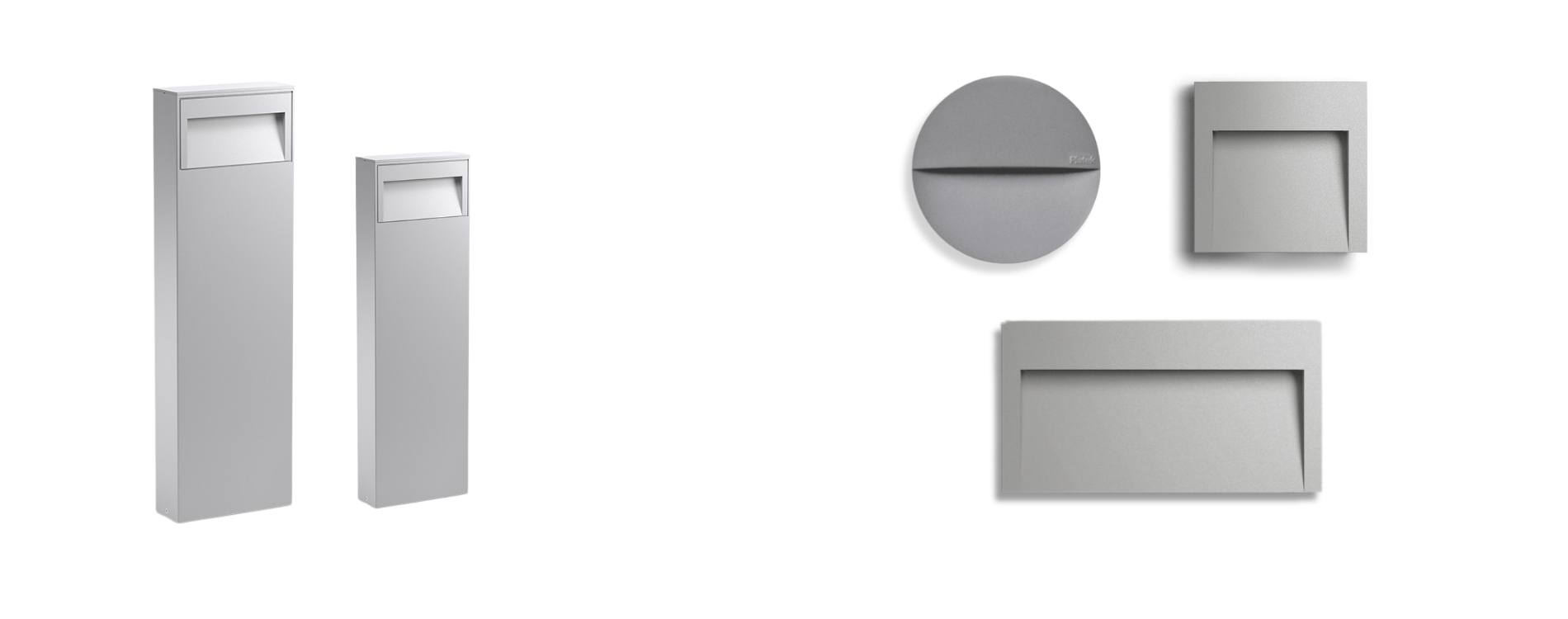

A cohesive outdoor lighting series offering step, surface-mounted, and bollard solutions in square and round designs.
Flexible installation options - running power from the rear or side.

Series Description

Team is a bollard, recessed and surface wall fixture with great elegance and special ability to play with the environmental light when switched off. This is due to the Team's side winglets that outline the profile. Team can be powered by a wire which is coming from the wall (surface or recessed) and can be wired in series by connecting elements with an external cable.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DND0100024HA	Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
	DVO0160024MF	MeanWell - LPF-16D-24 - 1-10Vdc / Resistance / 10V PWM Dimming - 5.28-16.08W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP5 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
	E9A39000	Team - Steel Housing for Concrete - Small
	ENCP4	Empty Metal Enclosure for Driver - IP20 - Indoor Rated
	ENCP9	Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image	SKU	Description	Datasheet
	E9A50005	Team - Rubber protection for side entry cable (2 pcs)

Also Available within Series

	E9B226-	Team - Bollard - 600mm / 23 5/8" - 17.5W LED - 3000K / 4000K - Optic: 1 Opening
	E9B227-	Team - Bollard - 600mm / 23 5/8" - 35W LED - 2700K / 3000K / 4000K
	E9B228-	Team - Bollard - 900mm / 35 7/16" - 17.5W LED - 3000K / 4000K - Optic: 1 Opening
	E9B229-	Team - Bollard - 900mm / 35 7/16" - 35W - LED - 2700K 3000K / 4000K - Optic: 2 Openings
	E9W601-	Team Small - Recessed - Wall - 8W LED - 2700K / 3000K / 4000K - Optic: Asymmetric
	E9W611-	Team - Medium - Wall - Surface - 18.5W LED - 2700K / 3000K / 4000K - Asymmetric
	E9W611- : E9W611-30K-ANT	Team - Medium - Wall - Surface - 16.5W LED - 120Vac Direct Line - 3000K - Asymmetric - Anthracite
	E9W614-	Team Round - Surface / Wall - 10W LED - 24Vdc - 3000K / 4000K - Optics Asymmetric
