Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22 – Zaneen

General

Reset
Division: Architectural : Components : LED Drivers
Architectural : Components : LED Drivers products



Physical

Length (mm): 68.6
Length (in): 2 11⁄16
Width (mm): 33
Width (in): 1 9⁄32
Height (mm): 20.3
Height (in): 7/32
Fixture Material: Plastic



Electrical

Lamp Type: LED
Input Wattage (W): 13
Total Output Wattage (W): 5.68-10
Dimming: Non-Dimmable
Driver Type: Constant Voltage - 120Vac
Driver Class: Class 2
Input Voltage (V): 120
Output Voltage (V): 24



LED



Optical



Ratings and Certifications

Certified By: UR Listed
IP rating: Dry / Damp





Base Model Number: DND0100024HA

Description

Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22

This component relates to

Delight by Prolicht – 7 1/2″ x 1 9/16″ Recessed, Step Light offers LED lighting solutions | Zaneen Architectural A35700- String Step - Recessed Wall - 190mm - 2.2W LED (Zhaga Standard) - 3000K / 3500K / 5000K
Delight by Prolicht – 13 3/8″ x 1 9/16″ Recessed, Step Light offers LED lighting solutions | Zaneen Architectural A35701- String Step - Recessed Wall - 340mm - 4.4W LED (Zhaga Standard) - 3000K / 3500K / 5000K
Delight by Prolicht – 7 1/2″ x 1 9/16″ Recessed, Step Light offers LED lighting solutions | Zaneen Architectural A35702- String Step Wide - Recessed Wall - 190mm - 2.2W LED (Zhaga Standard) - 3000K / 3500K / 5000K
Delight by Prolicht – 13 3/8″ x 1 1/16″ Recessed, Step Light offers LED lighting solutions | Zaneen Architectural A35703- String Step Wide - Recessed Wall - 340mm - 4.4W LED (Zhaga Standard) - 3000K / 3500K / 5000K
Diversi by Zaneen – 1 5/16″3 1/2″ x 2 11/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0010- Diversi 33 Zoom - Floodlight - ∅33mm / 1 5/16" - 2W LED - 2700K / 3000K / 4000K - IP66 - CRI: <90 - Optics: Zoom 6° - 52° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Terra by Zaneen – 2 1/16″ x 3 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0010- Terra 52 - Drive Over - In-Ground - ∅52mm / 2 1/16" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optic 10° / 23° / 43° / 10°x40° - Stainless Steel - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C

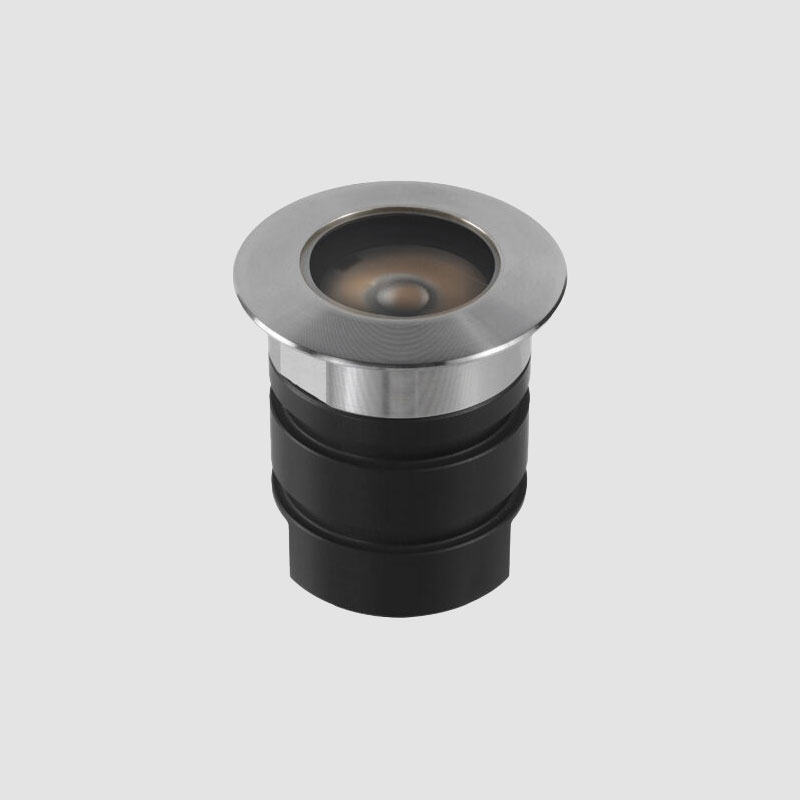

Terra by Zaneen – 1″ x 2 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0089- Caliber 35 - Drive-over - In-ground - ∅35mm / 1 3/8" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 20° / 41° / 10° x 45° / Satin - Stainless Steel AISI316L - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Rectangle Step by Zaneen – 1 5/16″ x 3 1/16″ Recessed, Step Light offers high performance and quality material | Zaneen Exterior E12R0012- Rectangle Step - Recessed Wall - 2W LED - 2700K / 3000K - IP65 - CRI: <90 - Optics : Asymmetric - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1

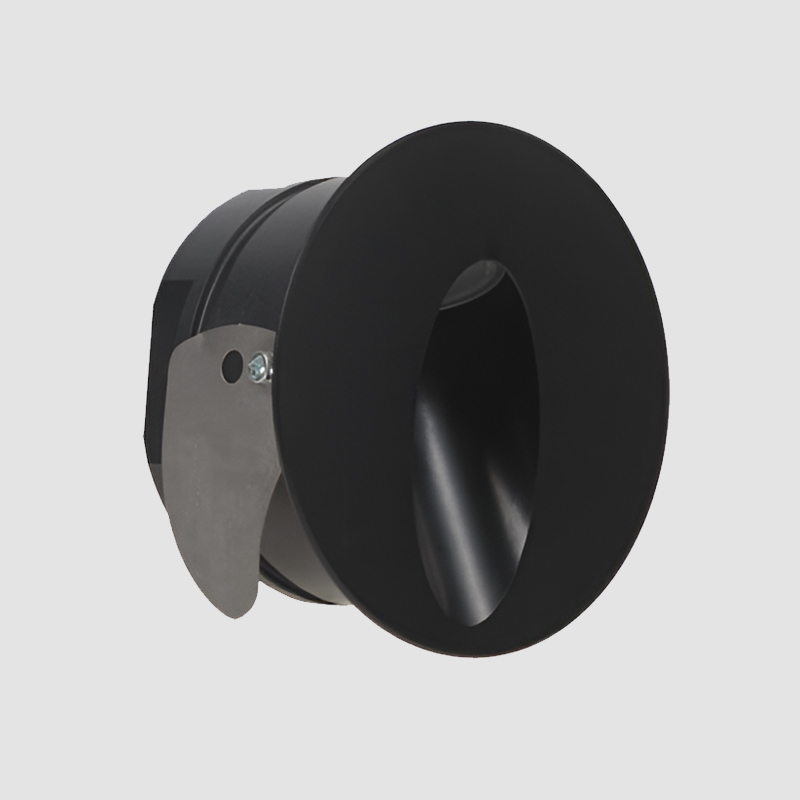

Round Step by Zaneen – 2 9/16″ Recessed, Step Light offers high performance and quality material | Zaneen Exterior E12R0015- Round Step - Recessed Wall - 2W LED - 200K / 2700K / 3000K / 4000K - IP65 - CRI: <90 - Optics : Asymmetric - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1

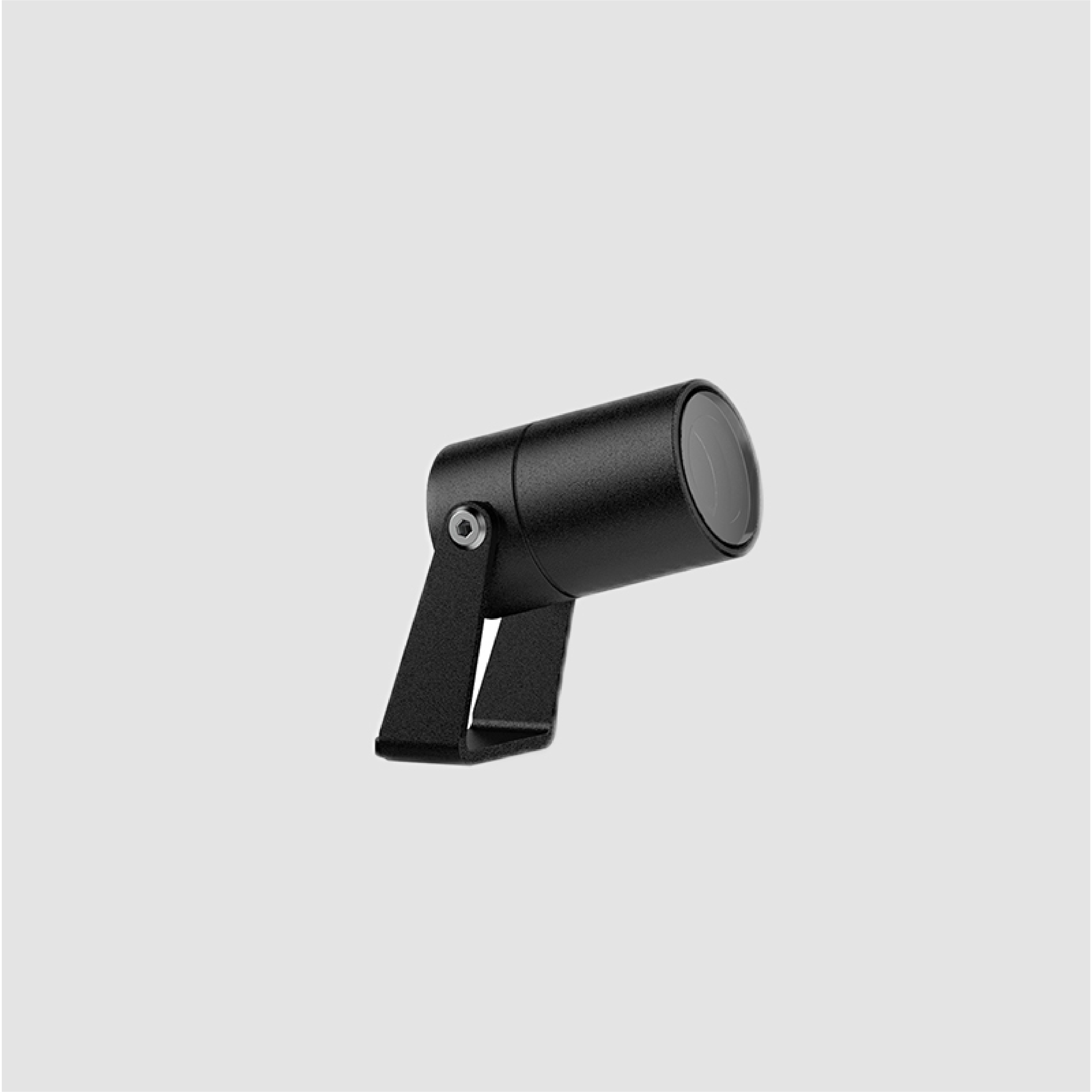

Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F426- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24V DC

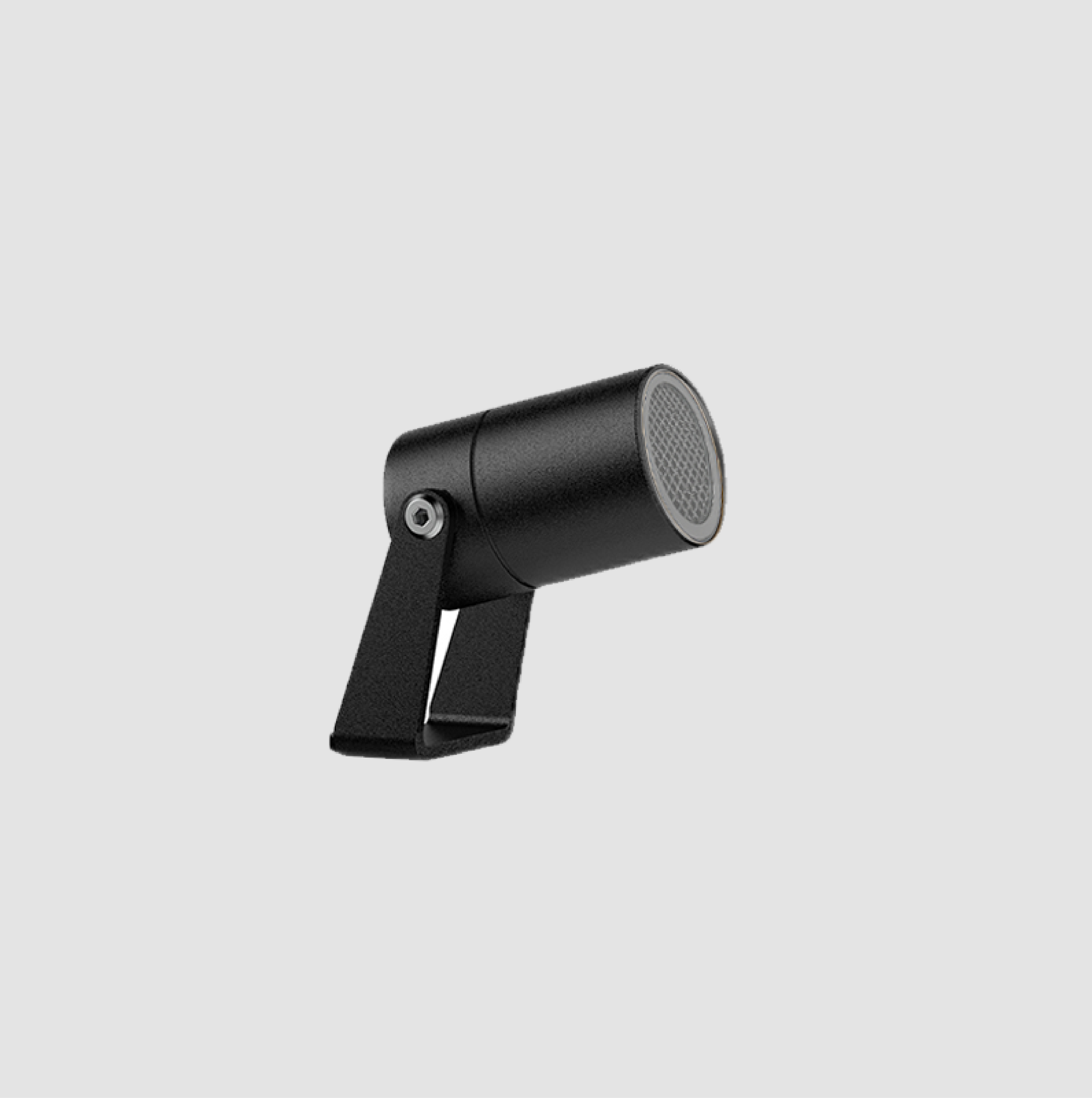

Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F426-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Fliter

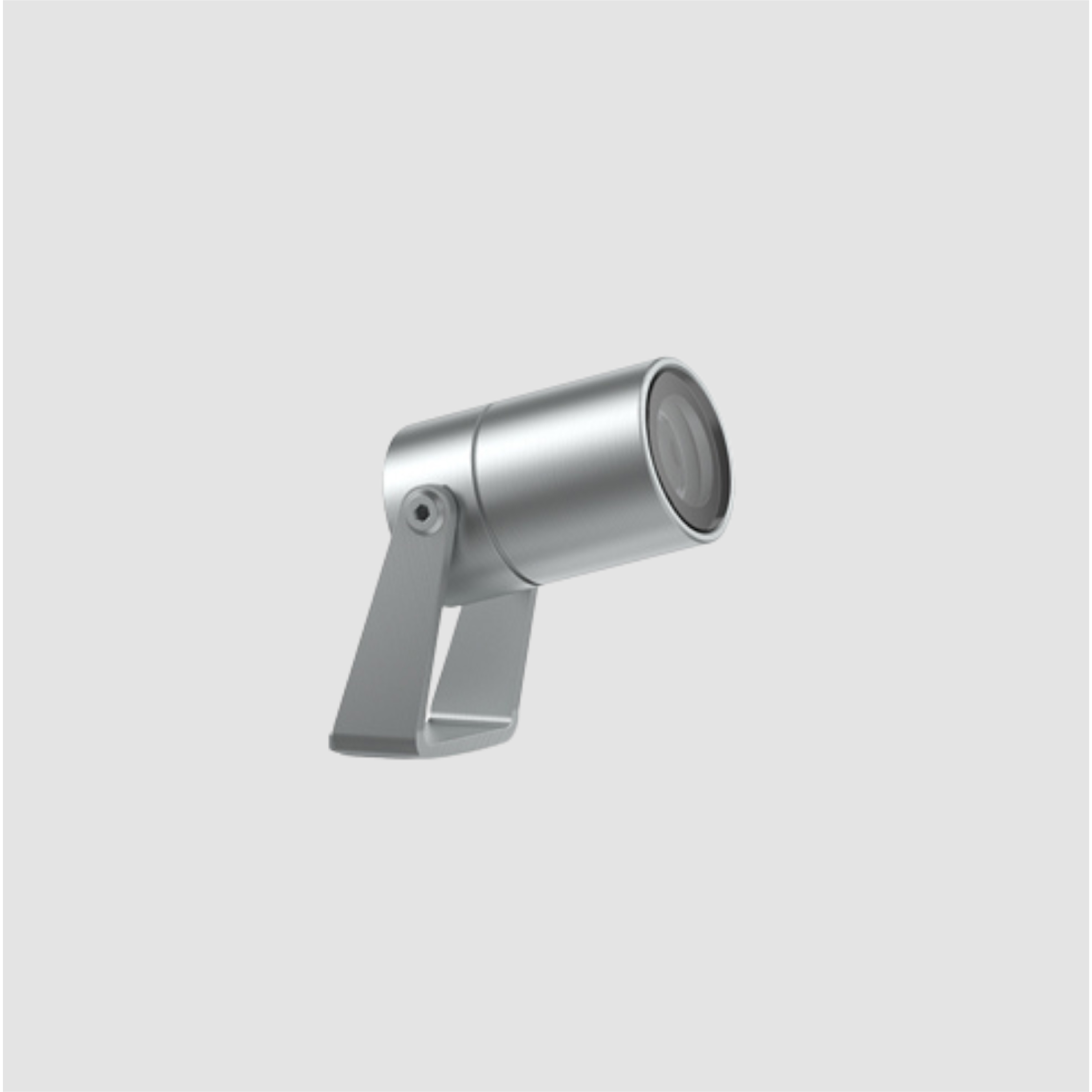

Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F427- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Stainless Steel

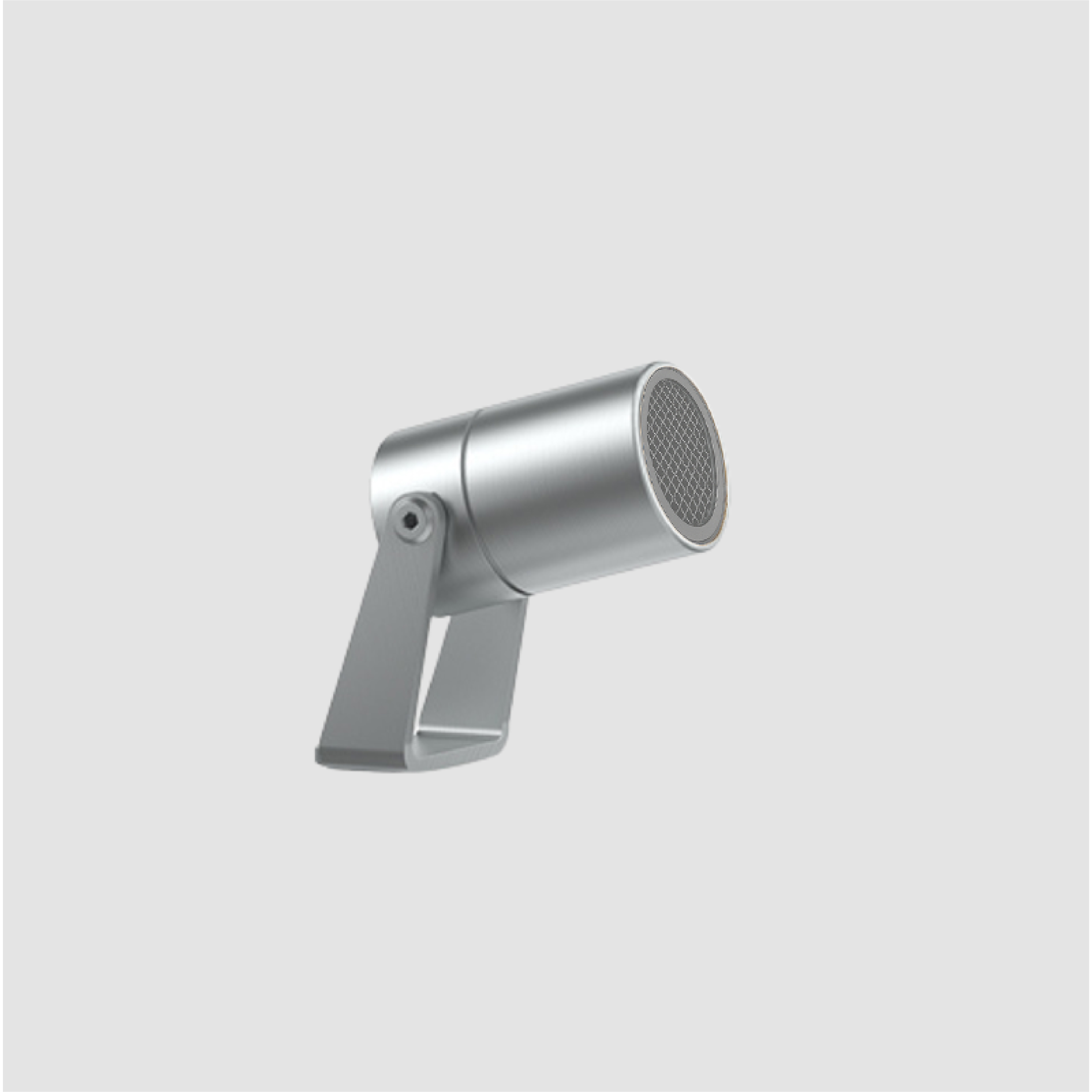

Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F427-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Stainless Steel
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F428- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Surfshield
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F428-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Surfshield

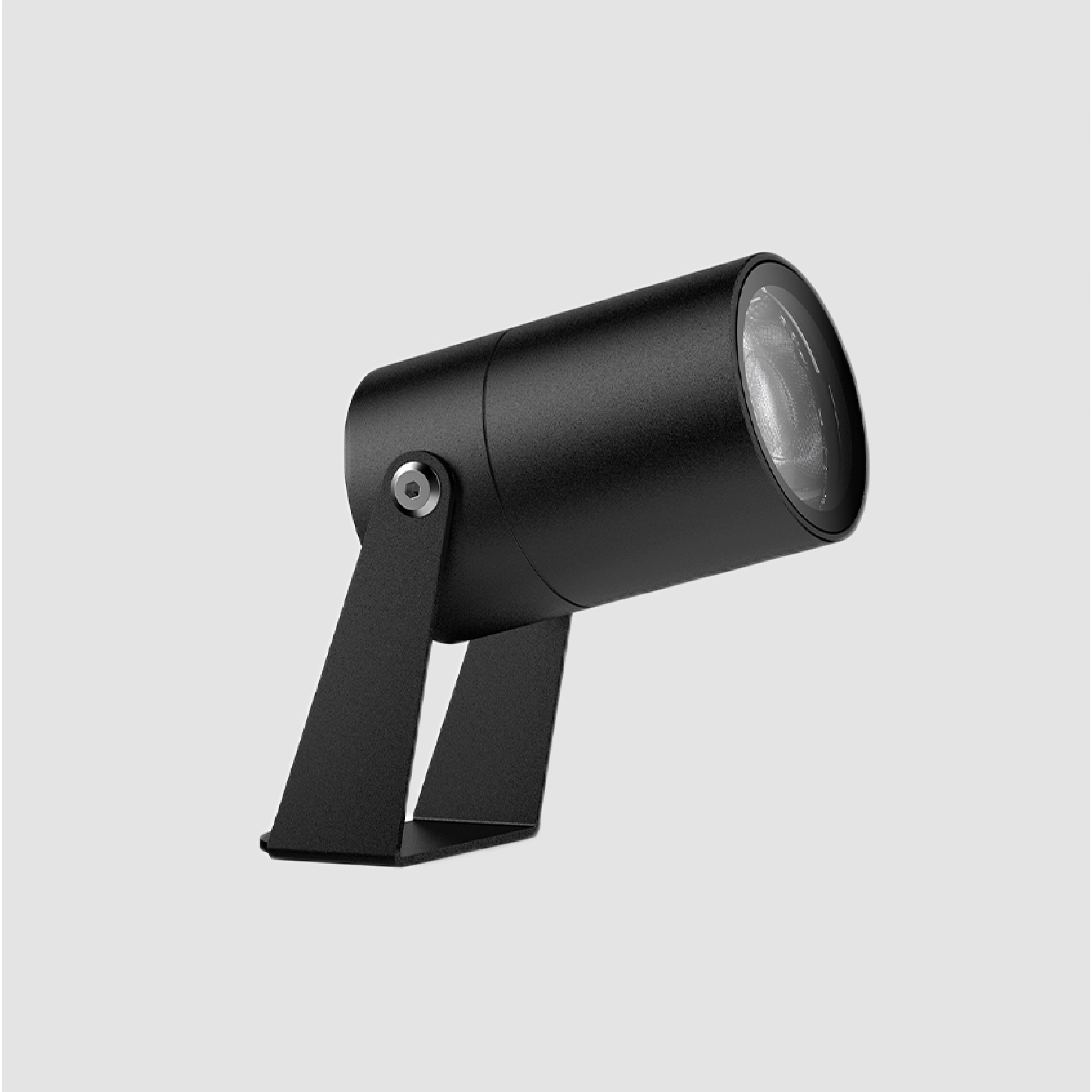

Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F432- Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc,

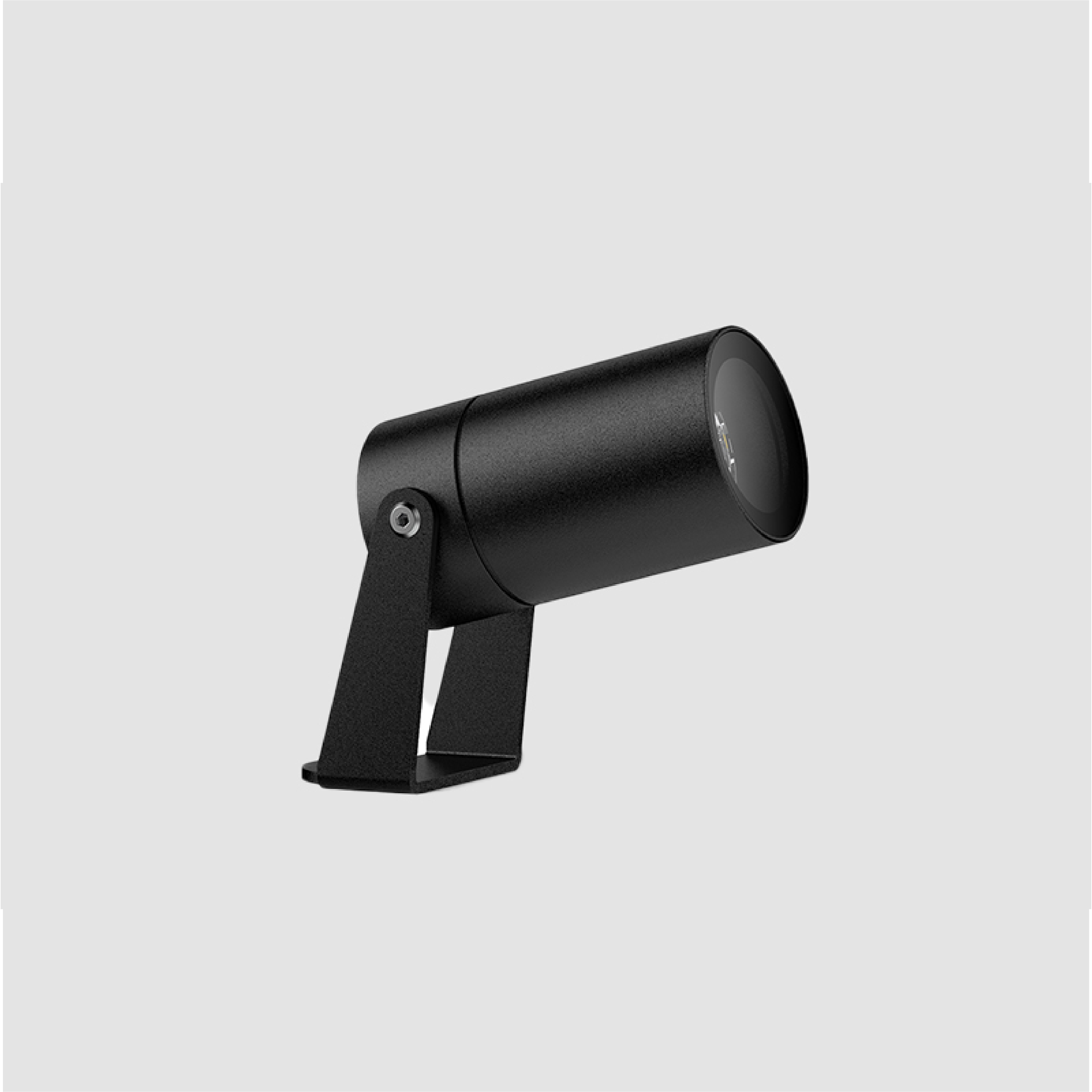

Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F435- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc,

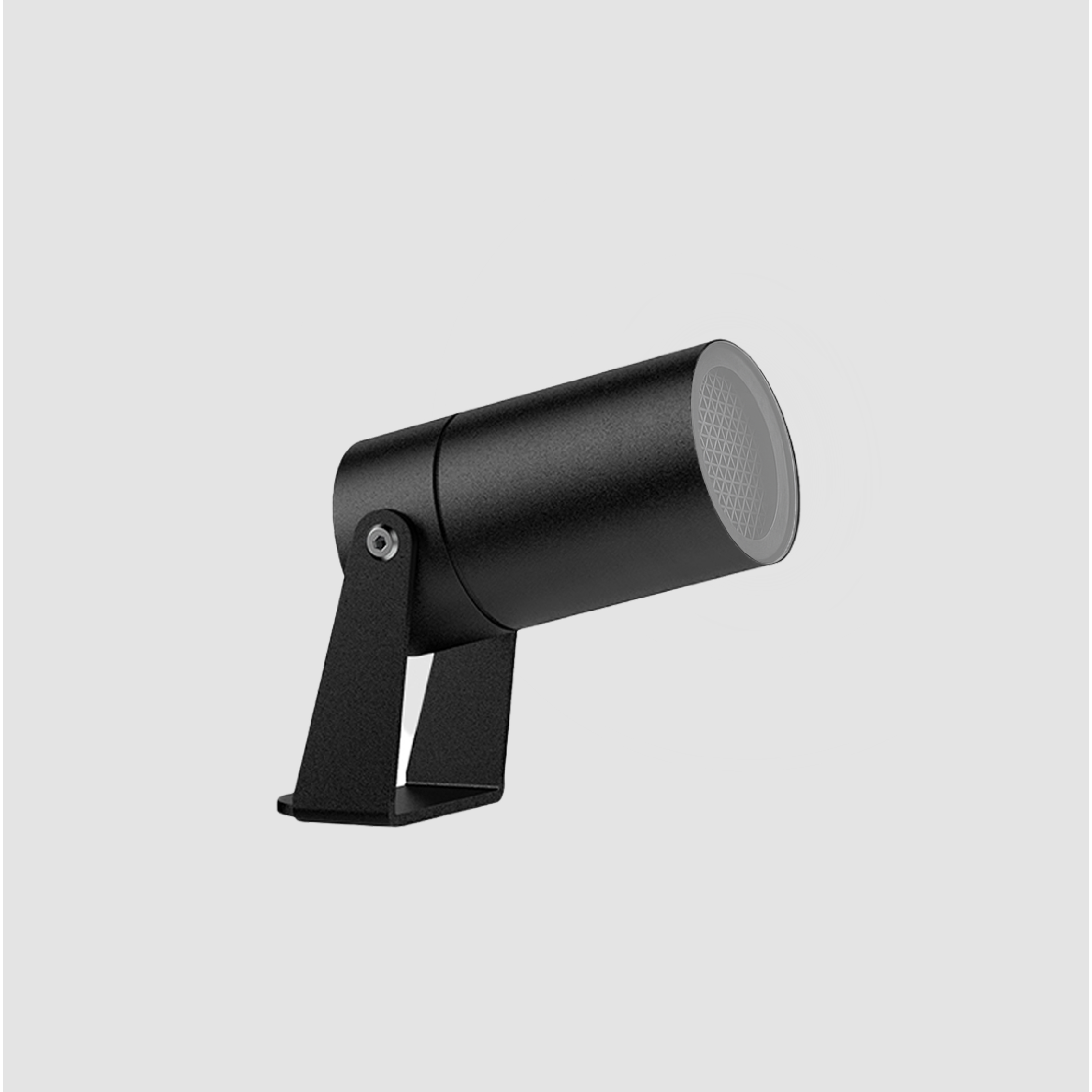

Raygun by Platek – 1 15/16″3 3/4″ x 3 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F435-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter

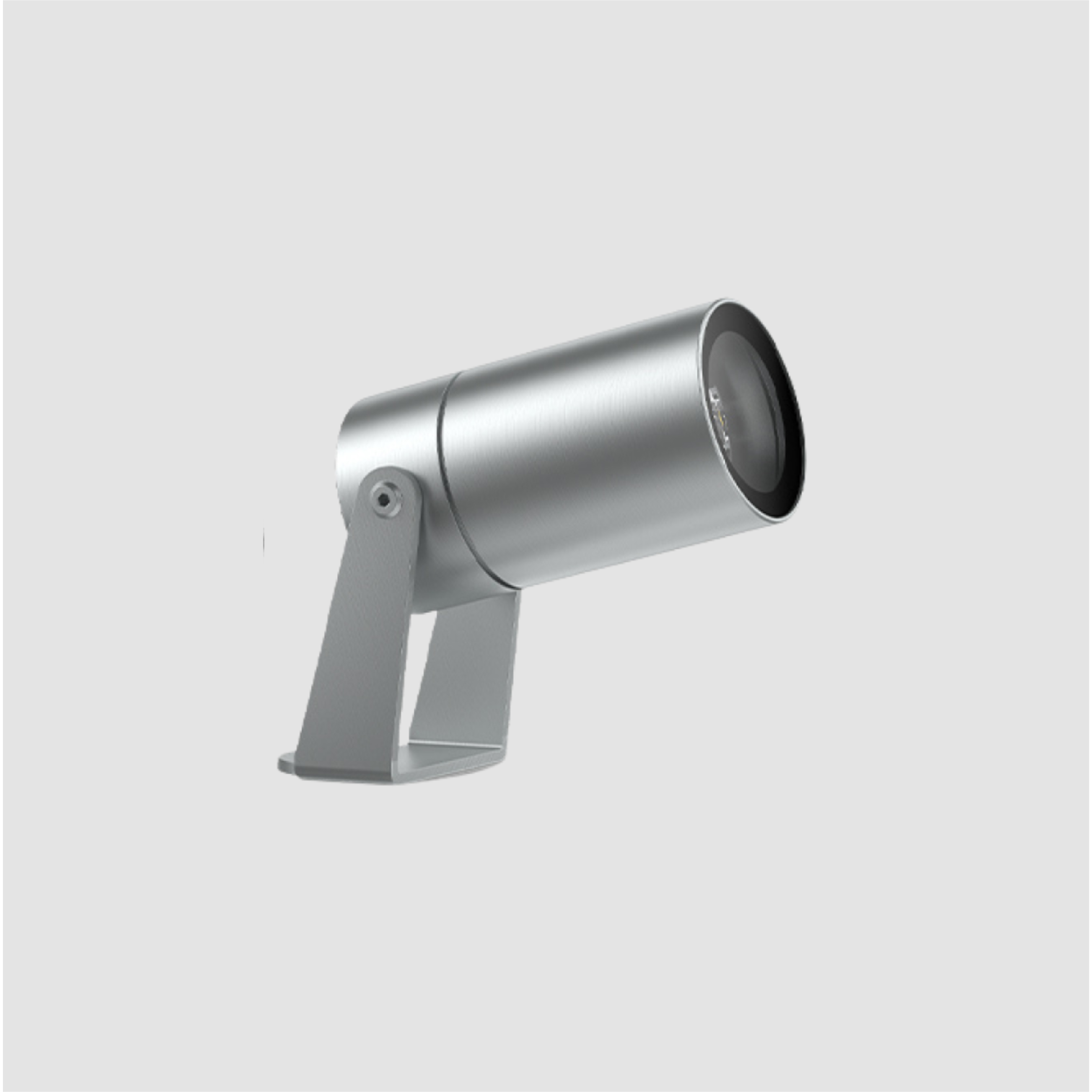

Raygun by Platek – 1 15/16″3 3/4″ x 3 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F436- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Stainless Steel

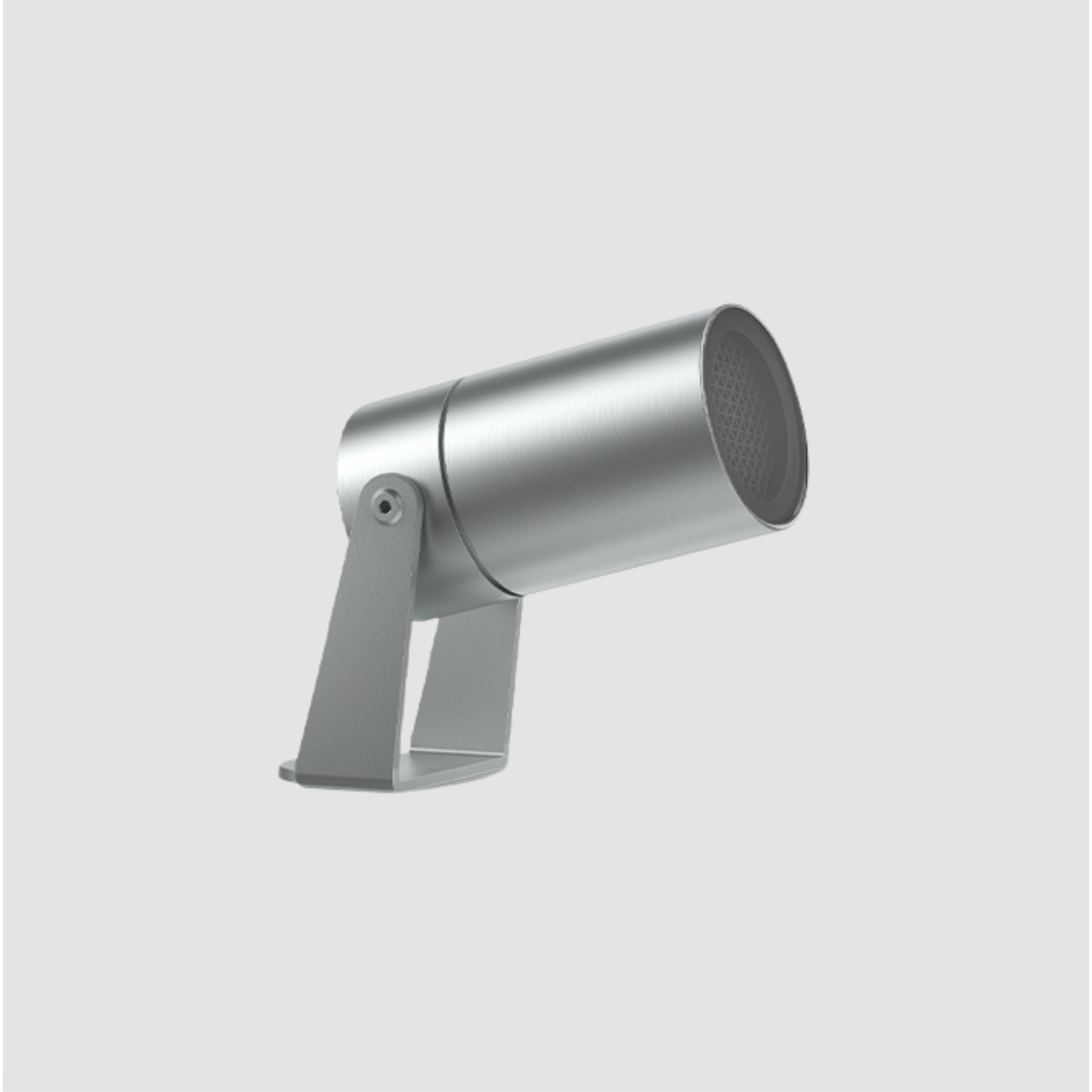

Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F436-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Stainless Steel

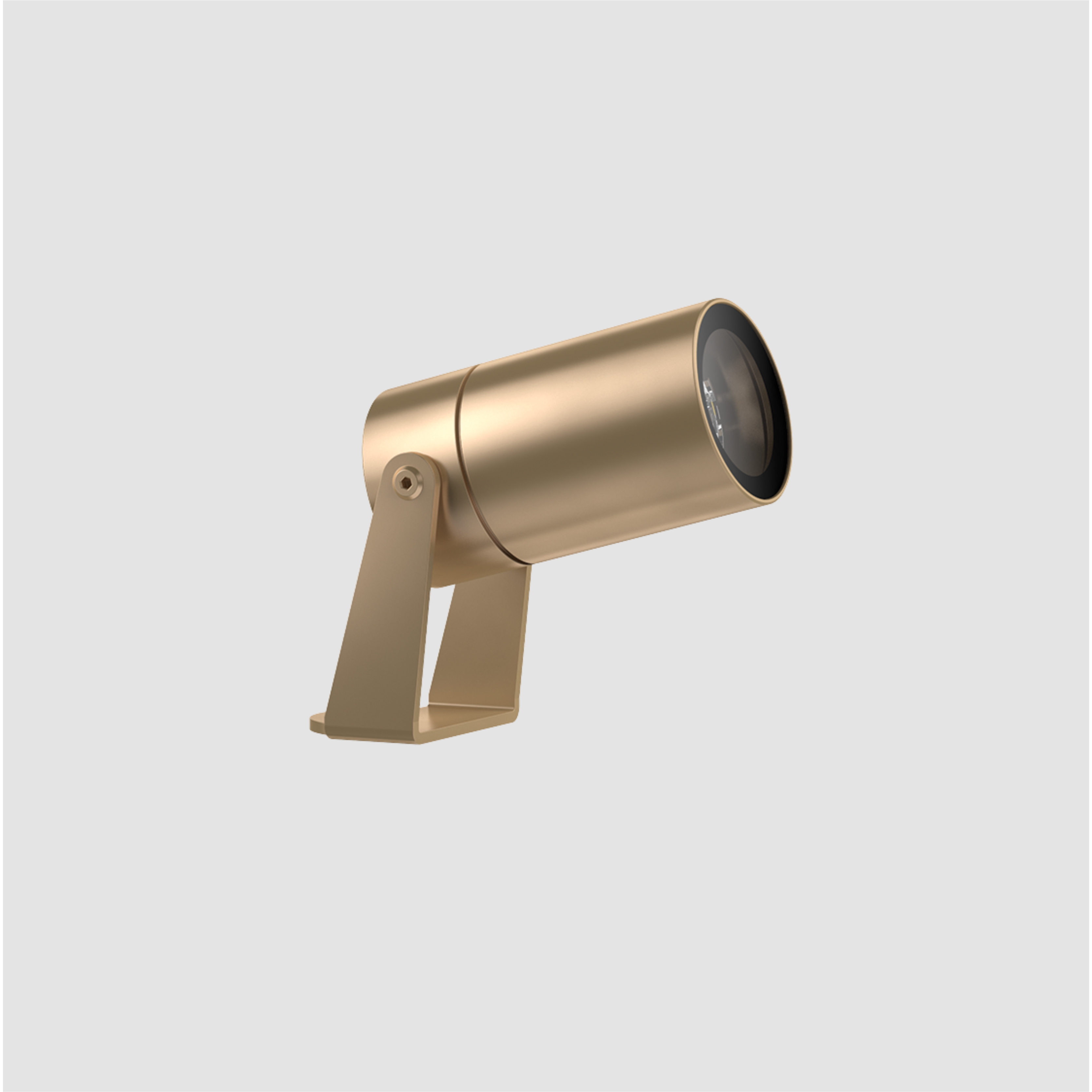

Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F437- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Surfshield
