Series: Ti
Partner: Icone
Icone products
Division: Design
Design products
Installation: Surface
Surface products
Product Type: Wall Surface
Wall Surface products
Mounting Location: Wall
Wall products
Light Distribution: Indirect
Indirect products



Physical

Shape: Rectangle
Length (mm): 200
Length (in): 7 7⁄8
Width (mm): 10
Width (in): 3/8
Height (mm): 100
Height (in): 3 15⁄16
Extension (mm): 100
Extension (in): 3 15⁄16
Fixture Finish: WHI / BLK
see color chart below
Fixture Material: Extruded Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 10, 20
Total Output Wattage (W): 8.5, 17
Dimming: Electronic Low Voltage Dimming
Input Voltage (V): 120Vac Direct Line



LED

Number of LEDs: 4
Color Temperature (°K): 2700 / 3000
Nominal Lumen (lm): 700, 1400
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Ti 2 matching products New Series

Ti by Icone – 7 7/8″ x 3 15/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43070- Ti - Wall Lamp T-shaped 200mm x 100mm, 10W, 2700K/3000K, 700lm, CRI:90
New
Ti by Icone – 7 7/8″ x 3 15/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43071- Ti - Wall Lamp T-shaped 200mm x 100mm, 20W, 2700K/3000K, 700lm, CRI:90
New

Series Description

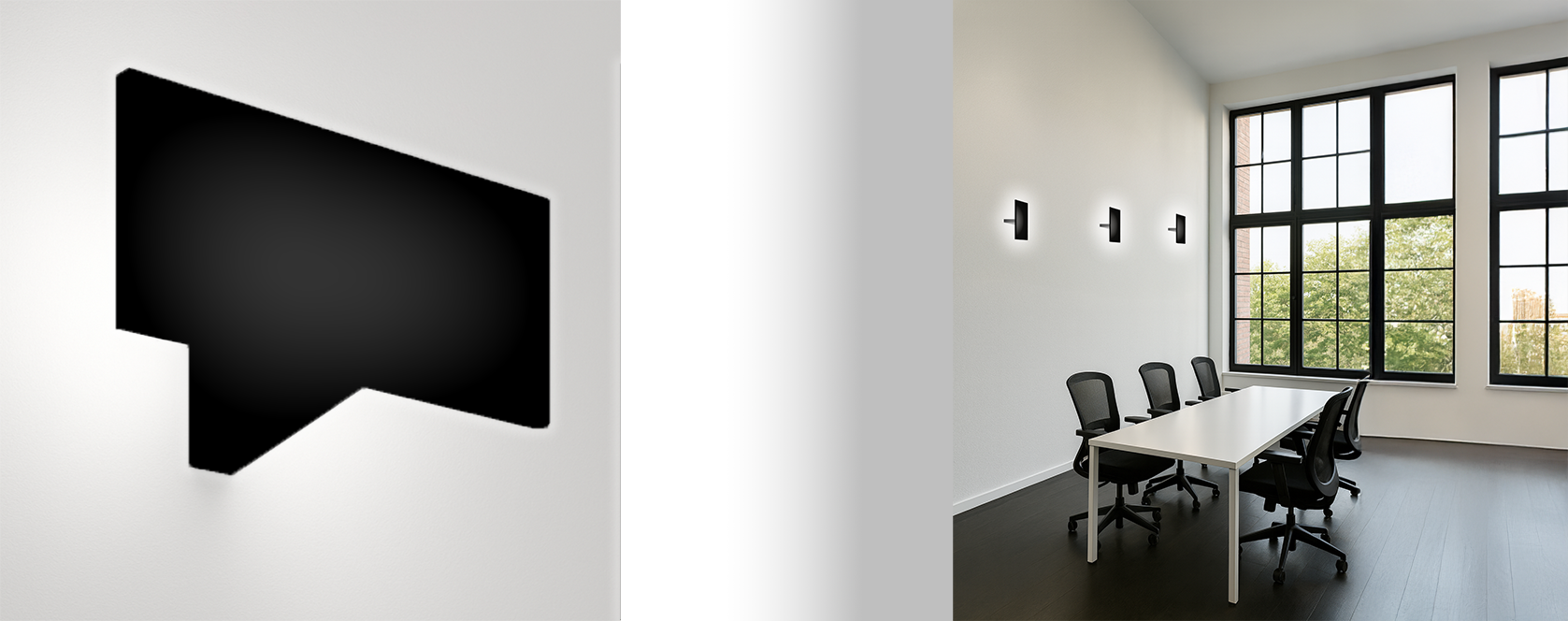

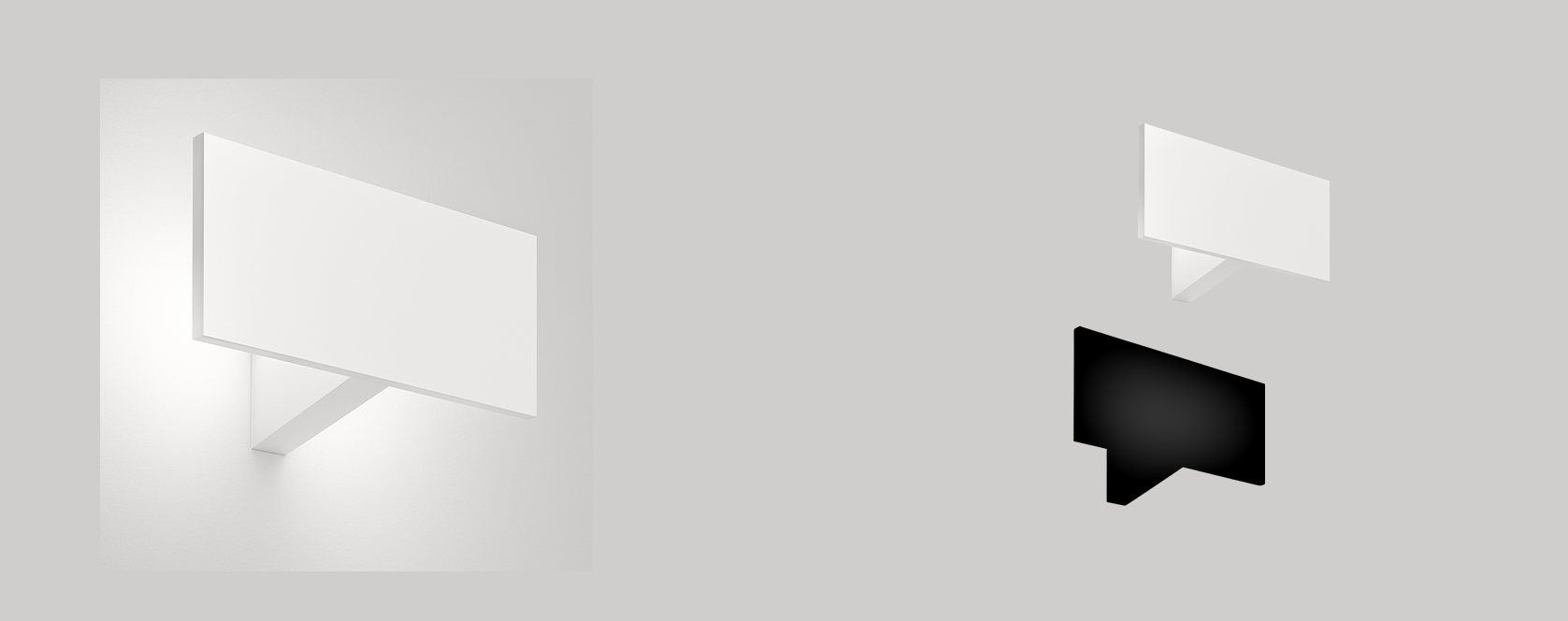

Ti is a modern and versatile lighting solution designed to elevate any space. Shaped like a "T" and crafted from high-quality extruded aluminum, this wall lamp offers a sleek and minimalist aesthetic that seamlessly integrates with contemporary interiors. Its adaptable design allows for both vertical and horizontal mounting, giving you the flexibility to create unique lighting arrangements that suit your specific needs.

Manufactured in Italy, by Icone.

Downloads

General Datasheet

Finishes/Color

Warranty



Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
