General

Series: Never Ending

Subseries: Never Ending System

Brand: Prolicht
Prolicht products

Division: Architectural
Architectural products

Mounting Type: Surface
Surface products

Mounting Location: Wall
Wall products

Subcategory: Profile
Profile products



Physical

Length (mm): Custom length

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / GUM / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below

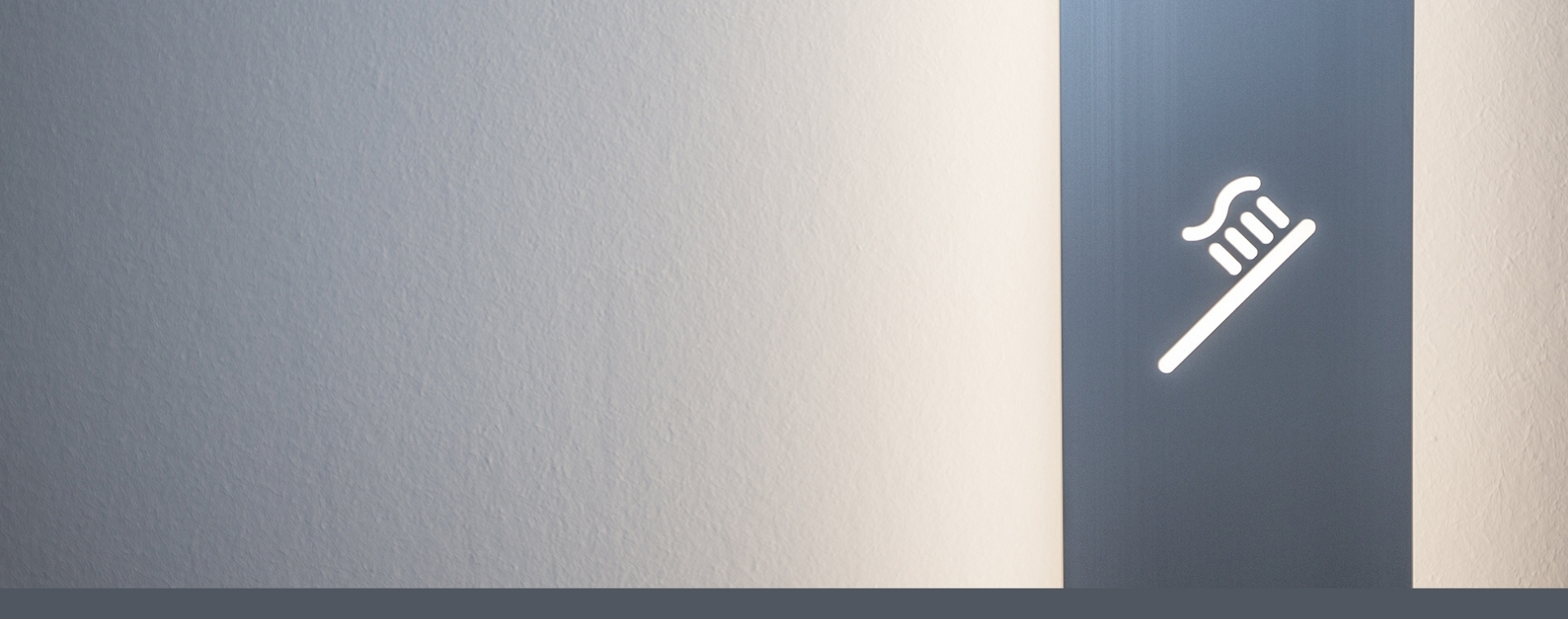

Upon Request: Engraving Letters & Signs



Electrical

Lamp Type: LED (Zhaga Standard)

Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - 120 / 277Vac

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 350 / 125 / 350



LED

Lamp Life (hrs): 50000

Upon Request: Color Temperature RGB-W Tunable CRI (no minimum qty) price increase + longer lead time



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20





Base Model Number: A3NE-SUR-SYS

Description

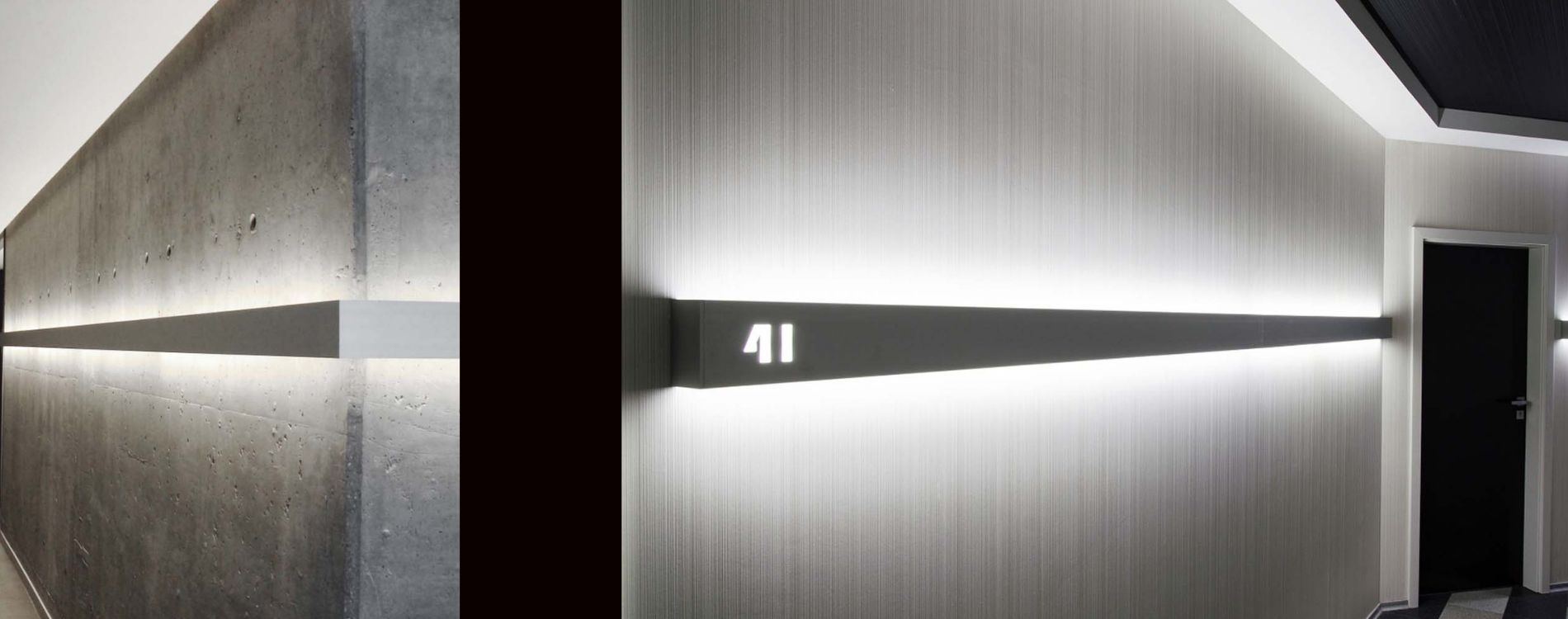

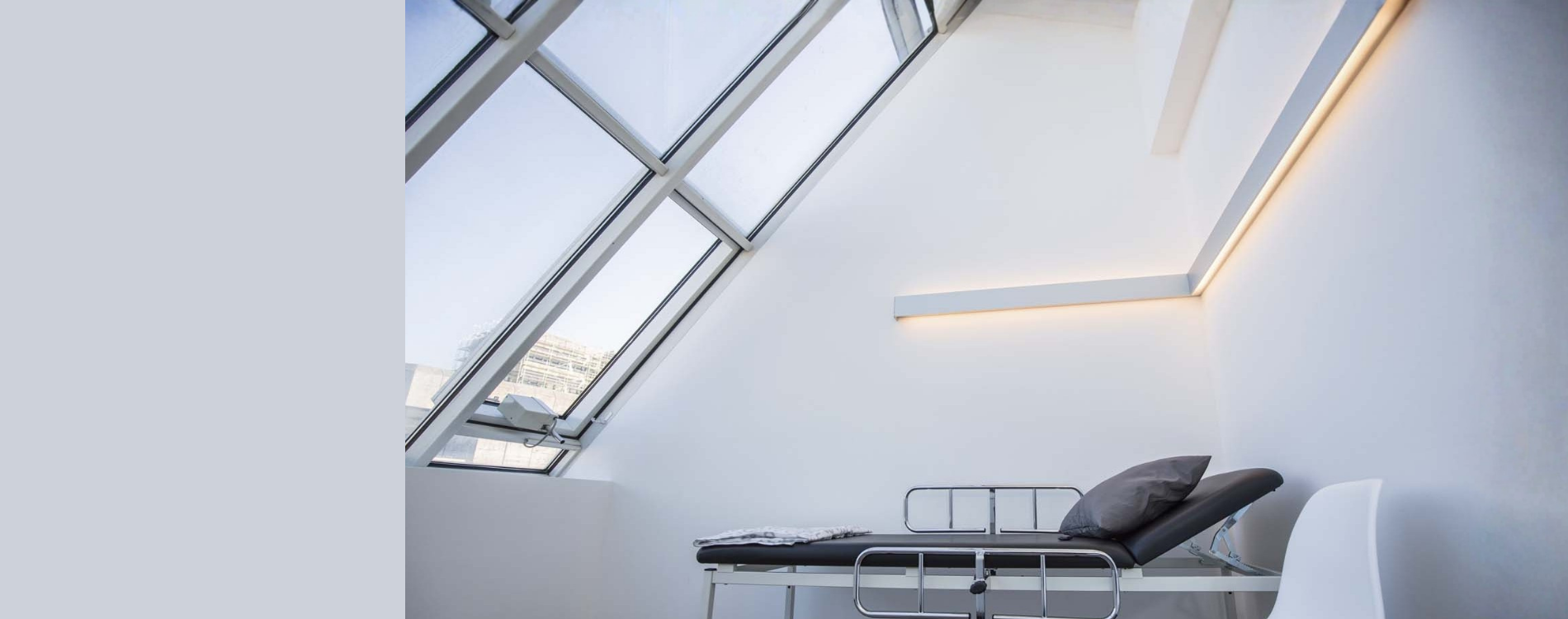

Never Ending is an ADA compliant profile designed as a continuous expandable system for wall installation and can be extended almost without limits. The laser cut lap joint made to connect two or more lengths are designed to ensure no light leakage. The product is sleek and valuable in size, 110mm in height, 65mm depth and a range of standard length sizes or a freely configurable runs. The minimalist elegant design of these lights place the lighting effect in the foreground. Like a glowing rail, Never Ending runs along the wall and emphasizes the geometry of the room. These lights are perfect for rooms where ceiling installations aren't possible, either due to low ceilings or the absence of electricity connections.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
Never Ending by Prolicht – 39 3/8″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33000- Neverending - Surface Wall Profile per Meter - Max 3000mm / 118 1/8"
Never Ending by Prolicht – 44 7/8″ x 2 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A38281- LED (Zhaga Standard) Light Insert - 1140mm / 44 7/8" - 20.2W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >90
Never Ending by Prolicht – 55 7/8″ x 2 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A38285- Neverending System - Insert - 1420mm / 55-7/8" - 25.3W LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 66 15/16″ x 2 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A38289- Neverending System - Insert - 1700mm - 30.4W LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 77 15/16″ x 2 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A38293- Neverending System - Insert - 1980mm - 35.4W LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 89 3/8″ x 2 3/10″ ,  offers LED lighting solutions | Zaneen Architectural A38297- Neverending System - Insert - 2270mm / 89-3/8" - 40.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 4 5/16″ x 2 9/16″ ,  offers LED lighting solutions | Zaneen Architectural A38990- Neverending - System - End Cap
Never Ending by Prolicht – 5 1/8″ x 4 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A39128- Neverending - Exterior 90° Angle
Never Ending by Prolicht – 5 1/8″ x 4 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A39129- Neverending - Exterior Any Required Angle (45°-180°)
Never Ending by Prolicht – 5 1/8″ x 4 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A39130- Neverending - Interior 90° Angle
Never Ending by Prolicht – 5 1/8″ x 4 5/16″ ,  offers LED lighting solutions | Zaneen Architectural A39131- Neverending - Interior Any Required Angle (45°-180°)
Never Ending by Prolicht –  ,  offers LED lighting solutions | Zaneen Architectural A3913200 Never Ending System - Identity Milling Per Character

Also Available within Series

Never Ending by Prolicht – 35 7/16″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33281- Neverending - Surface - 900mm / 35 7/16" - 15W / 11.1W [O/P] (3500K) LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 46 7/16″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33282- Neverending - Surface - 1180mm / 46 7/16" - 20W / 14.8W [O/P] (3500K) LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 57 1/2″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33283- Neverending - Surface - 1460mm / 57 1/2" - 25W / 18.5W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 68 1/2″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33284- Neverending - Surface - 1740mm / 68 1/2" - 33W / 22.2W [O/P] (3500K) LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – 79 1/2″ x 4 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A33285- Neverending - Surface - 2020mm / 79 1/2"- 28W / 25.9W [O/P] (3500K) LED (Zhaga Standard) - 3000K / 3500K / 4000K
Never Ending by Prolicht – Custom length″ Surface, Profile offers LED lighting solutions | Zaneen Architectural A3NE-SUR-SYS Never Ending Profile System

Downloads

Never Ending by Prolicht – Custom length″ Surface, Profile offers LED lighting solutions | Zaneen Architectural

Wall
Included or excluded LED driver/transformer/ control gear
Dimmable
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart GUM - Gun Metal CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze	MOS - Moonlight Silver ROR - Rosewood Red
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
