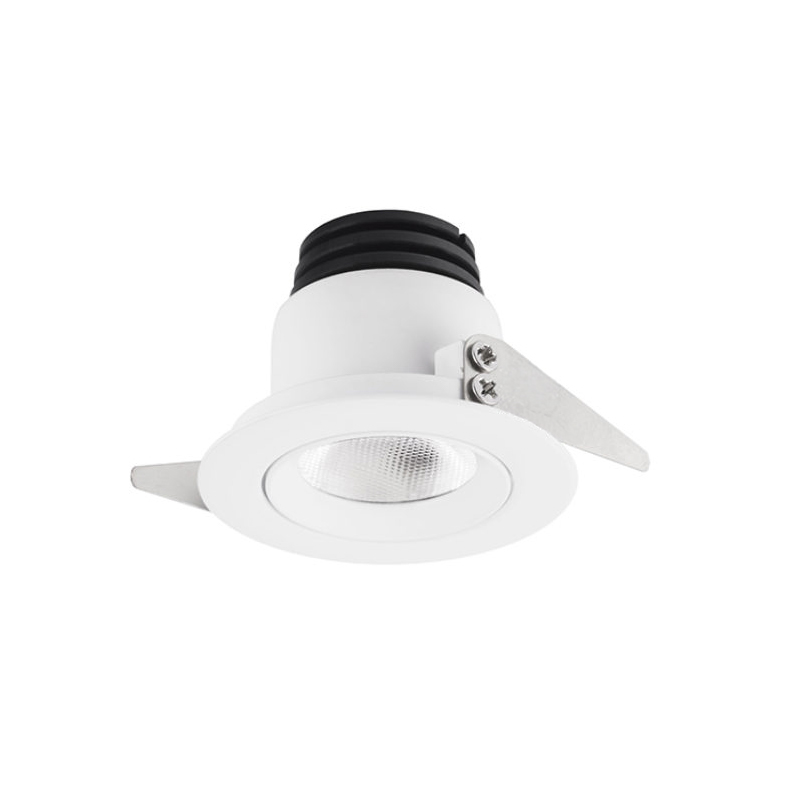

Discreto D - Recessed - Ceiling - 41mm / 1 5/8"- 2.48W LED - 2200K / 2700K / 3000K / 4000K - Optics 10 / 23° / 43° / 70° / 10x40° - Minimum quantities required for some dimming drivers - Binning free 2 step MacAdam's - Working temperature (-)20°C +45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 50°C – Zaneen

General

Reset
Series: Discreto
Subseries: Discreto D
Partner: Zaneen
Zaneen products
Division: Architectural
Architectural products
Installation: Recessed
Recessed products
Product Type: Downlight
Downlight products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Round
Diameter (mm): 41
Diameter (in): 1 5⁄8
Height (mm): 40
Height (in): 1 9⁄16
Weight (kg): 0.04
Weight (lbs): 0.09
Diffuser: Extra clear tempered glass
Fixture Finish: WHI / BLK
see color chart below
Fixture Material: Aluminum
Cable Details: 200mm cable 2x0.5 mm2
Upon Request: Finishes: Natural Anodized Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 2.48
Total Output Wattage (W): 1.49
Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - 120 / 277Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 500



LED

Number of LEDs: 1
Color Temperature (°K): 2200 / 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 127
CRI: >90 CRI
Lamp Life (hrs): 100000



Optical

Optic°: 10 / 23 / 43 / 70 / 10x40



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP40
Bug Rating: B0 U0 G0





Base Model Number: A1250001-

Specify

Description

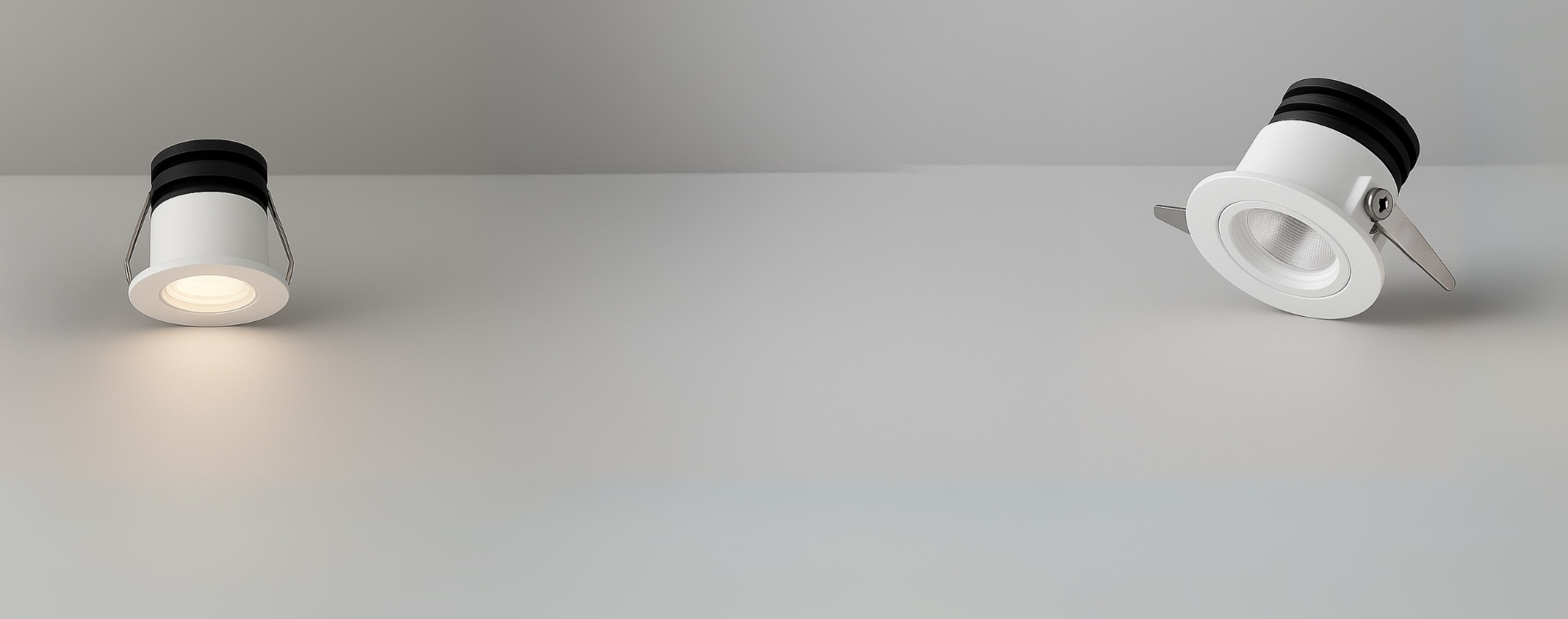

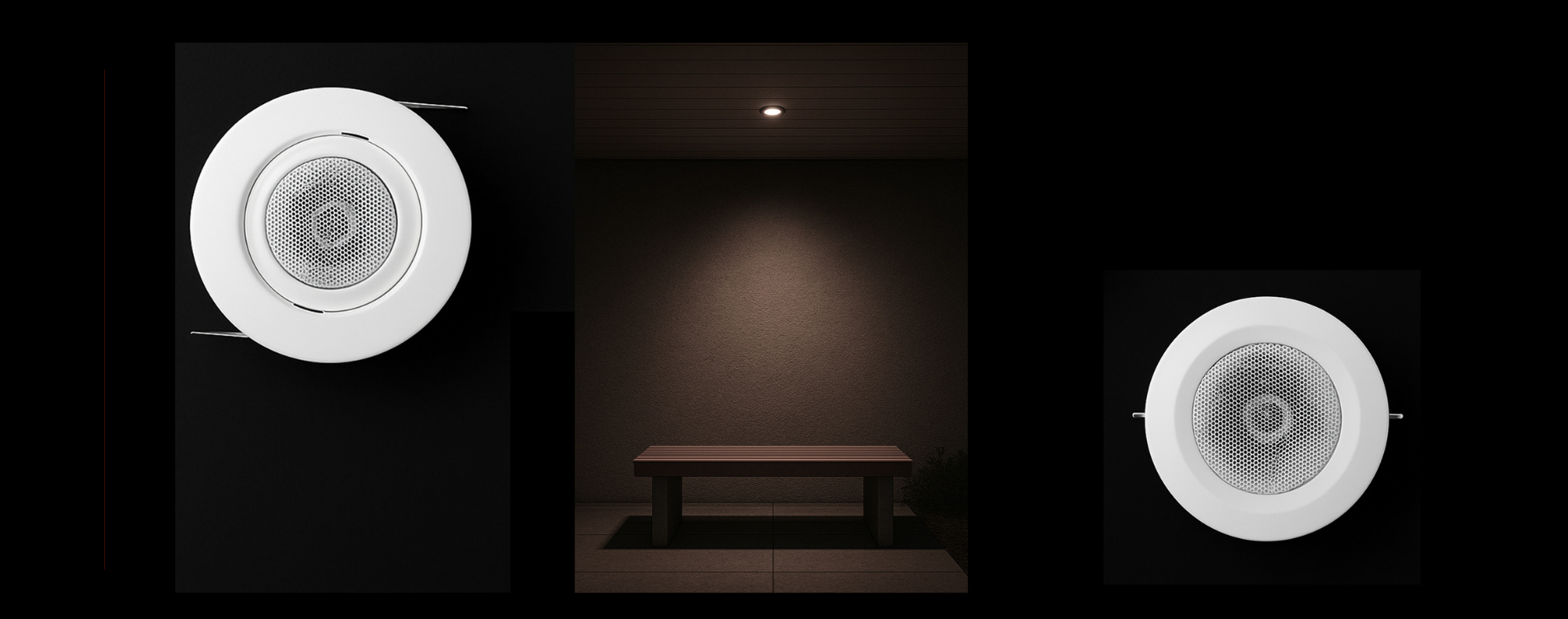

Discreto is a series of miniature recessed directional LED downlight luminaires designed for high-performance, discrete accent lighting from a compact source. Ideal for illuminating niches, under cabinets, under shelves, or for accent downlighting. Both subseries feature optional rotatable anti-glare snoots to conceal the light source from any viewing angle.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0060500GS G.E. Lightech - GELD6DMV500SL - Non-dimming - 6W - 500mA - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0060500ES ERP - ESS010W-0500-12 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 6W - 500mA - 120 / 277Vac - LED power supply - Used with ENCP3 - Used with IP68 - Outdoor Rated - ENCP20, ENCP22
DTM0090500ES ERP - ESS010W-0500-18 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 9W - 500mA - 120 / 277Vac - LED power supply
DTM0160500ES ERP - ESS020W-0500-32 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 16W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0210500ES ERP - ESS030W-0500-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 21W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
ENCP2 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 3 5/8″ x 1 9/16″ , offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 7 1/2″ x 2 1/8″ , offers LED lighting solutions | Zaneen Architectural ENCP5 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
Discreto by Unonovesette – , offers LED lighting solutions | Zaneen Architectural A1290000- Nilo - Snoot

Also Available within Series

Discreto by Zaneen – 1 1/4″ x 1 9/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A1250000- Discreto - Recessed - Ceiling - 32mm / 1 1/4" - 2.48W LED - 2200K / 2700K / 3000K / 4000K - Optics 10 / 23° / 43° / 70° / 10x40° - Minimum quantities required for some dimming drivers - Binning free 2 Step MacAdam's - Working Temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 50°C
Discreto by Zaneen – 1 5/8″ x 1 9/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A1250001- Discreto D - Recessed - Ceiling - 41mm / 1 5/8"- 2.48W LED - 2200K / 2700K / 3000K / 4000K - Optics 10 / 23° / 43° / 70° / 10x40° - Minimum quantities required for some dimming drivers - Binning free 2 step MacAdam's - Working temperature (-)20°C +45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 50°C

Downloads

Request Files

Discreto by Zaneen – 1 5/8″ x 1 9/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Discreto by Zaneen – 1 5/8″ x 1 9/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Ceiling
Lens

10 / 23 / 43 / 70 / 10x40
Dimmable
Color rendering index

>90 CRI
Color temperature

2200 / 2700 / 3000 / 4000
Lumen (luminous flux)

127
Certified for North American Standards
Protected against ingress of solid bodies greater than 1mm (wire); no protection against the ingress of moisture


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
