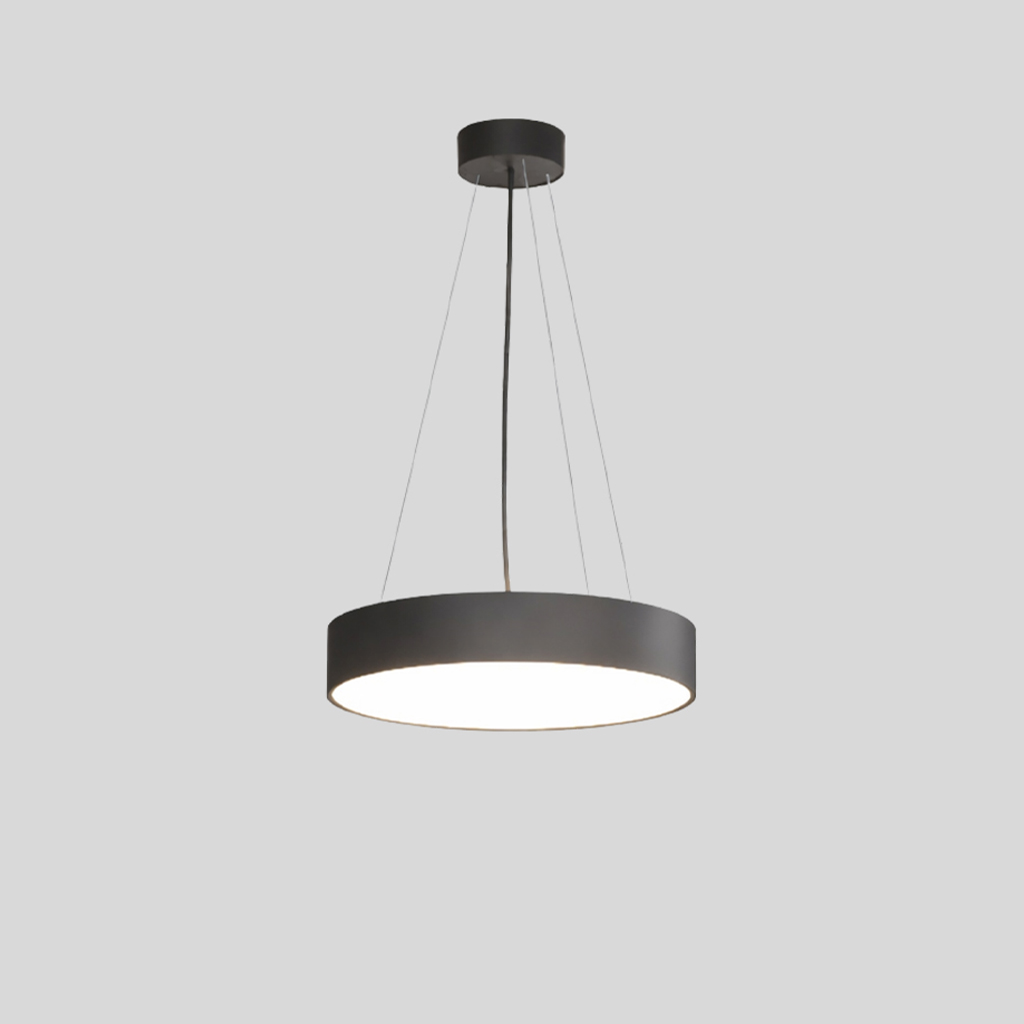

Sign EVO - Suspension - 395mm/15 1/2" - 26.5W LED, 2700K / 3000K / 3500K / 4000K, Max 4071 lm, CRI 90 , Dimmable – Zaneen

General

Reset
Series: Sign EVO
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Round

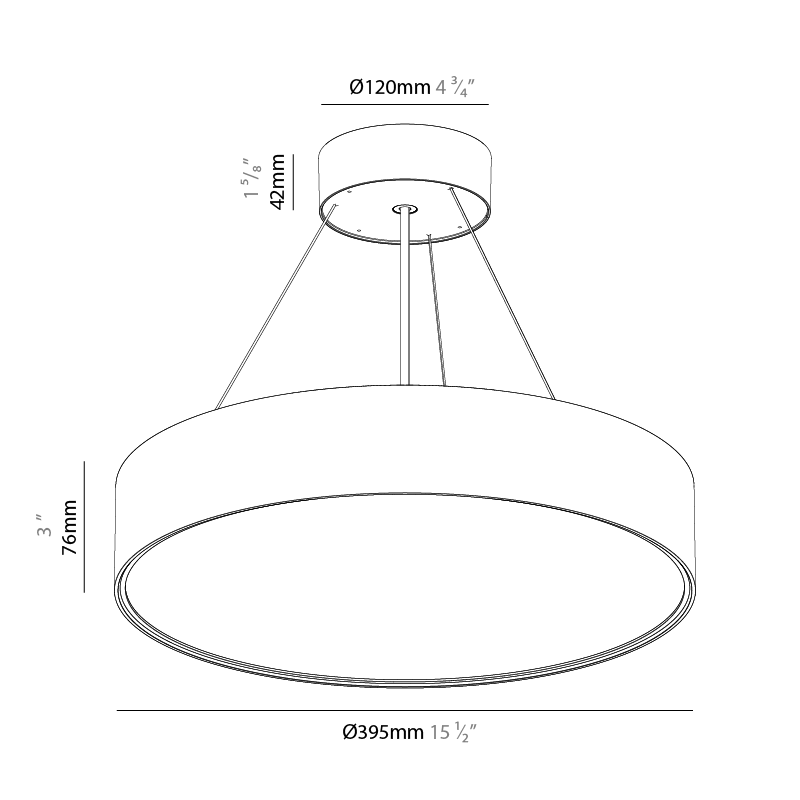

Diameter (mm): 395
Diameter (in): 15 1⁄2
Height (mm): 82
Height (in): 3 1⁄4
Weight (kg): 4.2
Diffuser: PMMA - Opal / Microprism / Clear Microprism
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: PMMA / Extruded Aluminum / Steel
Cable Details: 2000mm or 6000mm Transparent Cable



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 26.5
Total Output Wattage (W): 22.7
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Integral
Driver Class: Class 2
Input Voltage (V): 120
Constant Current (MA): 700mA
Upon Request: DALI Dimming / MATTER Dimming



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): Max 4071
Nominal Lumen (lm): Max 4704
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP40





Base Model Number: A3001099- New

Specify

Description

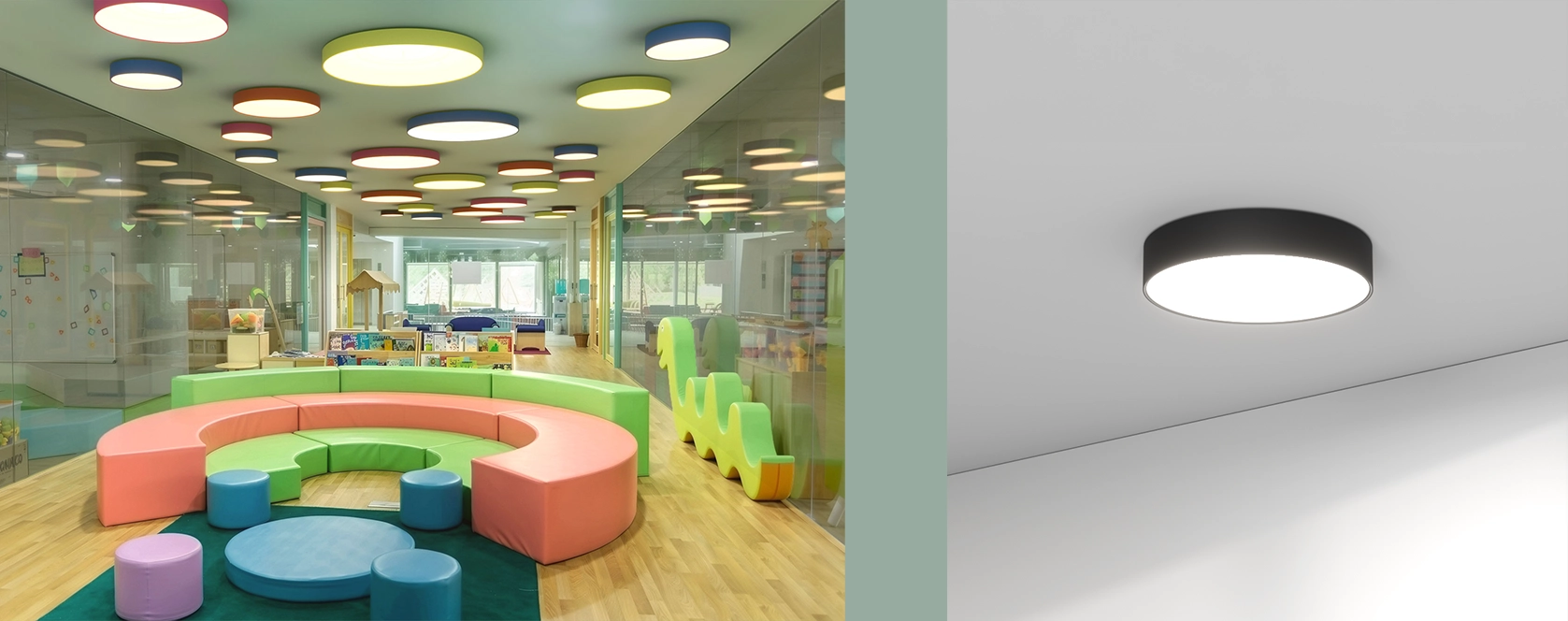

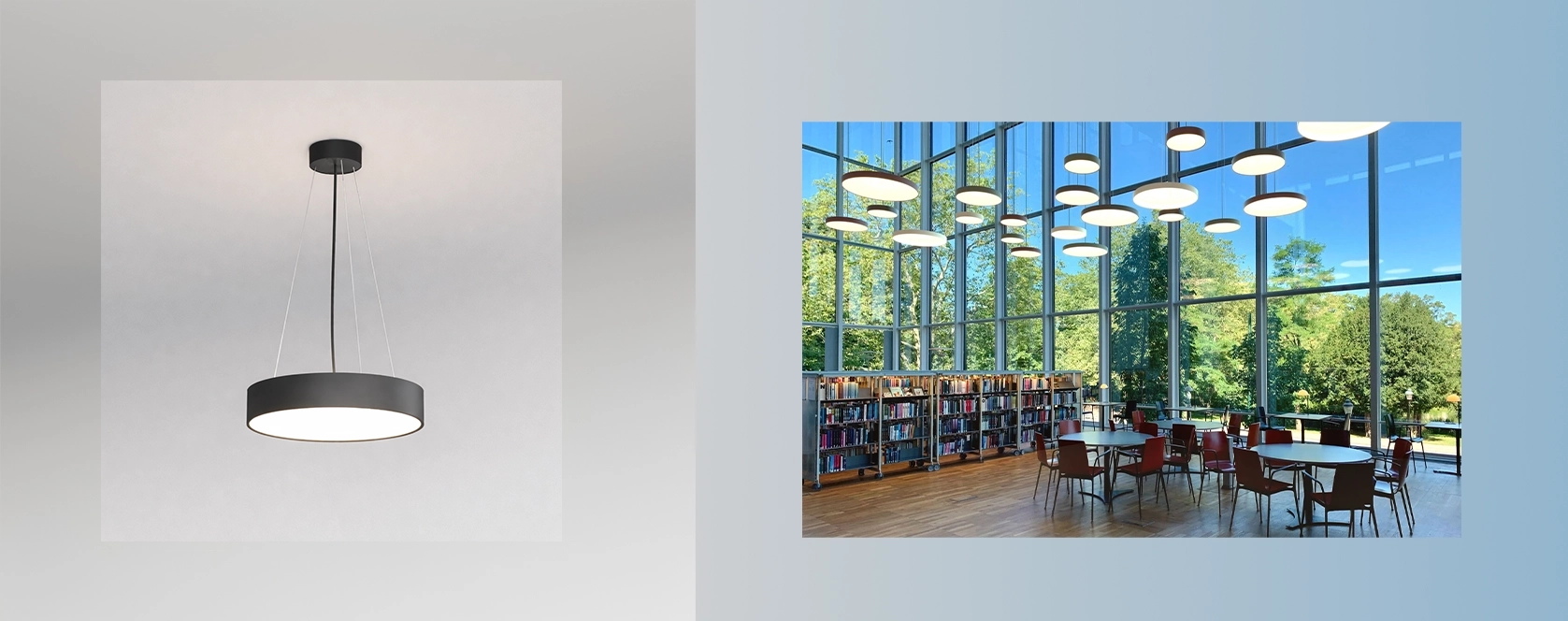

Sign EVO stands out for its clean, puristic design and perfectly round geometry, free of visible screws or seams. Invisible welds and refined proportions create a calm, uninterrupted presence that integrates effortlessly into contemporary interiors. With flexible suspension lengths and a wide range of finishes, it adapts naturally to different spatial contexts while maintaining a strong, understated visual identity. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Beyond its visual clarity, Sign EVO features high-efficiency LED technology with high color rendering and a wide range of outputs, lengths, and color temperatures, including tunable white. The system can be specified with opal or microprism diffusers to ensure even light distribution and effective glare control, supporting both functional and ambient applications. Options for direct or direct/indirect lighting further enhance its versatility, allowing light to be shaped precisely according to the needs of each space, from focused illumination to balanced, architectural lighting compositions.

Manufactured in Austria, by Prolicht.

Also Available within Series New Series

Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001099- Sign EVO - Suspension - 395mm/15 1/2" - 26.5W LED, 2700K / 3000K / 3500K / 4000K, Max 4071 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001099-HE- Sign EVO - Suspension - 395mm/15 1/2" - 10.3W LED, 2700K / 3000K / 3500K / 4000K, Max 1616 lm, CRI 90 , Non Dimmable
New

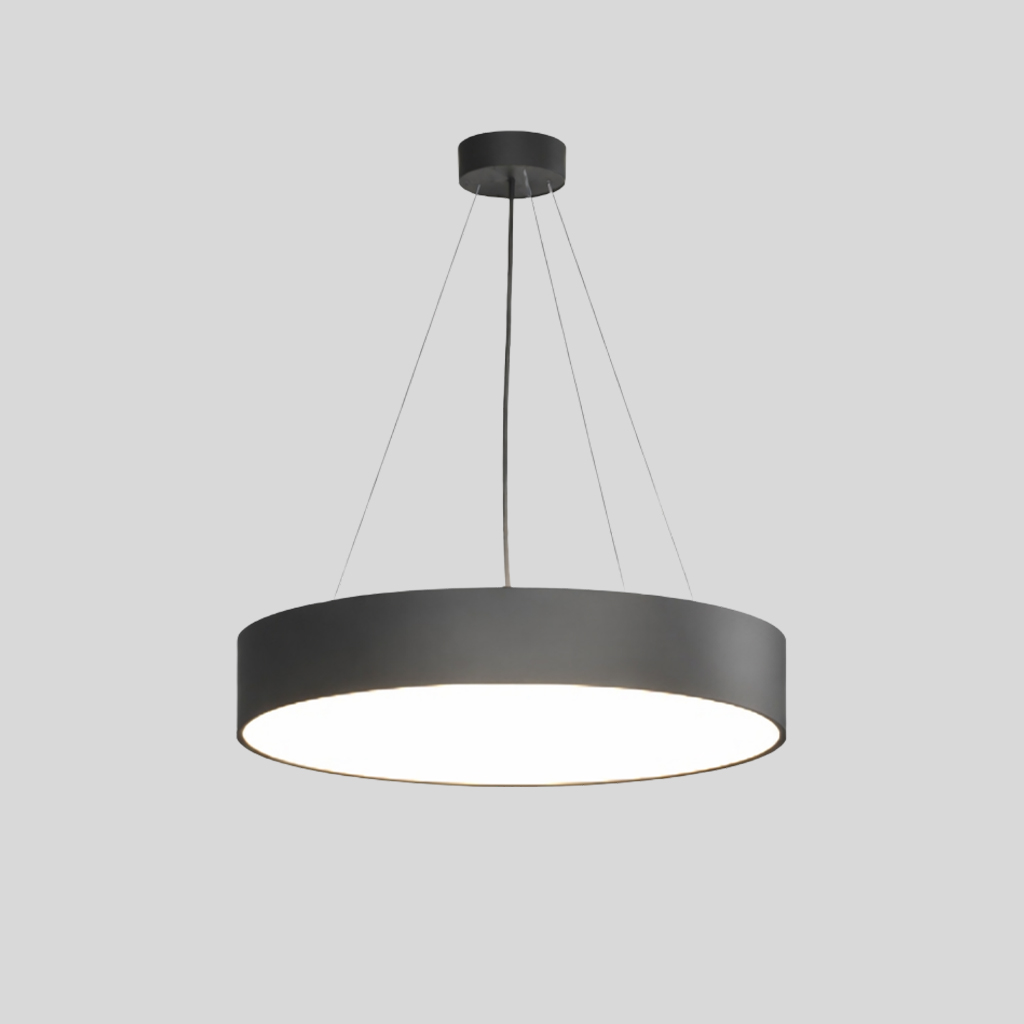

Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001100- Sign EVO - Suspension 570mm /22 7/16", 52.6W LED, 2700K / 3000K / 3500K / 4000K, Max 8256 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001100-HE- Sign EVO - Suspension 570mm /22 7/16", 20.6W LED, 2700K / 3000K / 3500K / 4000K, Max 3302 lm, CRI 90 , Non Dimmable
New

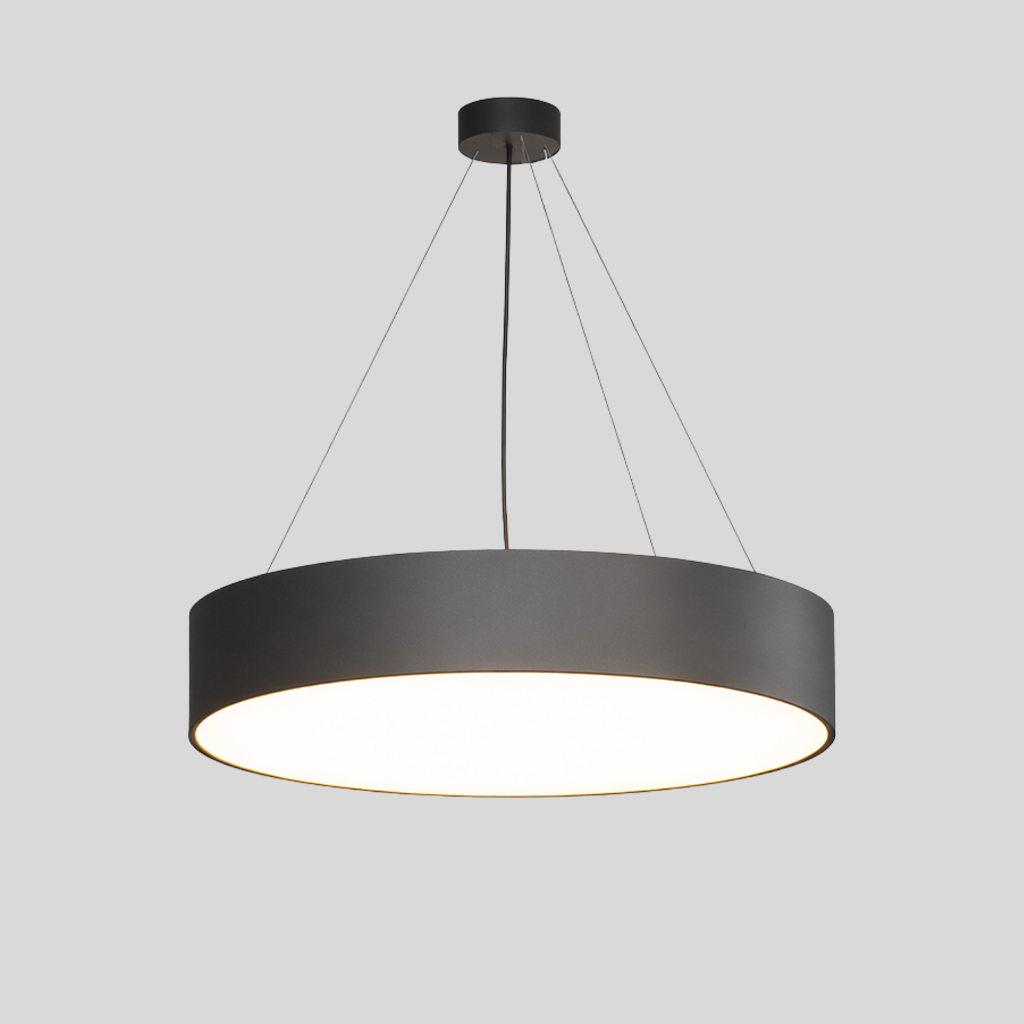

Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001101- Sign EVO - Suspension 850mm /33 7/16", 96W LED, 2700K / 3000K / 3500K / 4000K, Max 14543 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001101-HE- Sign EVO - Suspension 850mm /33 7/16", 47.2W LED, 2700K / 3000K / 3500K / 4000K, Max 7842 lm, CRI 90 , Non-Dimmable
New

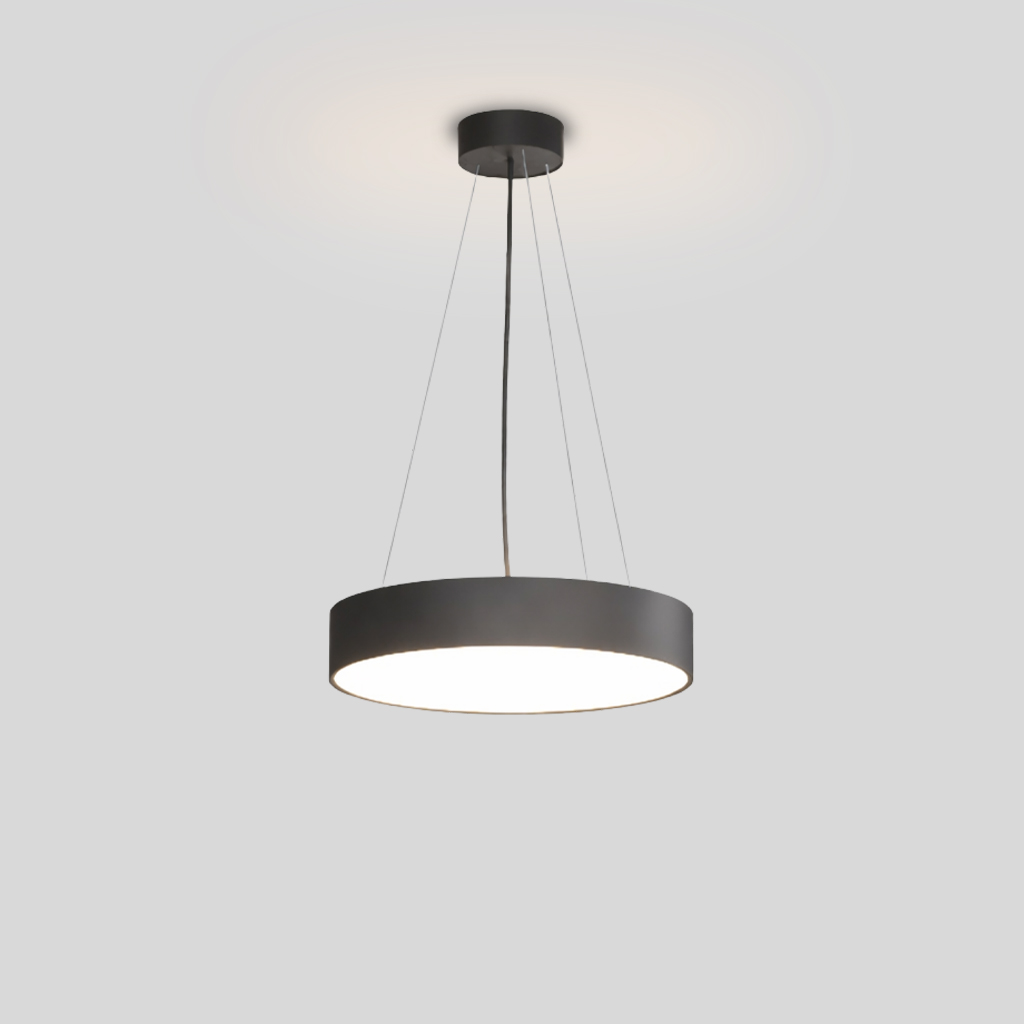

Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001102- Sign EVO - Suspension - 395mm/15 1/2" - Direct/Indirect, 33.8W LED, 2700K / 3000K / 3500K / 4000K, Max 5170 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001102-HE- Sign EVO - Suspension - 395mm/15 1/2" - Direct / Indirect, 14.6W LED, 2700K / 3000K / 3500K / 4000K, Max 2280lm, CRI 90 , Non Dimmable
New

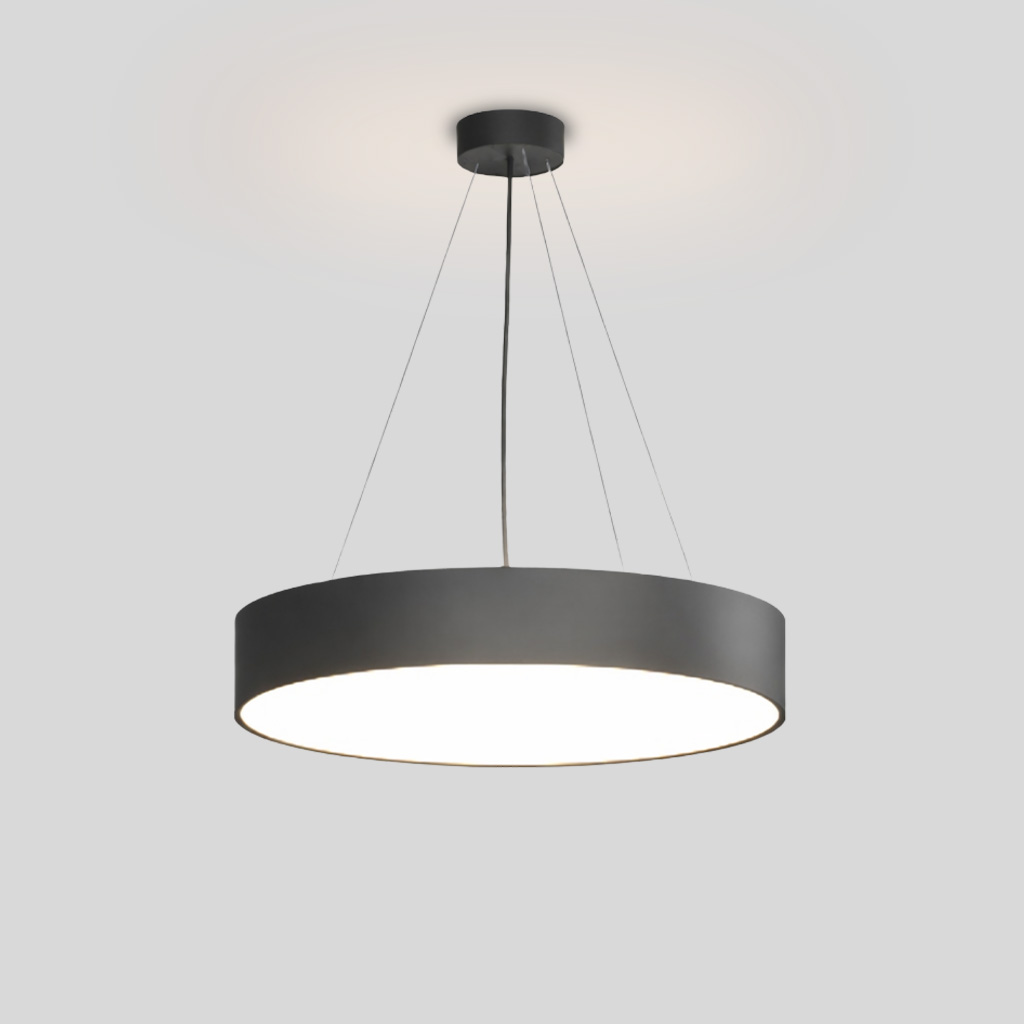

Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001103- Sign EVO - Suspension 570mm /22 7/16", Direct/Indirect, 72.3W LED, 2700K / 3000K / 3500K / 4000K, Max 11203 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001103-HE- Sign EVO - Suspension 570mm /22 7/16", Direct / Indirect, 34.4W LED, 2700K / 3000K / 3500K / 4000K, Max 5440lm, CRI 90 , Non Dimmable
New

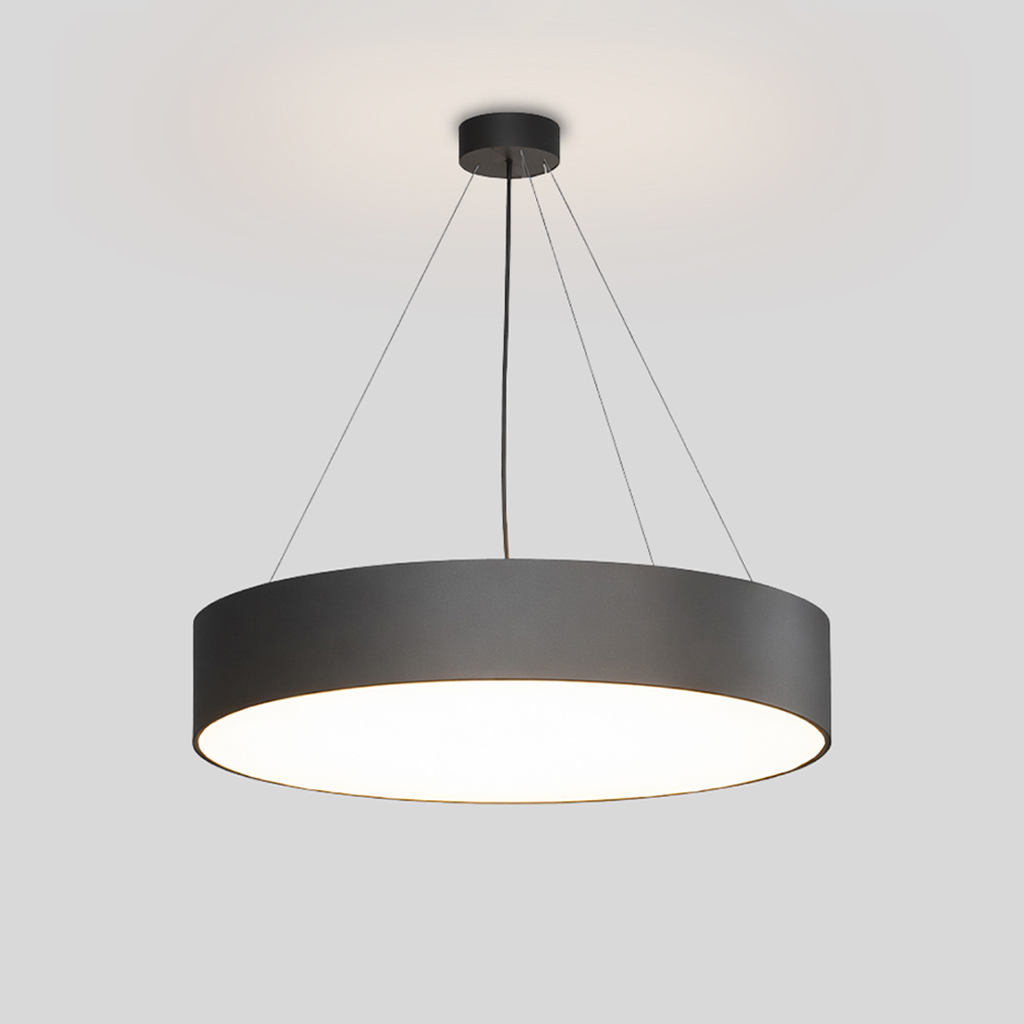

Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001104- Sign EVO - Suspension 850mm /33 7/16", Direct/Indirect, 125.3W LED, 2700K / 3000K / 3500K / 4000K, Max 19899 lm, CRI 90 , Non-Dimmable
New
Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001104-HE- Sign EVO - Suspension 850mm /33 7/16", 77.4W LED, 2700K / 3000K / 3500K / 4000K, Max 12398 lm, CRI 90 , Non-Dimmable
New
Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001111- Sign EVO - Suspension - 395mm/15 1/2" - 26.7W LED, Tunable White (2700K-6500K), Max 3838 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001112- Sign EVO - Suspension 570mm /22 7/16", 53.1W LED, Tunable White (2700K-6500K), Max 7784 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001113- Sign EVO - Suspension 850mm /33 7/16", 89.5W LED, Tunable White (2700K-6500K), Max 13972 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001114- Sign EVO - Suspension - 395mm/15 1/2" - Direct / Indirect, 34.1W LED, Tunable White (2700K-6500K), Max 4865 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001115- Sign EVO - Suspension 570mm /22 7/16", Direct/Indirect, 73.9W LED, Tunable White (2700K-6500K), Max 10684 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A3001116- Sign EVO - Suspension 850mm /33 7/16", Direct / Indirect, 116.2W LED, Tunable White (2700K-6500K), Max 18643 lm, CRI 90 , Dimmable
New

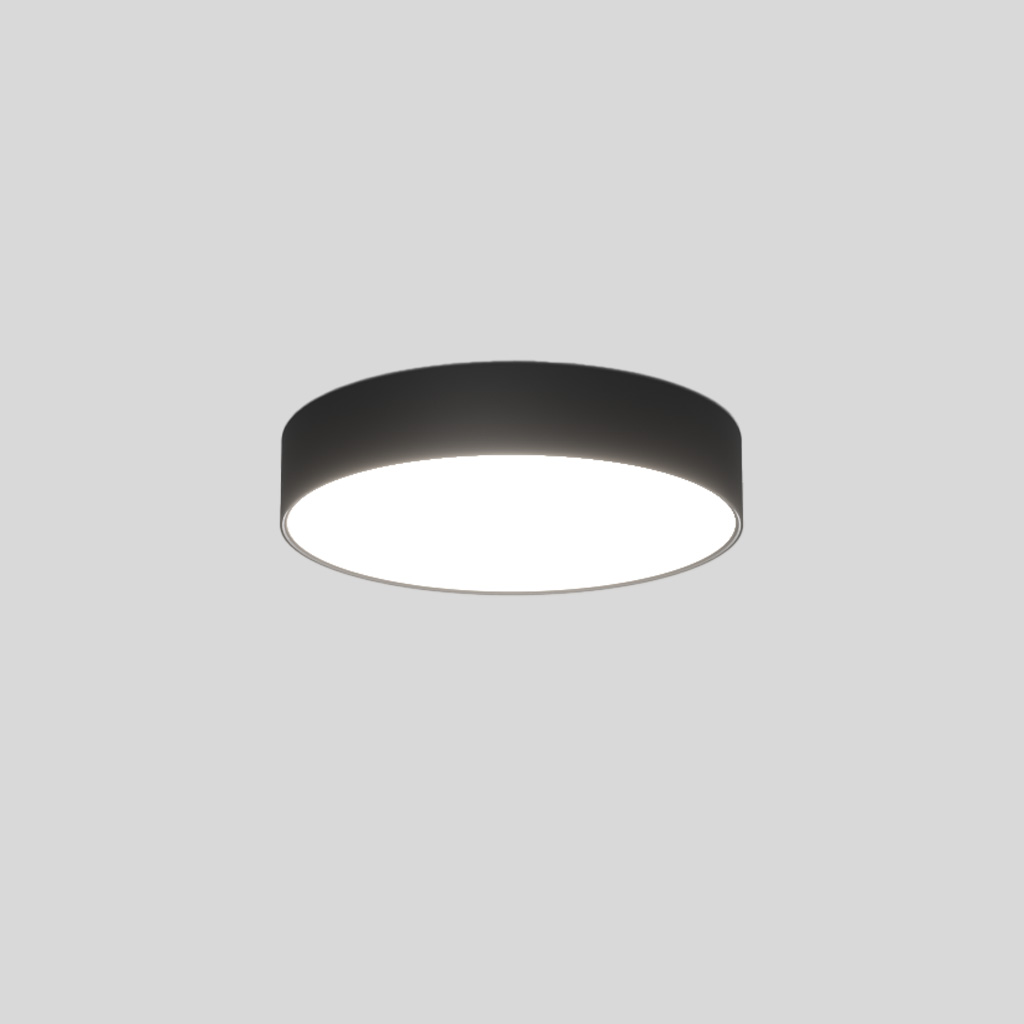

Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D405- Sign EVO - Surface Ceiling - 395mm/15 1/2" - 26.5W LED, 2700K / 3000K / 3500K / 4000K, Max 4071 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 15 1/2″ x 3 1/4″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D405-HE- Sign EVO - Surface Ceiling - 395mm/15 1/2" - 10.3W LED, 2700K / 3000K / 3500K / 4000K, Max 1616 lm, CRI 90 , Non Dimmable
New

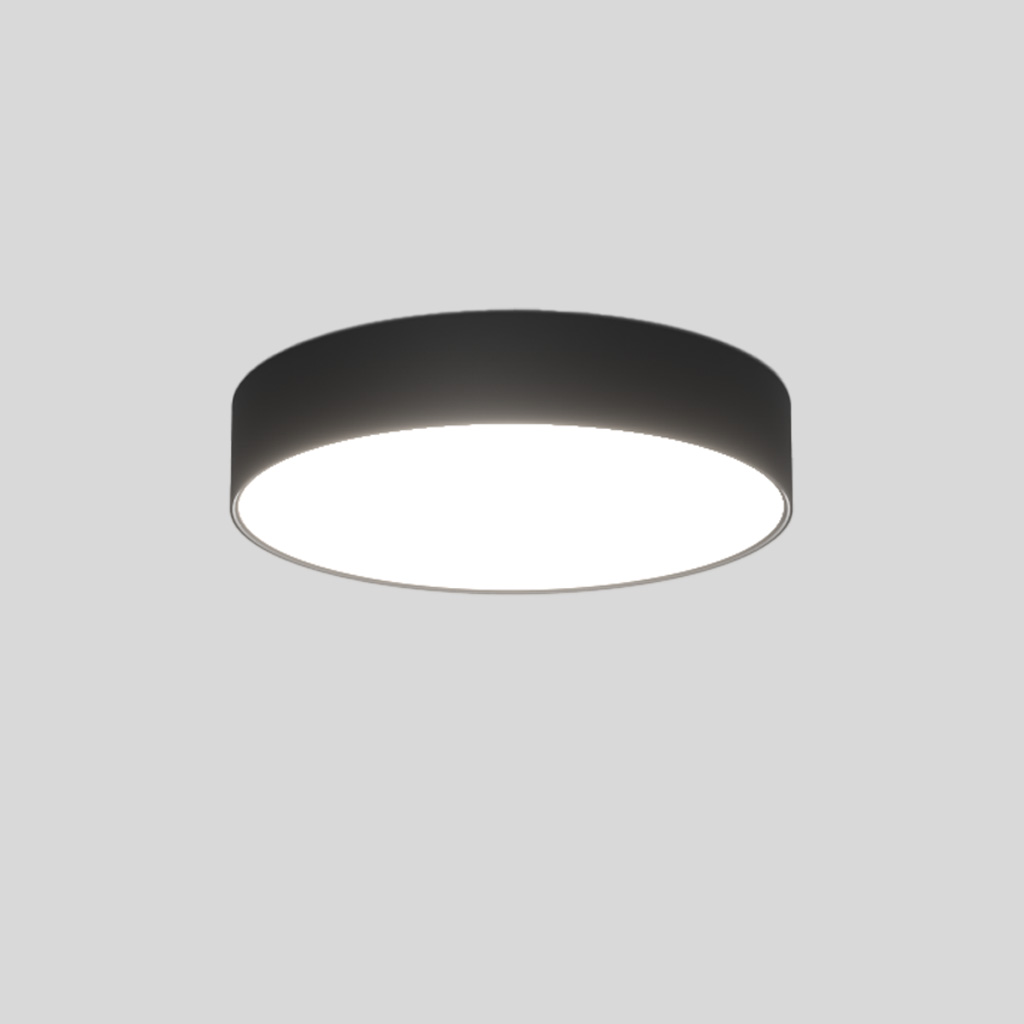

Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D406- Sign EVO - Surface Ceiling 570mm /22 7/16", 52.6W LED, 2700K / 3000K / 3500K / 4000K, Max 8256 lm, CRI 90 , Dimmable
New
Sign EVO by Prolicht – 27 7/16″ x 3 1/4″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D406-HE- Sign EVO - Surface Ceiling 570mm /22 7/16", 20.6W LED, 2700K / 3000K / 3500K / 4000K, Max 3302 lm, CRI 90 , Non Dimmable
New

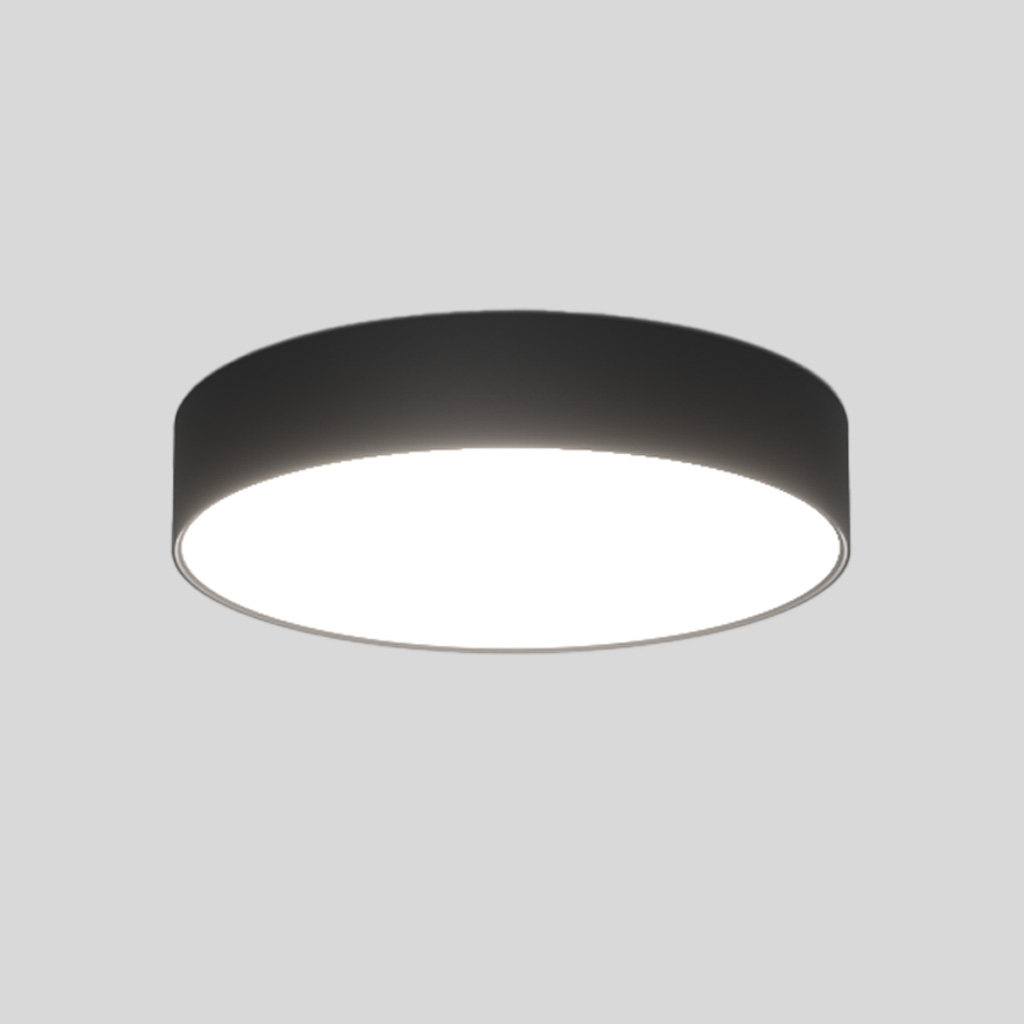

Sign EVO by Prolicht – 33 7/16″ x 3 1/4″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D407- Sign EVO - Surface Ceiling 850mm /33 7/16", 96W LED, 2700K / 3000K / 3500K / 4000K, Max 14543 lm, CRI 90 , Dimmable
