Light Panel Glorious - Acoustic Suspension Indirect Ø646mm / 25 7/16" with Acoustic Panel - 9.5W LED (Zhaga Standard) - Max. 751lm - CRI90 - Diffuser - Dimmable – Zaneen

General

Reset
Series: Glorious Acoustic Light Panel
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Acoustic
Acoustic products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Indirect
Indirect products



Physical

Shape: Round
Diameter (mm): 646
Diameter (in): 27 7⁄16
Height (mm): 54
Height (in): 2 1⁄8
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Acoustic Finish: SFW / CYW / SEE / SYN / MTS / PMB / TTN / CYB / STO / DPE / BES / SHB / ARE / ANE / VRD / CRF
Fixture Material: Aluminum
Primary Material: Acoustic
Cable Details: 2000mm / 78 3/4" or 6000mm / 236 1/4" Transparent Cable



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 10
Total Output Wattage (W): 9.1
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277



LED

Max. Delivered Lumen (lm): 701 / 708 / 730 / 751
Nominal Lumen (lm): 855 / 864 / 890 / 916
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20





Base Model Number: A300713-

Specify

Description

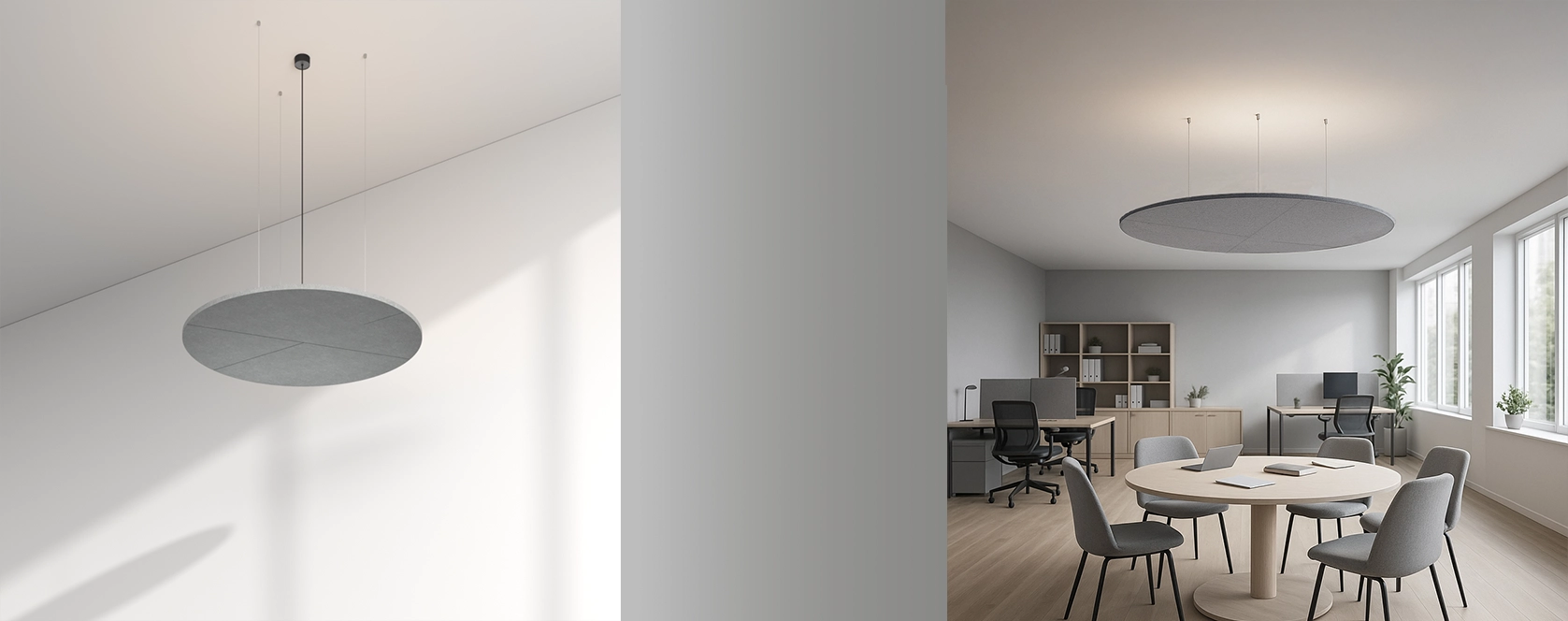

Glorious Acoustic Light Panel is a complement to the Glorious Acoustic luminaires, we now offer Light Panels in the same popular circular shape. These panels provide indirect lighting, resulting in a seamless ceiling appearance. They open up new possibilities for lighting design while enhancing room acoustics. These panels are perfect for any setting that would be enhanced by both acoustic function and unique design. Choose from a curated and extensive selection of refined colors, ensuring seamless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Also Available within Series

Glorious Acoustic Light Panel by Prolicht – 17 9/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300712- Light Panel Glorious - Acoustic Suspension Indirect Ø446mm / 17 9/16" with Acoustic Panel - 9.5W LED (Zhaga Standard) - Max. 751lm - CRI90 - Diffuser - Dimmable

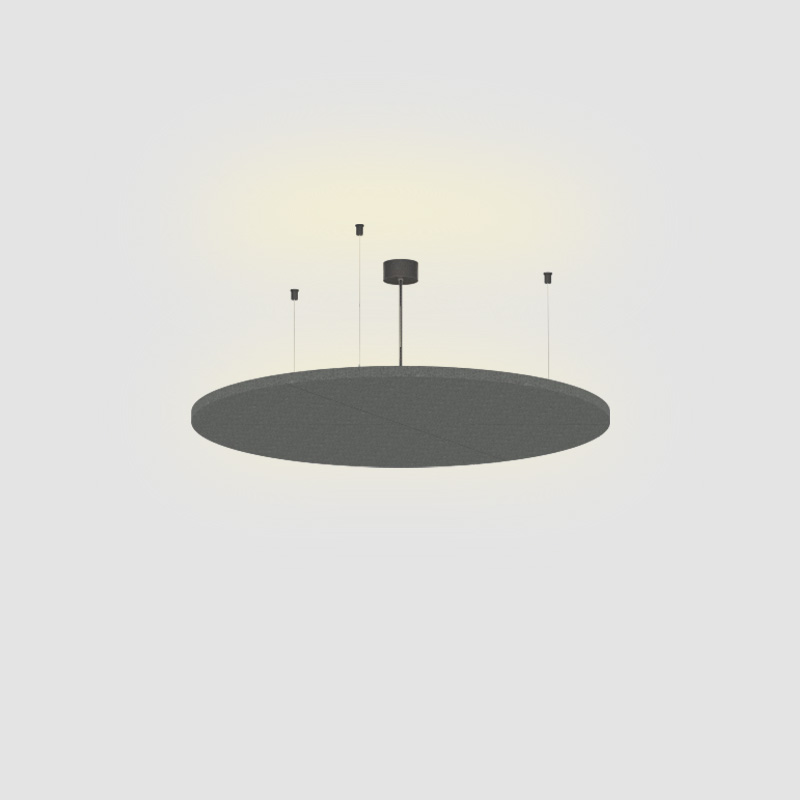

Glorious Acoustic Light Panel by Prolicht – 27 7/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300713- Light Panel Glorious - Acoustic Suspension Indirect Ø646mm / 25 7/16" with Acoustic Panel - 9.5W LED (Zhaga Standard) - Max. 751lm - CRI90 - Diffuser - Dimmable

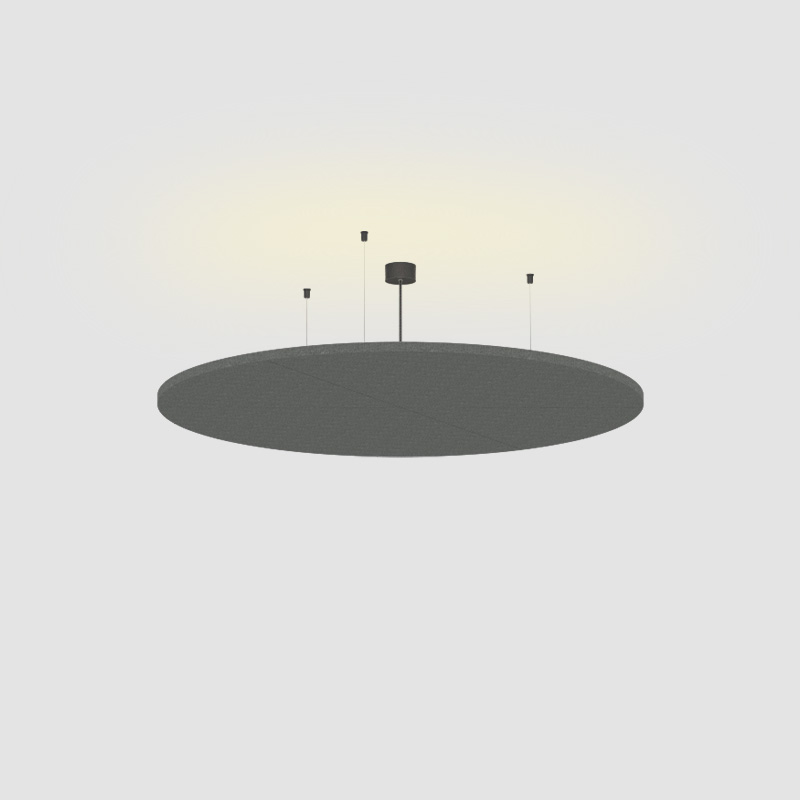

Glorious Acoustic Light Panel by Prolicht – 37 1/4″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300714- Light Panel Glorious - Acoustic Suspension Indirect Ø946mm / 37 1/4" with Acoustic Panel - 23.8W LED (Zhaga Standard) - Max. 1877lm - CRI90 - Diffuser - Dimmable

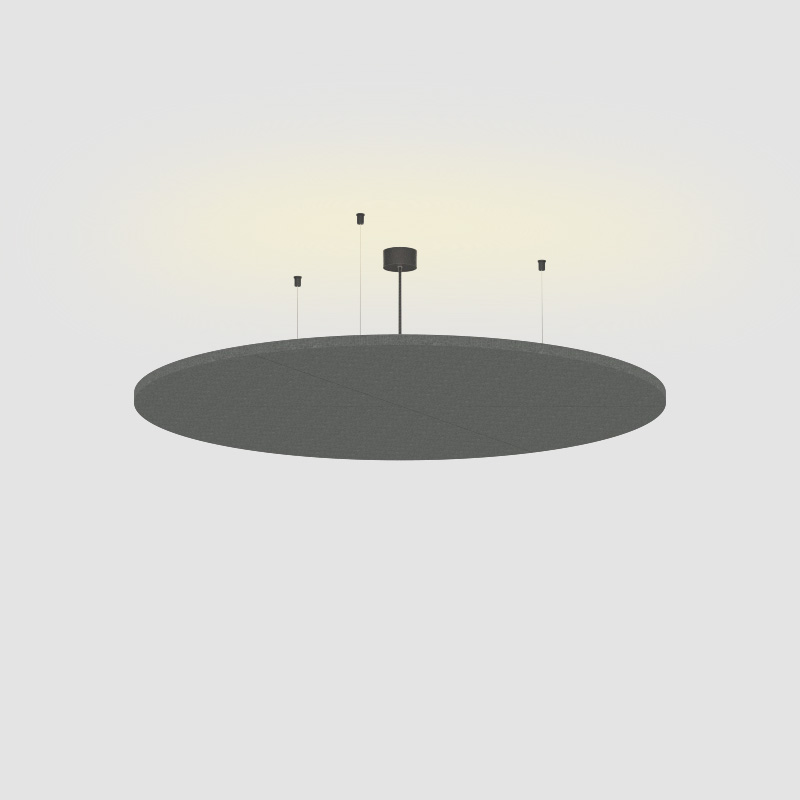

Glorious Acoustic Light Panel by Prolicht – 49 1/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300715- Light Panel Glorious - Acoustic Suspension Indirect Ø1246mm / 49 1/16" with Acoustic Panel - 23.8W LED (Zhaga Standard) - Max. 1877lm - CRI90 - Diffuser - Dimmable

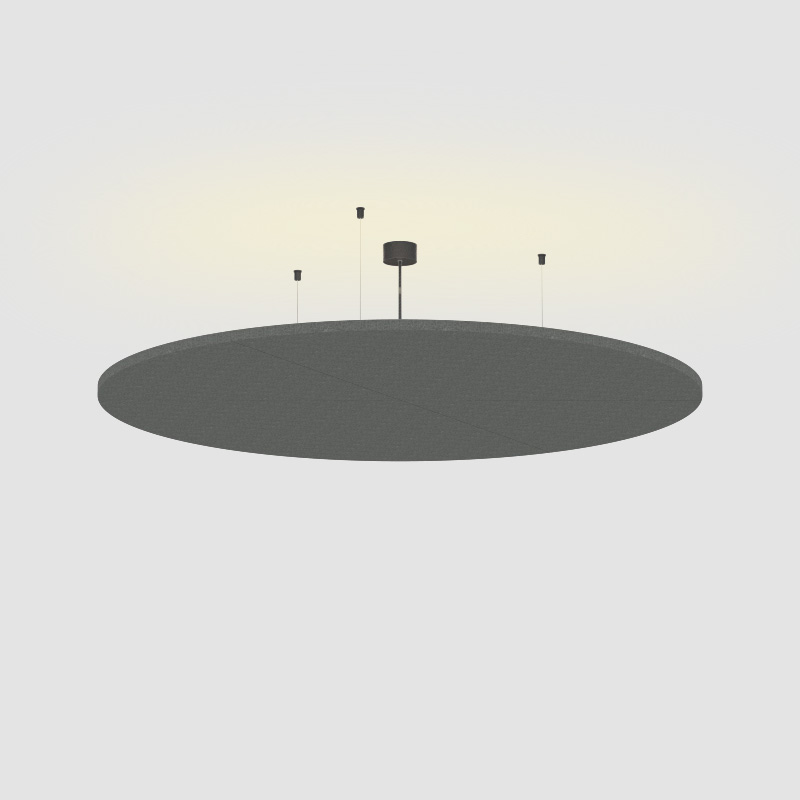

Glorious Acoustic Light Panel by Prolicht – 65 3/4″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300716- Light Panel Glorious - Acoustic Suspension Indirect Ø1416mm / 55 3/4" with Acoustic Panel - 23.8W LED (Zhaga Standard) - Max. 1877lm - CRI90 - Diffuser - Dimmable

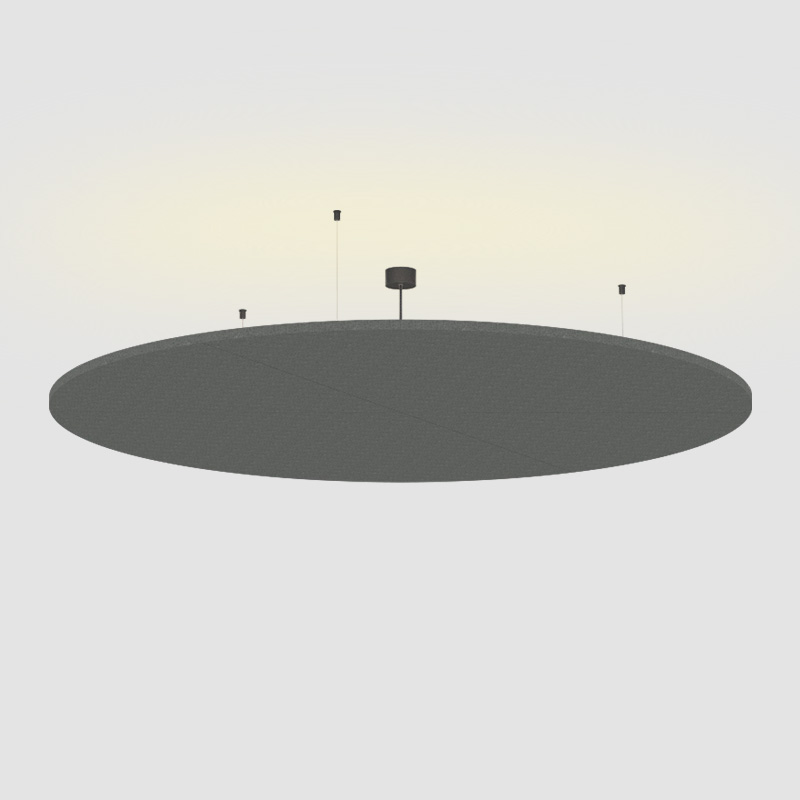

Glorious Acoustic Light Panel by Prolicht – 70 11/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A300717- Light Panel Glorious - Acoustic Suspension Indirect Ø1796mm / 55 3/4" with Acoustic Panel - 42.8W LED (Zhaga Standard) - Max. 3379lm - CRI90 - Diffuser - Dimmable

Downloads

Request Files

Glorious Acoustic Light Panel by Prolicht – 27 7/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural

Glorious Acoustic Light Panel by Prolicht – 27 7/16″ x 2 1/8″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural

Ceiling
Indirect
Included or excluded LED driver/transformer/ control gear
Length of suspension cable
Free individual colors 01-29
Color rendering index

>90 CRI
Lumen (luminous flux)

701 / 708 / 730 / 751
Acoustic material
CSA Certified to UL and CSA Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red

Acoustic Finishes

SFW - Snowfall White CYW - Creamy White SEE - Stone Echo SYN - Smoky Iron MTS - Midnight Stone PMB - Phantom Black TTN - Twilight Navy CYB - Cloudy Blue STO - Soft Olive DPE - Deep Evergreen BES - Bronze Shadow SHB - Savannah Brown ARE - Amber Earth ANE - Autumn Ember VRD - Vintage Red CRF - Coral Reef
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
