Unity - Acoustic Suspension, Y-Shape - Through Wiring - LED 51.6W, 2700K / 3000K / 3500K / 4000K, Max. 6609lm, CRI90 – Zaneen

General

Reset
Series: Unity
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Acoustic
Acoustic products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle

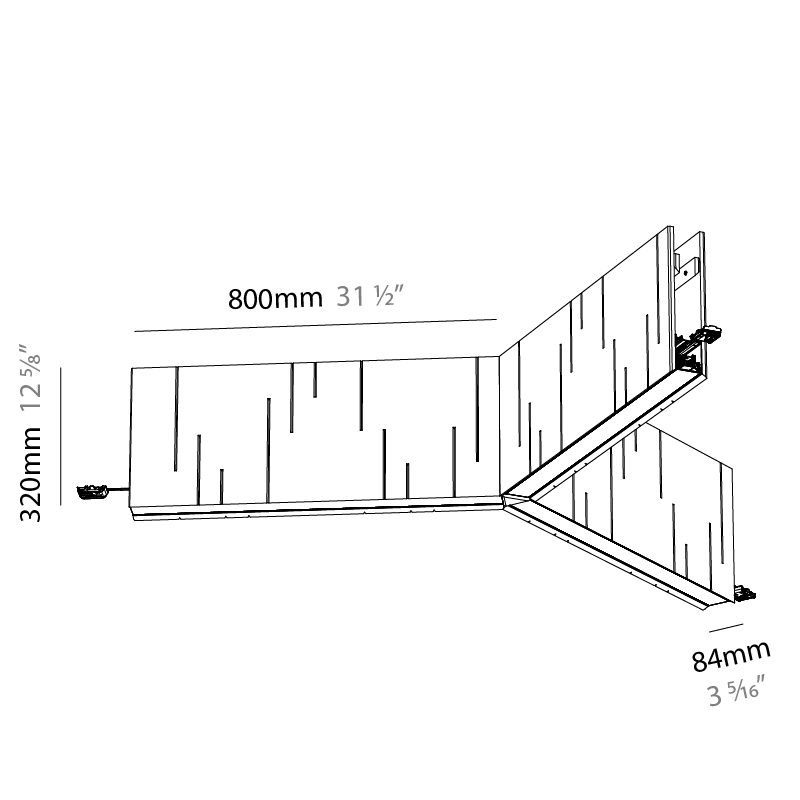

Length (mm): 1490
Length (in): 58 2⁄3
Width (mm): 1290
Width (in): 50 7⁄9
Height (mm): 320
Height (in): 12 3⁄5
Fixture Finish: BLK
see color chart below
Acoustic Finish: SFW / CYW / SEE / SYN / MTS / PMB / TTN / CYB / STO / DPE / BES / SHB / ARE / ANE / VRD / CRF
Fixture Material: Acoustic
Primary Material: Acoustic



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 51.6
Dimming: Non-Dimming / O-10V Dimming / Matter Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 3182 / 3229 / 3264 / 3322
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A300813-

Specify

Description

Unity creates inviting atmospheres that promote comfort and productivity, filling spaces with warm textures and vibrant colors for strong visual impact.

Designed for flexibility, Unity offers various module types including Y, X, T, L, and straight configurations, seamlessly merging to sculpt different environments and aesthetics, supported by a wide range of diffuser options including Opal for smooth, homogeneous illumination; Microprism for excellent glare control and up to 90 percent efficiency in high ceiling applications; Glare Control optics achieving UGR <19 with up to 2325 lm per meter for comfortable, glare free lighting; Raster for focused illumination in demanding spaces such as offices and worktables UGR <19; Wall Wash for uniform, horizontal wall illumination; and Double Asymmetric optics that create depth and dynamic shadow play.

Choose from a curated and extensive selection of refined colors, ensuring seamless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

Unity by Prolicht – Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A3UNI-MOD-SUS-SYS Slider Suspension Profile System

Also Available within Series

Unity by Prolicht – Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural A3UNI-MOD-SUS-SYS Slider Suspension Profile System

Downloads

Request Files

Unity by Prolicht – 58 2/3″ x 12 3/5″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural

Unity by Prolicht – 58 2/3″ x 12 3/5″ Suspension, Acoustic offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

3182 / 3229 / 3264 / 3322
Acoustic material
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black

Acoustic Finishes

SFW - Snowfall White CYW - Creamy White SEE - Stone Echo SYN - Smoky Iron MTS - Midnight Stone PMB - Phantom Black TTN - Twilight Navy CYB - Cloudy Blue STO - Soft Olive DPE - Deep Evergreen BES - Bronze Shadow SHB - Savannah Brown ARE - Amber Earth ANE - Autumn Ember VRD - Vintage Red CRF - Coral Reef
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
