Mechaniq Round Comfort - Ceiling - Trimless - 46.2W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 12° / 24° / 40° – Zaneen

General

Series: Mechaniq Round Comfort

Subseries: Mechaniq Round Comfort

Partner: Prolicht
Prolicht products

Division: Architectural
Architectural products

Installation: Trimless
Trimless products

Product Type: Downlight
Downlight products

Mounting Location: Ceiling
Ceiling products

Light Distribution: Adjustable / Downlight
Adjustable / Downlight products



Physical

Shape: Round

Diameter (mm): 180

Diameter (in): 7 116

Height (mm): 180

Height (in): 7 116

Ceiling Thickness (mm): 10 / 12 / 15 / 25

Ceiling Thickness (in): 3/8 or 1/2 or 9/16 or 1

Min. Recessing Depth (mm): 200

Min. Recessing Depth (in): 7 78

Weight (kg): 2.048

Weight (lbs): 4.51

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below

Fixture Material: Aluminum Die Cast

Cut-out Measurements: ∅ 190mm / 7 1/2"

Upon Request: Unique Ceiling Thickness



Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 46.2

Total Output Wattage (W): 41.9

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: No

Driver Location: Recessed Housing

Driver Type: Constant Current - Universal

Driver Class: Class 2

Housing: See components

Input Voltage (V): 120 - 277

Constant Current (MA): 1050



LED

Number of LEDs: 1

Color Temperature (°K): 2700 / 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 4030 / 4130 / 4332 / 4420

CRI: >90 CRI

Lamp Life (hrs): 50000

Upon Request: Special Color Temperature RGB-W Tunable White Special LED



Optical

Reflector°: 12 / 24 / 40

Adjustability: Rotational 355°; Tilt 30°

Upon Request: Special Beam Angles



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP44





Base Model Number: A35010-

Description

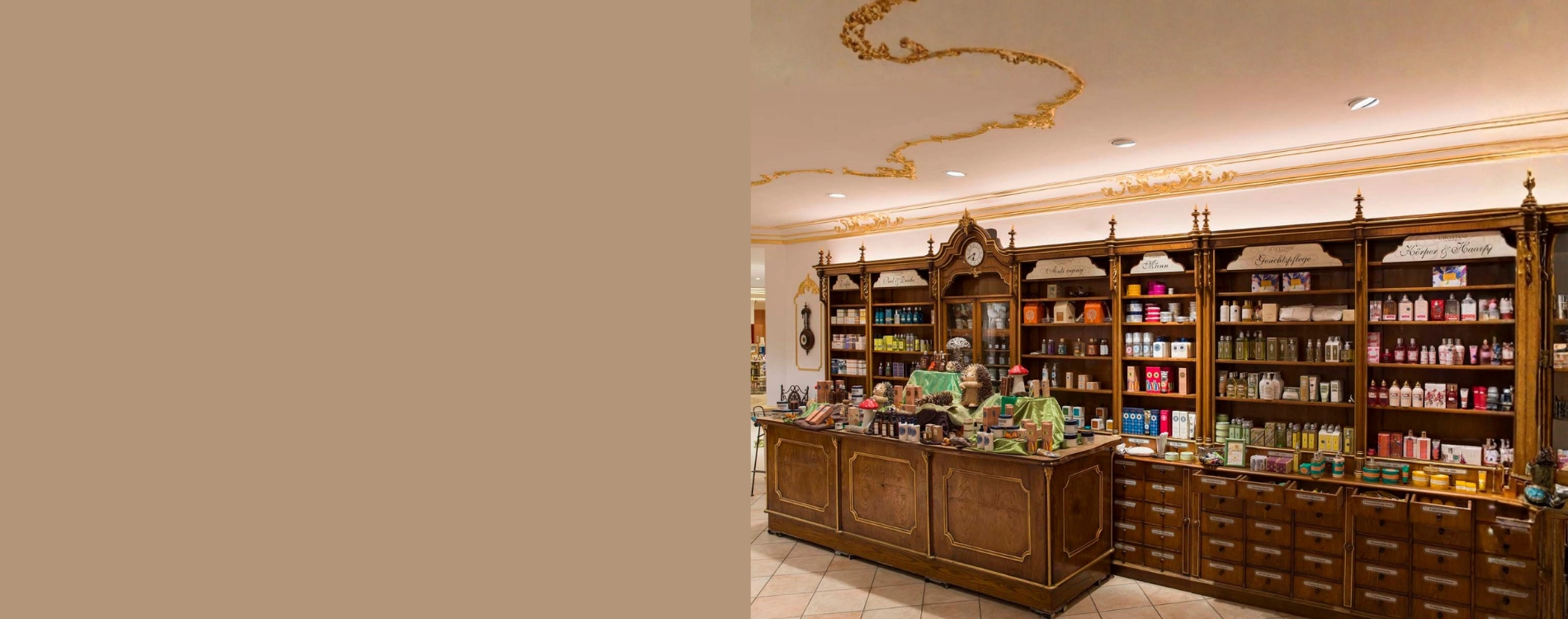

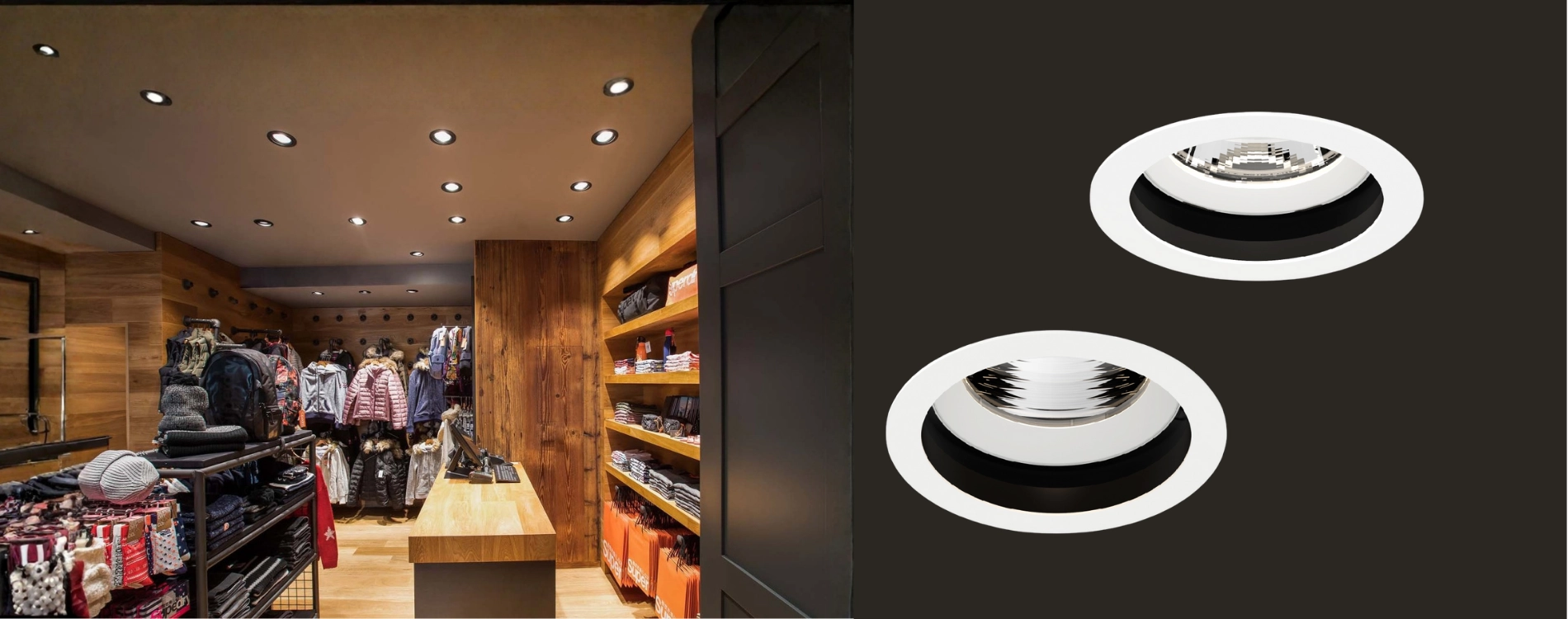

Mechaniq Round Comfort offers unparalleled flexibility and precision, making it an ideal choice for dynamic retail spaces. Available in both recessed and trimless mounting applications, this spotlight seamlessly integrates into any environment, providing optimal lighting solutions that enhance product presentation and ambiance. Featuring turnable and swivelling inserts, Mechaniq Round Comfort allows for precise light positioning, ensuring the perfect combination of illumination and product display. With 355° rotation and 30° tilt, the recessed, moving part of the unit blends discreetly into the ceiling, maintaining a sleek and unobtrusive design. Available in two different sizes and a variety of beam angles, Mechaniq Round Comfort caters to diverse lighting needs. Designed to adapt to changing retail environments, Mechaniq Round Comfort spots are perfect for responding to new display arrangements and requirements. The high-quality design and multiple color options provide maximum flexibility for any retail lighting application. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
RM-50-42 Remodel Housing Kit, Max. 44.1W 1050mA, Tri-Mode Dimming

Product Accessories

Image SKU Description Datasheet
 by Prolicht – 4 1/4″ x 0 1/8″ ,  offers LED lighting solutions | Zaneen Architectural A3855400 Mechaniq Accessory - Spread Lens D. 180mm

Also Available within Series

Downloads

Mechaniq Round Comfort by Prolicht – 7 1/16″ x 7 1/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural

Mechaniq Round Comfort by Prolicht – 7 1/16″ x 7 1/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural

Ceiling
Circle wall or ceiling cut-out

190mm / 7 12"
Min. Recessing Depth

200mm /
7 78''
Ceiling thickness

10 / 12 / 15 / 25mm /
38   12   916   1''
Ceiling thickness selection
Tilt

30°
Rotation

355°
Reflector

12 / 24 / 40
Lens pack
Free individual colors 01-29
Dimmable
Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

4030 / 4130 / 4332 / 4420
Certified for North American Standards
Protected against ingress of solid bodies greater than 1mm (wire);protected against water splashed from all directions


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze	MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
