Bioniq Wallwash EVO Recessed Ø62mm/2 3/8", LED: 5.5 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 470lm, 150mA, CRI: > 90 - Outer Trim Black and White only – Zaneen

General

Reset
Series: Bioniq Evo Round Wallwash
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Recessed
Recessed products
Product Type: Wallwash
Wallwash products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Adjustable / Asymmetric
Adjustable / Asymmetric products



Physical

Shape: Round

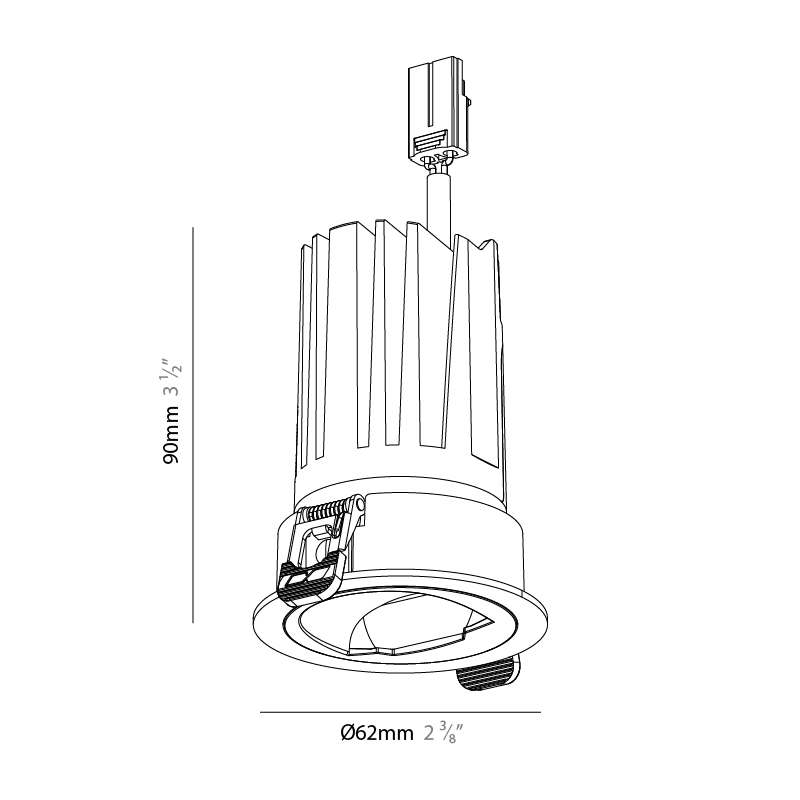

Diameter (mm): 62
Diameter (in): 2 3⁄8
Height (mm): 90
Depth (mm): 100
Height (in): 3 1⁄2
Depth (in): 3 15⁄16
Ceiling Thickness (mm): 2 - 15
Ceiling Thickness (in): 1/16 - 9/16
Weight (kg): 0.2
Fixture Finish: BLK / WHI
see color chart below
Fixture Material: Extruded Aluminum
Cut-out Measurements: Ø 55mm/2 3/16"



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 6
Total Output Wattage (W): 5.5
Dimming: Non-dimming / DALI Dimming / MATTER Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 2
Constant Current (MA): 250mA
Upon Request: 0-10V Dimming / Phase Dimming



LED

Color Temperature (°K): 2400 / 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): Max 470
Nominal Lumen (lm): Max 828
CRI: >90 CRI
Efficiency (%): 85.5
Lamp Life (hrs): 50000



Optical

Adjustability: Rotational 350° / Tilt 30°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
Glare Rating: ≤ 10





Base Model Number: A350226- New

Specify

Description

Bioniq Evo Round Wallwash is engineered for precise and uniform wall illumination, delivering consistent vertical light distribution while preserving the overall spatial perception. With a deeply recessed LED position and optimized wallwash optics, it reduces glare and enhances visual comfort, making it suitable for high-end architectural environments where controlled vertical lighting is essential.

Available in Recessed and Trimless configurations, Bioniq Evo Round Wallwash integrates seamlessly into contemporary ceiling concepts. Interchangeable lens options allow beam adaptation according to project-specific requirements, providing flexibility while maintaining controlled and even wall illumination.

Bioniq Evo Round Wallwash has a wide range of options which are all available in a wide breadth of standard color finish options, creating a bespoke solution for every design. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
by – , offers LED lighting solutions | Zaneen Architectural CP-55-10-42 Chicago Plenum New Construction Recessed Frame Kit (55mm (2 5/32)), Max. 10W 250mA, Tri-Mode Dimming
by – , offers LED lighting solutions | Zaneen Architectural CP-55-10-42-DD Chicago Plenum New Construction Recessed Frame Kit (55mm (2 5/32)), Max. 10W 250mA, DALI Dimming
DTM0100250ES ERP - ESS010W-0250-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 10W - 250mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – , offers LED lighting solutions | Zaneen Architectural IC-55-10-42 Insulated Ceiling New Construction Recessed Frame Kit (55mm (2 5/32")), Max. 8.6W / 250mA - Tri-Mode Dimming
by – , offers LED lighting solutions | Zaneen Architectural IC-55-10-42-DD Insulated Ceiling New Construction Recessed Frame Kit (55mm (2 5/32")), Max. 8.6W / 250mA - DALI Dimming

Also Available within Series New Series

Bioniq Evo Round Wallwash by Prolicht – 2 3/8″ x 3 1/2″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350225- Bioniq Wallwash EVO Recessed Ø62mm/2 3/8", LED: 5.5 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 470lm, 150mA, CRI: > 90
New
Bioniq Evo Round Wallwash by Prolicht – 2 3/8″ x 3 1/2″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350226- Bioniq Wallwash EVO Recessed Ø62mm/2 3/8", LED: 5.5 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 470lm, 150mA, CRI: > 90 - Outer Trim Black and White only
New
Bioniq Evo Round Wallwash by Prolicht – 3 1/4″ x 4″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350227- Bioniq Wallwash EVO Recessed Ø83mm/3 1/4", LED: 10.9 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 1029lm, 300mA, CRI: > 90
New
Bioniq Evo Round Wallwash by Prolicht – 3 1/4″ x 4″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350228- Bioniq Wallwash EVO Recessed Ø83mm/3 1/4", LED: 10.9 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 1029lm, 300mA, CRI: > 90- Outer Trim Black and White only
New
Bioniq Evo Round Wallwash by Prolicht – 3 1/4″ x 4″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350229- Bioniq Wallwash EVO Recessed Ø83mm/3 1/4" LED: 12.3 Watt, Tunable White, Max. 869lm, 350mA, CRI: > 90
New
Bioniq Evo Round Wallwash by Prolicht – 3 1/4″ x 4″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A350230- Bioniq Wallwash EVO Recessed Ø83mm/3 1/4" LED: 12.3 Watt, Tunable White, Max. 869lm, 250mA, CRI: > 90 - Outer Trim Black and White only
New
Bioniq Evo Round Wallwash by Prolicht – 1 7/8″ x 3 9/16″ Trimless, Wallwash offers LED lighting solutions | Zaneen Architectural A350231- Bioniq Wallwash EVO Trimless Ø48mm/1 7/8", LED: 5.5 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 470lm, CRI: > 90
New
Bioniq Evo Round Wallwash by Prolicht – 3 3/4″ x 3 5/8″ Trimless, Wallwash offers LED lighting solutions | Zaneen Architectural A350233- Bioniq Wallwash EVO Trimless Ø67mm/2 5/8", LED: 10.9 Watt, 2400K / 2700K / 3000K / 3500K / 4000K, Max. 1029lm, CRI: > 90
New

Downloads

Request Files

Bioniq Evo Round Wallwash by Prolicht – 2 3/8″ x 3 1/2″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural

Bioniq Evo Round Wallwash by Prolicht – 2 3/8″ x 3 1/2″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural

Ceiling
Circle wall or ceiling cut-out

Ø 55mm/2 3⁄16"
Minimum distance (meters) lamp - object
Ceiling thickness

2 - 15mm /
1⁄16 - 9⁄16''
Ceiling thickness selection
Tilt

Rotational 350° / 30°
Rotation

350° / Tilt 30°
Dimmable
Color rendering index

>90 CRI
Color temperature

2400 / 2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

Max 470
Unified Glare Rating (UGR) range from 5-40
Certified for North American Standards
Protected against ingress of dust; protected against jets of water


Fixture Finishes

BLK - Black WHI - White
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
