Magiq Wallwash - Trimless - 267mm / 10 1/2" - 33.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black - Requires Recessed Housing with LED (Zhaga Standard) Driver (Ordered Separately) - Dimmable – Zaneen

General

Reset
Series: Magiq Wallwash
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Trimless
Trimless products
Product Type: Wallwash
Wallwash products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Asymmetric
Asymmetric products



Physical

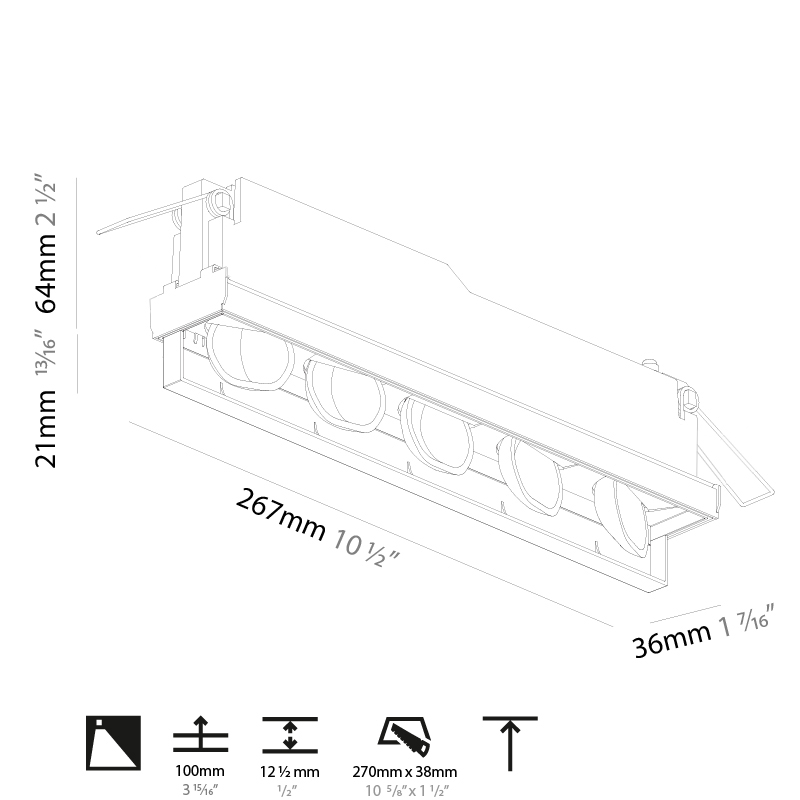

Shape: Rectangle
Length (mm): 267
Length (in): 10 1⁄2
Width (mm): 36
Width (in): 1 7⁄16
Height (mm): 64
Height (in): 2 1⁄2
Ceiling Thickness (mm): 12.5
Ceiling Thickness (in): 1/2
Min. Recessing Depth (mm): 100
Min. Recessing Depth (in): 3 15⁄16
Weight (kg): 0.943
Weight (lbs): 2.08
Holder Finish: WHI / BLK
Fixture Material: Aluminum Die Cast
Cut-out Measurements: 273mm / 10 3/4" x 42mm / 1 5/8"
Upon Request: Unique Ceiling Thickness



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 33.4
Total Output Wattage (W): 29.6
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 1
Input Voltage (V): 120 - 277
Constant Current (MA): 500



LED

Number of LEDs: 5
Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 2145 / 2339 / 2145 / 2443
Nominal Lumen (lm): 2375 / 2590 / 2375 / 2705
CRI: >90 CRI
Lamp Life (hrs): 50000
Upon Request: Special Color Temperature



Optical

Reflector°: Asymmetric
Upon Request: Special Beam Angles



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20





Base Model Number: A35139-

Specify

Description

Magiq Wallwash offers superior, homogeneous wall lighting through advanced design and innovative technology. Available in recessed, trimless, and track mounting applications, Magiq Wallwash meets diverse lighting needs with unmatched precision and elegance. Featuring state-of-the-art faceted reflectors in optimized positions, Magiq Wallwash ensures even light distribution without noticeable loss in floor area. Utilizing highly innovative and patented Bartenbach reflectors, the alignment of five multi-faceted lenses with high-power LEDs provides uniform illumination for walls up to 4.5 meters high. The Magiq Wallwash track spotlight is the first adjustable linear wallwasher for rail systems. Its reflector body can rotate 180° and be securely fixed with Plug & Play functionality. The tilting mechanism allows for tilt adjustments up to 15° in 5° increments, providing flexibility and safety, especially if the rail is mounted too close to the wall. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

    Manufactured in Austria, by Prolicht.

    Product Components to be ordered separately

    Image SKU Description Datasheet
    DTM050PROG85EB ERP - PSB50W-0550-85 - Programmable - 275-550mA / 15.68- 46.75W - Tri-mode Dimming (0-10Vdc & Phase [Leading and Trailing Edge @120Vac only]) - 120 / 277Vac - LED power supply -Used with ENCP1 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
    ENCP12 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

    Also Available within Series

    Magiq Wallwash by Prolicht – 10 1/2″ x 2 1/2″ Trimless, Wallwash offers LED lighting solutions | Zaneen Architectural A35139- Magiq Wallwash - Trimless - 267mm / 10 1/2" - 33.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black - Requires Recessed Housing with LED (Zhaga Standard) Driver (Ordered Separately) - Dimmable
    Magiq Wallwash by Prolicht – 10 7/8″ x 2 1/2″ Recessed, Wallwash offers LED lighting solutions | Zaneen Architectural A35154- Magiq Wallwash - Recessed - 277mm / 10 7/8" - 31.4W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Black - Requires Recessed Housing with LED (Zhaga Standard) Driver (Ordered Separately) - Dimmable
    Magiq Wallwash by Prolicht – 15 7/16″ x 5 1/8″ Track, Track System Line Voltage offers LED lighting solutions | Zaneen Architectural A3T062- Magiq Plus - Wall Wash Track Head - 48.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Black or White Base and Adapter

    Downloads

    Request Files

    Magiq Wallwash by Prolicht – 10 1/2″ x 2 1/2″ Trimless, Wallwash offers LED lighting solutions | Zaneen Architectural

    Magiq Wallwash by Prolicht – 10 1/2″ x 2 1/2″ Trimless, Wallwash offers LED lighting solutions | Zaneen Architectural

    Ceiling
    Asymmetric
    Square wall or ceiling cut-out

    273mm /
    10 3/
    4" x 42mm /
    1 5/
    8"
    Minimum distance (meters) lamp - object
    Min. Recessing Depth

    100mm /
    3 15⁄16''
    Ceiling thickness

    12.5mm /
    1⁄2''
    Ceiling thickness selection
    Reflector

    Asymmetric
    Dimmable
    Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
    Color rendering index

    >90 CRI
    Color temperature

    2700 / 3000 / 3500 / 4000
    Lumen (luminous flux)

    2145 / 2339 / 2145 / 2443
    CSA Certified to UL and CSA Standards
    Protected against ingress of solid bodies greater than 12.5mm (finger)


    Holder Finishes

    WHI - White BLK - Black
    Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
