Invader Compact - Recessed Ø75mm - 12W LED, 2700K/3000K/3500K/4000K, 350mA, CRI: > 90, IP44, Optics: 18° / 36° / 56° – Zaneen

General

Reset
Series: Invader Compact
Subseries: Invader Compact
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Recessed
Recessed products
Product Type: Downlight
Downlight products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Round
Diameter (mm): 75
Diameter (in): 2 15⁄16
Height (mm): 52
Height (in): 2 1⁄16
Ceiling Thickness (mm): 1 - 25
Ceiling Thickness (in): 1/16 - 1
Min. Recessing Depth (mm): 55
Min. Recessing Depth (in): 2 3⁄16
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum
Cut-out Measurements: D. 68mm / 2 11/16"



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 12
Total Output Wattage (W): 9
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: Recessed Housing
Driver Type: Constant Current - 120Vac
Driver Class: Class 2
Housing: See components
Input Voltage (V): 120 - 277
Constant Current (MA): 500mA



LED

Number of LEDs: 1
Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 1012 / 1059 / 1098 / 1123
Nominal Lumen (lm): 1141 / 1194 / 1238 / 1266
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Reflector°: 18 / 36 / 56
Optic°: None / Linear Spread Lens



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP44





Base Model Number: A35811-

Specify

Description

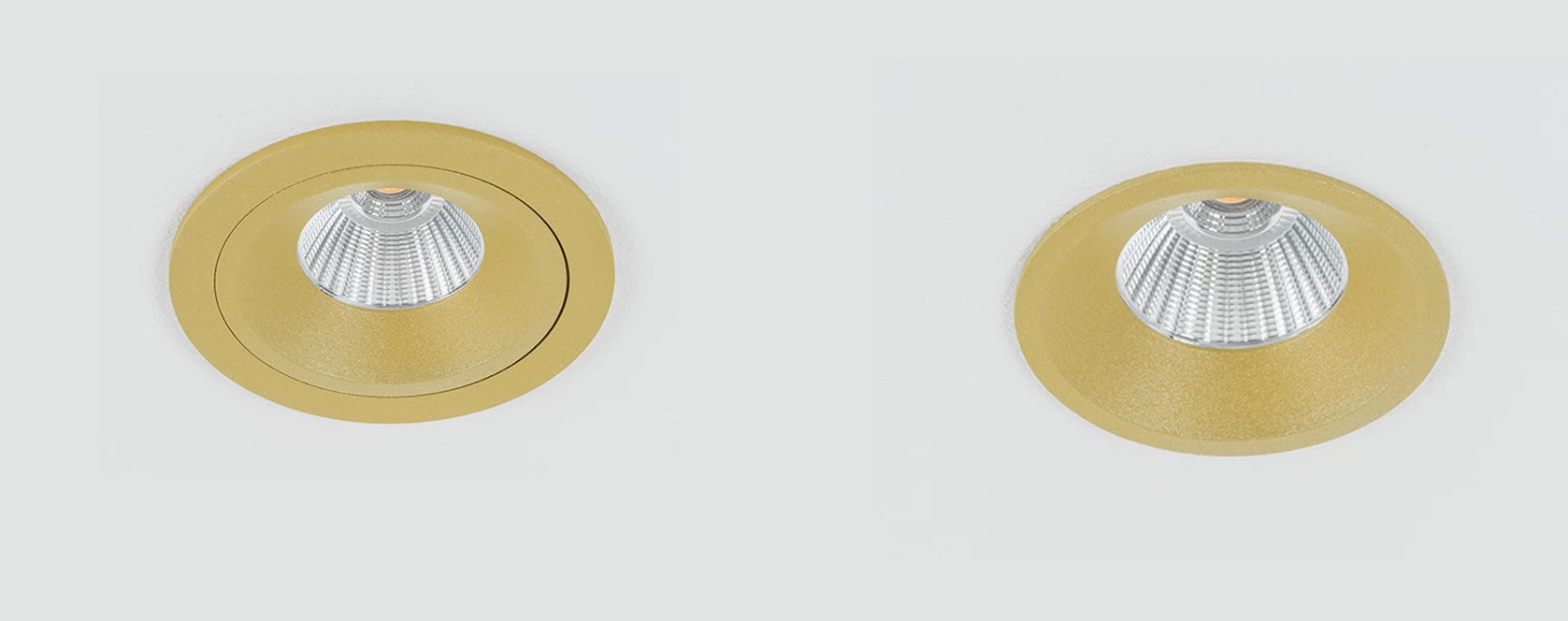

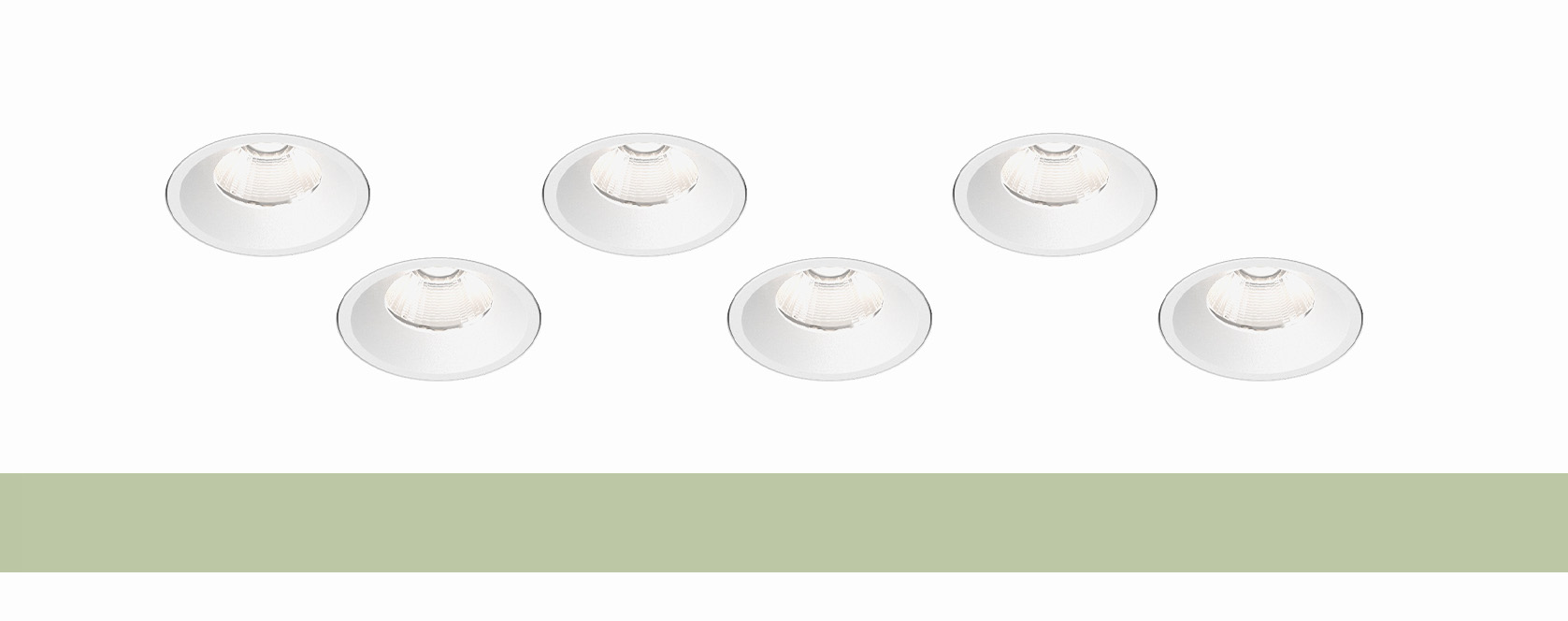

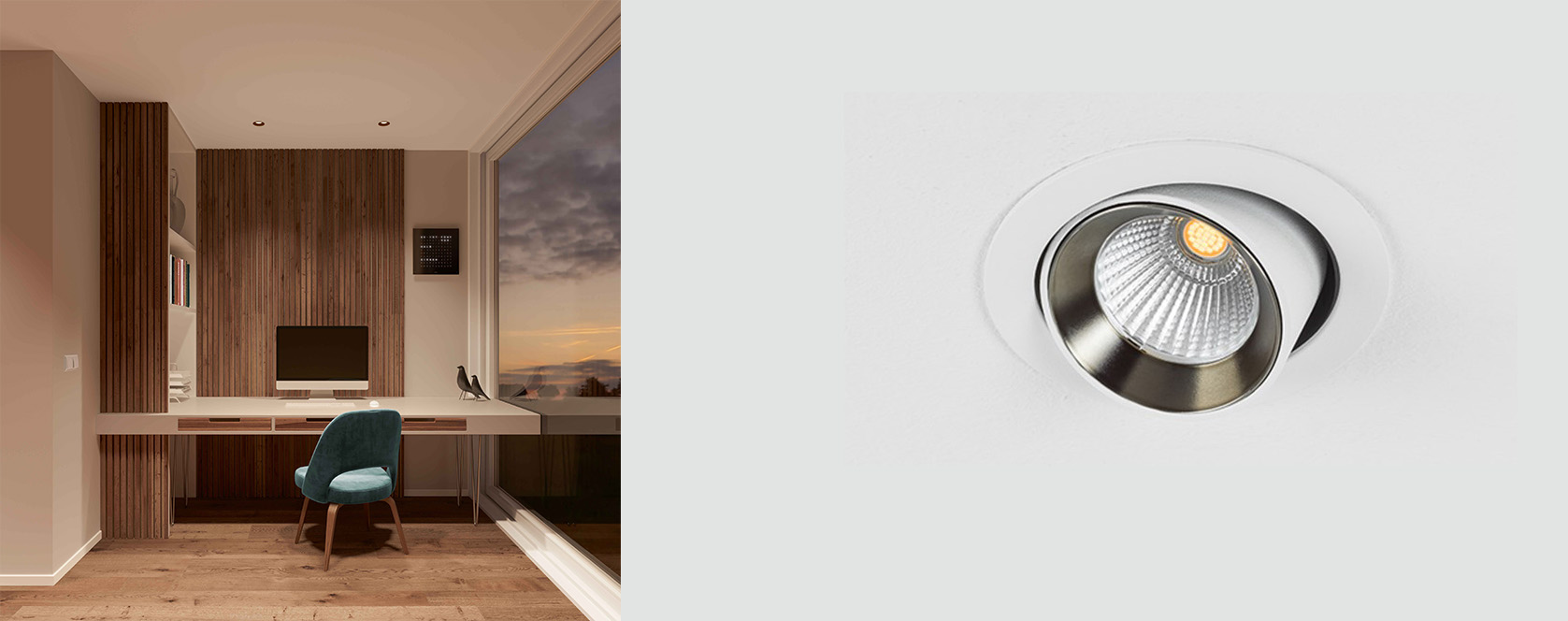

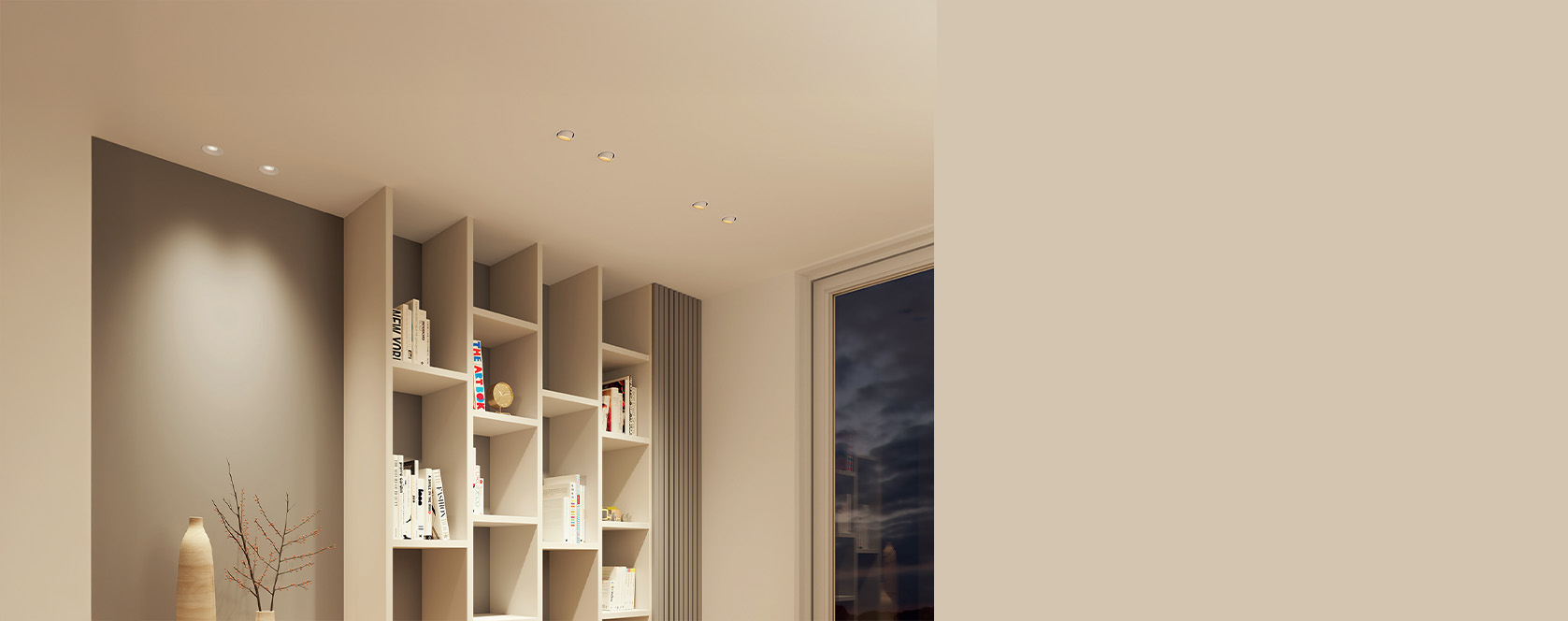

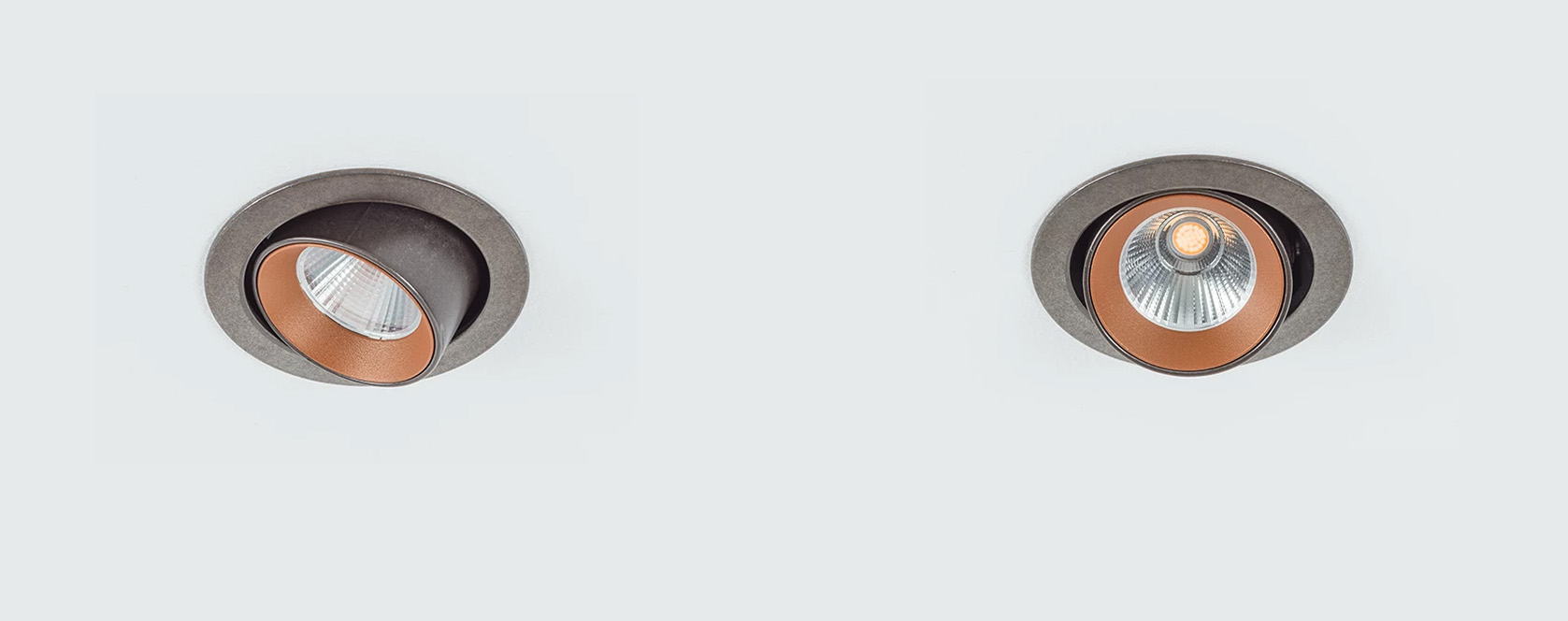

Invader Compact delivers a powerful output despite its compact size, making it ideal for creating dynamic lighting scenes. Available in two versions, Compact and Compact Adjustable, this series highlights the remarkable flexibility of the Invader range. The Adjustable version allows precise aiming of light for specific highlights without the need for tools. A dedicated version for concrete installations further enhances its universal application. Designed with a universal 68 mm cut out, the various Invader Compact variants can be easily exchanged to deliver illumination exactly where it is needed. A Warm Dim option provides smooth, warm dimming for enhanced ambience. Select from over 25 standard colors, ensuring extensive customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
by – , offers LED lighting solutions | Zaneen Architectural CP-70-09-18 Chicago Plenum New Construction Recessed Frame Kit (70mm (2 3/4")), Max. 9W 500mA, Tri-Mode Dimming
by – , offers LED lighting solutions | Zaneen Architectural IC-70-09-18 Insulated Ceiling New Construction Recessed Frame Kit (70mm (2 3/4")), Max. 9W 500mA, Tri-Mode Dimming
by – , offers LED lighting solutions | Zaneen Architectural NC-70-09-18 New Construction Recessed Frame Kit (70mm (2 3/4")), Max. 09W 500mA - Tri-Mode Dimming
RM-09-18 Remodel Housing Kit - Max. 9W - 500mA - Tri-Mode Dimming

Also Available within Series

Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural A35809- Invader Compact - Trimless Ø75mm 12W LED, 2700K/3000K/3500K/4000K,1012lm-1123lm, 500mA, CRI: > 90, IP44, Optics: 18° / 36° / 56°
Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural A35810- Invader Compact - Trimless Ø75mm, 11W LED, Natural Dim, Max 898lm, 350mA, CRI: > 90, IP44, Optics: 16° / 36° / 56°
Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A35811- Invader Compact - Recessed Ø75mm - 12W LED, 2700K/3000K/3500K/4000K, 350mA, CRI: > 90, IP44, Optics: 18° / 36° / 56°
Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A35812- Invader Compact - Recessed Ø75mm, 11W LED, Natural Dim, 350mA, CRI: > 90, IP44, Optics: 16° / 36° / 56°
Invader Compact by Prolicht – 2 15/16″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A35813- Invader Compact Adjustable - Recessed Ø75mm, 11W LED, 2700K / 3000K / 3500K / 4000K, 500mA, CRI: > 90, IP40, Optics: 22° / 38° / 48°
Invader Compact by Prolicht – 2 15/16″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A35814- Recessed Ceiling Ø75mm/2 15/16" , 11W LED: Natural Dimming, 862lm, 300mA, CRI: > 90, IP40 - Optics: 24° / 40° / 54°
Invader Compact by Prolicht – 2 15/16″ x 2 15/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural A35846- Invader Compact Adjustble - Trimless Ø75mm, 11W LED, 2700K / 3000K / 3500K / 4000K, 500mA, CRI: > 90, IP40, Optics: 22° / 38° / 48°
Invader Compact by Prolicht – 2 15/16″ x 2 15/16″ Trimless, Downlight offers LED lighting solutions | Zaneen Architectural A35847- Invader Compact Adjustable - Trimless Ø75mm, 11W LED: Natural Dimming, Max 862lm, 300mA, CRI: > 90, IP40 - Optics: 24° / 40° / 54°

Downloads

Request Files

Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Invader Compact by Prolicht – 2 15/16″ x 2 1/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Ceiling
Circle wall or ceiling cut-out

D. 68mm / 2 11⁄16"
Min. Recessing Depth

55mm /
2 3⁄16''
Ceiling thickness

1 - 25mm /
1⁄16 - 1''
Ceiling thickness selection
Reflector

18 / 36 / 56
Lens

None / Linear Spread Lens, Spread Lens, Honeycomb
Free individual colors 01-29
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

1012 / 1059 / 1098 / 1123
Certified for North American Standards
Protected against ingress of solid bodies greater than 1mm (wire);protected against water splashed from all directions


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
