Hangover Plug Trimless Insert - Minimal Track Suspension - Ø28mm / 1 1/8" x 150mm / 5 7/8" - 6.4W LED (Zhaga Standard) - 48V - 2700K / 3000K / 3500K / 4000K - Non-Dimming / Dali Dimming - Beam Angle: 22°/26°/ 56° - Shine Ring - CRI: 90 – Zaneen

General

Reset
Series: Hangover Plug
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Spots
Spots products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Cylinder
Diameter (mm): 28
Diameter (in): 1 1⁄8
Height (mm): 150
Height (in): 5 7⁄8
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum
Cable Details: 2000mm/78 3/4" or 4000mm/157 1/2" Cable - Color Options: Black / White / Orange / Red / Green



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 6
Total Output Wattage (W): 5.4
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 48
Upon Request: 0-10V Dimming with Tridonic Bridge



LED

Number of LEDs: 1
Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 381 / 404 / 426 / 438
Nominal Lumen (lm): 460 / 487 / 514 / 528
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 20 / 26 / 56



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A380714-

Specify

Description

No description has been found

This component relates to

Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-TRM-SYS Minimal Track Trimless Modular System

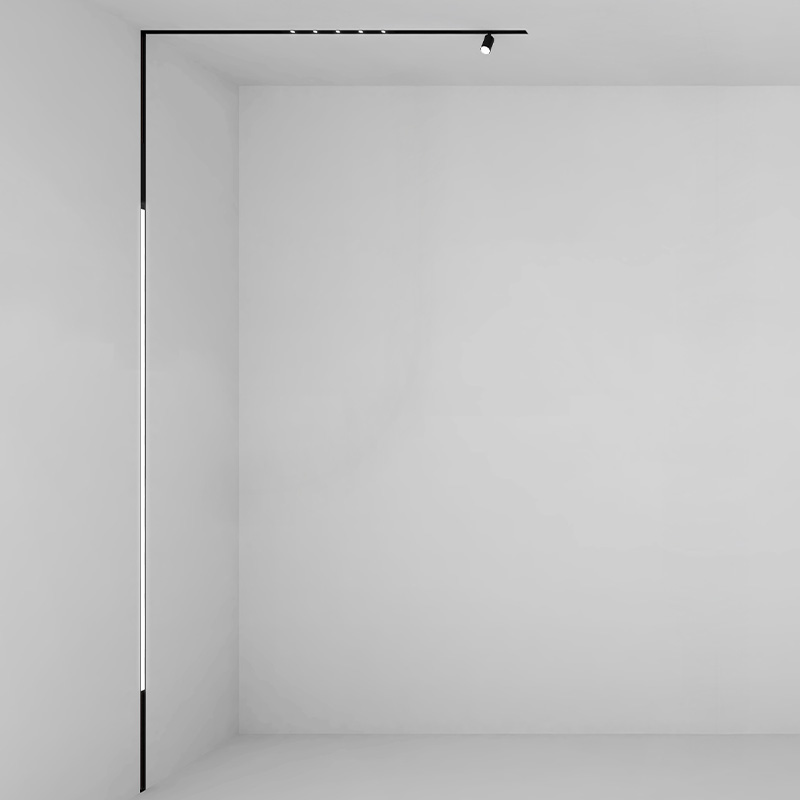

Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMT48V-TRI-SYS Micro Track Modular System - Trimless

Also Available within Series

Downloads

Request Files

Hangover Plug by Prolicht – 1 1/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural

Hangover Plug by Prolicht – 1 1/8″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural

Ceiling
Color of suspension cable
Color of suspension cable
Length of suspension cable
Free individual colors 01-29
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

381 / 404 / 426 / 438
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
