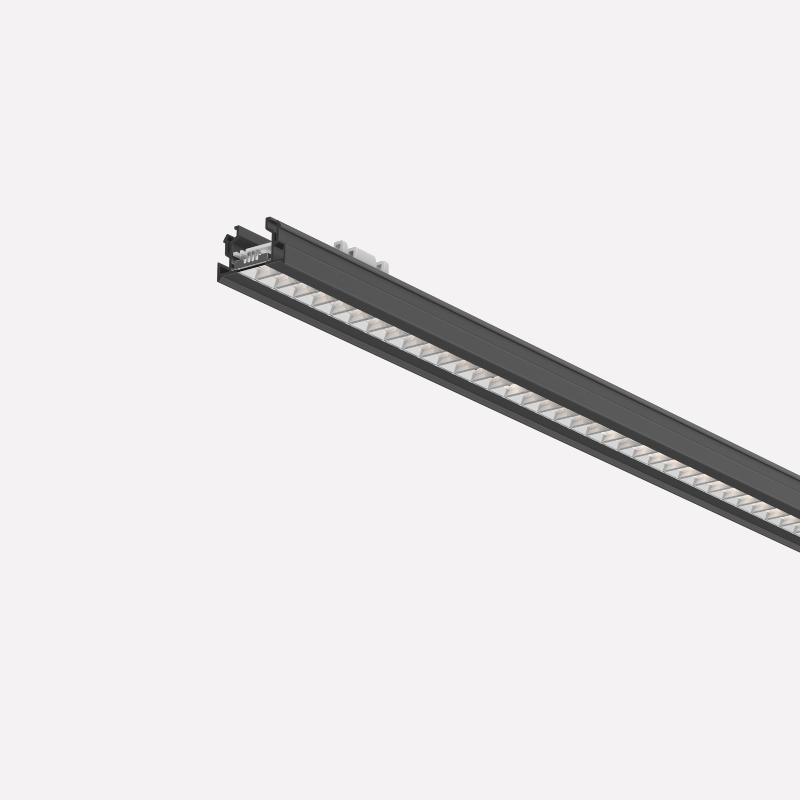

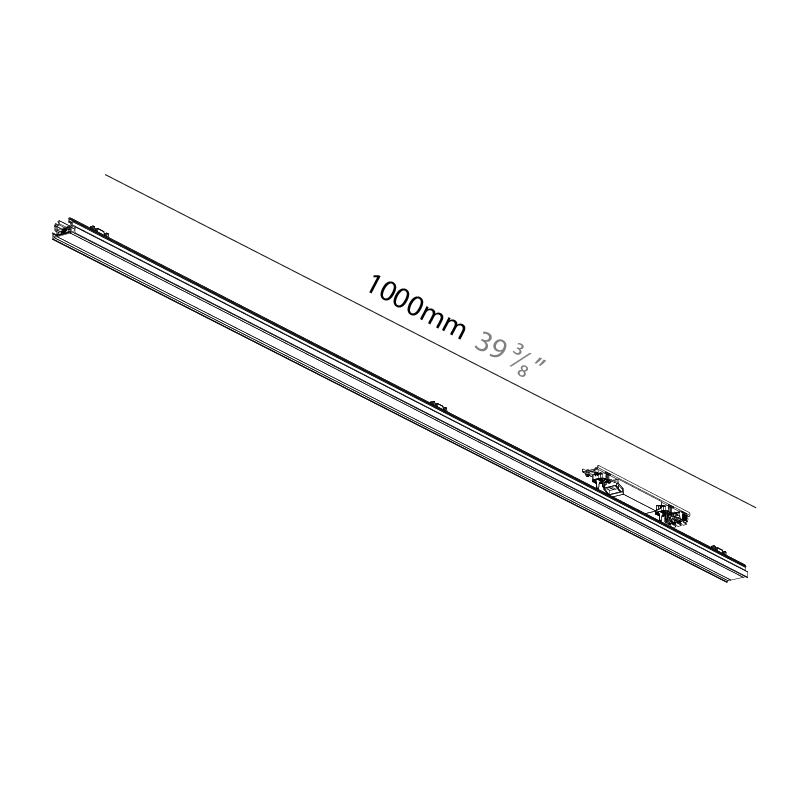

Forties, Linear Insert, 1000mm/ 39 3/8", 15W LED, 2700K / 3000K / 3500K / 4000K, Max 2125lm, CRI:90, IP40, Diffuser: Black Raster, Dimmable – Zaneen

General

Reset
Series: Forties
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Surface
Surface products
Product Type: Linear Profiles
Linear Profiles products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle
Length (mm): 800
Length (in): 31 1⁄2
Width (mm): 45
Width (in): 1 3⁄4
Height (mm): 35
Height (in): 1 3⁄8
Diffuser: Black Raster
Accent Finish: BKR
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED
Input Wattage (W): 15
Total Output Wattage (W): 13.6
Dimming: Non-Dimming / 0-10V Dimming / Phase Dimming / DALI Dimming / MATTER Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): Max 2125
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP40





Base Model Number: A3C270- New

Specify

Description

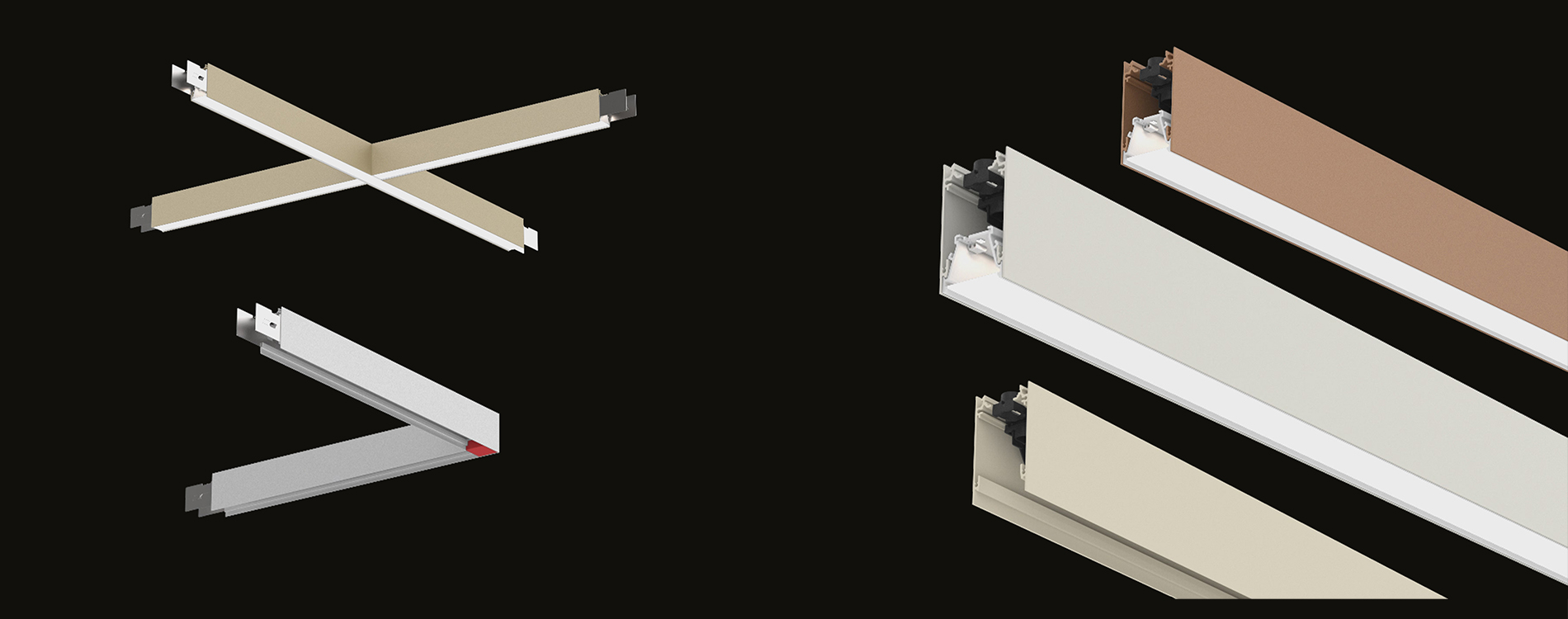

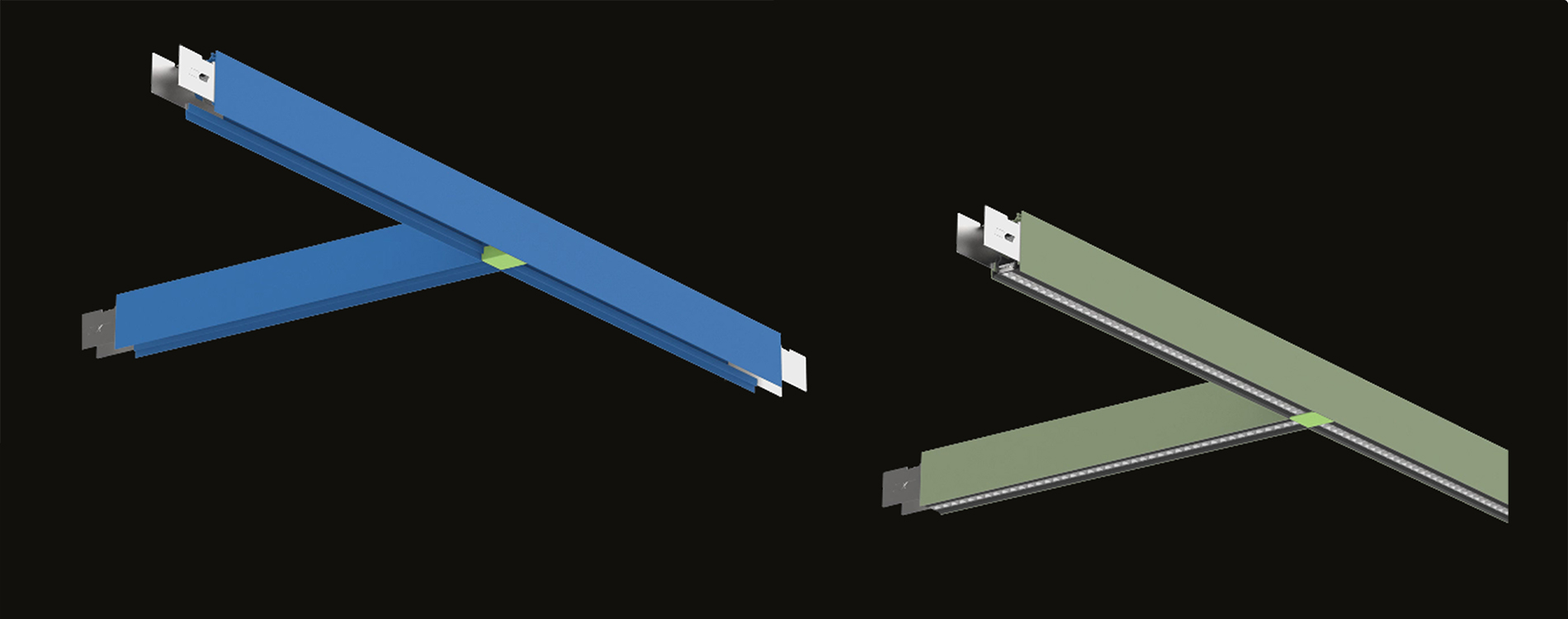

Forties is a next-generation lighting track system that combines minimalist design with advanced modular functionality. With its slim 45 mm profile and refined aesthetics, it integrates effortlessly into any environment. Forties offers straight and curved modules, smart connectors, and a wide variety of inserts from glare-controlled optics to pendant accents. Whether surface-mounted or suspended, its flexible mounting options and tailored light distributions make it ideal for both functional and atmospheric applications, including a Tunable White option that adapts to human needs and changing environments.

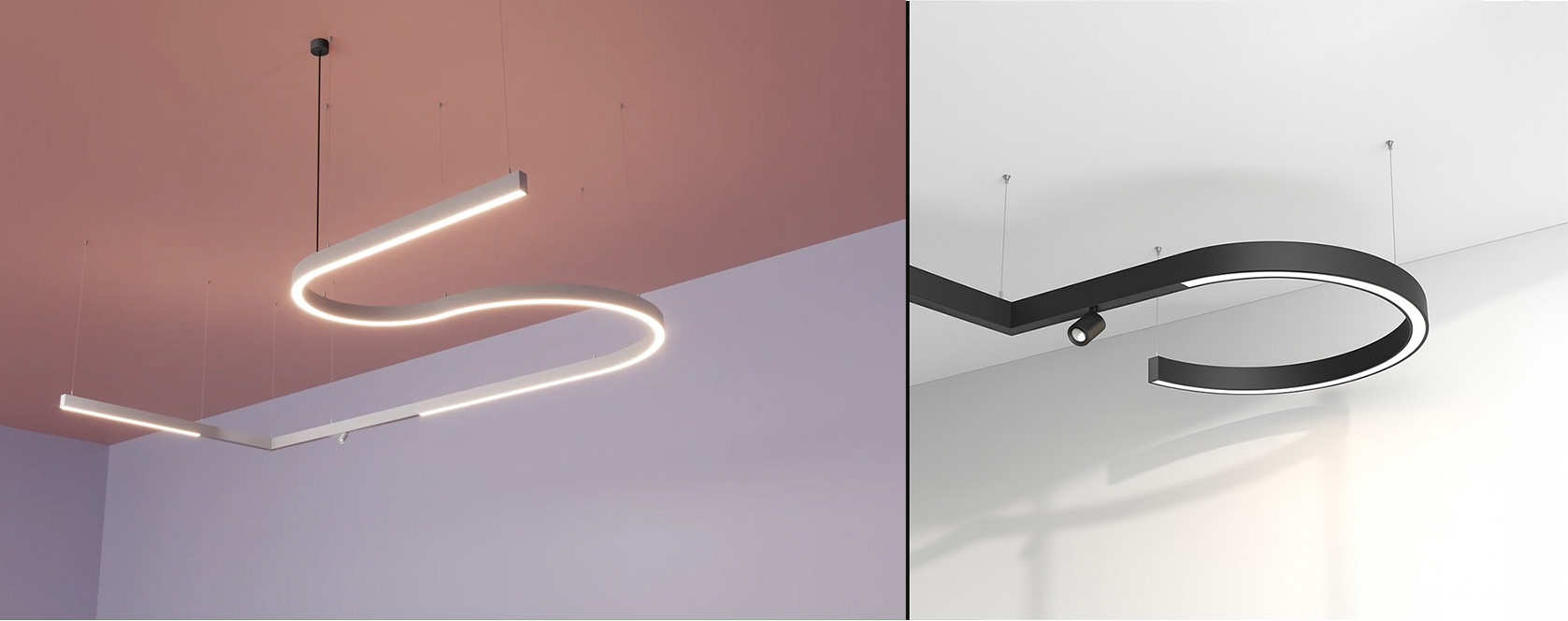

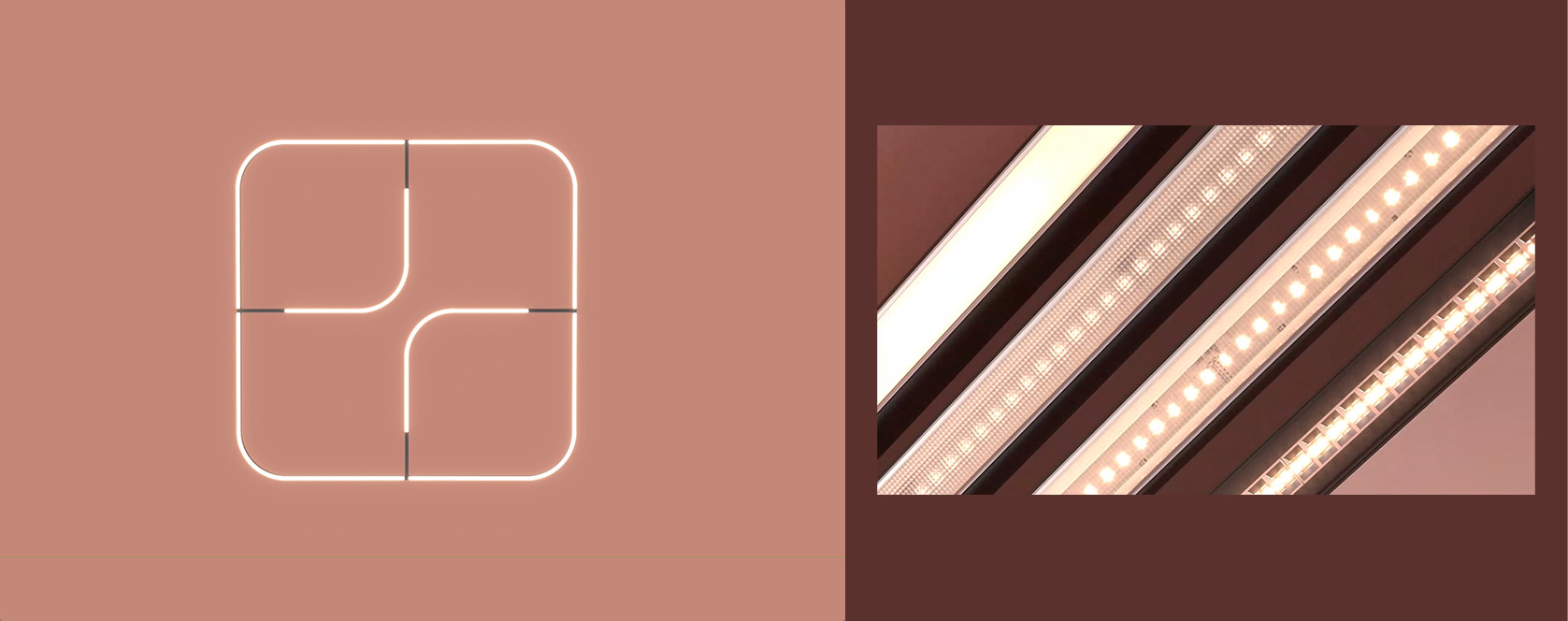

The system’s intelligent modularity empowers designers to shape light with precision, whether in linear layouts or complex, three dimensional forms, supported by multiple diffuser options such as Opal for smooth, homogeneous illumination, Microprism for excellent glare control and up to 90 percent efficiency in high ceiling spaces, Glare Control optics achieving UGR <19 with up to 1700 lm per meter for comfortable glare free lighting, Raster for focused illumination in demanding spaces such as offices and worktables UGR <19, Wall Wash for uniform horizontal wall illumination, and Double Asymmetric optics that create depth and dynamic shadow play. It is the perfect fusion of design freedom and technical efficiency, built to illuminate any vision.

Manufactured in Austria, by Prolicht.

This component relates to

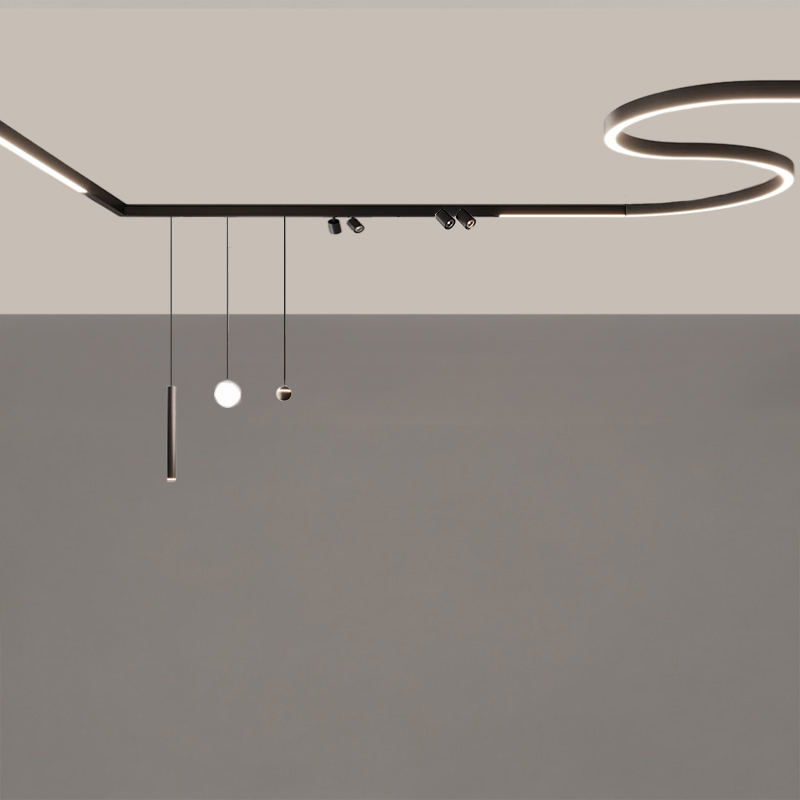

Forties by Prolicht – Surface, Modular Systems offers LED lighting solutions | Zaneen Architectural A3FORTIES-SUR-SYS Forties - Surface Linear Profile System

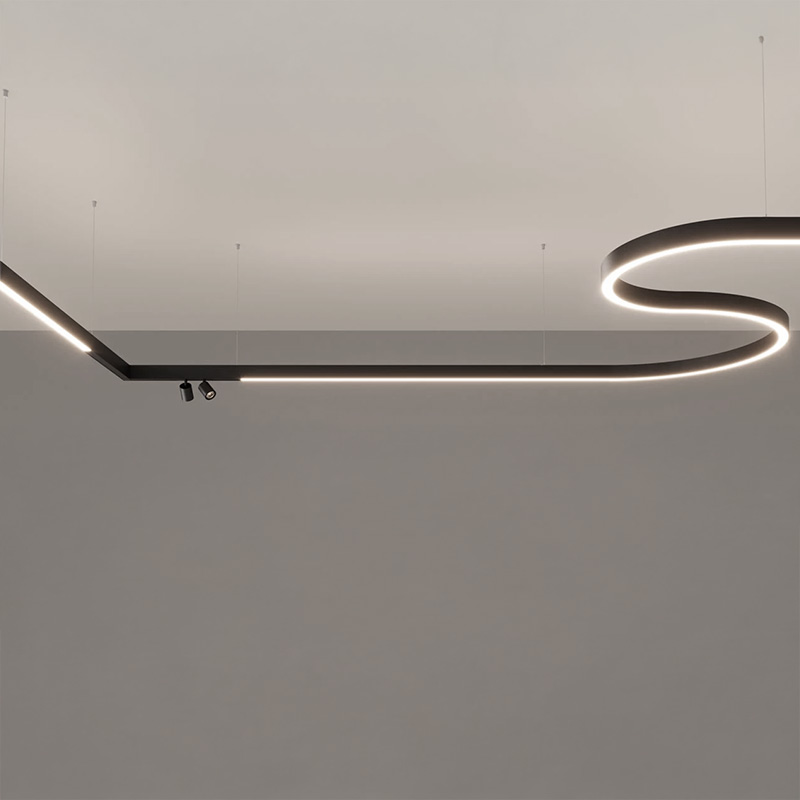

Forties by Prolicht – Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural A3FORTIES-SUS-SYS Forties - Suspension Linear Profile System

Also Available within Series New Series

Forties by Prolicht – Surface, Modular Systems offers LED lighting solutions | Zaneen Architectural A3FORTIES-SUR-SYS Forties - Surface Linear Profile System
New
Forties by Prolicht – Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural A3FORTIES-SUS-SYS Forties - Suspension Linear Profile System
New

Downloads

Request Files

Forties by Prolicht – 31 1/2″ x 1 3/8″ Surface, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Forties by Prolicht – 31 1/2″ x 1 3/8″ Surface, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

Max 2125
Certified for North American Standards
Protected against ingress of solid bodies greater than 1mm (wire); no protection against the ingress of moisture


Accent Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
