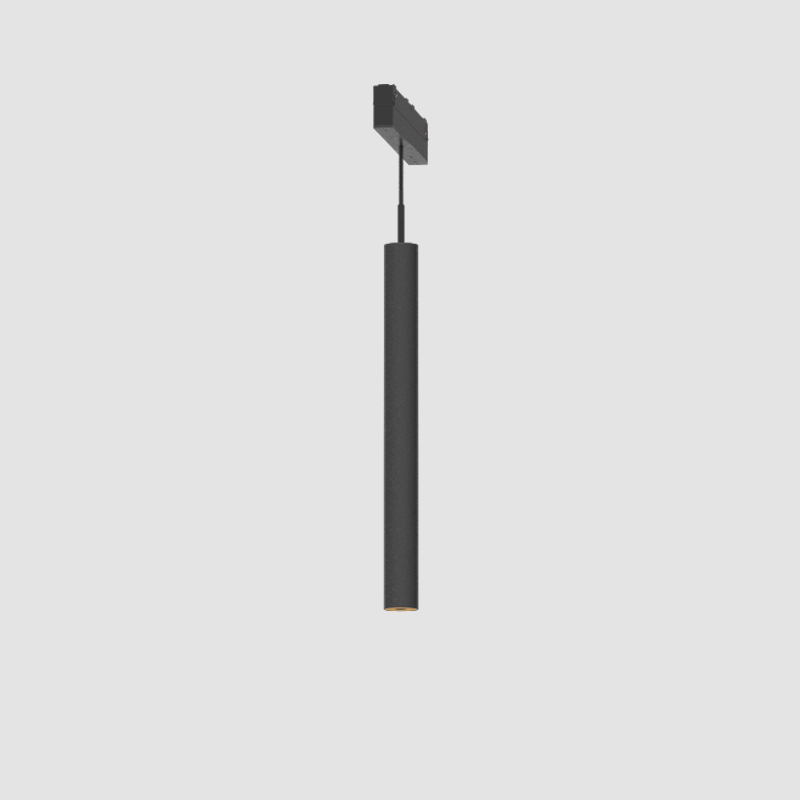

Clicktrack 25 Trimless - Hangover Plug Micro-Dot Suspension with Adapter, 300mm/11 13/16", 7.6W LED, 2700K / 3000K / 3500K / 4000K, Max 356lm, CRI:90, Non-Dimming

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

Clicktrack

SIMPLE YET POWERFUL

Get Inspired

General

Reset

Series: Clicktrack

Subseries: Clicktrack 25

Partner: Prolicht

Division: Architectural

Installation: Track

Product Type: Pendant

Mounting Location: Ceiling

Light Distribution: Direct

Physical

Shape: Cylinder

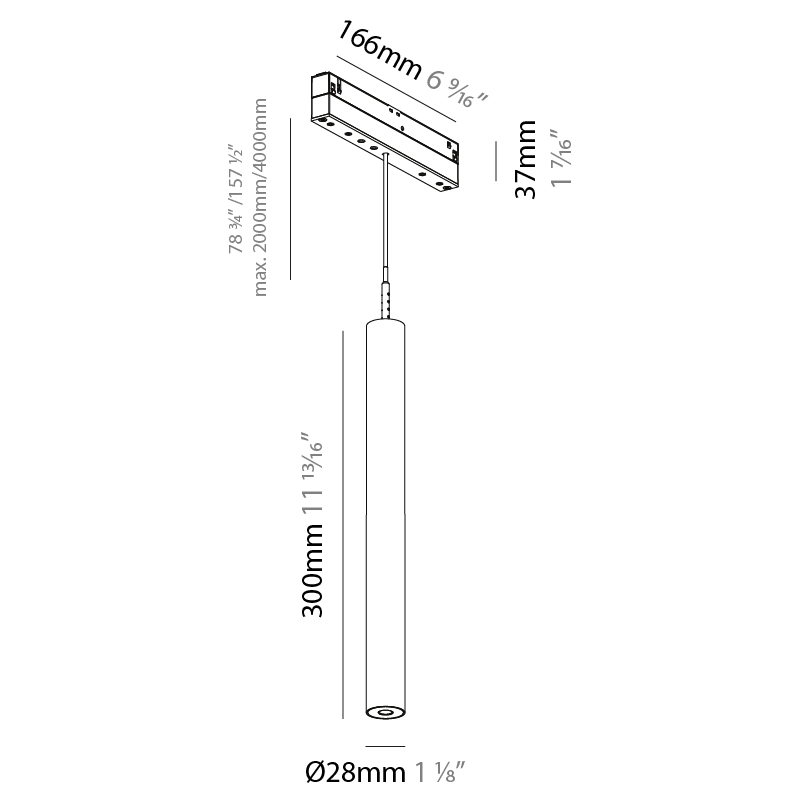

Diameter (mm): 28

Diameter (in): 1 ¹⁄₈

Length (mm): 166

Length (in): 6 ⁹⁄₁₆

Height (mm): 300

Height (in): 11 ¹³⁄₁₆

Diffuser: PMMA

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR

see color chart below

Accent Finish: OPL / YEL / ORA / RED / BLU / GRN

Fixture Material: Aluminum Die Cast

Cable Details: 2

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 7.6

Total Output Wattage (W): 6.2

Dimming: Non-Dimmable

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 48

LED

Number of LEDs: 1

Color Temperature (°K): 2700 / 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 283 - 356

Nominal Lumen (lm): 460 - 528

CRI: >90 CRI

Lamp Life (hrs): 50000

Optical

Beam Angle: 32

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20

Base Model Number: A3T426- New

Specify

Base Model Number:
A3T426-

Clicktrack 25 - Track - ⌀28mm - 1 1/8″ - 7.6W LED - 2700 / 3000 / 3500 / 4000°K - PMMA

Final Option Selection

Reset

Undo

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Reset

Undo

Reset

Undo

Model Number: A3T426- - - - -

Get Spec Sheet

Description

ClickTrack is a track system where spots are mounted simply by clicking them into the track, without the need for tools. The cable of the pendulum variants can be flexibly shortened or extended at any time. The great flexibility of the ClickTrack extension system ensures perfectly coordinated lighting concepts, for living areas, in retail, for hotels or in public buildings. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

Also Available within Series

	A3CLK25-TRI-SYS	Clicktrack 25 Modular System - Trimless
	A3CLK30-SUR-SYS	Clicktrack 30 Modular System - Surface Ceiling
	A3CLK30-SUS-SYS	Clicktrack 30 Modular System - Suspension
	A3CLK50-TRI-SYS	Clicktrack 50 Modular System - Trimless
