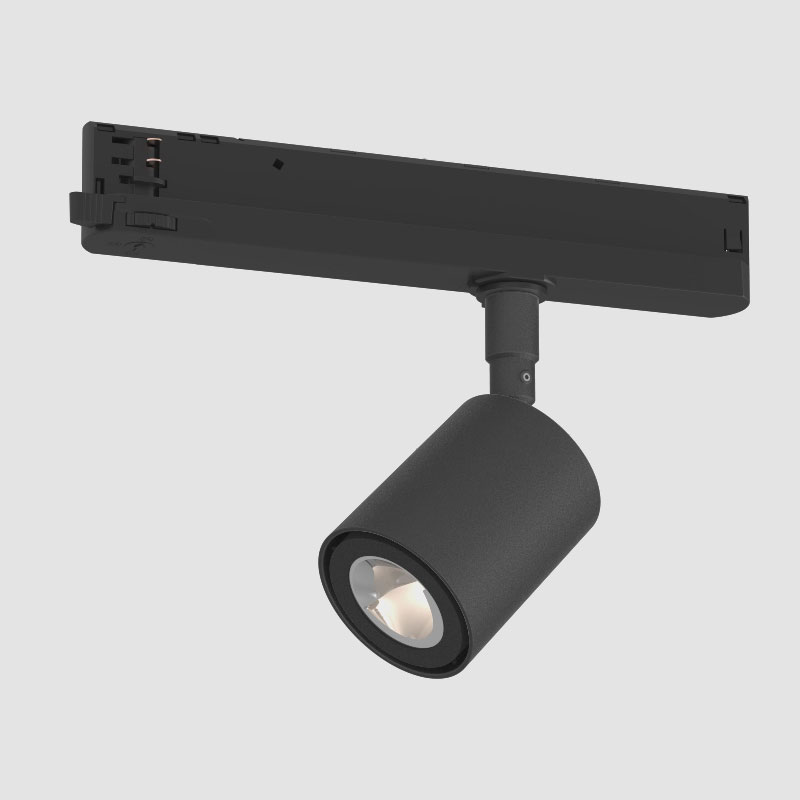

2LOOK4 50 Track - Oiko Pro In insert - 19W LED, 2700K / 3000K / 3500K / 4000K, Max 1724lm, CRI:90 - Dimmable, Beam Angle Wallwasher – Zaneen

General

Reset
Series: 2Look4 50 Track
Subseries: Oiko Pro In
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Spots
Spots products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Adjustable / Direct
Adjustable / Direct products

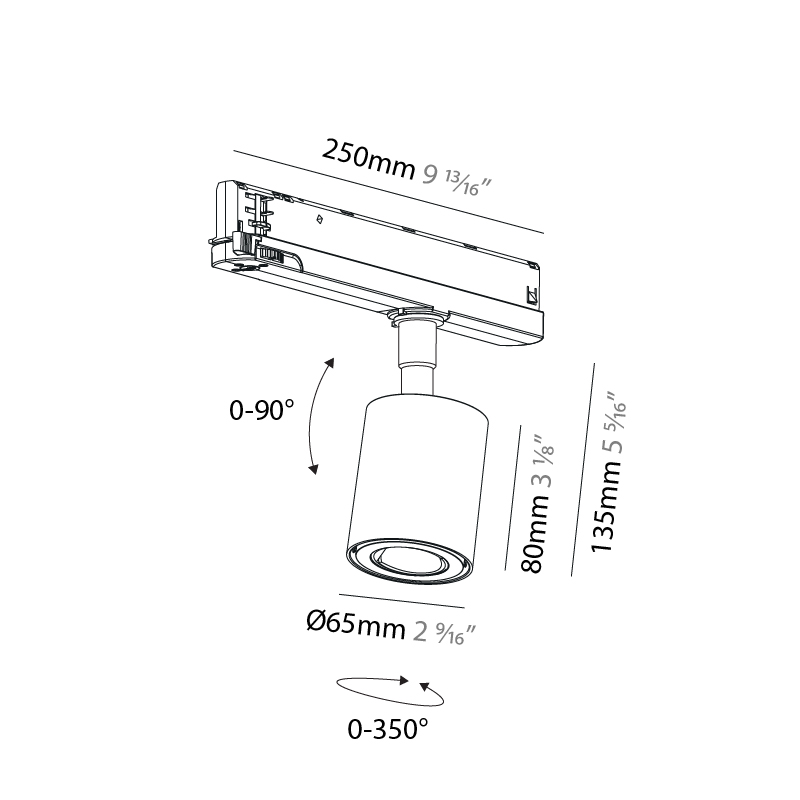

Physical

Shape: Cylinder
Diameter (mm): 65
Diameter (in): 2 9⁄16
Length (mm): 250
Length (in): 9 13⁄16
Height (mm): 136
Height (in): 5 3⁄8
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Holder Finish: GRY / BLK / WHI
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 19
Total Output Wattage (W): 17.2
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - 120Vac
Input Voltage (V): 120
Constant Current (MA): 500



LED

Number of LEDs: 1
Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 1624 / 1632 / 1708 / 1724
Nominal Lumen (lm): 2040 / 2050 / 2146 / 2166
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: Wallwasher
Adjustability: Rotational 350°; Tilt 90°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A3T431- New

Specify

Description

2Look4 50 Track is a trimless lighting series with a minimalist design with a recessed 230V rail where the driver housing is flush with the ceiling, discreetly concealed by a black plastic cover. The 2Look4 50 Track profile system offers versatile lighting solutions with Magiq Plus Wallwash inserts and Centriq spots, meeting even the most complex lighting concept requirements. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

2Look4 50 Track by Prolicht – Track, Track System Line Voltage offers LED lighting solutions | Zaneen Architectural A32L450-TRK-TRI-SYS 2LOOK4 - 50 Track - Trimless - Profile System

Also Available within Series

2Look4 50 Track by Prolicht – Track, Track System Line Voltage offers LED lighting solutions | Zaneen Architectural A32L450-TRK-TRI-SYS 2LOOK4 - 50 Track - Trimless - Profile System

Downloads

Request Files

2Look4 50 Track by Prolicht – 2 9/16″9 13/16″ x 5 3/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural

2Look4 50 Track by Prolicht – 2 9/16″9 13/16″ x 5 3/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural

Ceiling
Included or excluded LED driver/transformer/ control gear
Tilt

90°
Rotation

350°
Free individual colors 01-29
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

1624 / 1632 / 1708 / 1724
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red

Holder Finishes

GRY (no image available) BLK - Black WHI - White
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
