General

Division: Design


Series: Curled


Mounting Type: Surface


Mounting Location: Wall


Subcategory: Ambient


Brand: Quasar




Physical

Shape: Abstract


Diameter (mm): 700


Diameter (in): 27 916


Height (mm): 700


Height (in): 27 916


Extension (mm): 300


Extension (in): 11 1316


Light Distribution: Omnidirectional


Weight (kg): 3.5


Weight (lbs): 7.72


Fixture Finish: COP / NIC / BRA / BBR


Fixture Material: Metal


Upon Request: Custom Sizes




Electrical

Number of Lamps: 50


Lamp Type: LED Retrofit


Total Output Wattage (W): 16.5


Bulb Included: Bulb Included


Max. Wattage Per Lamp (W): 0.33


Lamp Base: E10


Dimming: 0-10V Dimming / Phase Dimming (120Vac Only)


Driver Included: Yes


Driver Location: Integrated


Driver Type: Constant Voltage - Universal


Driver Class: Class 2


Input Voltage (V): 120 / 277


Output Voltage (V): 12


Lamp Voltage (V): 12


Upon Request: (Not inlcuded - see components) Integral: 0-10Vdc dimming / (Included) Integral: Phase dimming @120Vac only / Non-dimming @277Vac




LED

Color Temperature (°K): 2600 / 3000 / 3500


Max. Delivered Lumen (lm): 1150 (2600K)


CRI: >90 CRI


Lamp Life (hrs): 50000




Optical



Ratings and Certifications

Certified By: Certified for North American Standards


IP rating: IP20






Base Model Number: D103081-


Description

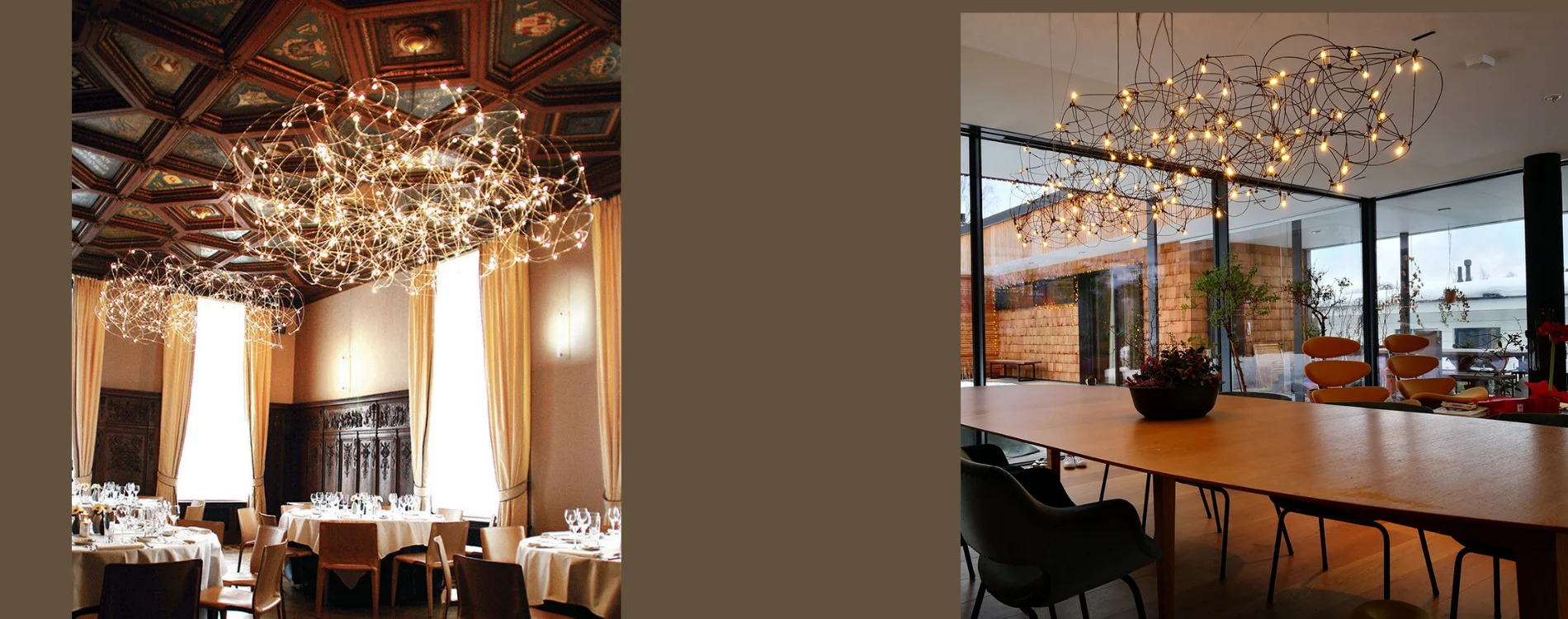

The CURLED is a part of the startlight design, in which runs the electric current through the fixtures wired design, and lamps throughout. It's design is configured curved cable. Available in wall or suspension, multiple sizes and three finishes, Copper, Brass and Nickle. Custom sizes upon request.

Product Components

Image SKU Description Downloads
DVO0400012MB MeanWell - HLG-40H-12B - 1-10Vdc / Resistance / 10V PWM Dimming - 23.98-40W - 12Vdc - 120-277Vac - LED power supply

...



Finishes

Digital Disclamer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
