Scroll - Suspension - 30 Ministar LED with 6 Ministar LED on the base, 72W, 3000K, 8400lm, Max 500mA, CRL>85, Phase Dimming - – Zaneen

General

Reset
Series: Scroll
Partner: Knikerboker
Knikerboker products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products

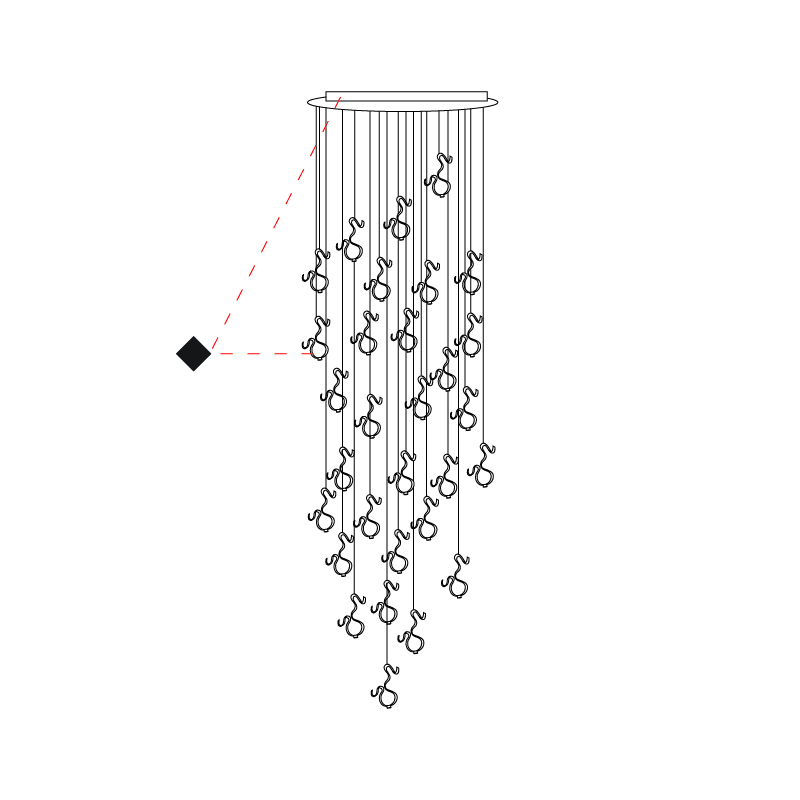

Light Distribution: Indirect
Indirect products

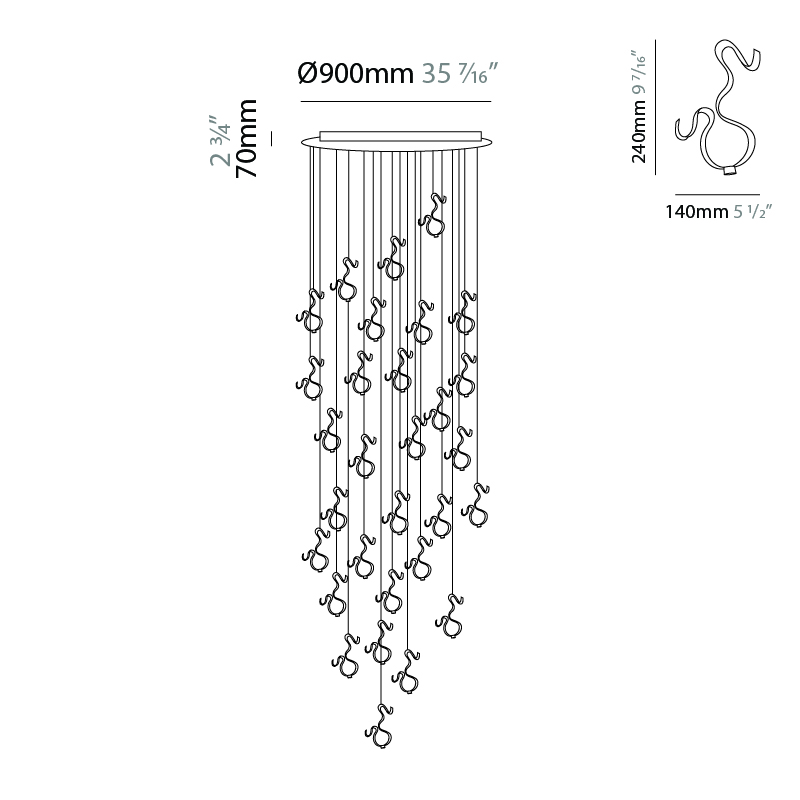

Physical

Shape: Curves
Diameter (mm): 900
Diameter (in): 35 7⁄16
Height (mm): 1500
Height (in): 59 1⁄16
Fixture Finish: EWH / EBK / MAN / COF / PRD / SLF / GLF / CLF / BRL
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 72
Dimming: Non-Dimming / Phase Dimming (120vac Only)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 500



LED

Color Temperature (°K): 3000
Max. Delivered Lumen (lm): 22400
CRI: >85 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: D131580-

Specify

Description

Scroll is a versatile lighting collection that seamlessly integrates concave and convex shapes to create elegant curves. Available in suspension, surface and portable, each piece is crafted to illuminate spaces with a line of light that highlights the beauty of aluminum in various colors. Scroll enhances interiors with its dynamic design and functional illumination.

Manufactured in Italy, by Knikerboker.

Also Available within Series

Scroll by Knikerboker – 23 5/8″ x 39 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131074- Scroll - Suspension - 1000mm / 39 3/8" - 2 x 3W strips (36 LED) 24Vdc + 1 x 10W 250mA COB LED - Dimmable
Scroll by Knikerboker – 5 1/2″ x 9 7/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131574- Scroll - Suspension - 1 Ministar LED 2W, 3000K, 280lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 19 11/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131575- Scroll - Suspension - 10 Ministar LED 20W, 3000K, 8400lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 19 11/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131576- Scroll - Suspension - 10 Ministar LED with 6 Ministar LED on the base, 32W, 3000K, 8400lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 27 9/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131577- Scroll - Suspension - 20 Ministar LED 40W, 3000K, 16800lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 27 9/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131578- Scroll - Suspension - 20 Ministar LED with 6 Ministar LED on the base, 52W, 3000K, 8400lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 35 7/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131579- Scroll - Suspension - 30 Ministar LED 60W, 3000K, 22400lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 35 7/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D131580- Scroll - Suspension - 30 Ministar LED with 6 Ministar LED on the base, 72W, 3000K, 8400lm, Max 500mA, CRL>85, Phase Dimming -
Scroll by Knikerboker – 5 1/2″ x 9 7/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D133130- Scroll - Surface Wall - 1 Ministar LED 2W, 3000K , 280lm, Max 500mA, CRI>85, Phase Dimming
Scroll by Knikerboker – 23 5/8″ x 80 11/16″ Portable, Floor offers quality European interior lighting design | Zaneen Design D134050- Scroll - Floor Lamp - 2 x 3W LED strips (24Vdc) + 1 x 10.5W LED COB (250mA) - 1100lm - 3000K - Plug and Cord with Dual Switches - Non-dimmable - 120Vac
Scroll by Knikerboker – 5 1/2″ x 9 7/16″ Portable, Table offers quality European interior lighting design | Zaneen Design D134170- Scroll - Table Lamp - 1 Ministar LED 2W, 3000K , 280lm, Max 500mA, CRI>85, Phase Dimming

Downloads

Request Files

Scroll by Knikerboker – 35 7/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

Scroll by Knikerboker – 35 7/16″ x 59 1/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

Ceiling
Indirect
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>85 CRI
Color temperature

3000
Lumen (luminous flux)

22400
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

EWH - Embossed White EBK - Embossed Black MAN - Metallic Anthracite COF - Coffee PRD - Purple Red SLF - Silver Leaf GLF - Gold Leaf CLF - Copper Leaf BRL - Bronze Leaf
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
