Tre - Floodlight, 204mm/8 1/16" x 369mm/14 1/2", 36 LED, 42W, 2200K / 3000K / 4000K / 5700K, Max 4700lm, CRI:80, Non-Dimming - Gray – Zaneen

General

Reset
Series: Tre
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Flood
Flood products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Direct
Direct products



Physical

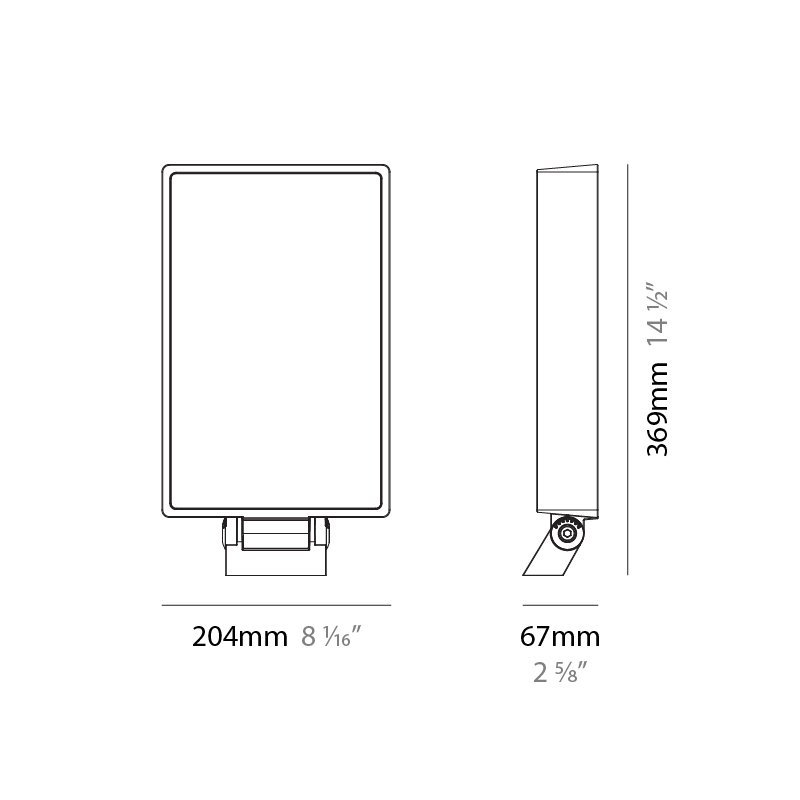

Shape: Rectangle
Length (mm): 204
Length (in): 8 1⁄16
Width (mm): 67
Width (in): 2 5⁄8
Height (mm): 369
Height (in): 14 1⁄2
Weight (kg): 4.2
Diffuser: Tempered Extra-clear Sodium-calcium Glass
Fixture Finish: GRY
see color chart below
Fixture Material: Aluminum Alloy
Cable Details: Supplied with one power supply cable 0.8m in length



Electrical

Lamp Type: LED
Input Wattage (W): 42
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120



LED

Number of LEDs: 36
Color Temperature (°K): 2200 / 3000 / 4000 / 5700
Max. Delivered Lumen (lm): 3031 - 4700
Nominal Lumen (lm): 4140 - 5580
CRI: >80 CRI
Lamp Life (hrs): 60000



Optical

Beam Angle: 5



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK08





Base Model Number: E15F012- New

Specify

Description

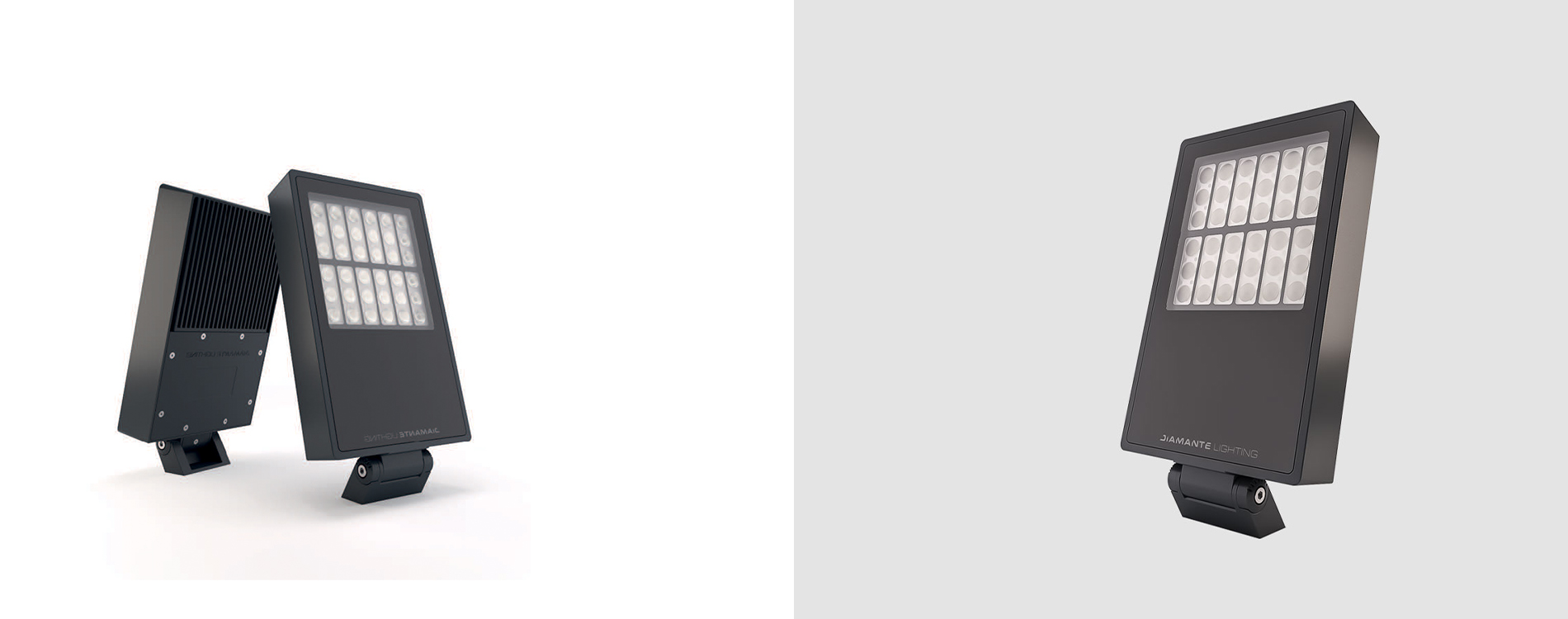

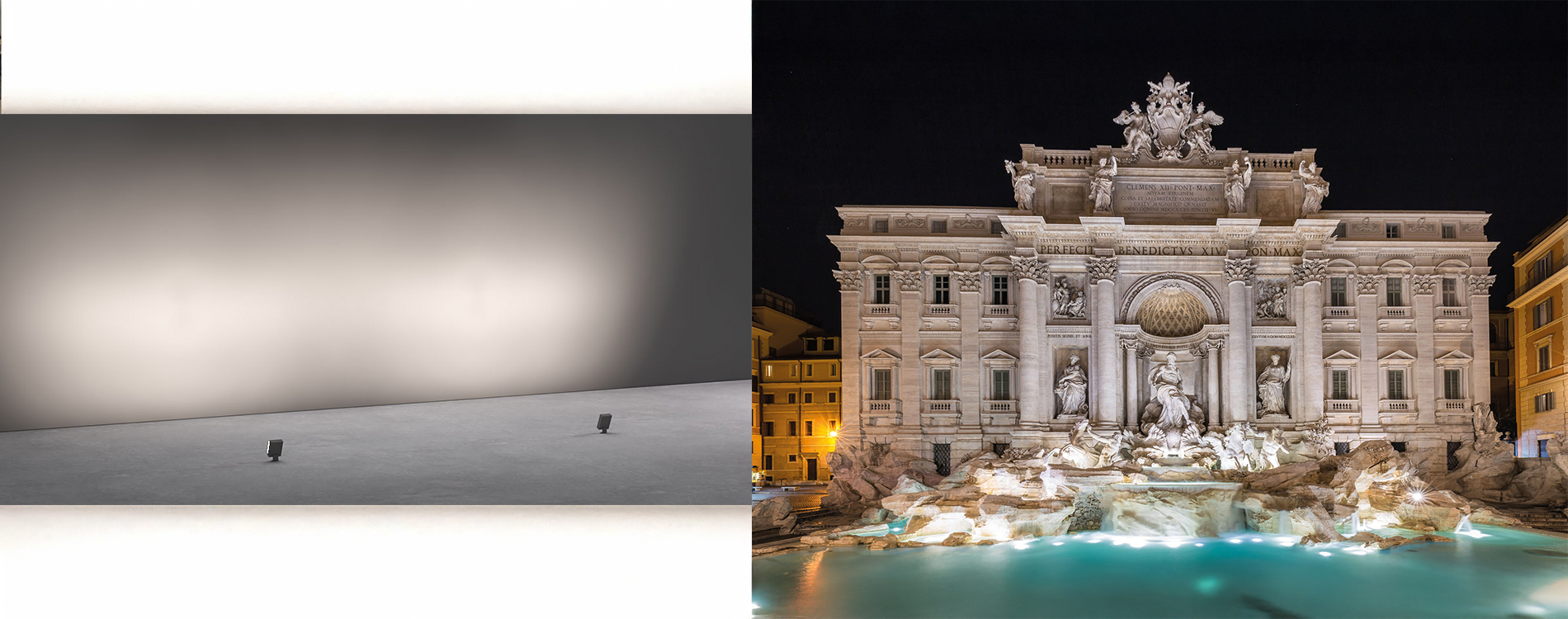

Tre is a high-performance adjustable surface projector floodlight designed to illuminate architectural spaces with precision and style. Crafted from durable die-cast aluminum and rated IP66 and IP67, it is built to excel in any environment. With power options of 41W and 61W, the Tre Floodlight features high-power LEDs and ten high-precision beam angles ranging from 4° to 100°, including four elliptical emissions. Offering four color temperatures from 2200K to 6000K and an RGBW option, it delivers versatility for accent lighting, grazing, and wall washing. Perfect for highlighting architectural surfaces, volumes, and details—even on tall buildings—it ensures easy placement, aiming, and installation. Equipped with an onboard power supply and advanced control via DMX-RDM or DALI, the Tre Floodlight combines functionality, flexibility, and powerful illumination for any architectural context.

Manufactured in Italy, by Diamante.

Also Available within Series New Series

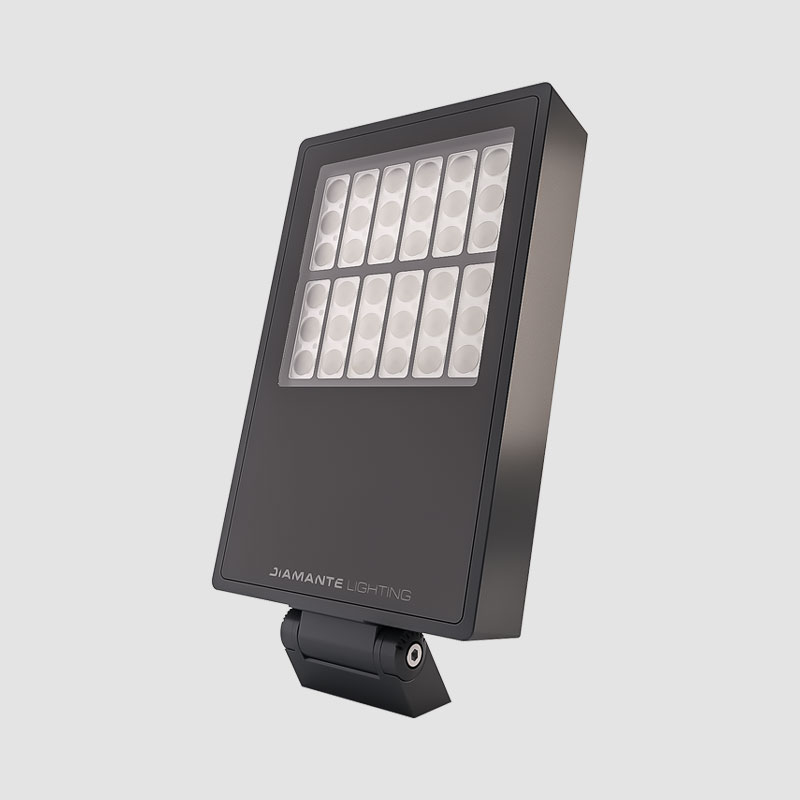

Tre by Diamante – 8 1/16″ x 14 1/2″ Surface, Flood offers high performance and quality material | Zaneen Exterior E15F012- Tre - Floodlight, 204mm/8 1/16" x 369mm/14 1/2", 36 LED, 42W, 2200K / 3000K / 4000K / 5700K, Max 4700lm, CRI:80, Non-Dimming - Gray
New

Downloads

Request Files

Tre by Diamante – 8 1/16″ x 14 1/2″ Surface, Flood offers high performance and quality material | Zaneen Exterior

Tre by Diamante – 8 1/16″ x 14 1/2″ Surface, Flood offers high performance and quality material | Zaneen Exterior

Direct
Included or excluded LED driver/transformer/ control gear
Color rendering index

>80 CRI
Color temperature

2200 / 3000 / 4000 / 5700
Lumen (luminous flux)

3031 - 4700
Certified for North American Standards
Protected against ingress of dust; protected against powerful jets of water or heavy seas
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
