Thintube, Linear, 510mm/20 1/16", 96 LEDS, 8W, 3000K / 4000K, Max 760lm, CRI:80, 48VDC, Anodized Silver (Remote Driver Required) – Zaneen

General

Reset
Series: Thintube
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Uplight
Uplight products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Uplight
Uplight products



Physical

Shape: Cylinder

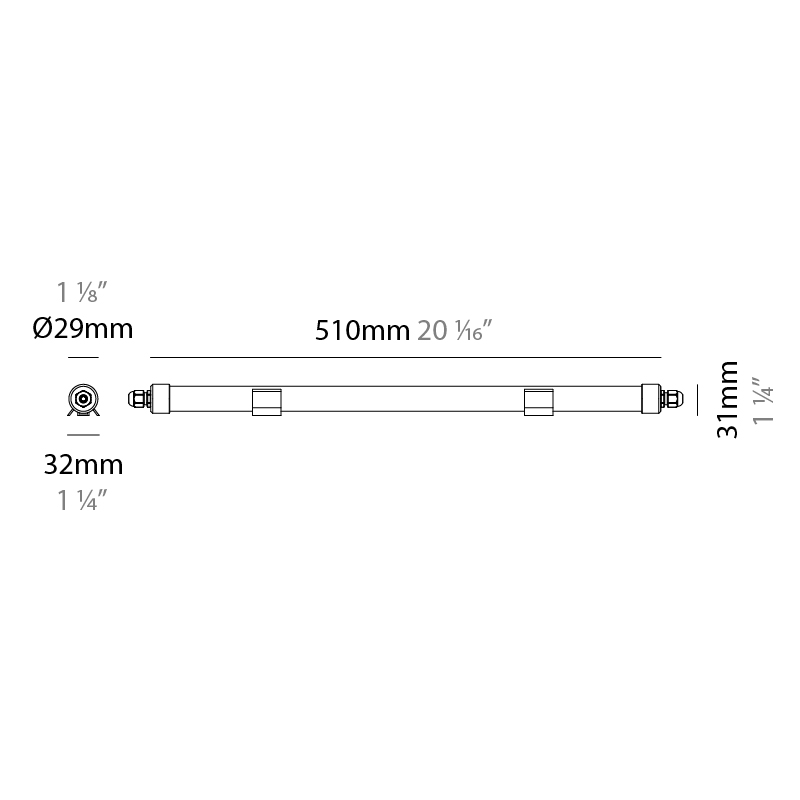

Length (mm): 510
Length (in): 20 1⁄16
Width (mm): 31
Width (in): 1 1⁄4
Weight (kg): 0.35
Diffuser: PMMA - Opal
Fixture Finish: ANS
see color chart below
Fixture Material: Aluminum / Polycarbonate



Electrical

Lamp Type: LED
Input Wattage (W): 8
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 48
Upon Request: Phase Dimming (120Vac only) / 0-10V Dimming (Contact Zaneen for driver details)



LED

Number of LEDs: 96
Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 735 / 760
Nominal Lumen (lm): 860 / 890
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 120



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP68
IK Rating: IK08





Base Model Number: E15G0016 New

Specify

Description

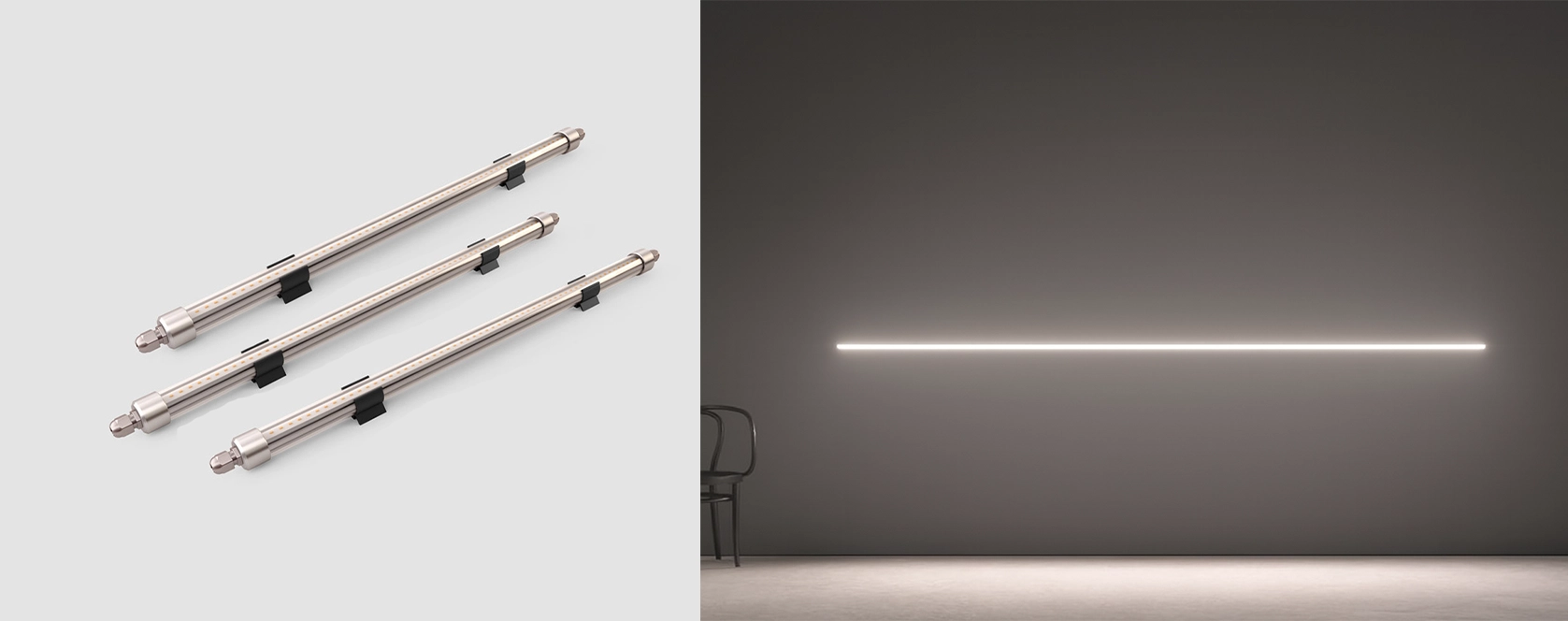

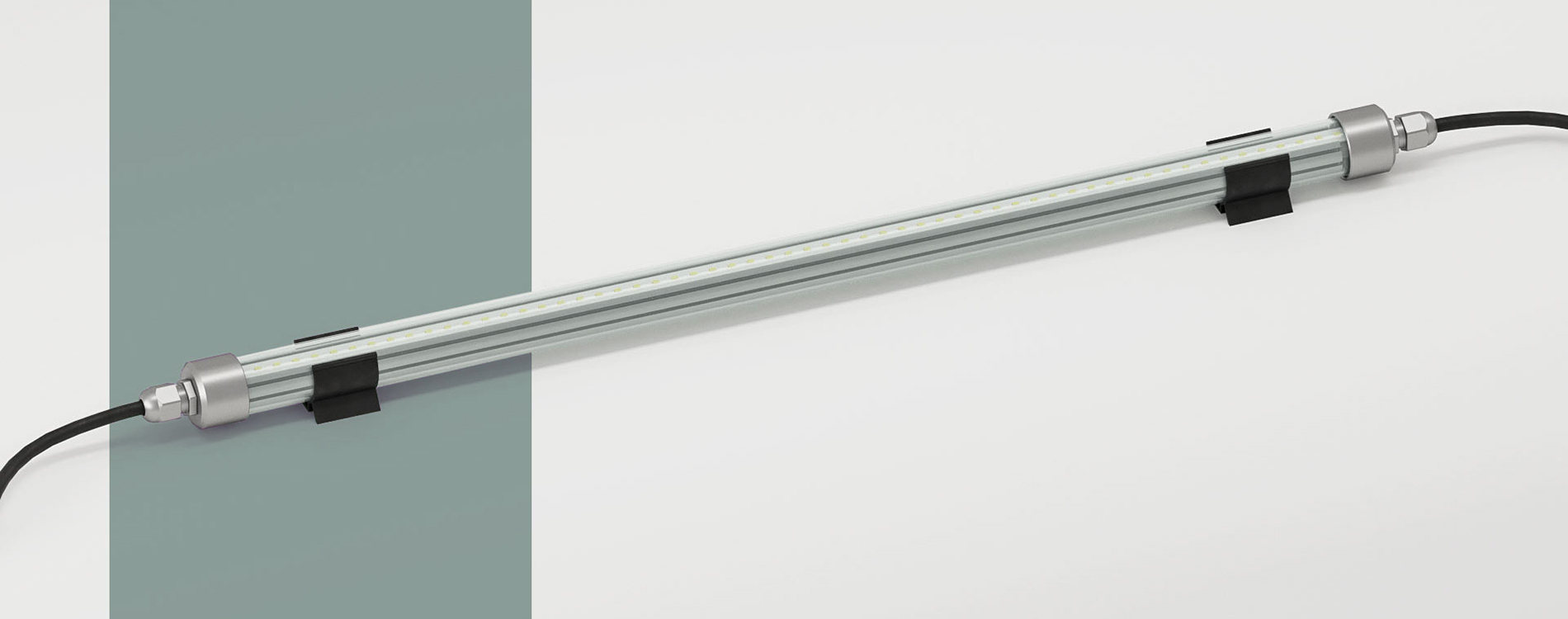

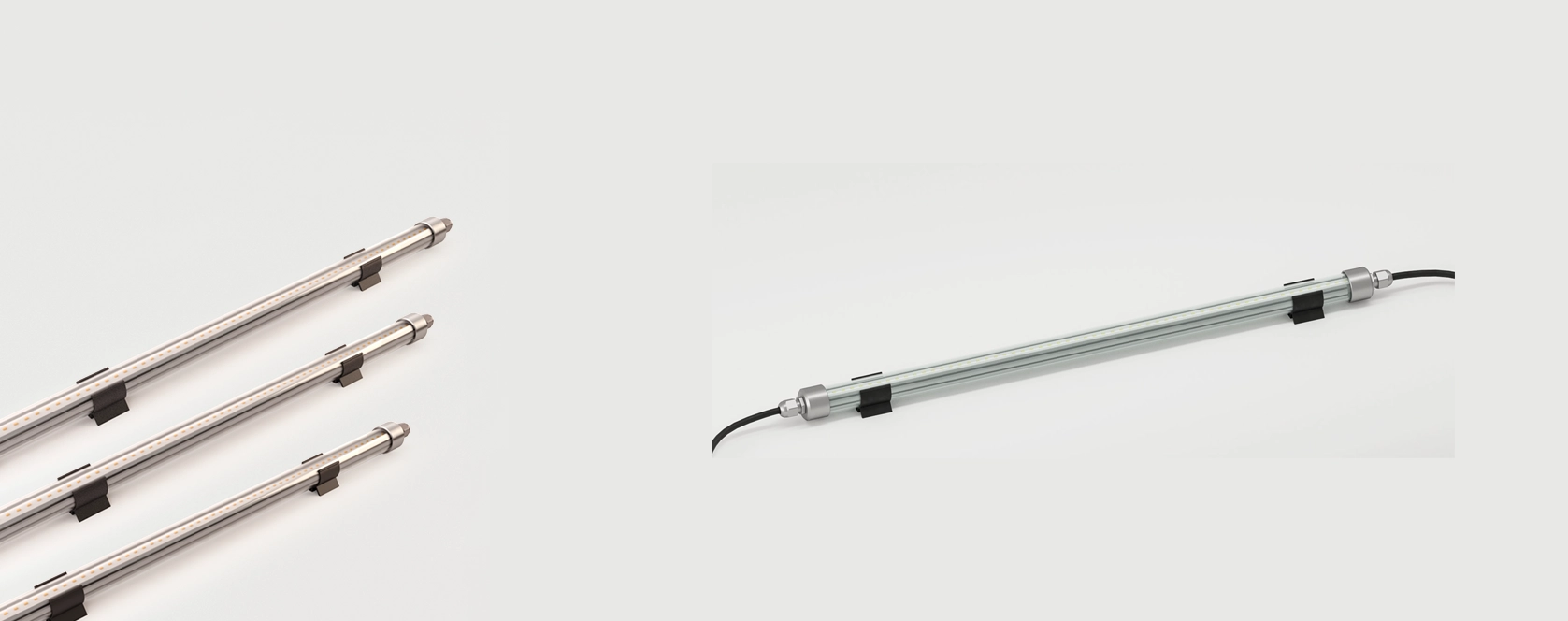

Thintube is a professional linear lighting fixture designed for precision accents and contour illumination. Engineered to be used as a modular system, Thintube offers seamless integration into a variety of architectural and commercial lighting applications and is available in custom module lengths, ensuring a tailored lighting solution for any project. Featuring medium-power LEDs, Thintube delivers high-quality illumination with diffused light for smooth, uniform brightness. Perfect for architectural accents and creative lighting designs, Thintube combines minimalist aesthetics with advanced LED technology, making it an ideal choice for professionals seeking high-quality, adaptable lighting solutions.

Manufactured in Italy, by Diamante.

Also Available within Series New Series

Thintube by Diamante – 20 1/16″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0016 Thintube, Linear, 510mm/20 1/16", 96 LEDS, 8W, 3000K / 4000K, Max 760lm, CRI:80, 48VDC, Anodized Silver (Remote Driver Required)
New

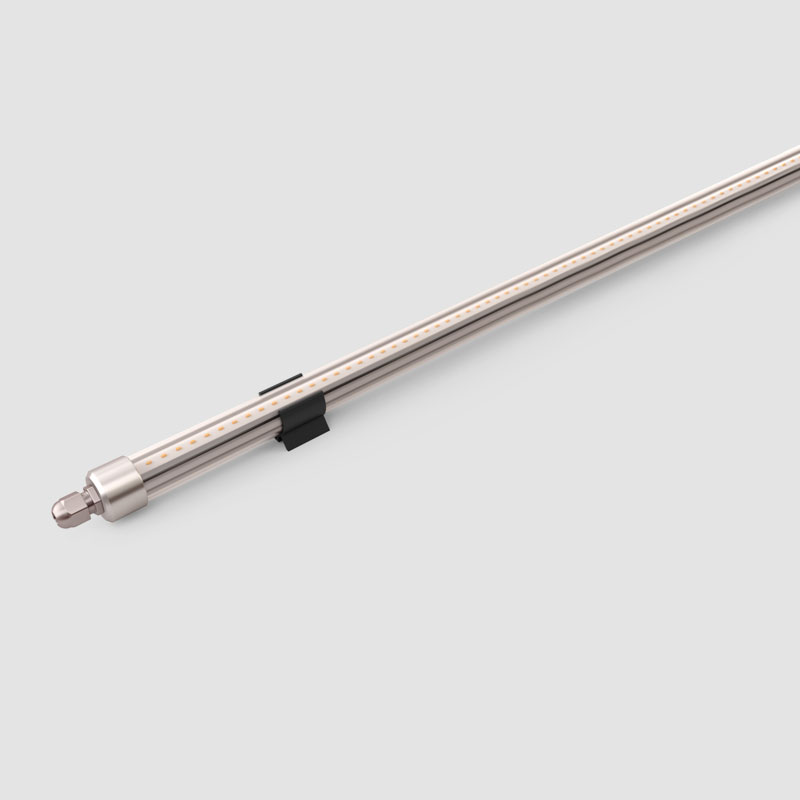

Thintube by Diamante – 40 15/16″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0017 Thintube, Linear, 1040mm/40 15/16", 204 LEDS, 16W, 3000K / 4000K, Max 1615lm, CRI:80, 48VDC, Anodized Silver (Remote Driver Required)
New
Thintube by Diamante – 59 7/16″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0018 Thintube, Linear, 1510mm/59 7/16", 300 LEDS, 24W, 3000K / 4000K, Max 2375lm, CRI:80, 48VDC (Remote Driver Required)
New

Downloads

Request Files

Thintube by Diamante – 20 1/16″ Surface, Uplight offers high performance and quality material | Zaneen Exterior

Thintube by Diamante – 20 1/16″ Surface, Uplight offers high performance and quality material | Zaneen Exterior

Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

735 / 760
Certified for North American Standards
Protected against ingress of dust; protected against immersion of water under pressure for long periods
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
