Mesh - Floor Lamp 1200 - Flat Base - 12W LED - 3000K / 4000K - 120Vac - Optic 87° – Zaneen

General

Reset
Series: Mesh
Subseries: Mesh - Standard
Partner: Platek
Platek products
Division: Exterior
Exterior products
Installation: Portable
Portable products
Product Type: Floor
Floor products
Mounting Location: Floor
Floor products
Light Distribution: Direct
Direct products



Physical

Shape: Abstract
Diameter (mm): 200
Diameter (in): 7 7⁄8
Height (mm): 1200
Height (in): 47 1⁄4
Diffuser: Polycarbonate
Fixture Finish: WHI / BRZ
see color chart below
Fixture Material: Metal
Upon Request: Finishes - Corten



Electrical

Lamp Type: LED
Input Wattage (W): 12
Dimming: Non-Dimmable
Input Voltage (V): 120



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 295 / 305
Nominal Lumen (lm): 1050 / 1090
CRI: >80 CRI
Lamp Life (hrs): 60000



Optical

Optic°: 87



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
IK Rating: IK07
Bug Rating: B0 U0 G0
Upon Request: Higher Maximum Ambient Temperature





Base Model Number: E9B219-

Specify

Description

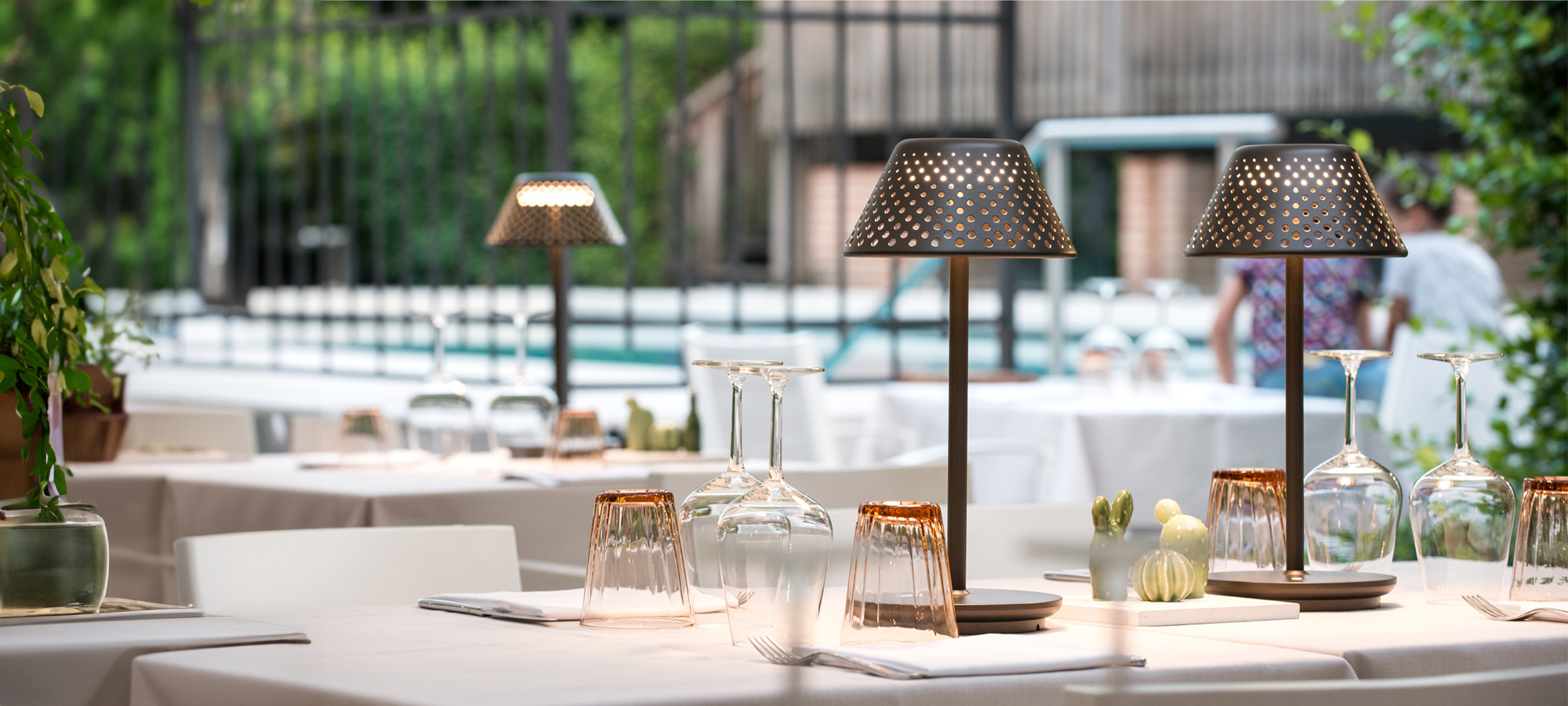

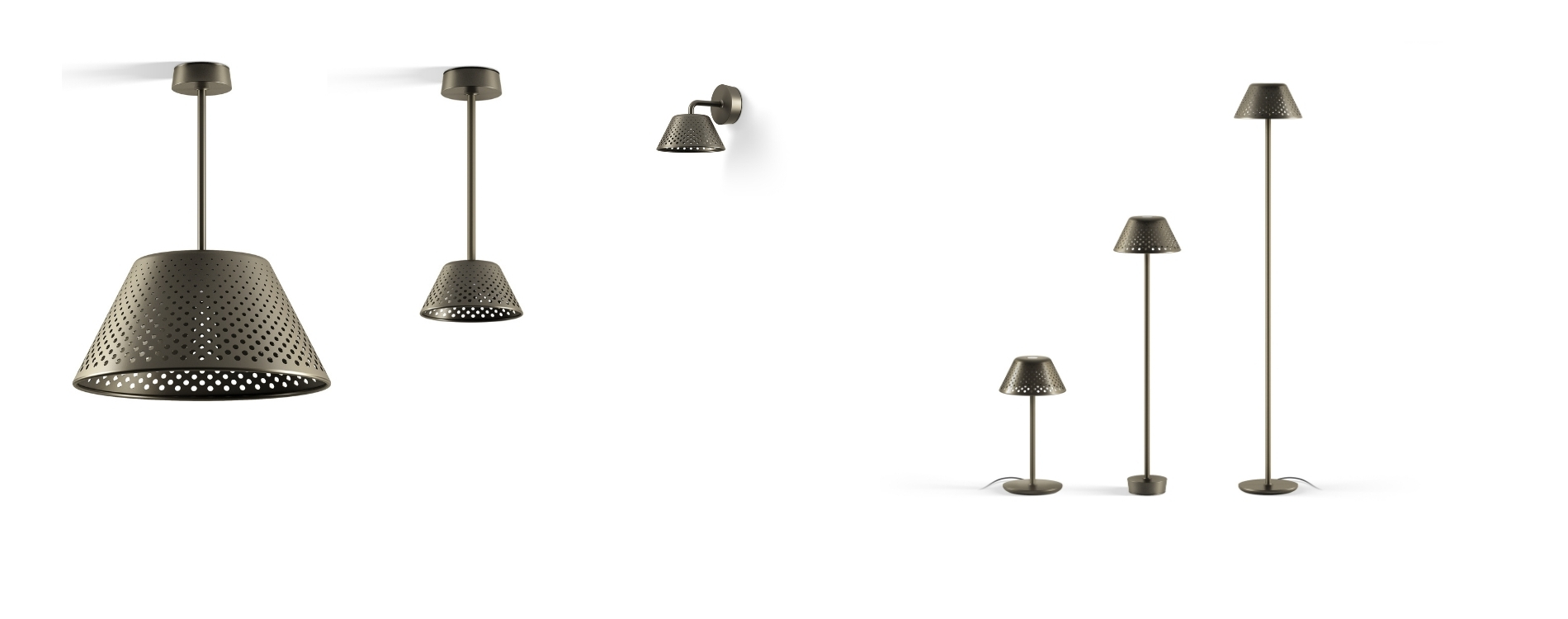

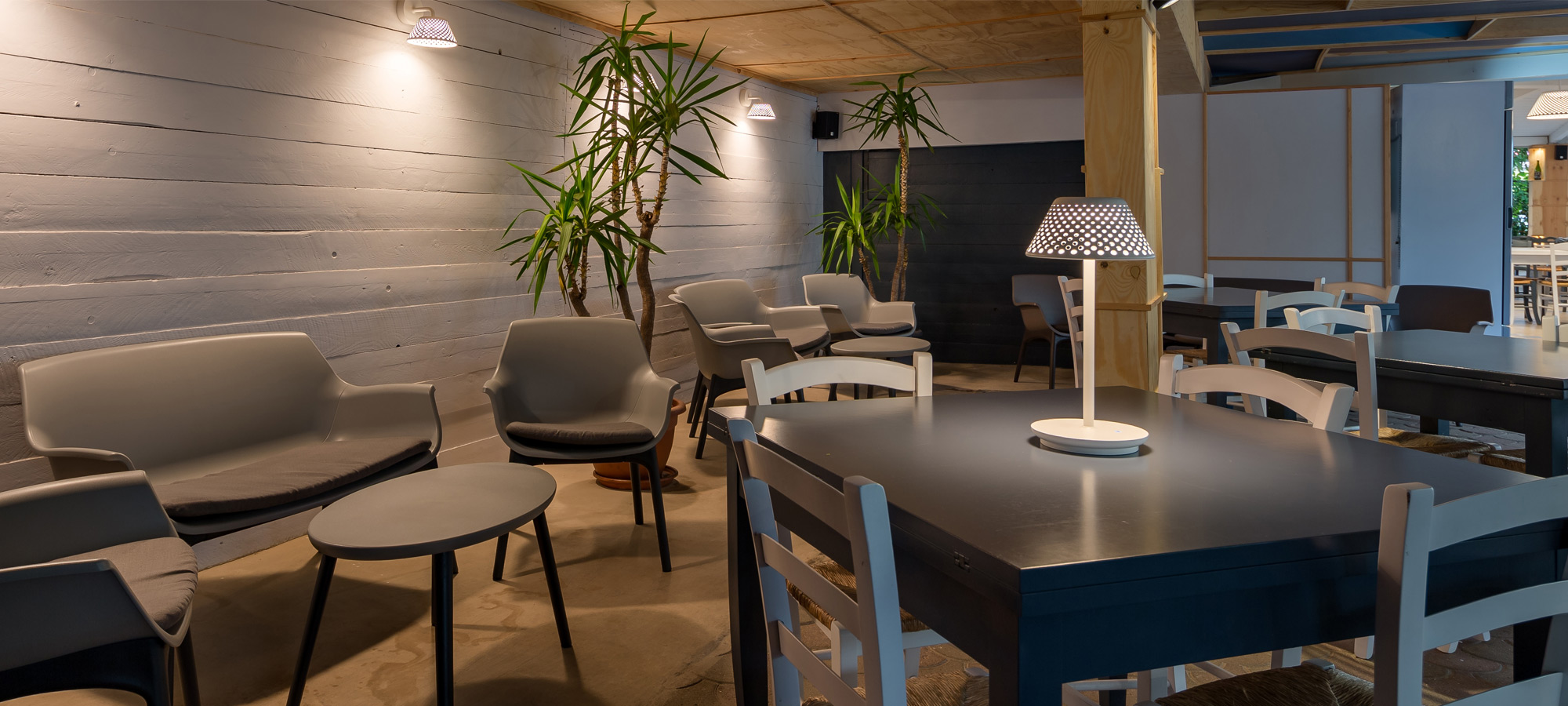

Mesh is a collection of decorative exterior lighting which includes a wall mount, suspension, table lamp and floor lamp. Each luminaire is made of corrosion-resistant and painted aluminum, protection with anodizing treatment, epoxy powder base coating and polyester painting. Mesh table lamp is available as battery-powered and is rechargeable via micro USB cable – an ideal solution for settings where the input power is not available such as decks and restaurant dining tables. It is also equipped with an infrared sensor for switching and dimming.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet

Product Accessories

Image SKU Description Datasheet

Also Available within Series

Mesh by Platek – 7 7/8″ x 16 1/3″ Portable, Table offers high performance and quality material | Zaneen Exterior E9B215- Mesh - Table Lamp - 12W LED - 2700K / 3000K / 4000K - 24V DC- Optic 87° with remote driver and enclosure.
Mesh by Platek – 7 7/8″ x 47 1/4″ Portable, Floor offers high performance and quality material | Zaneen Exterior E9B219- Mesh - Floor Lamp 1200 - Flat Base - 12W LED - 3000K / 4000K - 120Vac - Optic 87°
Mesh by Platek – 7 7/8″ x 16 9/11″ Portable, Battery Operated offers high performance and quality material | Zaneen Exterior E9B221- Mesh - Table Lamp - USB / Battery Chargeable - 4.5W LED - 3000K / 4000K - Optic 87° - 5-Step Touch Dimming (includes USB cable and Plug-in Charger)
Mesh by Platek – 19 11/16″ x 73 13/16″ Portable, Floor offers high performance and quality material | Zaneen Exterior E9P000- Mesh XL - Portable Floor Lamp - 27W - LED - 2700K / 3000K / 4000K - Optic 75°
Mesh by Platek – 7 7/8″ x 4″ Suspension, Pendant offers high performance and quality material | Zaneen Exterior E9S000- Mesh - Suspension - 12W LED - 2700K / 3000K / 4000K - Optic 87°
Mesh by Platek – 19 5/8″ x 9 7/8″ Suspension, Pendant offers high performance and quality material | Zaneen Exterior E9S004- Mesh XL - Suspension 635 - 27W LED - 2700K / 3000K - Optic - 82°
Mesh by Platek – 7 7/8″ x 7 9/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E9W575- Mesh - Surface - Wall - 12W - LED - 3000K / 4000K - Optic 87°

Downloads

Request Files

Mesh by Platek – 7 7/8″ x 47 1/4″ Portable, Floor offers high performance and quality material | Zaneen Exterior

Mesh by Platek – 7 7/8″ x 47 1/4″ Portable, Floor offers high performance and quality material | Zaneen Exterior

Floor
Direct
Lens

87
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

295 / 305
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 2 joules impact (equivalent to 0.5kg mass


Fixture Finishes

WHI - White BRZ - Bronze
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
