Chiodino

ELEVATED OUTDOOR AMBIANCE

Get Inspired

General

Reset

Series: Chiodino

Brand: Platek

Division: Exterior

Mounting Type: Post

Mounting Location: Above Ground

Subcategory: Bollard

Physical

Shape: Disc

Diameter (mm): 110

Diameter (in): 4 ⁵⁄₁₆

Height (mm): 1000

Height (in): 39 ³⁄₈

Light Distribution: Omnidirectional

Screws: No visible screws

Diffuser: PMMA - Opal

Fixture Finish: ANT / BLK / COR / FGR / GRY / WHI

see color chart below

Fixture Material: Aluminum

Electrical

Lamp Type: LED

Input Wattage (W): 10.7

Total Output Wattage (W): 9.3

Dimming: Non-Dimmable / 0-10V Dimming

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 24

LED

Color Temperature (°K): 2700 / 3000 / 4000

Max. Delivered Lumen (lm): 470 / 470 / 490

Nominal Lumen (lm): 640 / 640 / 665

CRI: >90 CRI

Lamp Life (hrs): 60000

Optical

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK07

Base Model Number: E9B297-

Specify

Base Model Number:
E9B297-

Chiodino - Post - ⌀110mm / 4 5/16″ - 10.7W LED - 2700 / 3000 / 4000°K - PMMA - Opal

Final Option Selection

Color Temperature

Finish Options

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Model Number: E9B297- -

Get Spec Sheet

Description

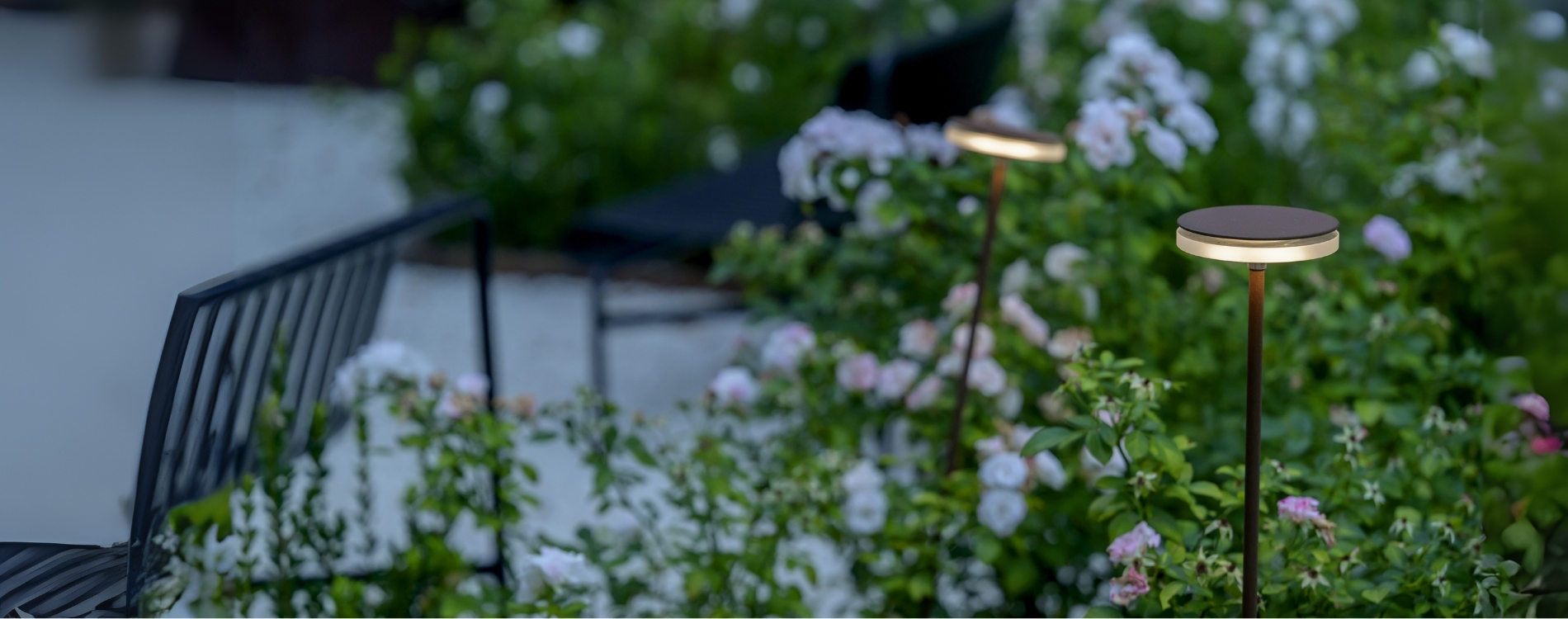

Chiodino seamlessly blends into your outdoor spaces, whether concealed among lush foliage or proudly on display, thanks to its versatile elegance and minimalist design. When nestled within foliage, Chiodino illuminates its surroundings with a powerful glow, making it perfect for enhancing the enchanting beauty of gardens or accentuating large floral arrangements. Alternatively, when strategically placed in view, you can craft enchanting compositions by mixing and matching bollards of varying heights, resembling miniature forests of pure, radiant light. Elevate your outdoor spaces with the Chiodino bollard family, available in three distinct heights, and unlock the potential for extraordinary illumination and ambiance.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DND0120024HY	Hatch - LV12-24N-UNV-Y - Non-dimming - 12W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
	DPH0300024ST	SCPower / KVF-24030-TDW - Phase dimmable @120Vac - 3-30W - 24Vdc - 120/277Vac - LED power supply
	DVO0160024MF	MeanWell - LPF-16D-24 - 1-10Vdc / Resistance / 10V PWM Dimming - 5.28-16.08W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP5 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
	E9A02300	IP68 gel connector - max 2 x 0,75 mm^2
	E9A25400	IP68 Gel Connector for parallel connection - max. 4 x 1.5 mm^2 Ø4.5 - 8.5 mm

Also Available within Series

	E9B293-	Chiodino - Bollard - 500mm / 19 11/16" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
	E9B294-	Chiodino - Bollard - 1000mm / 39 3/8" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
	E9B295-	Chiodino - Bollard - 1600mm / 63" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
	E9B296-	Chiodino - Bollard with Spike - 500mm / 19 11/16" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
	E9B297-	Chiodino - Bollard with Spike - 1000mm / 39 3/8" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
	E9B298-	Chiodino - Bollard with Spike - 1600mm / 63" - 9W LED - 2700K / 3000K / 4000K - Optic: Diffused - 24Vdc
