Series: Sillabary
Partner: Platek
Platek products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Wall Surface
Wall Surface products
Mounting Location: Window Sill
Window Sill products
Light Distribution: Uplight
Uplight products



Physical

Shape: Rectangle
Length (mm): 150
Length (in): 5 7⁄8
Width (mm): 85
Width (in): 3 3⁄8
Height (mm): 52
Height (in): 2 1⁄16
Screws: No visible screws
Diffuser: Clear tempered glass
Fixture Finish: WHI / GRY
see color chart below
Fixture Material: Aluminum Die Cast
Cable Details: 1.500 mm / 591/16" - 3 x 1



Electrical

Lamp Type: LED
Input Wattage (W): 6.4
Total Output Wattage (W): 5.8
Dimming: DMX
Control Gear: DMX
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Number of LEDs: 4
Color Temperature (°K): RGBW
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical

Optic°: 110x8



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
IK Rating: IK08





Base Model Number: E9W644-

Specify

Description

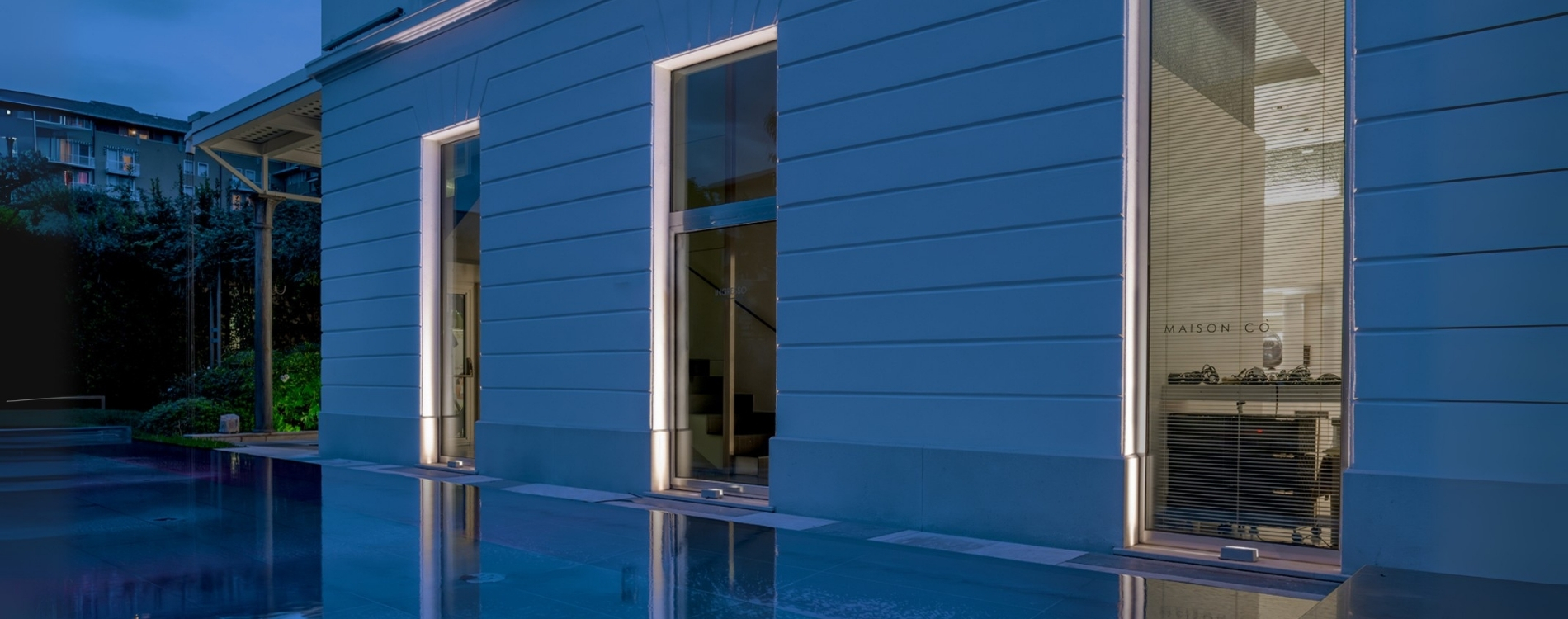

Sillabary is an innovative window-sill mounted light that can be used to transform an exterior building into a captivating masterpiece. Crafted to withstand the elements, its IP65 rating ensures durability and performance even in the harshest weather conditions. This makes Sillabary the perfect choice for a variety of applications, whether you want to add a touch of elegance to a home's exterior or create a captivating ambiance for customers and visitors. Mount it on a window-sill and watch as it bathes the surroundings in a mesmerizing, soft glow, and draws attention to the window frame, enhancing the architectural beauty of the space.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0100024HA Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22

Also Available within Series

Sillabary by Platek – 5 7/8″ x 2 1/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E9W643- Sillabary - Window Sill Mount - 7.8W - 4 LED, 2700K / 3000K / 4000K. Max 810lm, CRI: >80, PWM, Optic: 100°x5°, 24V
Sillabary by Platek – 5 7/8″ x 2 1/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E9W644- Sillabary - Window Sill Mount - 7.8W - 4 LED, RGBW. CRI: >80, PWM, Optic: 110°85°

Downloads

Request Files

Sillabary by Platek – 5 7/8″ x 2 1/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior

Sillabary by Platek – 5 7/8″ x 2 1/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior

Lens

110x8
Color rendering index

>80 CRI
Color temperature

RGBW
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

WHI - White GRY - Grey
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
