Matrix – Zaneen
Suspension
Matrix - Suspension

Downloads Finishes Inspiration

General

Reset
Series: Matrix
Partner: Quasar
Quasar products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products



Physical

Length (mm): 350, 600, 850, 1050, 1100, 1600, 2050
Width (mm): 35, 350, 850, 1100
Width (in): 13 3⁄4, 13/8, 33 7⁄16, 43 5⁄16
Height (mm): 320, 900, 1600
Height (in): 12 5⁄8, 35 7⁄16, 63
Max. Overall Height (mm): 2320, 2900, 3600
Max. Overall Height (in): 91 5⁄16, 114 3⁄16, 141 3⁄4
Fixture Finish: NIC / BRA / BBR
see color chart below
Fixture Material: Metal / Glass
Cable Details: 2000mm/78 3/4" Transparent Cable



Electrical

Lamp Type: LED
Input Wattage (W): 1.8, 3.6, 4.2, 8.4, 9, 32.4, 39.6, 112
Total Output Wattage (W): 1.5, 3, 3.5, 7.1, 7.6, 27.5, 33.6, 95
Dimming: Phase Dimming (120Vac Only)
Driver Included: No, Yes
Driver Location: Integrated
Driver Type: Constant Voltage - Universal
Driver Class: Class 1 and Class 2, Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700
Max. Delivered Lumen (lm): 162, 324, 378, 756, 810, 2916, 3564, 10080
CRI: >95 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Matrix 8 matching products New Series

Matrix by Quasar – 13 3/4″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010082- Matrix Suspension - L.350mm/13 3/4". LED 1.8W, 2700K, 162lm, CRI>95, 24V - Phase Dimming - Aluminum
New
Matrix by Quasar – 23 5/8″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010083- Matrix Suspension - L.600mm/23 5/8". LED 4.2W, 2700K, 378lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 41 5/16″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010084- Matrix Suspension - L.1050mm/41 5/16". LED 9W, 2700K, 810lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 23 5/8″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010085- Matrix Suspension - L.600mm/23 5/8". LED 3.6W, 2700K, 810lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 43 5/16″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010086- Matrix Suspension - L.1100mm/3 5/16". LED 8.4W, 2700K, 756lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 80 11/16″ x 63″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010087- Matrix Suspension - L.2050mm43 5/16", LED 112W, 2700K, 10080lm, CRI>95, 24V -
New

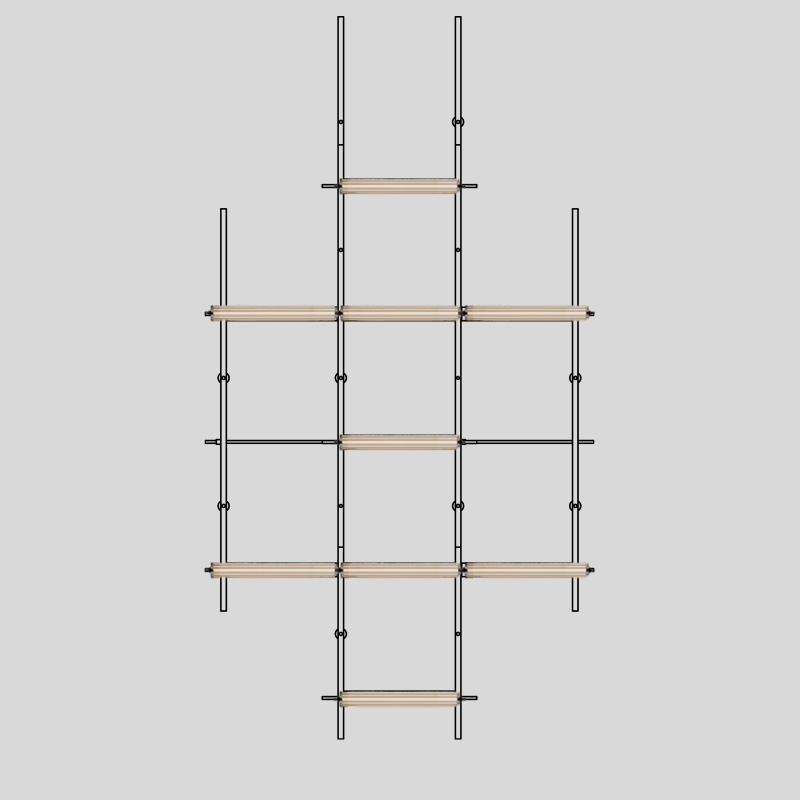

Matrix by Quasar – 33 7/16″ x 63″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010088- Matrix Suspension - L.850mm/33 7/16", LED 39.6W, 2700K, 3564lm, CRI>95, 24V -
New
Matrix by Quasar – 1413/4″ x 35 7/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010089- Matrix Suspension - L.1600mm/63", LED 32.4W, 2700K, 2916lm, CRI>95, 24V -
New

Series Description

Matrix is an extraordinary lighting system that transforms a space through sculptural compositions of intersecting horizontal and vertical lines. At its core are star-shaped illuminated glass tubes, installed horizontally and connected by sleek, stainless-steel vertical elements that create a sense of structure without visual weight. Designed with scalability in mind, the system can be expanded and customized to suit a variety of spatial and project needs. The scalability of Matrix makes it ideal for large-scale installations, like expansive halls or multi-level staircases. Matrix also offers additional versatility with multiple glass tube sizes, encouraging bold, dynamic, and playful configurations. Its refined geometry and clean aesthetic allow Matrix to complement any interior style while making a striking sculptural statement.

Manufactured in The Netherlands, by Quasar.

Downloads

General Datasheet

Finishes/Color

Warranty

Sustainability at Zaneen



Fixture Finishes

NIC - Nickel BRA - Brass BBR - Black Brass
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
