Matrix – Zaneen
Suspension
Matrix - Suspension

Downloads Finishes Inspiration

General

Reset
Series: Matrix
Partner: Quasar
Quasar products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Rectangle
Length (mm): 1600
Length (in): 1413/4
Width (mm): 350
Width (in): 13 3⁄4
Height (mm): 900
Height (in): 35 7⁄16
Max. Overall Height (mm): 2900
Max. Overall Height (in): 114 3⁄16
Fixture Finish: NIC / BRA / BBR
see color chart below
Fixture Material: Metal / Glass
Cable Details: 2000mm/78 3/4" Transparent Cable



Electrical

Lamp Type: LED
Input Wattage (W): 32.4
Total Output Wattage (W): 27.5
Dimming: Phase Dimming (120Vac Only)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700
Max. Delivered Lumen (lm): 2916
CRI: >95 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Matrix Model Number: D1010089- New

Specify

Series Description

Matrix is an extraordinary lighting system that transforms a space through sculptural compositions of intersecting horizontal and vertical lines. At its core are star-shaped illuminated glass tubes, installed horizontally and connected by sleek, stainless-steel vertical elements that create a sense of structure without visual weight. Designed with scalability in mind, the system can be expanded and customized to suit a variety of spatial and project needs. The scalability of Matrix makes it ideal for large-scale installations, like expansive halls or multi-level staircases. Matrix also offers additional versatility with multiple glass tube sizes, encouraging bold, dynamic, and playful configurations. Its refined geometry and clean aesthetic allow Matrix to complement any interior style while making a striking sculptural statement.

Manufactured in The Netherlands, by Quasar.

Also Available within Series New Series

Matrix by Quasar – 13 3/4″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010082- Matrix Suspension - L.350mm/13 3/4". LED 1.8W, 2700K, 162lm, CRI>95, 24V - Phase Dimming - Aluminum
New
Matrix by Quasar – 23 5/8″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010083- Matrix Suspension - L.600mm/23 5/8". LED 4.2W, 2700K, 378lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 41 5/16″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010084- Matrix Suspension - L.1050mm/41 5/16". LED 9W, 2700K, 810lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 23 5/8″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010085- Matrix Suspension - L.600mm/23 5/8". LED 3.6W, 2700K, 810lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 43 5/16″ x 12 5/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010086- Matrix Suspension - L.1100mm/3 5/16". LED 8.4W, 2700K, 756lm, CRI>95, 24V - Phase Dimming -
New
Matrix by Quasar – 80 11/16″ x 63″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010087- Matrix Suspension - L.2050mm43 5/16", LED 112W, 2700K, 10080lm, CRI>95, 24V -
New
Matrix by Quasar – 33 7/16″ x 63″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010088- Matrix Suspension - L.850mm/33 7/16", LED 39.6W, 2700K, 3564lm, CRI>95, 24V -
New
Matrix by Quasar – 1413/4″ x 35 7/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D1010089- Matrix Suspension - L.1600mm/63", LED 32.4W, 2700K, 2916lm, CRI>95, 24V -
New

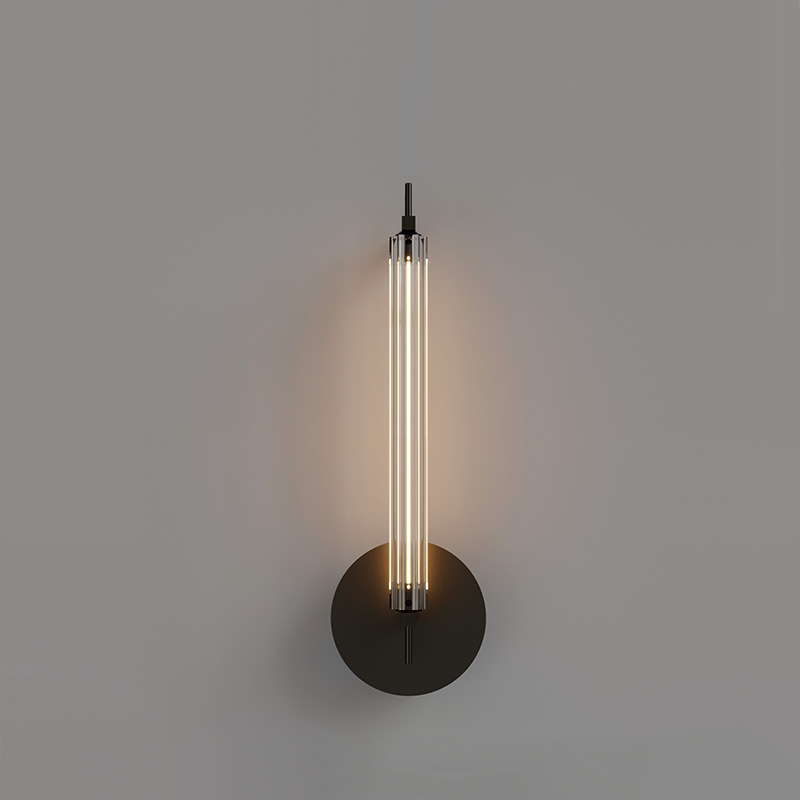

Matrix by Quasar – 5 1/8″ x 13 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D103159- Matrix Surface Wall - H.350mm/13 3/4". LED 1.8W, 2700K, 162lm, CRI>95, 24V - Phase Dimming
New

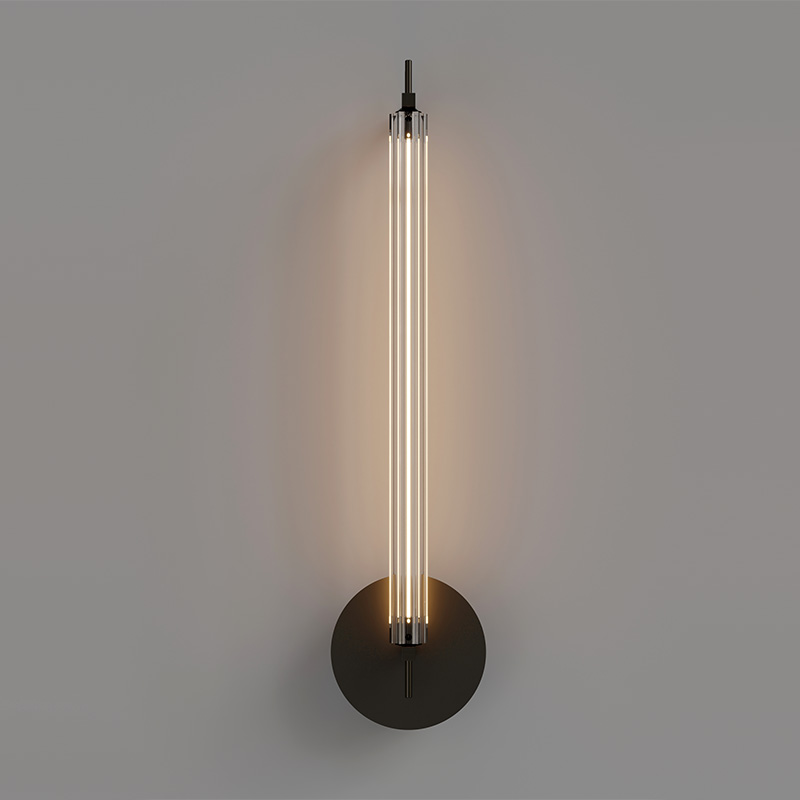

Matrix by Quasar – 5 1/8″ x 23 5/8″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D103160- Matrix Surface Wall - Surface Wall - H.600mm/23 5/8". LED 4.2W, 2700K, 378lm, CRI>95, 24V - Phase Dimming
New

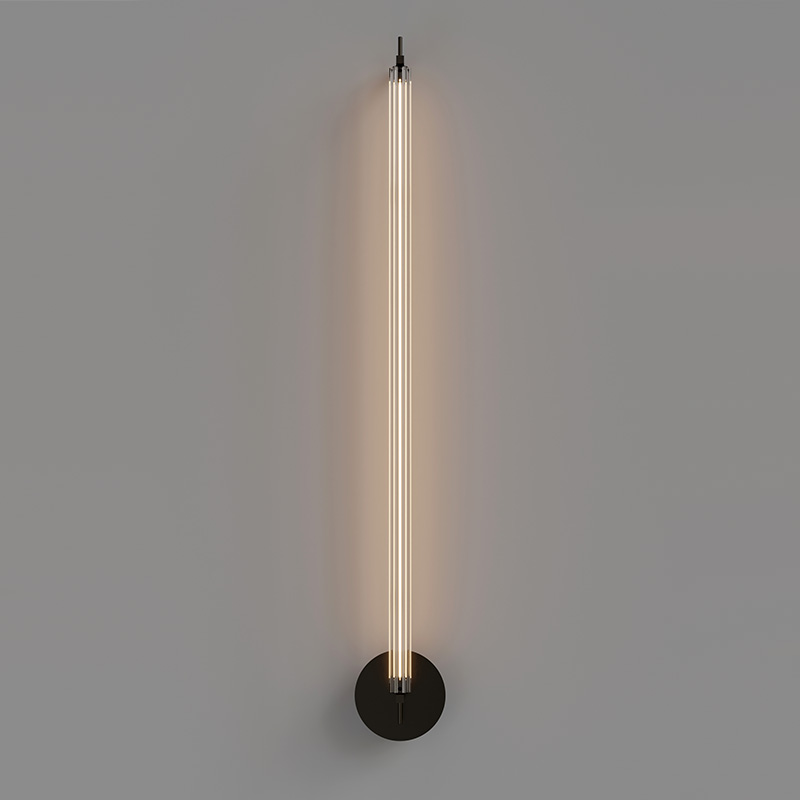

Matrix by Quasar – 5 1/8″ x 43 11/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D103161- Matrix Surface Wall - H.1100mm/43 11/16". LED 9W, 2700K, 810lm, CRI>95, 24V - Phase Dimming
New

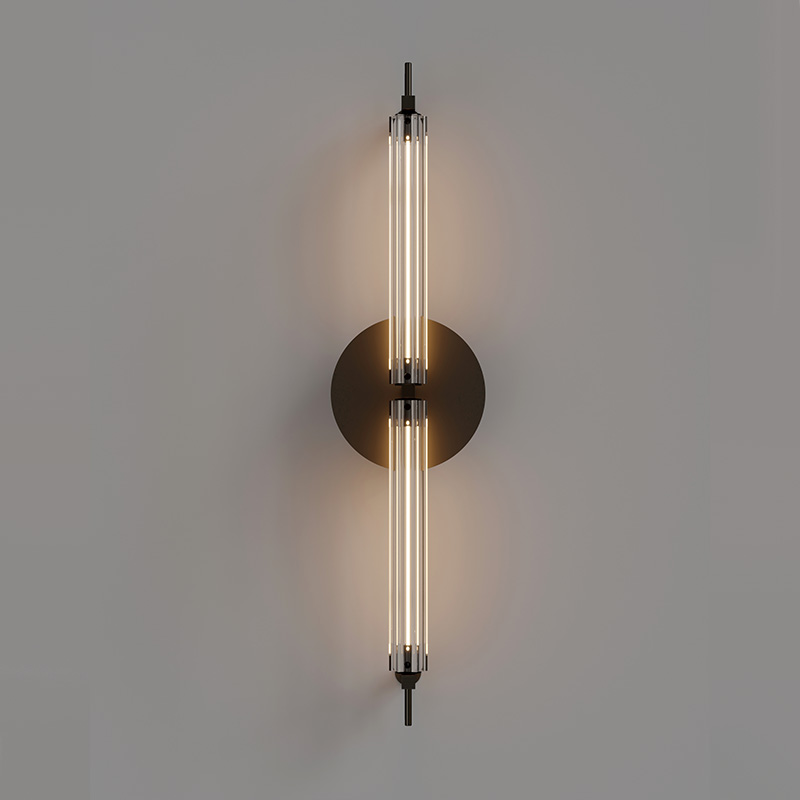

Matrix by Quasar – 5 1/8″ x 23 5/8″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D103162- Matrix Surface Wall - H.600mm/23 5/8". LED 3.6W, 2700K, 324lm, CRI>95, 24V - Phase Dimming
New

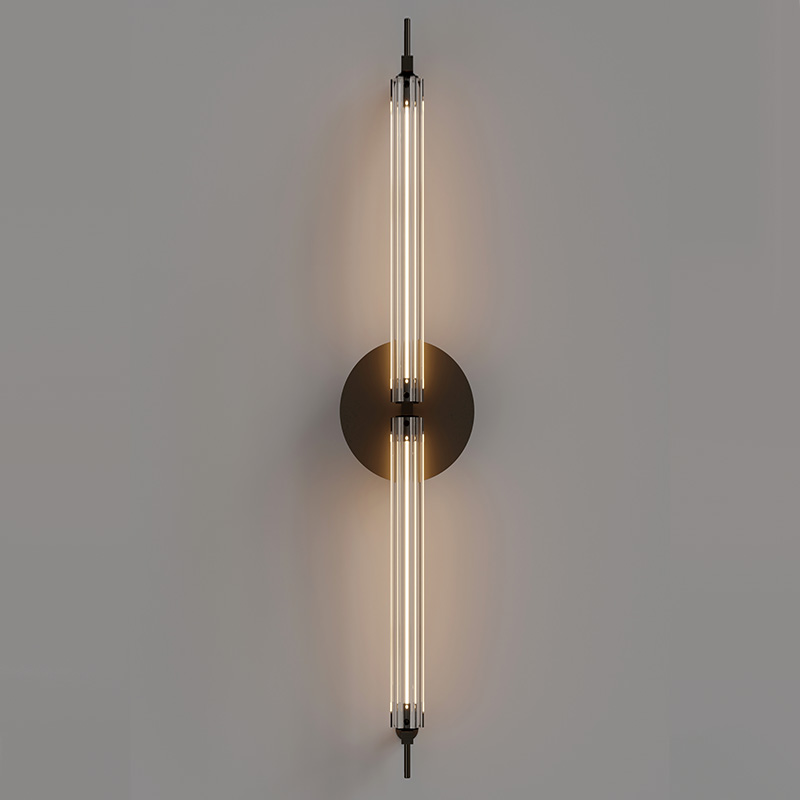

Matrix by Quasar – 5 1/8″ x 43 11/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D103163- Matrix Surface Wall - H.1100mm/43 11/16". LED 8.4W, 2700K, 756lm, CRI>95, 24V - Phase Dimming
New

Downloads

Request Files

Matrix by Quasar – 1413/4″ x 35 7/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

Matrix by Quasar – 1413/4″ x 35 7/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design / Line art

Ceiling
Included or excluded LED driver/transformer/ control gear
Length of suspension cable
Dimmable
Color rendering index

>95 CRI
Color temperature

2700
Lumen (luminous flux)

2916
Blown glass using traditional methods by master glass blower
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

NIC - Nickel BRA - Brass BBR - Black Brass
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
