Series: Oblo

Brand: Platek

Division: Exterior

Mounting Type: Recessed

Mounting Location: Ceiling

Subcategory: Downlight

Physical

Shape: Round

Diameter (mm): 210

Diameter (in): 8 ¹⁄₄

Height (mm): 76

Height (in): 3

Ceiling Thickness (mm): 10 - 20

Ceiling Thickness (in): 3/8 - 13/16

Light Distribution: Downlight

Weight (kg): 2.2, 2.7

Weight (lbs): 4.85, 6

Screws: A4 stainless steel

Diffuser: Clear Flat Tempered Glass

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ

see color chart below

Fixture Material: Aluminum Die Cast

Cut-out Measurements: 195mm / 7 11/16" diameter

Electrical

Lamp Type: LED

Input Wattage (W): 16, 19 / 18.5

Total Output Wattage (W): 16, 18 / 17

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Control Gear: DMX

Driver Included: No, Yes

Driver Location: External, Remote

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 / 277

Constant Current (MA): 500

Upon Request: (Not included - see components [IP68 enclosure supplied]) Remote: 0-10Vdc dimming

LED

Number of LEDs: 1 / 12, 16

Color Temperature (°K): 3000 / 4000, RGBW

Max. Delivered Lumen (lm): 1870 - 2150 / 1945 - 2290

Nominal Lumen (lm): 2280 / 2400

CRI: >80 CRI

Lamp Life (hrs): 60000

Special LEDs offerings: RGBW

Optical

Optic°: 9 / 28 / 45 / 108 / ELL, 9 / 28 / 45 / Elliptical

Ratings and Certifications

Certified By: Certified for North American Standards, CSA Certified to UL and CSA Standards

IP rating: IP65

IK Rating: IK08

Oblo 2 matching products

	L9R104-	Oblo - Recessed Ceiling - 19W (12 LED) - 3000K / 4000K - Optics: 9° / 28° / 45° / 108° / ELL
	L9R140-	Oblo - Recessed Ceiling - 16W (16 LED) - RGBW - Optics: 9° / 28° / 45° / ELL

Series Description

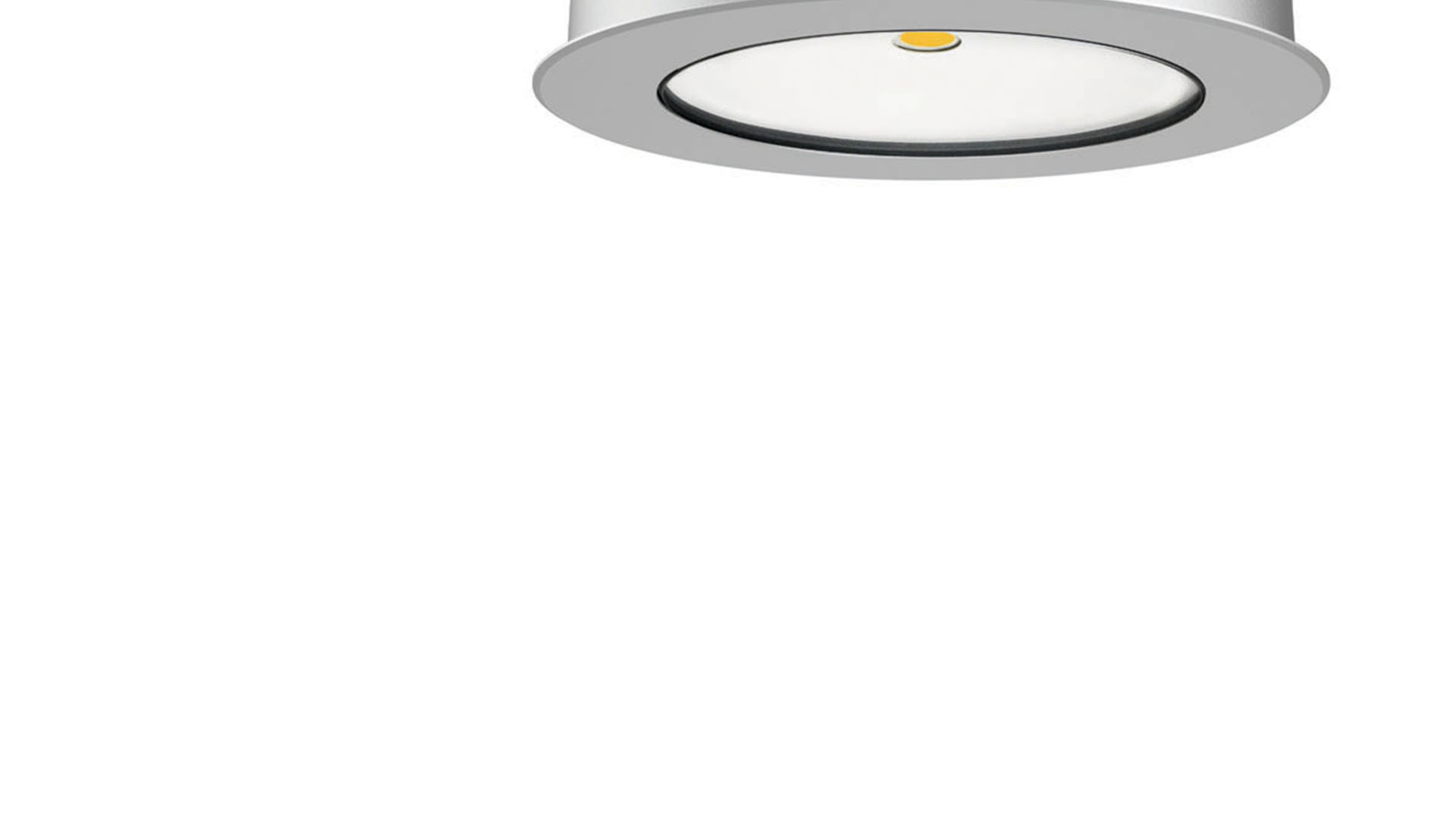

Oblo is a series of exterior LED downlight ceiling recessed fittings by minimalist design: all its components are engineered to have minimum thicknesses. The result is a product by the ephemeral grazing presence on the surface of the ceiling. The narrow external ring makes Oblo a product from the discreet presence even when it's off. It's available with light sources in dynamic or monochromatic light. The LED can be either 17W or 24W, delivering up to 2020 lumens, making the luminaire suitable for large public spaces. Constructed of corrosion-resistant, die-cast aluminum alloy, Oblo is protected with anodizing treatment, epoxy powder base coating and polyester painting in six different color finish options. Ingress protection of IP68 Full Dry and impact resistance of IK08.

Manufactured in Italy, by Platek.
