Olodum - Recessed
Recessed



General

Series: Olodum


Brand: Side
Side products

Division: Exterior
Exterior products

Mounting Type: Recessed
Recessed products

Mounting Location: Ceiling, In-Ground




Physical

Shape: Round, Square

Diameter (mm): 65, 76, 130, 180, 220

Diameter (in): 2 916, 3, 5 18, 7 116, 8 1116

Length (mm): 76

Length (in): 3

Width (mm): 76

Width (in): 3

Height (mm): 58, 62, 132, 146, 215, 242, 250, 295


Min. Recessing Depth (mm): 63

Min. Recessing Depth (in): 2 12


Weight (kg): 0.3, 0.4, 1.9, 1.450, 3.4, 3.6, 3.8

Weight (lbs): 0.66, 0.88, 3.2, 4.19, 7.5, 7.94, 8.38

Load Resistance (kg): 500

Load Resistance (lbs): 1102, 2000

Diffuser: Clear tempered glass

Gasket: Silicon rubber

Fixture Finish: SSS
see color chart below




Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 3.5, 4.4, 6.8, 9.1, 20

Total Output Wattage (W): 3, 3.1, 3.5, 5.8, 8.1, 17


Driver Included: No, Yes

Driver Location: Integrated, Remote


Driver Class: Class 2

Input Voltage (V): 120, 120 / 277

Constant Current (MA): 203, 250, 350, 500




LED

Number of LEDs: 1

Color Temperature (°K): 3000 / 4000



CRI: >80 CRI

Lamp Life (hrs): 50000



Optical



Beam Angle: Spot - 15° / Flood - 45° / Wide Flood - 65° / Asymmetric

Adjustability: Rotational 350°; Tilt ±15°



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP67

IK Rating: IK07, IK10





Olodum 13 matching products

Olodum by Side – 3″ x 2 7/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior L10I0019- Olodum - Micro - In-ground - Round - 76mm / 3" - 3.5W - LED - 3000K / 4000K - Satin Stainless Steel
Olodum by Side – 8 11/16″ x 9 1/2″ Recessed, Drive Over offers high performance and quality material | Zaneen Exterior L10I0047- Olodum Standard - Floor - 220 mm / 8 11/16" - 18W LED - 500mA - 3000K - Flood beam
Olodum by Side – 8 11/16″ x 9 1/2″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior L10I0059- Olodum Standard - In-Ground Round - 220 mm / 8 11/16" - 20W LED - 3000K / 4000K - 500mA - Optic: Spot / Flood / Wide Flood / Asymmetric - Marine grade
Olodum by Side – 5 1/8″ x 5 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior L10I0071- Olodum Mini - Inground - 130 mm / 5 1/8" - 6.8W LED - 3000K / 4000K - Optic: Spot / Flood / Wide Flood - Marine grade
Olodum by Side – 7 1/16″ x 11 5/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior L10I0083- Olodum Midi - Inground - Floor - 180 mm / 7 1/16" - 9.1W LED - 3000K / 4000K - Optic: Spot / Flood / Wide Flood / Asymmetric - Marine grade
Olodum by Side – 2 9/16″ x 2 7/16″ Recessed, Walk Over offers high performance and quality material | Zaneen Exterior L10I0093- Olodum Micro Flat - In-Ground - Round - 65 mm / 2 9/16" - 3.5W LED - 3000K / 4000K - 350mA - Satin Stainless Steel
Olodum by Side –  x 2 7/16″ Recessed, Walk Over offers high performance and quality material | Zaneen Exterior L10I0094- Olodum Micro - In-Gound - Square - 76 mm / 3" - 3.5W LED - 3000K / 4000K - 350mA - Satin Stainless Steel
Olodum by Side – 3″ x 2 5/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0034- Olodum Micro - Ceiling - Round - 76 mm / 3" - 4.4W LED - 3000K / 4000K - 350mA - Stainless Steel - Optic 45°
Olodum by Side – 3″ x 2 5/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0036- Olodum Micro - Ceiling - Square - 76 mm / 3" - 3.5W LED - 3000K / 4000K - 350mA - Stainless Steel - Optic 45°
Olodum by Side – 8 11/16″ x 8 7/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0040- Olodum Standard - Ceiling - 220mm / 8 11/16" - 20W LED - 3000K / 4000K - 500mA - Optic: Spot / Flood / Wide Flood / Asymmetric
Olodum by Side – 8 11/16″ x 8 7/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0046- Olodum Standard - Ceiling - 220mm / 8 11/16" - 20W LED - 3000K / 4000K - 500mA - Optic: Spot / Flood / Wide Flood / Asymmetric
Olodum by Side – 5 1/8″ x 5 3/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0052- Olodum Mini - Ceiling - 130 mm / 5 1/8" - 6.8W LED - 3000K / 4000K - 350mA - Optic: Spot / Flood / Wide Flood
Olodum by Side – 7 1/16″ x 9 13/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior L10Q0058- Olodum Midi - Ceiling - 180 mm / 7 1/16" - 9.1W LED - 3000K / 4000K - 250mA - Optic Spot / Flood / Wide Flood / Asymmetric

Series Description

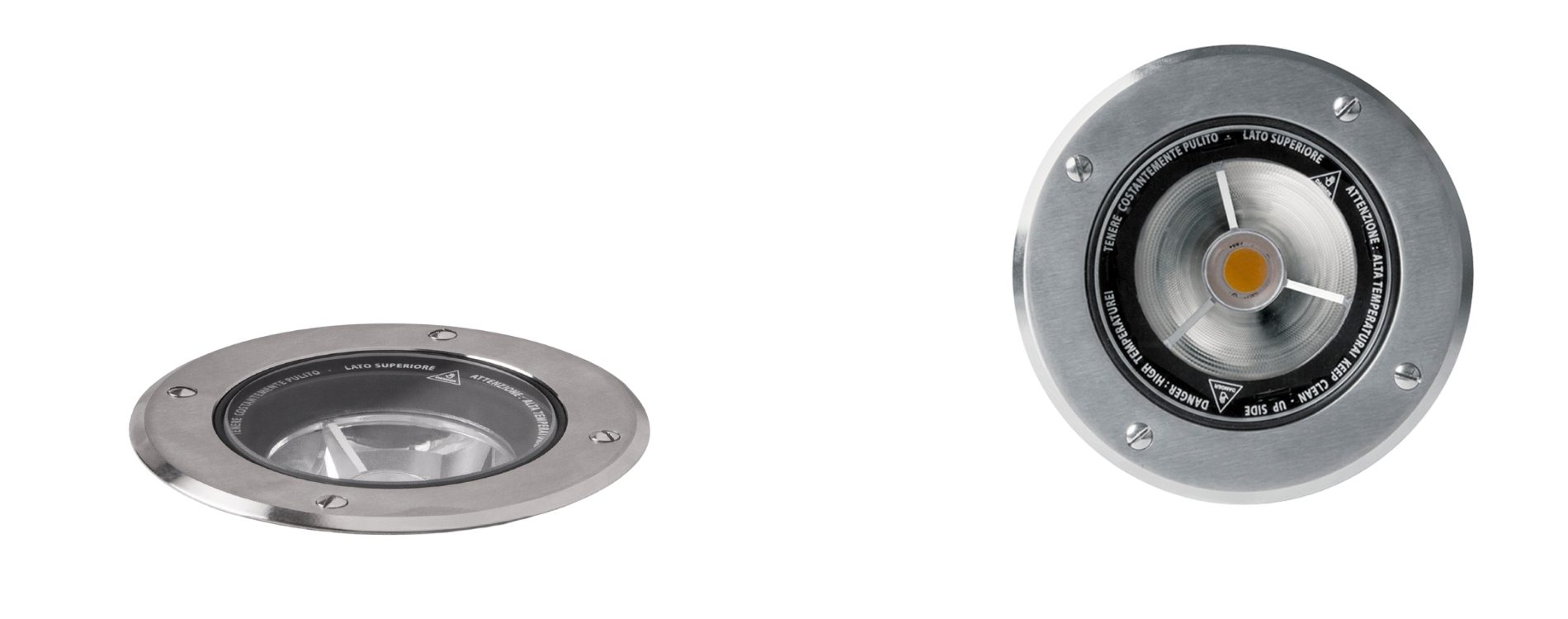

Olodum is a collection of exterior recessed uplights for in-ground, wall, and ceiling installation with a range of performance specifications. Sizes range between 65mm and 220mm in diameter, light outputs ranging between 300 and 2700 lumens. Several optics are available throughout the series. Constructed of Stainless Steel AISI 316L, the fixtures have ingress protection up to IP68. Some models have special features, such as Flat, whereby the trim is flushed with the surface, and Proof which is a marine-grade construction.

Manufactured in Italy, by Side.

Olodum by Side – 3″ x 2 7/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior


Fixture Finishes

SSS - Satined Stainless Steel
