PIX - Surface
Surface




General

Division: Exterior


Series: PIX


Mounting Type: Surface


Mounting Location: Ceiling


Subcategory: Downlight


Brand: Platek




Physical

Shape: Square


Length (mm): 260, 400


Length (in): 10 14, 15 34


Width (mm): 260, 400


Width (in): 10 14, 15 34


Height (mm): 40


Height (in): 1 916


Light Distribution: Downlight


Weight (kg): 2, 4.1


Weight (lbs): 4.41, 9.04


Screws: No visible screws


Diffuser: Painted extra clear glass


Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ
see color chart below


Fixture Material: Aluminum Die Cast




Electrical

Lamp Type: LED


Input Wattage (W): 9.2, 20.6 (350mA) / 25.8 (500mA)


Total Output Wattage (W): 7.5, 12, 18 (350mA) / 23 (500mA)


Dimming: Non-Dimmable, Non-Dimming / Phase Dimming (120vac Only)


Driver Included: Yes


Driver Location: Integrated


Driver Type: Constant Current - 120Vac, Constant Current - Universal


Driver Class: Class 1 and Class 2, Class 2


Input Voltage (V): 120 / 277


Constant Current (MA): 350, 350 (18W) / 500 (23W), 500


Upon Request: (Not included - see components [IP65 or higher enclosures to be supplied by others]) Remote: 0-10Vdc dimming / Phase dimming / Non-dimming 120/277Vac, (Not included - see components [IP65 or higher enclosure to be supplied by others]) Remote: 0-10Vdc dimming / Phase dimming 120Vac only, (See components [IP65 or higher enclosures to be supplied by others]) Remote: 0-10Vdc dimming




LED

Color Temperature (°K): 3000 / 4000


Max. Delivered Lumen (lm): 500 / 520, 620 / 645, 1400 / 1455


Nominal Lumen (lm): 730 / 760, 875 / 910, 2230 / 2320


CRI: >80 CRI


Lamp Life (hrs): 60000




Optical

Optic°: Diffused


Beam Angle: Diffused




Ratings and Certifications

Certified By: Certified for North American Standards


IP rating: IP65


IK Rating: IK07






3 matching products

PIX by Platek – 10 1/4″ x 1 9/16″ Surface, Downlight offers high performance and quality material | Zaneen Exterior L9C097- Pix 26 - Surface - Ceiling - 260mm / 10 1/4" - 9.2W LED - 3000K / 4000K
PIX by Platek – 10 1/4″ x 1 9/16″ Surface, Downlight offers high performance and quality material | Zaneen Exterior L9C099- Pix 26 - Surface - 12W LED - 260mm / 10 1/4" - 3000K / 4000K -
PIX by Platek – 15 3/4″ x 1 9/16″ Surface, Downlight offers high performance and quality material | Zaneen Exterior L9C101- Pix 40 - Surface - Ceiling - 400mm / 15 3/4" - 20.6W / 25.8W LED - 3000K / 4000K

Series Description

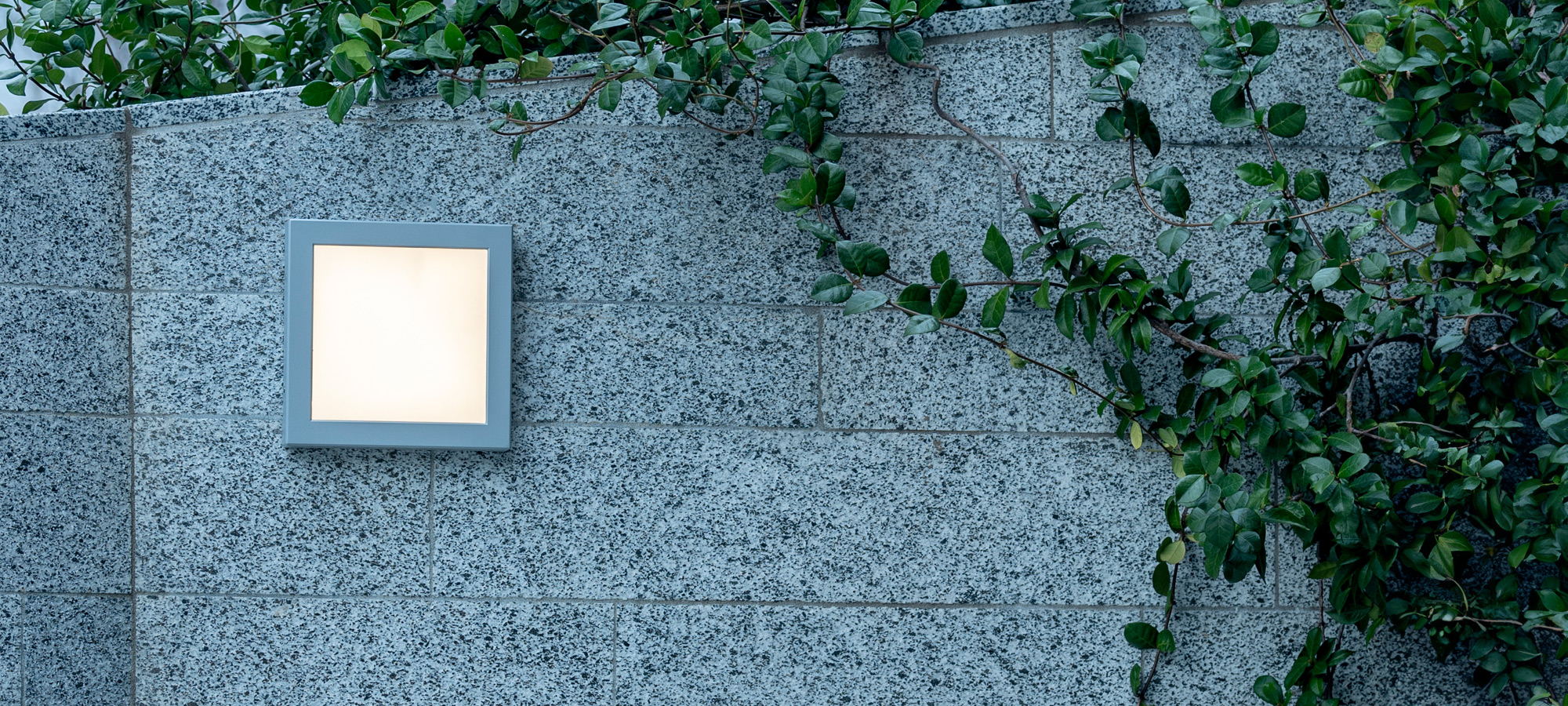

Pix features simple shapes that are often the best to fit in environments, and the square has always been an example of harmony and perfection. With Pix, these features are emphasized with the application of a simple frame that sets the luminous flux and highlights the object even when it is off.

PIX by Platek – 10 1/4″ x 1 9/16″ Surface, Downlight offers high performance and quality material | Zaneen Exterior


Finishes

BLK - Black WHI - White GRY - Gray COR - Corten ANT - Anthracite BRZ - Bronze
Digital Disclamer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
