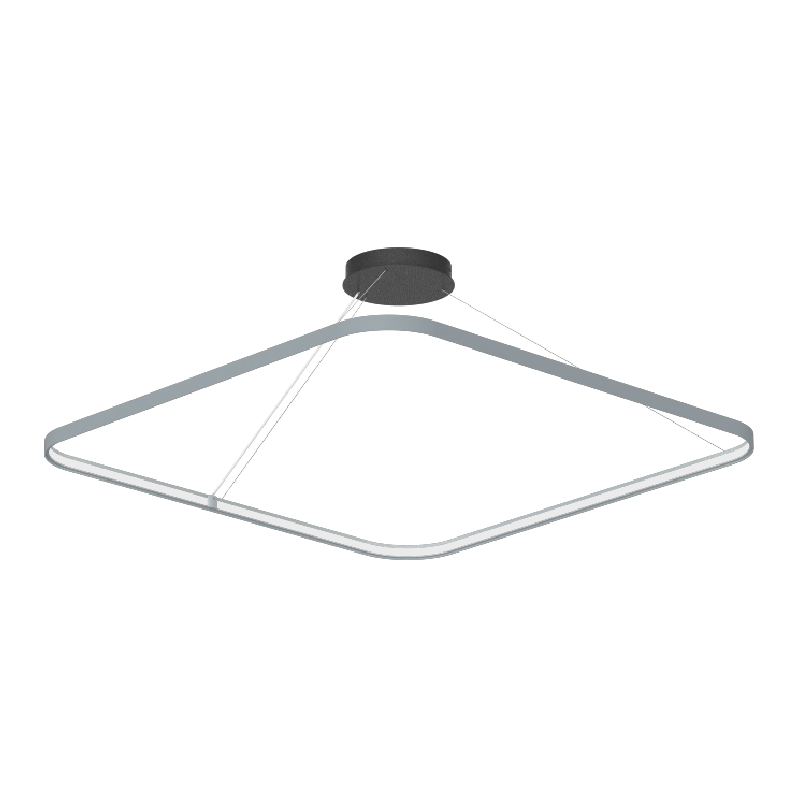

Quantum Silhouette 1000 - Suspension - 1000/39 3/8" x 1000mm/39 3/8", 49W, LED, 2700K / 3000K, CRI90 - 2548lm - 24Vdc - With Canopy

Quantum Silhouette

LIGHTNESS IN LIGHTING

Get Inspired

Quantum Silhouette

LIGHTNESS IN LIGHTING

Get Inspired

Quantum Silhouette

LIGHTNESS IN LIGHTING

Get Inspired

Quantum Silhouette

LIGHTNESS IN LIGHTING

Get Inspired

General

Reset

Series: Quantum Silhouette

Partner: Prolicht

Division: Architectural

Installation: Suspension

Product Type: Pendant

Mounting Location: Ceiling

Light Distribution: Direct / Indirect

Physical

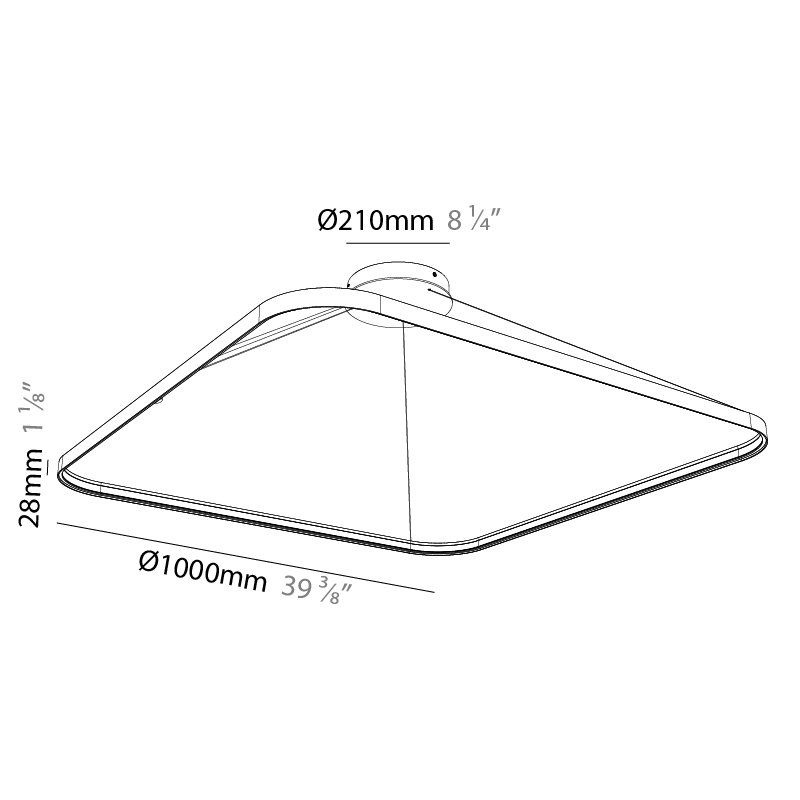

Shape: Square

Length (mm): 1000

Length (in): 39 ¹⁄₂

Width (mm): 1000

Width (in): 39 ¹⁄₂

Height (mm): 28

Height (in): 1 ¹⁄₈

Max. Overall Height (mm): 4028

Max. Overall Height (in): 158 ⁹⁄₁₆

Weight (kg): 1.5

Diffuser: PMMA - Opal

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR

see color chart below

Accent Finish: CHR / BLK

Fixture Material: PMMA / Aluminum

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 49

Total Output Wattage (W): 44.6

Dimming: Non-Dimming / 0-10V Dimming / Phase Dimming / DALI Dimming / MATTER Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 1850mA

LED

Color Temperature (°K): 2700 / 3000

Max. Delivered Lumen (lm): 2432 / 2548

Nominal Lumen (lm): 4677 / 4900

CRI: >90 CRI

Lamp Life (hrs): 50000

Optical

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20

Base Model Number: A3001050- New

Specify

Base Model Number:
A3001050-

Quantum Silhouette - Suspension - Direct / Indirect - 49W LED - 2700 / 3000°K - PMMA - Opal

Final Option Selection

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Reset

Undo

Model Number: A3001050- - - -

Get Spec Sheet

Description

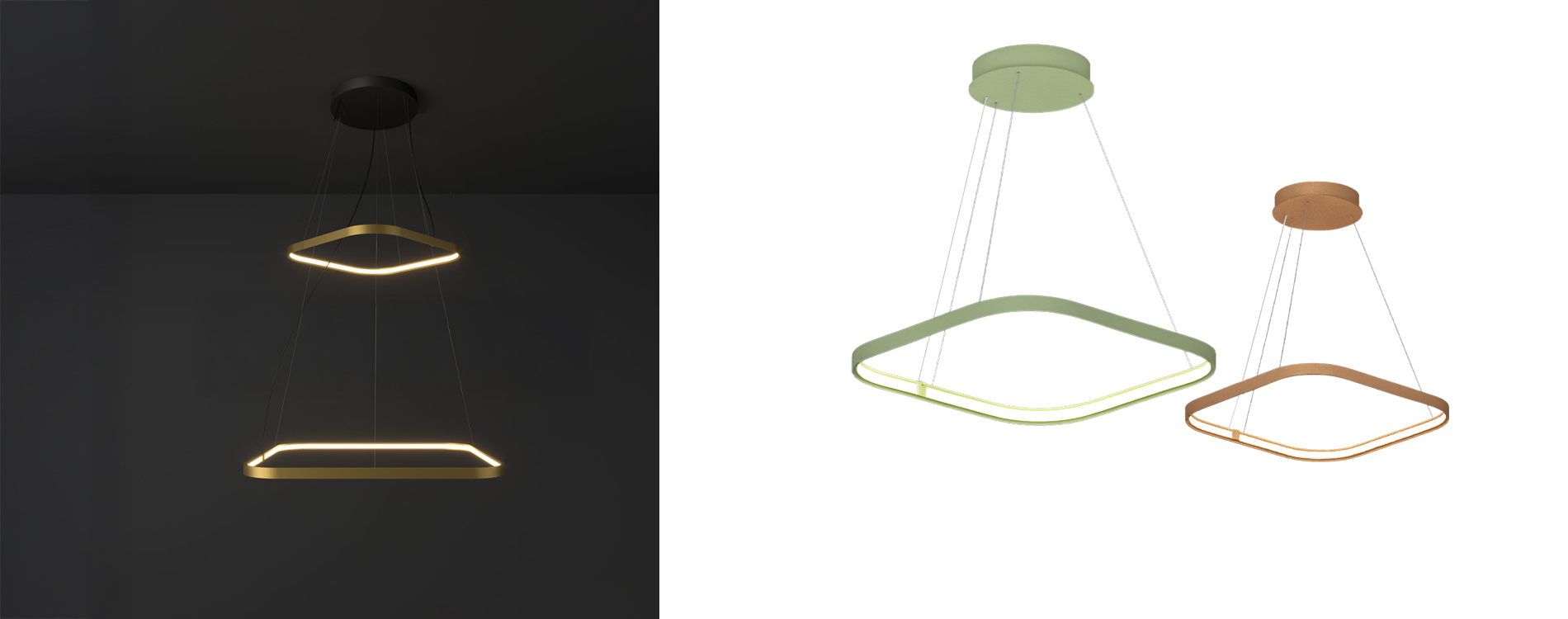

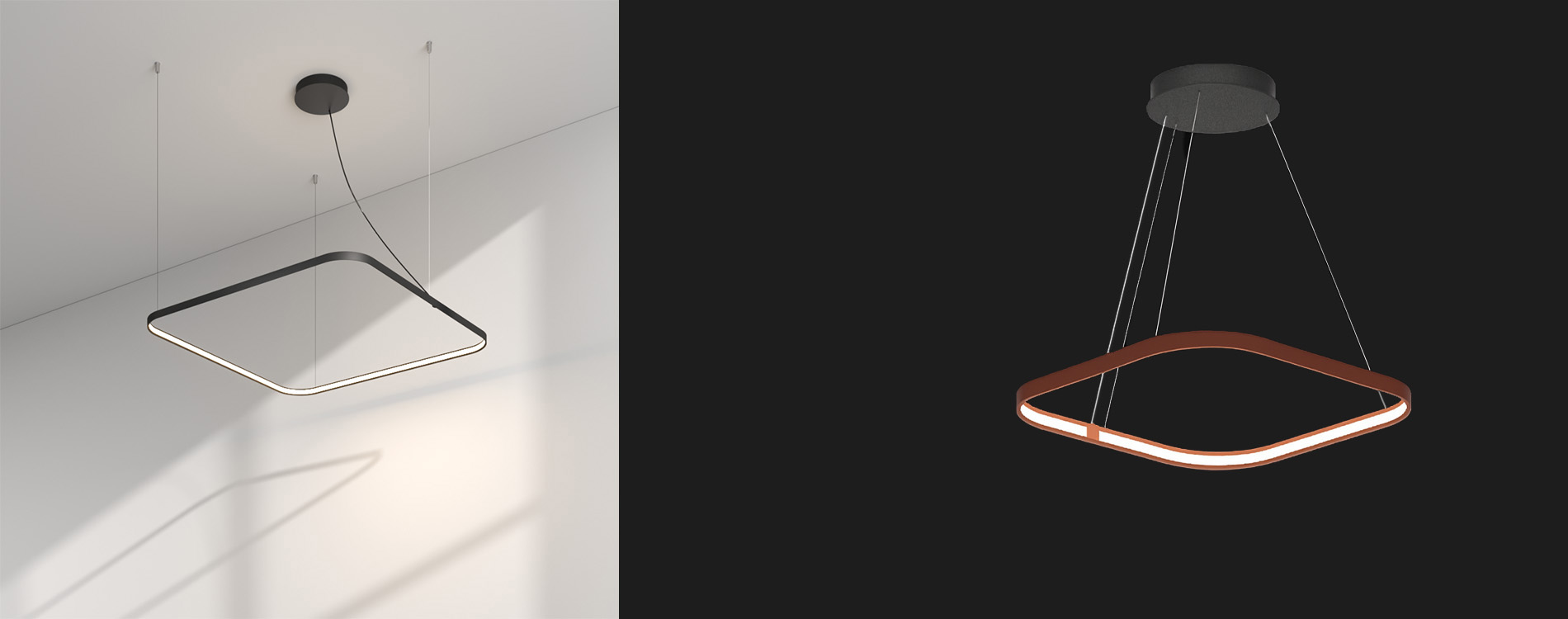

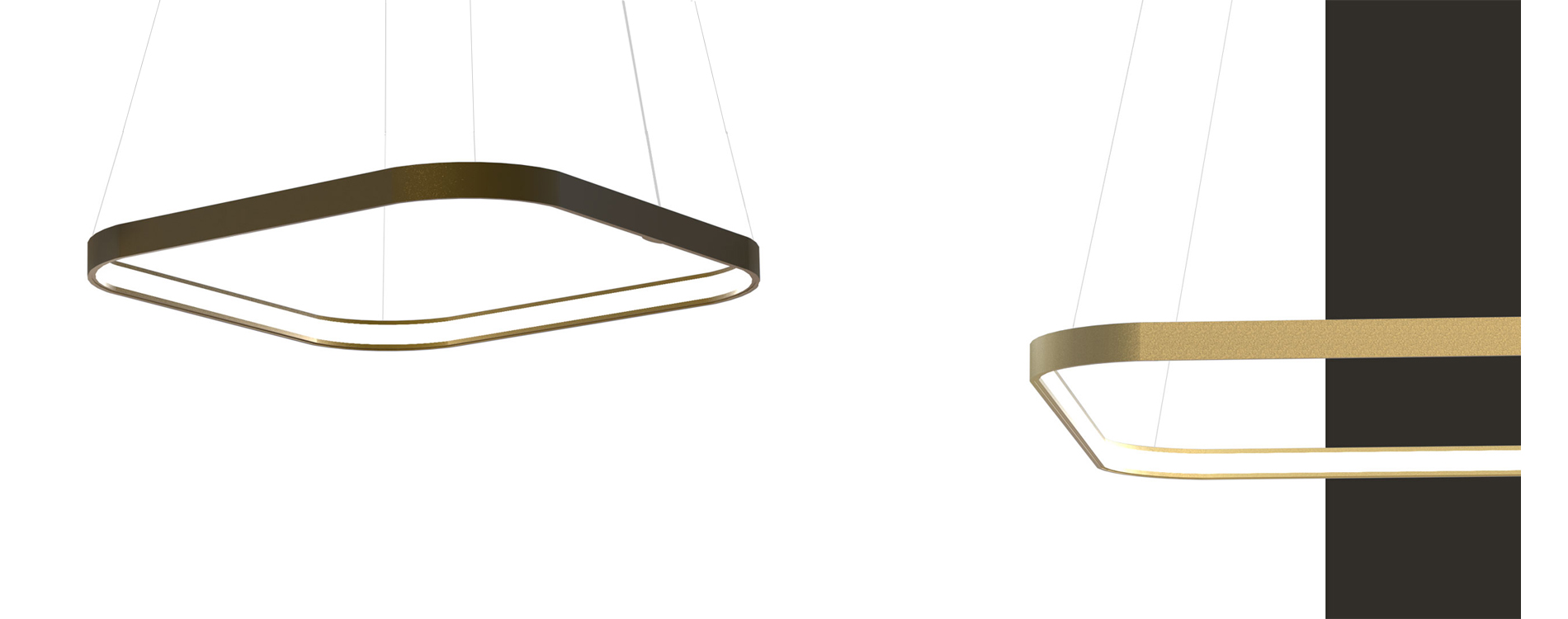

Quantum Silhouette is a collection of ultra-thin suspension lights made of extruded aluminum with an opal polycarbonate screen covering an LED strip that runs the internal side of the profile. The shape of the fixture is a square with rounded edges, graciously complementing the iconic shape of the Quantum family and seamlessly integrating into existing design concepts. The minimalism of the structure combined with the emission of internal light gives the luminaire an incredible lightness. The series is designed for clustering and cascading, providing flexibility in size, configuration, and design. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Also Available within Series New Product

A3001048-	Quantum Silhouette 500 - Suspension - 500/19 11/16" x500mm/19 11/16", 22W, LED, 2700K / 3000K, CRI90 - 1168lm - 24Vdc - With Canopy	New

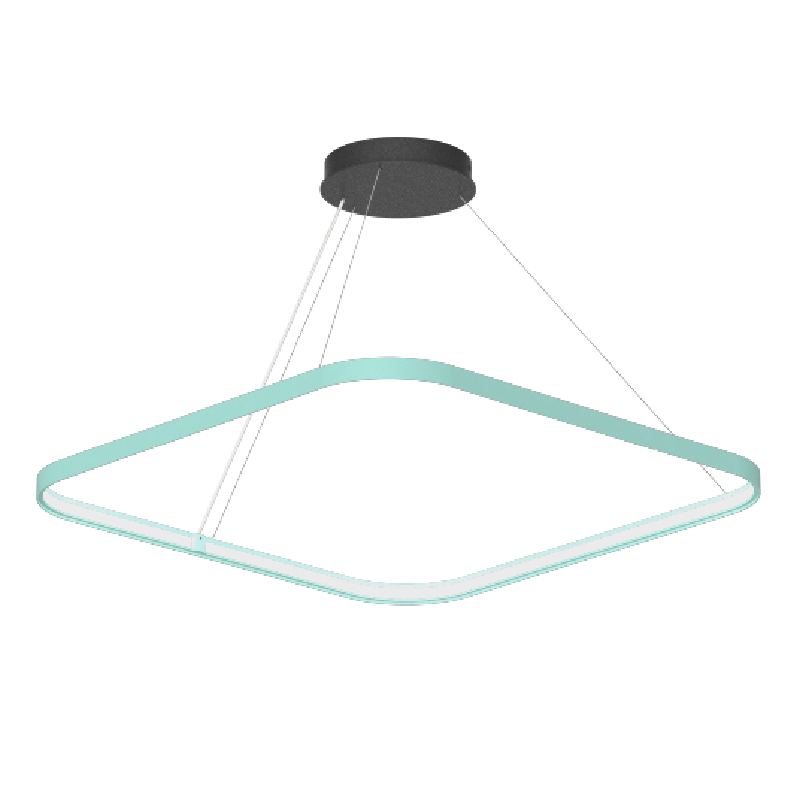

A3001049-	Quantum Silhouette 750 - Suspension - 750/29 1/2" x750mm/29 1/2", 36W, LED, 2700K / 3000K, CRI90 - 1857lm - 24Vdc - With Canopy	New
A3001050-	Quantum Silhouette 1000 - Suspension - 1000/39 3/8" x 1000mm/39 3/8", 49W, LED, 2700K / 3000K, CRI90 - 2548lm - 24Vdc - With Canopy	New

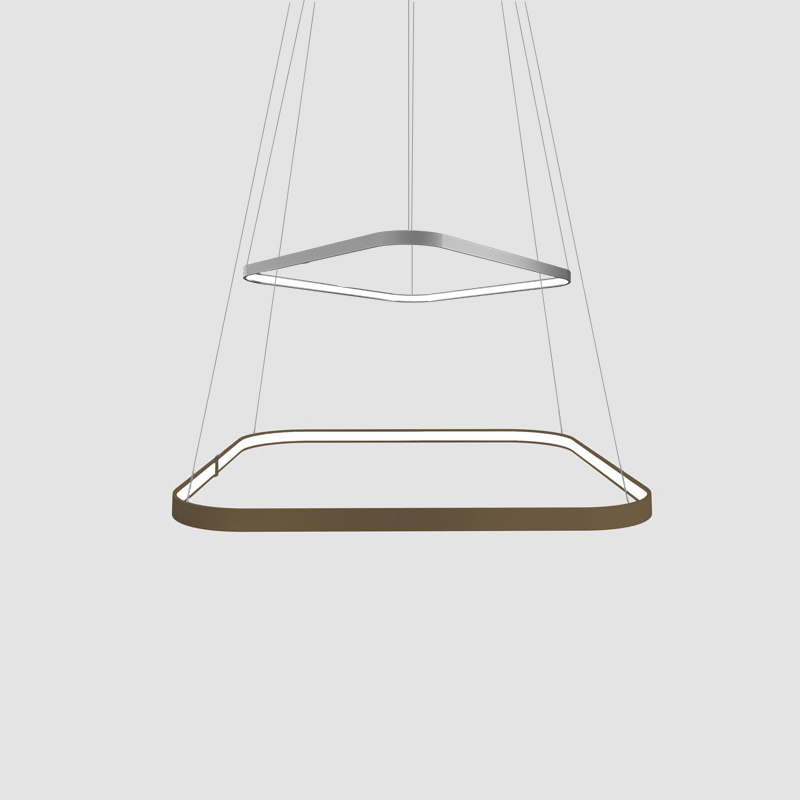

A3QSILH-MOD-SYS	Quantum Silhouette Modular Suspension System
