Sign Diva Flex Korona - Suspension - ∅200mm / 7 7/8" x 1620mm / 63 3/4" - 12.1W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial – Zaneen

General

Reset
Series: Sign Diva Flex
Subseries: Sign Diva Flex Korona
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Adjustable
Adjustable products



Physical

Shape: Round
Diameter (mm): 200
Diameter (in): 7 7⁄8
Height (mm): 1620
Height (in): 63 3⁄4
Weight (kg): 1.865
Weight (lbs): 4.1
Diffuser: PMMA - Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: PMMA / Extruded Aluminum / Steel



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 12.1
Total Output Wattage (W): 11
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 350



LED

Color Temperature (°K): 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 836 / 895 / 903 / 921
Nominal Lumen (lm): 1280 / 1370 / 1382 / 1410
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Adjustability: Rotational 170°; Tilt 90°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A30862-

Specify

Description

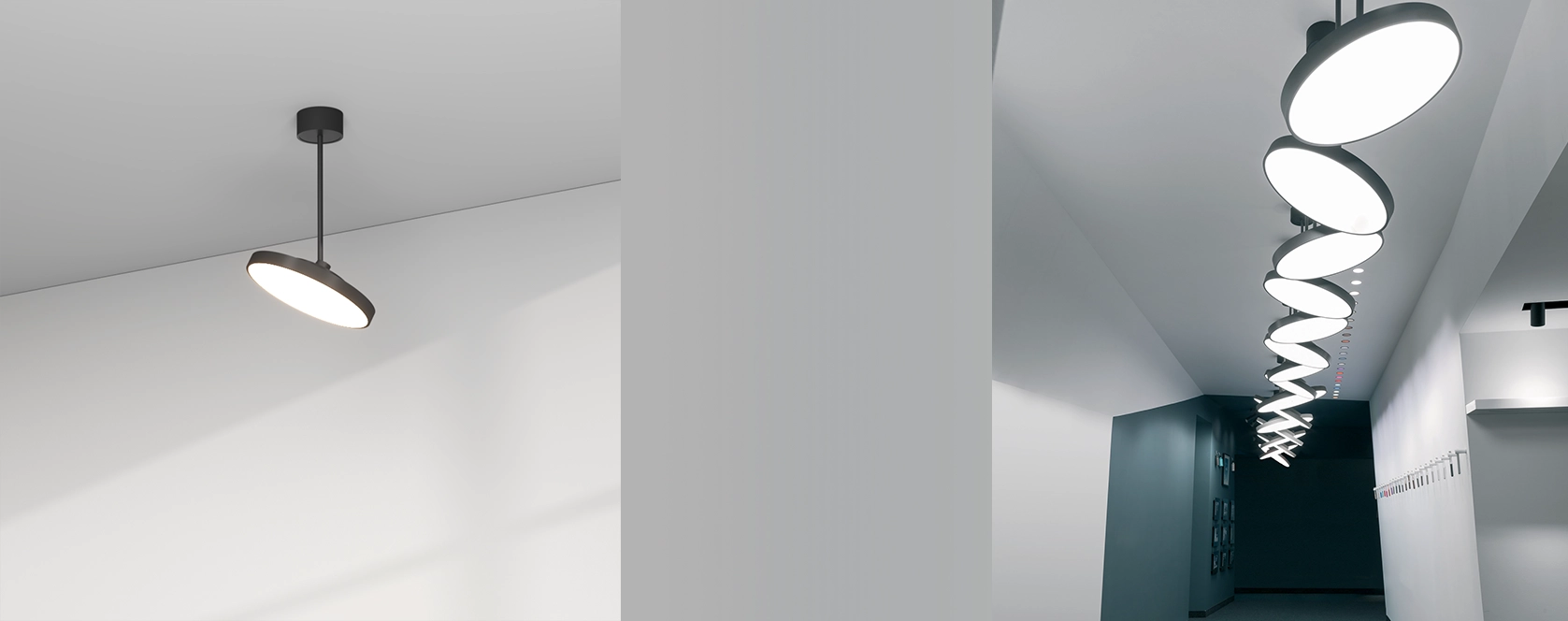

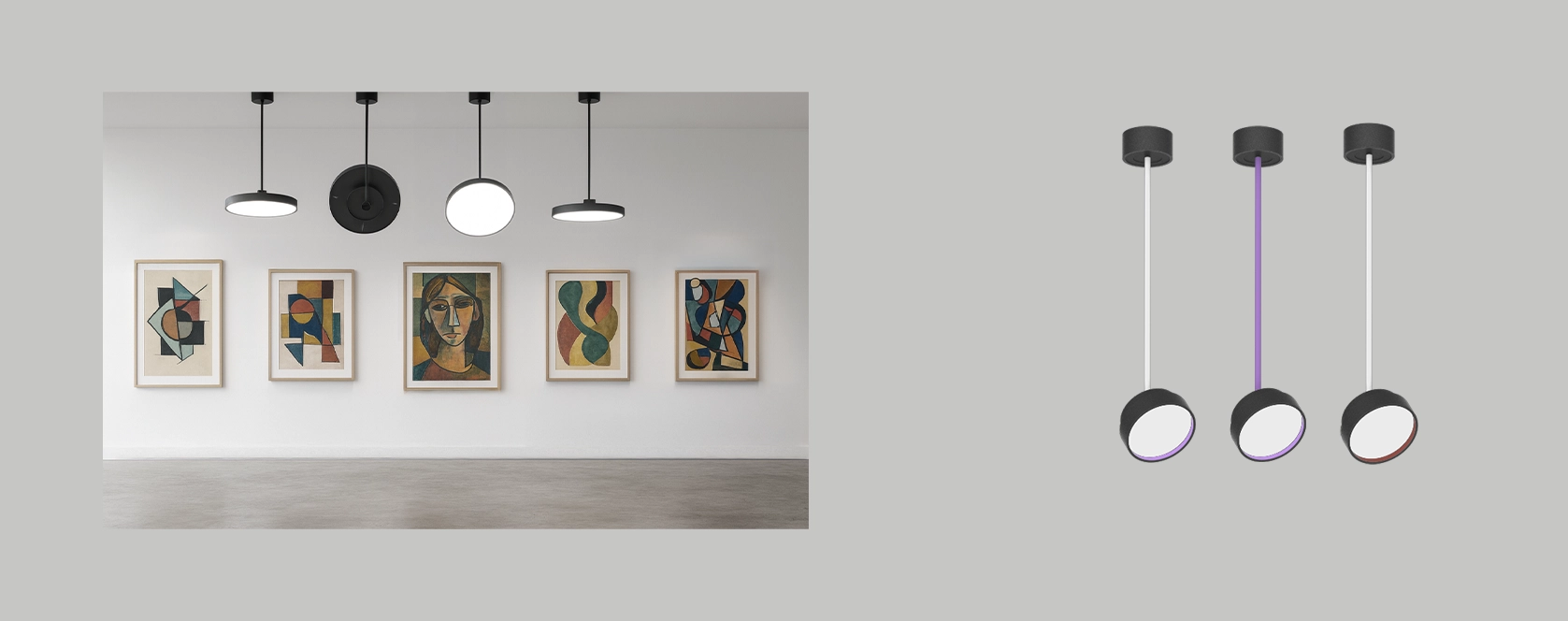

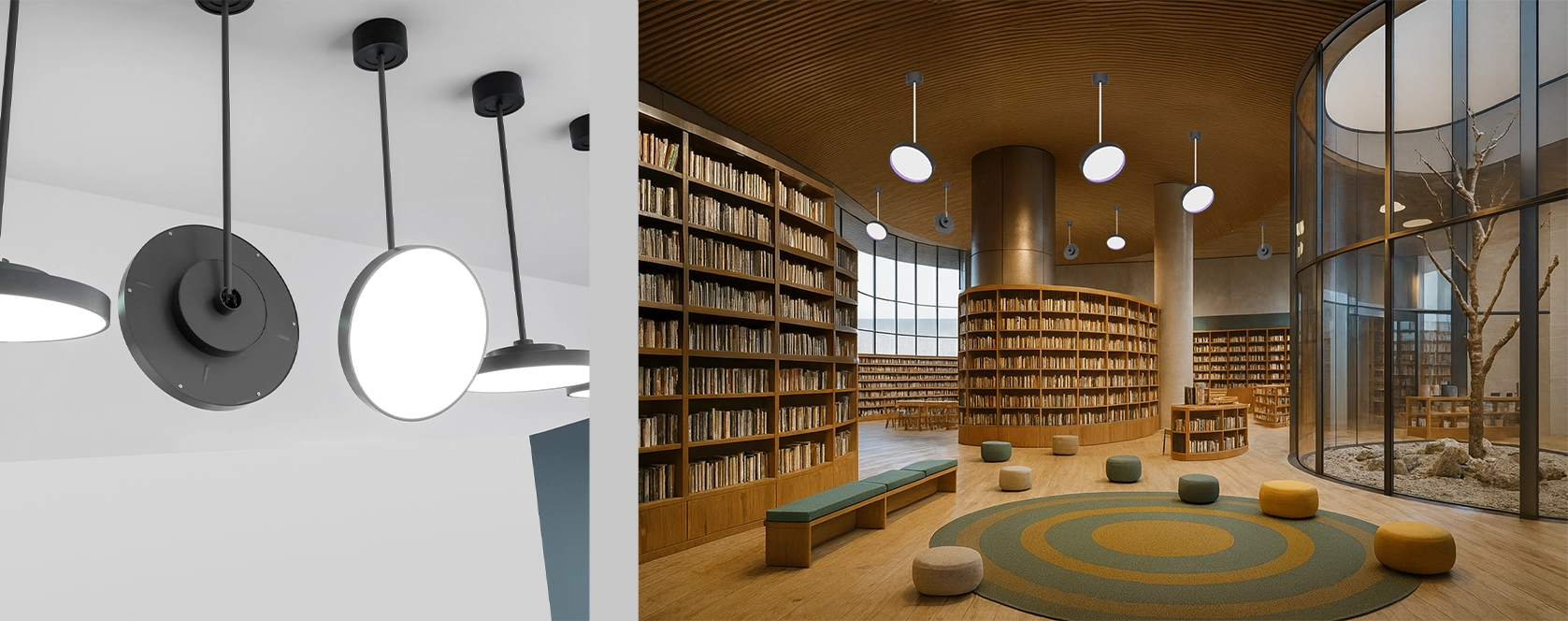

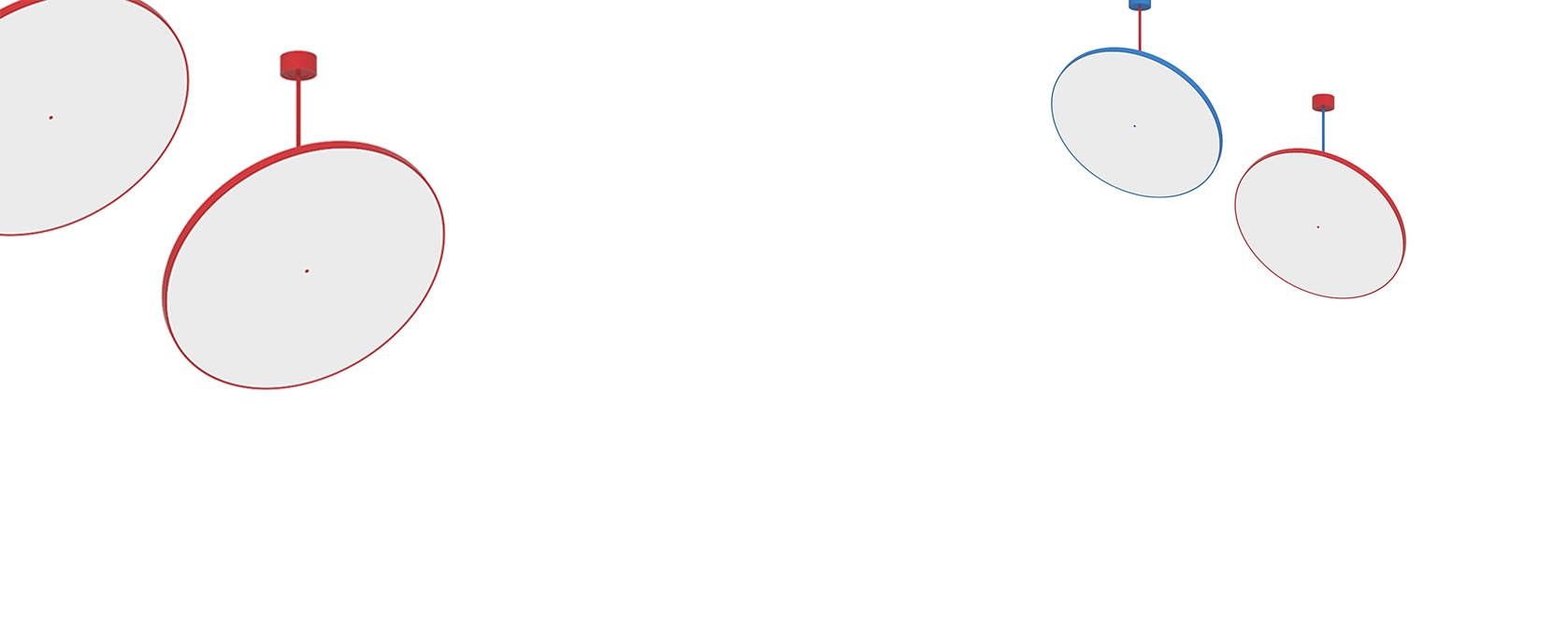

Sign Diva Flex is a standout pendant luminaire from the Sign collection. This innovative light fixture features a vertically suspended design with a flexibly swiveling luminaire head that can rotate 170° in both directions and angle 80° to 90°. Available in five distinct sizes and two tube lengths, Sign Diva Flex offers unparalleled versatility. You can enhance your Sign Diva Flex lighting design with the Korona effect, which adds a playful glow with a colored transparent ring. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Also Available within Series

Sign Diva Flex by Prolicht – 7 7/8″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30851- Sign Diva Flex - Suspension - ∅200mm / 7 7/8" x 870mm / 34 1/4" - 12.1W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 7 7/8″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30852- Sign Diva Flex - Suspension - ∅200mm / 7 7/8" x 1620mm / 63 3/4" - 12.1W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 15 3/4″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30853- Sign Diva Flex - Suspension - ∅400mm / 15 3/4" x 870mm / 34 1/4" - 19.8W LED (Zhaga Standard) - 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 15 3/4″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30854- Sign Diva Flex - Suspension - ∅400mm / 15 3/4" x 1620mm / 63 3/4" - 19.8W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 22 7/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30855- Sign Diva Flex - Suspension - ∅570mm / 22 7/16" x 870mm / 34 1/4" - 58.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 22 7/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30856- Sign Diva Flex - Suspension - ∅570mm / 22 7/16" x 1620mm / 63 3/4" - 58.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial - Shine Ring
Sign Diva Flex by Prolicht – 33 7/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30857- Sign Diva Flex - Suspension - ∅850mm / 33 7/16" x 870mm / 34 1/4" - 96.8W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial -
Sign Diva Flex by Prolicht – 33 7/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30858- Sign Diva Flex - Suspension - ∅850mm / 33 7/16" x 1620mm / 63 3/4" - 96.8W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 43 5/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30859- Sign Diva Flex - Suspension - ∅1100mm / 43 5/16" x 870mm / 34 1/4" - 169.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 43 5/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30860- Sign Diva Flex - Suspension - ∅1100mm / 43 5/16" x 1620mm / 63 3/4" - 169.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 7 7/8″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30861- Sign Diva Flex Korona - Suspension - ∅200mm / 7 7/8" x 870mm / 34 1/4" - 12.1W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 7 7/8″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30862- Sign Diva Flex Korona - Suspension - ∅200mm / 7 7/8" x 1620mm / 63 3/4" - 12.1W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 15 3/4″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30863- Sign Diva Flex Korona - Suspension - ∅400mm / 15 3/4" x 870mm / 34 1/4" - 19.8W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 15 3/4″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30864- Sign Diva Flex Korona - Suspension - ∅400mm / 15 3/4" x 1620mm / 63 3/4" - 17W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 22 7/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30865- Sign Diva Flex Korona - Suspension - ∅570mm / 22 7/16" x 870mm / 34 1/4" - 58.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 22 7/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30866- Sign Diva Flex Korona - Suspension - ∅570mm / 22 7/16" x 1620mm / 63 3/4" - 58.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 33 7/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30867- Sign Diva Flex Korona - Suspension - ∅850mm / 33 7/16" x 870mm / 34 1/4" - 88W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 33 7/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30868- Sign Diva Flex Korona - Suspension - ∅850mm / 33 7/16" x 1620mm / 63 3/4" - 88W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 43 5/16″ x 34 1/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30869- Sign Diva Flex Korona - Suspension - ∅1100mm / 43 5/16" x 870mm / 34 1/4" - 145W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial
Sign Diva Flex by Prolicht – 43 5/16″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A30870- Sign Diva Flex Korona - Suspension - ∅1100mm / 43 5/16" x 1620mm / 63 3/4" - 145W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - PMMA Opal / Micro-Prism / Sparkling Secret / Vintage Industrial

Downloads

Request Files

Sign Diva Flex by Prolicht – 7 7/8″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural

Sign Diva Flex by Prolicht – 7 7/8″ x 63 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural

Ceiling
Included or excluded LED driver/transformer/ control gear
Tilt

90°
Rotation

170°
Free individual colors 01-29
Dimmable
Color rendering index

>90 CRI
Color temperature

3000 / 3500 / 4000
Lumen (luminous flux)

836 / 895 / 903 / 921
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
