General

Reset
Series: Centriq
Subseries: Centriq Round Flex Adjustable
Brand: Prolicht
Prolicht products
Division: Architectural
Architectural products
Mounting Type: Recessed
Recessed products
Mounting Location: Ceiling
Ceiling products
Subcategory: Spots
Spots products



Physical

Shape: Cylinder
Diameter (mm): 120
Diameter (in): 4 3⁄4
Height (mm): 105
Height (in): 4 1⁄8
Min. Recessing Depth (mm): 120
Min. Recessing Depth (in): 4 3⁄4
Light Distribution: Adjustable / Direct
Weight (kg): 0.666
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum
Cut-out Measurements: Dia. 112mm / 4 7/16"



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 20.5
Total Output Wattage (W): 18.1
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Recessed Housing
Driver Type: Constant Current - Universal
Driver Class: Class 2
Housing: ENCP 3
Input Voltage (V): 120 - 277
Constant Current (MA): 500



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 1201 / 1294 / 1346 / 1373
Nominal Lumen (lm): 1668 / 1797 / 1869 / 1907
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 18 - 46
Adjustability: Rotational 350° / Tilt 25°



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20





Base Model Number: A35980-

Specify

Description

Centriq is a ceiling track light series designed for function and versatility. Centriq uses the Exact Positioning System (EPS), which was designed for precise angling of the spot, particularly when a series of spots need to be positioned to match each other. The spots can be rotated with the degree settings embossed on the fixture every 10°, and is accompanied by an audible click for each position. With the Dual-Lock feature, the angled position can be secured via set screw. Centriq is available in many sizes, and includes a Super Spot as well as a Wallwash with Vertical Boost. Centriq can also be used with the trimless channel, 2Look4 and the linear system, ClickTrack.
Centriq is now available as a recessed version, adding another mounting type to the series collection providing you with even more options to create a consistent luminaire concept.

With the round and square versions of Centriq, you achieve a clear and unobstructed ceiling appearance without sacrificing flexibility in light orientation, thanks to their adjustable and pivotable spotlight heads.

All options are available in a wide variety of standard color finish options, creating a bespoke solution for every design.

Centriq is a component for the following systems:

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0210500ES ERP - ESS030W-0500-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 21W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22

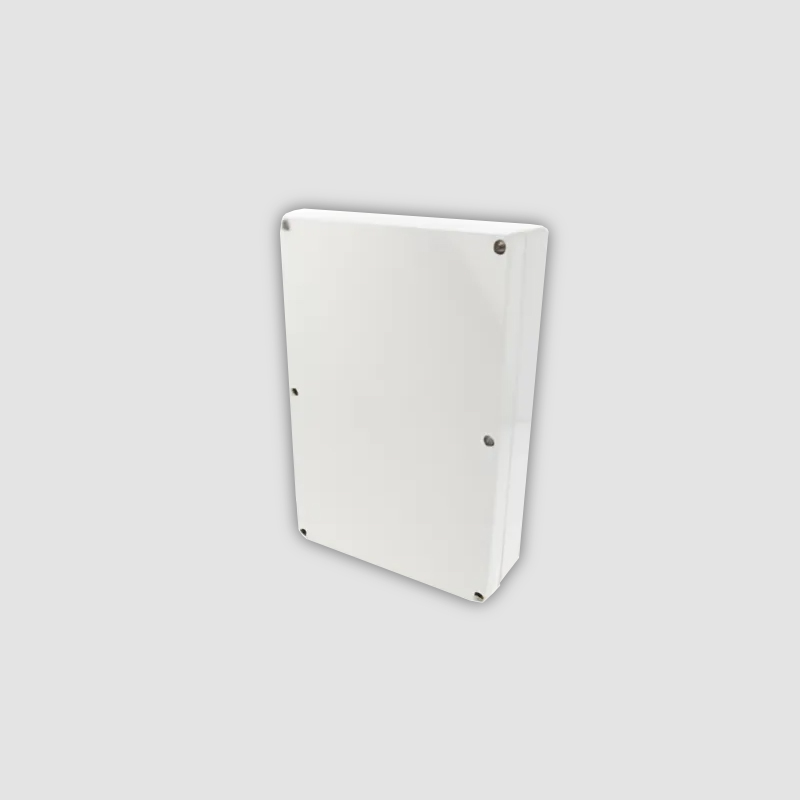

by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series New Product

Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35974- Centriq Round Adjustable - Recessed - 120mm / 4 3/4" - 20.5W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Lens Pack
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35975- Centriq Round Adjustable - Recessed - 120mm / 4 3/4" - 27.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Lens Pack - Reflector: 20° / 32° / 54°
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35976- Centriq Round Adjustable - Recessed - 120mm / 4 3/4" - 34W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Lens Pack - Reflector: 24° / 36° / 54°
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35977- Centriq Round Adjustable - Recessed - 120mm / 4 3/4" - 27.4W LED (Zhaga Standard) - Tunable White (2700K-6500K) - Lens Pack -
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35980- Centriq Round Flex Adjustable - Recessed - 120mm / 4 3/4" - 20.5W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam Angle: 14° - 46°
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35981- Centriq Round Flex Adjustable - Recessed - 120mm / 4 3/4" -8.2W LED (Zhaga Standard) - Tunable White (2700K - 6500K) - Beam Angle: 14° / 36° / 46°
Centriq by Prolicht – 4 3/4″4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35982- Centriq Square Adjustable - Recessed - 120mm / 4 3/4" - 20.5W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam Angle: 10°
Centriq by Prolicht – 4 3/4″4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35983- Centriq Square Adjustable - Recessed 120mm / 4 3/4" - 27.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Lens Pack - Reflector: 20° / 32° / 54°
Centriq by Prolicht – 4 3/4″4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35984- Centriq Square Adjustable - Recessed - 120mm / 4 3/4" - 34W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Lens Pack - Reflector: 24° / 36° / 54°
Centriq by Prolicht – 4 3/4″4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35985- Centriq Square Adjustable - Recessed - 120mm / 4 3/4" - 34W LED (Zhaga Standard) - Tunable White (2700K - 6500K) - Beam Angle: 24° / 34° / 54°
Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural A35986- Centriq Square Flex Adjustable - Recessed - 120mm / 4 3/4" - 20.5W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam Angle: 18° / 30° / 46°
New
Centriq by Prolicht – 3 3/4″9 1/4″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T013- Centriq - Track Head - 95mm / 3-3/4" - 18W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 18° / 26° / 40°
Centriq by Prolicht – 3 3/4″9 1/4″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T016- Centriq - Track Head - 95mm / 3 3/4" - 26W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 18° / 26° / 40°
Centriq by Prolicht – 3 3/4″9 1/4″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T019- Centriq - Track Head - 95mm / 3 3/4" - 34W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 14° / 24° / 32°
Centriq by Prolicht – 3 3/4″9 1/4″ x 5 7/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T022- Centriq - Track Head - 95mm / 3 3/4" - 12W / 15W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 8°
Centriq by Prolicht – 4 15/16″9 1/4″ x 6 1/2″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T024- Centriq Large - Track Head - 125mm / 4 15/16" - 55W / 54W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Reflectors 16° / 26° / 42°
Centriq by Prolicht – 4 15/16″9 1/4″ x 6 1/2″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T027- Centriq Large - Track Head - 125mm / 4 15/16" - 21W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam: 8°
Centriq by Prolicht – 4 15/16″9 1/4″ x 6 1/2″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T030- Centriq Wallwash - Track Head - 125mm / 4 15/16" - 39.9W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K
Centriq by Prolicht – 2 3/8″9 1/4″ x 5 5/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T033- Centriq Small - Track Head - 60mm / 2 3/8"- 14W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 40° / 60°
Centriq by Prolicht – 2 3/8″9 1/4″ x 5 5/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T036- Centriq Small - Track Head - 60mm / 2 3/8" - 12 / 15W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 8°
Centriq by Prolicht – 1 3/16″6 11/16″ x 2 15/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T105- Centriq Clicktrack - Track Spot - 4W - 2700K / 3000K / 4000K - Optic 24° / 32°
Centriq by Prolicht – 1 9/16″6 11/16″ x 3 7/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T106- Centriq Clicktrack - Track Spot - 6W - 2700K / 3000K / 4000K
Centriq by Prolicht – 1 9/16″6 11/16″ x 3 7/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T107- Centriq Clicktrack - Track Spot - 6W - 2700K / 3000K / 4000K
Centriq by Prolicht – 2 3/16″6 11/16″ x 4 7/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T108- Centriq Clicktrack - Track Spot - 9W - 2700K / 3000K / 4000K
Centriq by Prolicht – 2 3/16″6 11/16″ x 4 7/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T109- Centriq Clicktrack - Track Spot - 12W - 2700K / 3000K / 4000K
Centriq by Prolicht – 2 15/16″9 1/4″ x 7 3/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T115- Centriq - Track Spot - 75mm - 26W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 34°
Centriq by Prolicht – 2 15/16″9 1/4″ x 4 15/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T116- Centriq - Track Spot - 75mm - 12 / 15W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Beam 10°
Centriq by Prolicht – 2 9/16″9 13/16″ x 5 3/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T215- Centriq In - Track Spot 65mm - 21W LED, 2700K/3000K/3500K/4000K, 12°, CRI: > 90, Non-Dimmable
Centriq by Prolicht – 2 9/16″9 13/16″ x 5 3/8″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T216- Centriq In - Track Spot 65mm - 23W LED, 2700K/3000K/3500K/4000K, Optics: 24° / 36° / 52°, CRI: > 90, Dimmable
Centriq by Prolicht – 3 1/4″9 13/16″ x 6 9/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T217- Centriq In - Track Spot 83mm - 26W LED, 2700K/3000K/3500K/4000K, 12°, CRI: > 90, Non-Dimmable
Centriq by Prolicht – 3 1/4″9 13/16″ x 6 9/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T218- Centriq In - Track Spot 83mm - 26W LED, 2700K/3000K/3500K/4000K, 20°/ 32° / 54°, CRI: > 90, Dimmable
Centriq by Prolicht – 2 9/16″9 13/16″ x 5 9/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T220- Centriq In Flex - Track Spot 65mm - 21W LED, 2700K/3000K/3500K/4000K, Optics: Adjustable Beam Angle 14°- 44°, CRI: > 90, Non-Dimmable and 0-10V Dimmable
Centriq by Prolicht – 3 1/4″9 13/16″ x 6 9/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural A3T221- Centriq In Flex - Track Spot 83mm - 21W LED, 2700K/3000K/3500K/4000K, Optics: Adjustable Beam Angle 14° - 44°, CRI: > 90, Non-Dimmable, 0-10V Dimming

Downloads

Request Files

Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural

Centriq by Prolicht – 4 3/4″ x 4 1/8″ Recessed, Spots offers LED lighting solutions | Zaneen Architectural

Ceiling
Circle wall or ceiling cut-out

Dia. 112mm / 4 7⁄16"
Min. Recessing Depth

120mm /
4 3⁄4''
Included or excluded LED driver/transformer/ control gear
Tilt

Rotational 350° / 25°
Rotation

350° / Tilt 25°
Free individual colors 01-29
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

1201 / 1294 / 1346 / 1373
CSA Certified to UL and CSA Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
