Imagine Micro Insert for Minimal Track Suspension - 23mm / 7/8" x 66mm / 2 5/8" - 4.4W LED, 2700K / 3000K / 3500K / 4000K - 48 - Non-Dimming / Dali Dim - Adjustable - CRI:90 - Beam: 26° / 28° / 38° / 46° / 64° – Zaneen

General

Reset
Series: Imagine Micro
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Modular Systems
Modular Systems products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Cylinder
Diameter (mm): 23
Diameter (in): 7/8
Height (mm): 66
Height (in): 2 5⁄8
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Holder Finish: WHI / BLK
Fixture Material: Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 4
Total Output Wattage (W): 3.6
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 48
Upon Request: 0-10V Dimming with Tridonic Bridge



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 252 / 271 / 315 / 290
Nominal Lumen (lm): 295 / 317 / 368 / 339
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 26
Adjustability: Rotational 350°; Tilt 90°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A380670-

Specify

Description

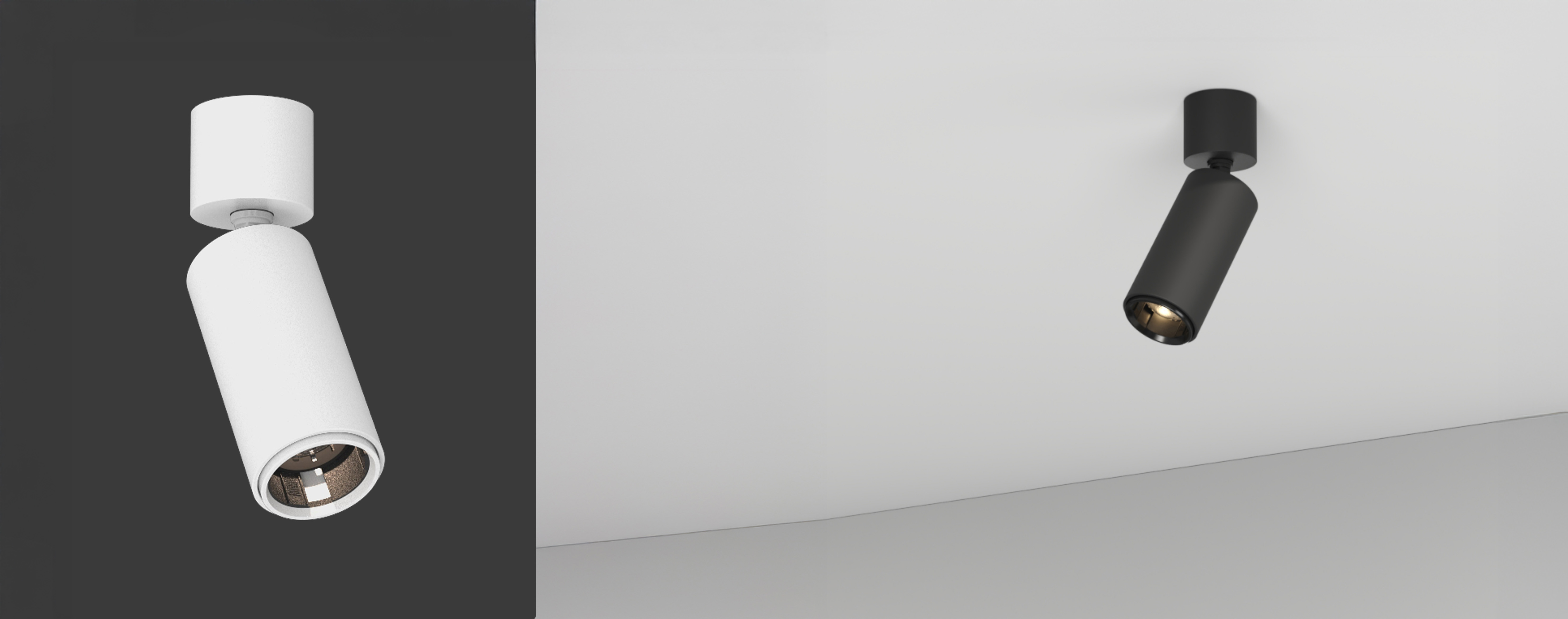

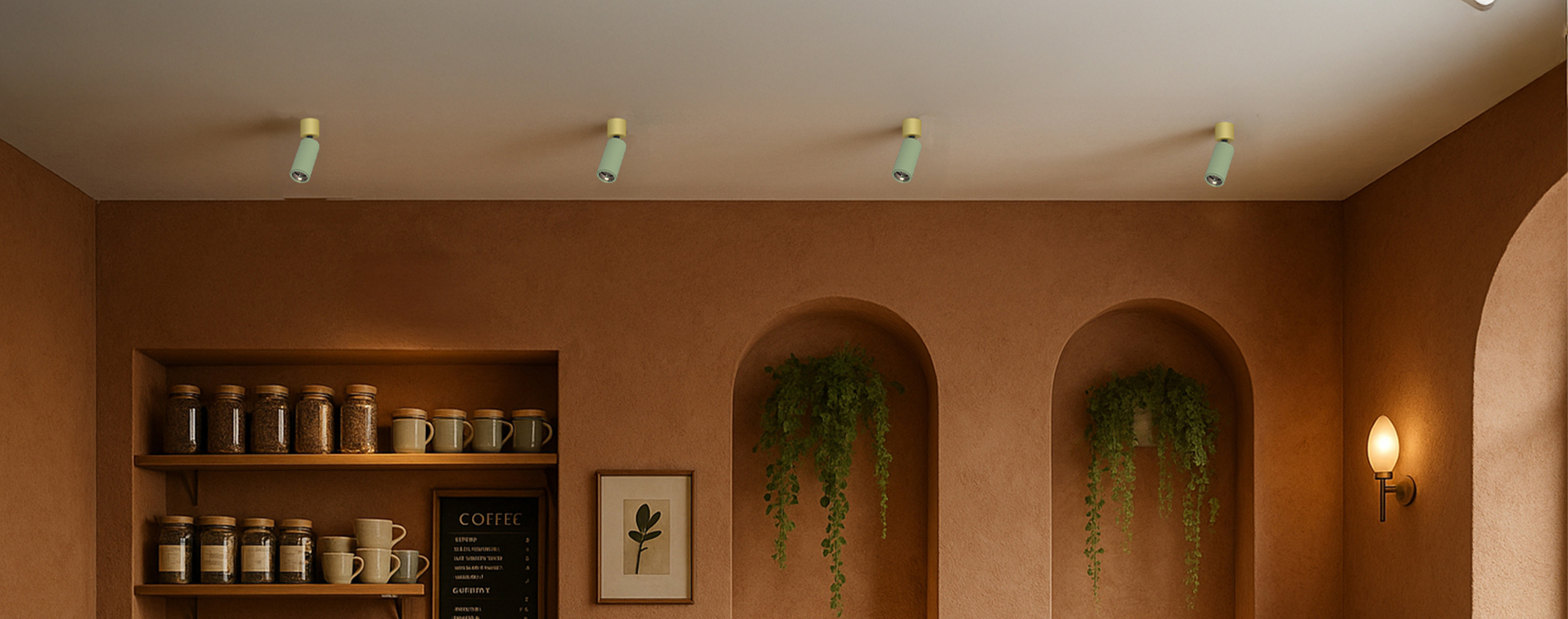

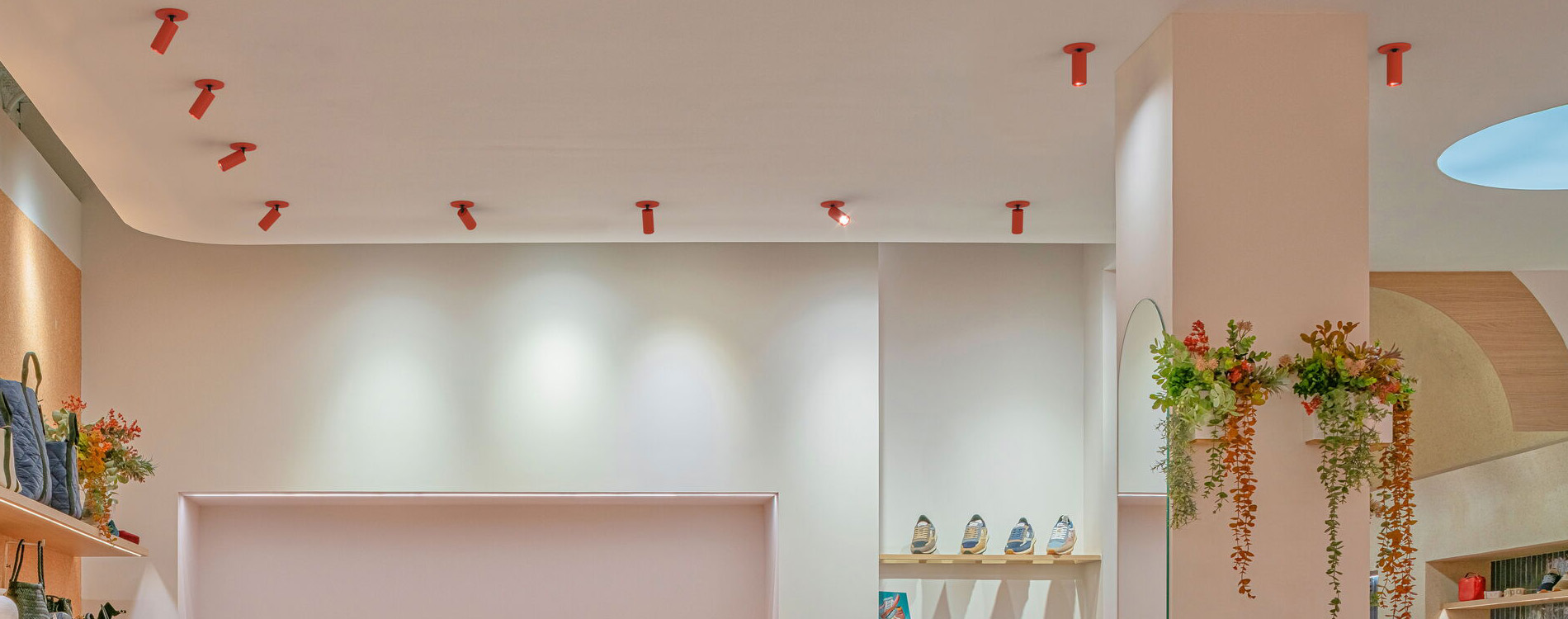

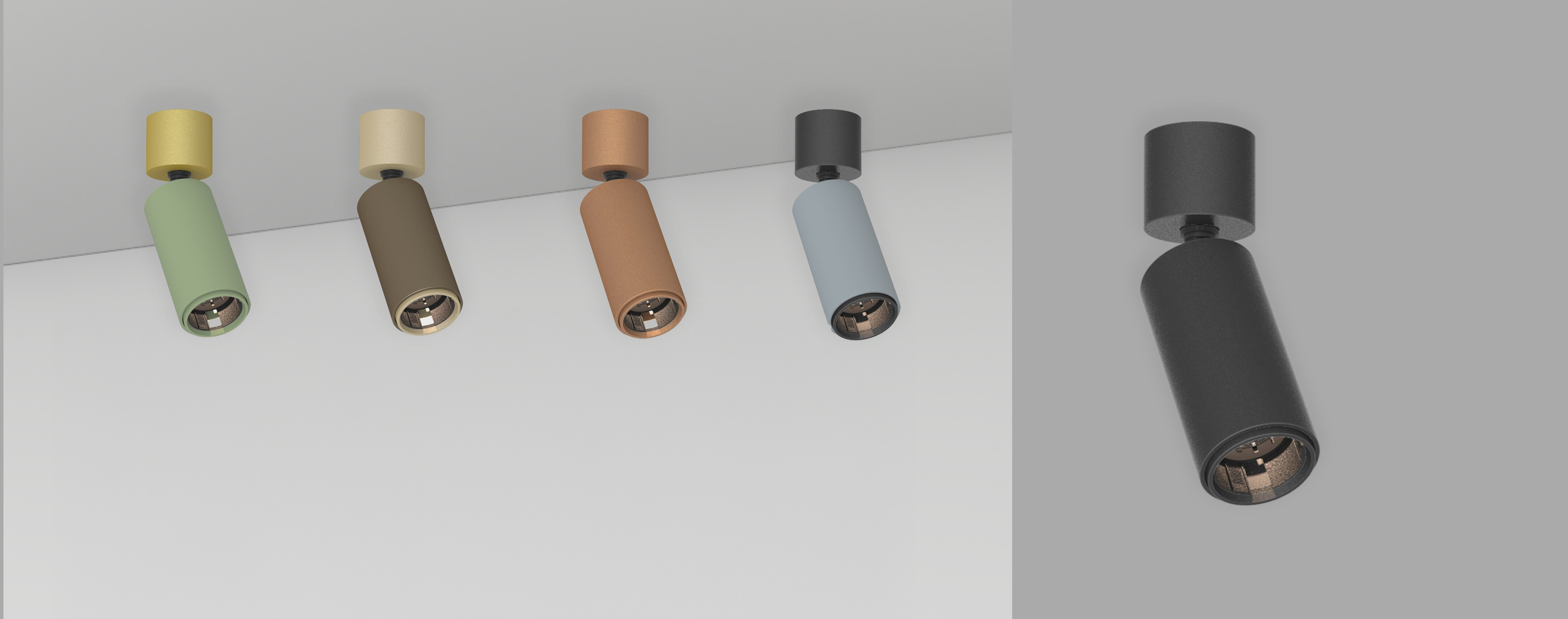

Imagine Micro is an expansion of the Imagine family with further variants, which is characterized by its high functionality and discreet appearance. Designed for seamless integration into diverse projects, Imagine Micro offers extensive customization options. Suitable for both plasterboard and concrete ceilings, and offering two different ceiling openings, this addition enhances the versatility and adaptability of the Imagine product family. Imagine is flexibly configurable, technically sophisticated and perfect for integrating into any room design, ideal for retail, hospitality, restaurants, and residential applications. Select from over 25 standard colors, ensuring limitless customization to complement any interior design.

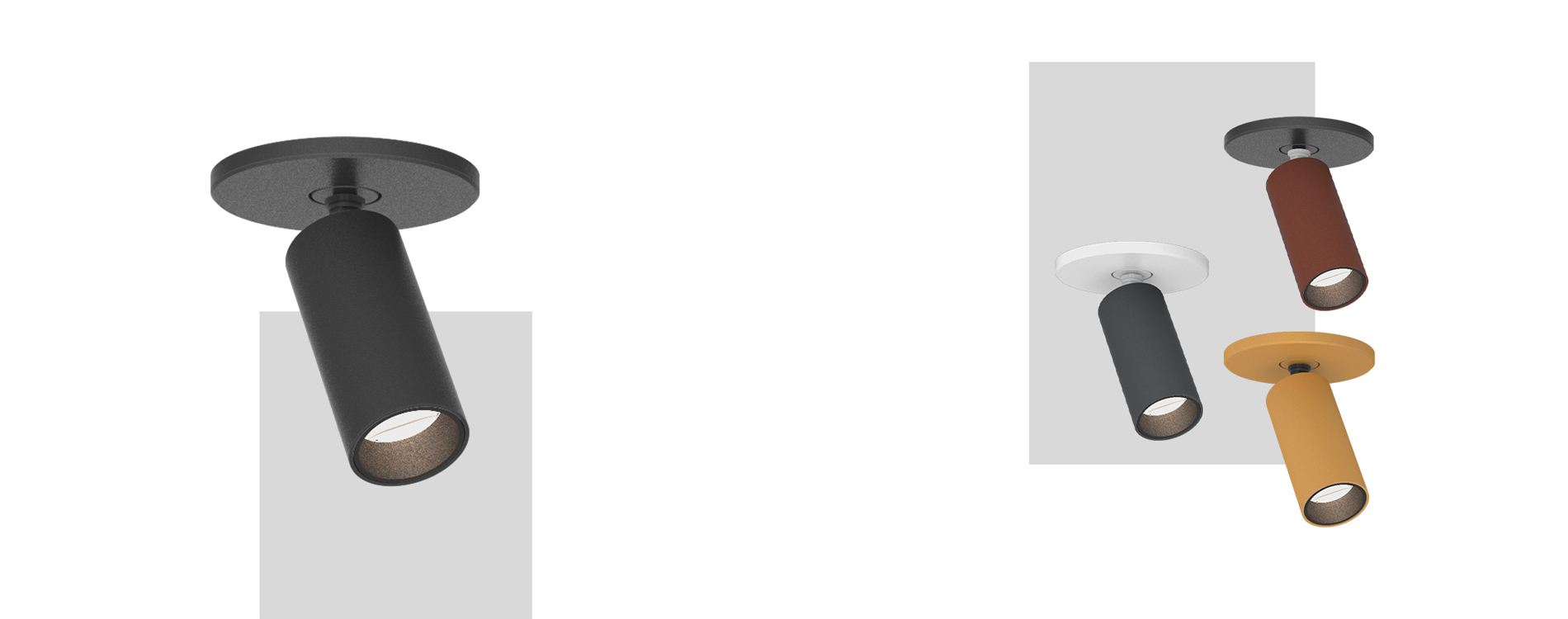

The Imagine collection now includes the Micro Dot, available in all mounting types. To ensure seamless integration into a wide range of projects, the luminaire body can be customized in various colors. Additionally, options for plasterboard or concrete ceilings, as well as two different ceiling opening sizes, further enhance the versatility of this product family.

Manufactured in Austria, by Prolicht.

This component relates to

Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-SUS-SYS Minimal Track Suspension Modular System

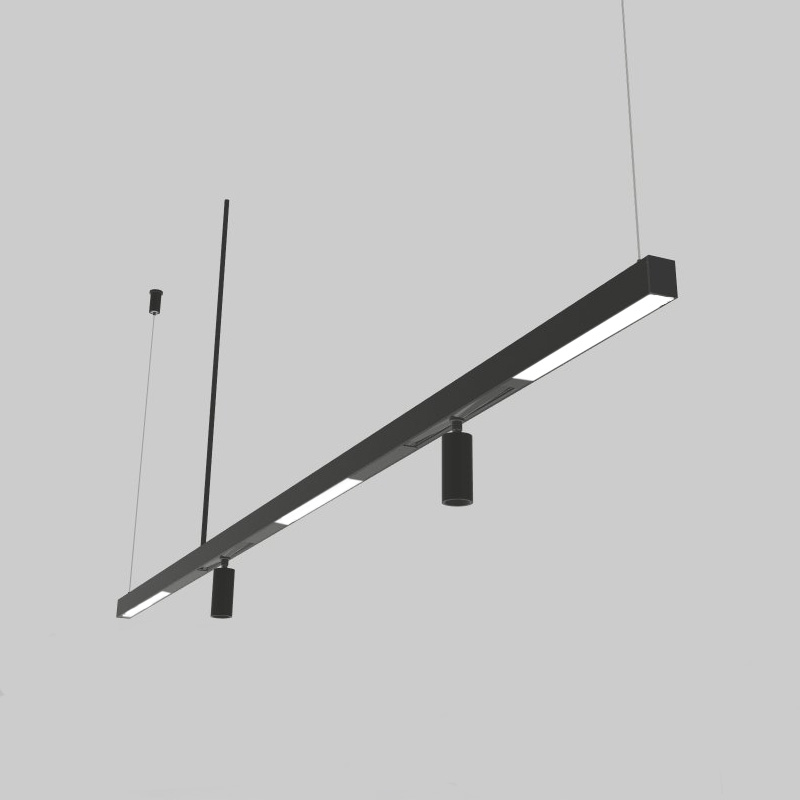

Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMSH48V-SUS-SYS Micro H-Track Modular System - Suspension

Also Available within Series New Product

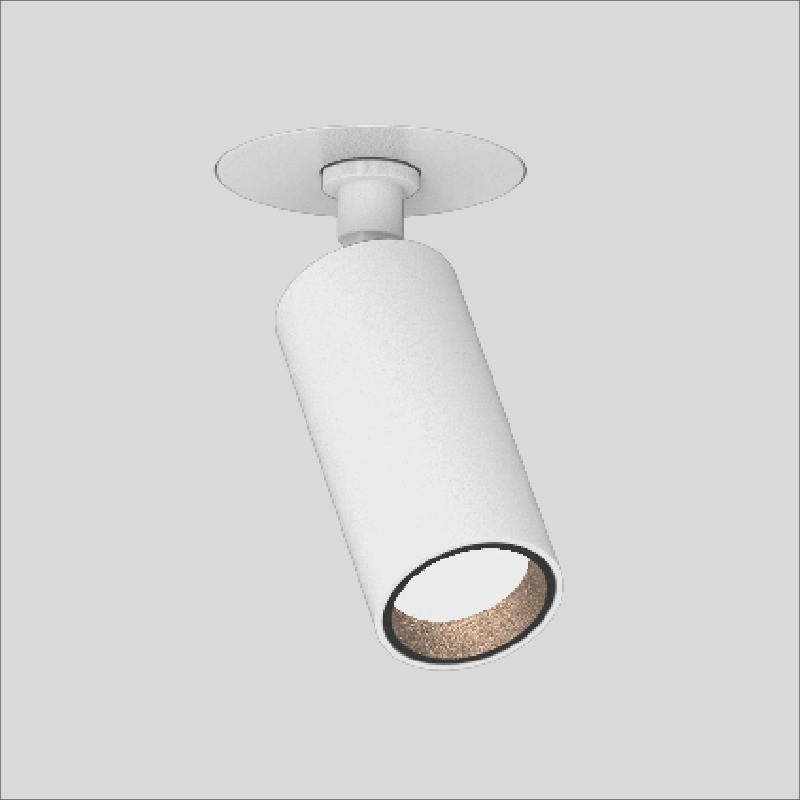

Imagine Micro by Prolicht – 7/8″ x 1 15/16″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A350236- Imagine Micro - Trimless Surface ∅23mm / 1 3/8"- 4.4W LED (Zhaga Standard) - Max 290lm - 2700K / 3000K / 3500K / 4000K - Beam Angle 26° / 28° / 38° / 46° / 64°
New
Imagine Micro by Prolicht – 1 3/8″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A350237- Imagine Micro - Trimless Surface ∅35mm / 1 3/8"- 6.4W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 14°
New
Imagine Micro by Prolicht – 1 3/8″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A350238- Imagine Micro - Trimless Surface ∅35mm / 1 3/8"- 8.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 22° / 36° / 62°
New

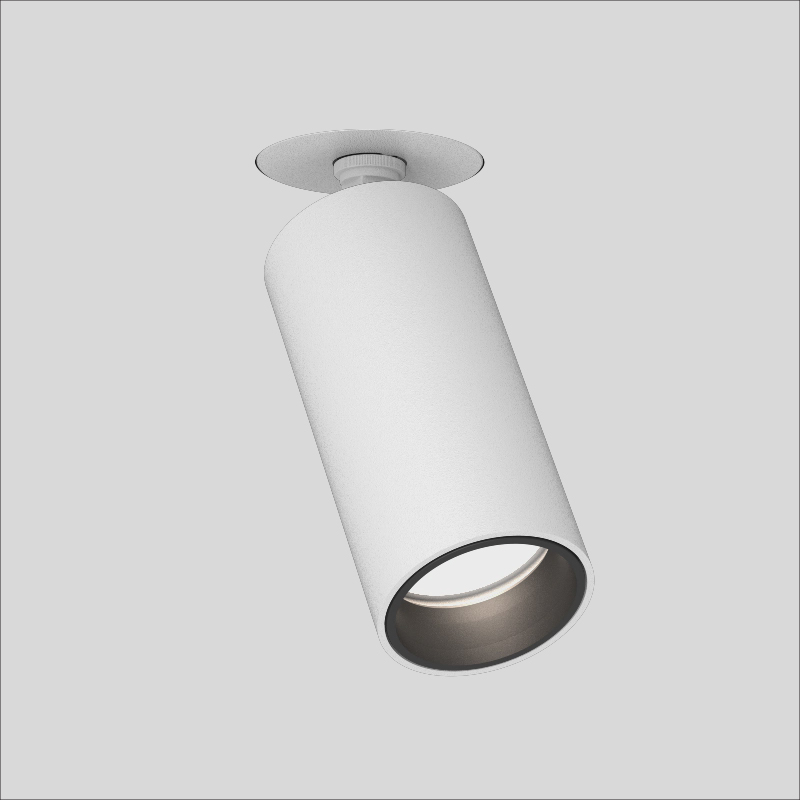

Imagine Micro by Prolicht – 1 3/8″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A350239- Imagine Micro - Trimless Surface ∅35mm / 1 3/8"- 8.7W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Max 6226lm, Reflector 22° / 36° / 62°, Lens Pack
New
Imagine Micro by Prolicht – 1 7/16″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A3D321- Imagine Micro Flex - Recessed Surface ∅37mm / 1 7/16"- 7W LED (Zhaga Standard) - Max 671lm - 2700K / 3000K / 3500K / 4000K - Reflector 14° / 20° / 52°
Imagine Micro by Prolicht – 7/8″ x 1 15/16″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A3D322- Imagine Micro - Recessed Surface ∅23mm / 1 3/8"- 4W LED (Zhaga Standard) - Max 280lm - 2700K / 3000K / 3500K / 4000K - Beam Angle 26° / 28° / 38° / 46° / 64°

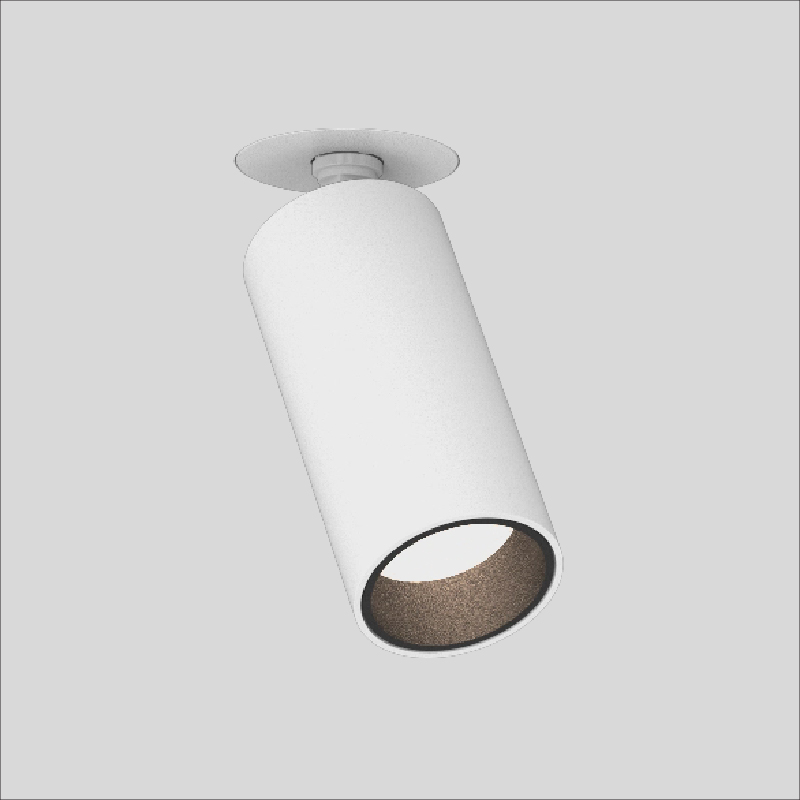

Imagine Micro by Prolicht – 1 3/8″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A3D323- Imagine Micro - Surface ∅35mm / 1 3/8"- 9W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 22° / 36° / 62°

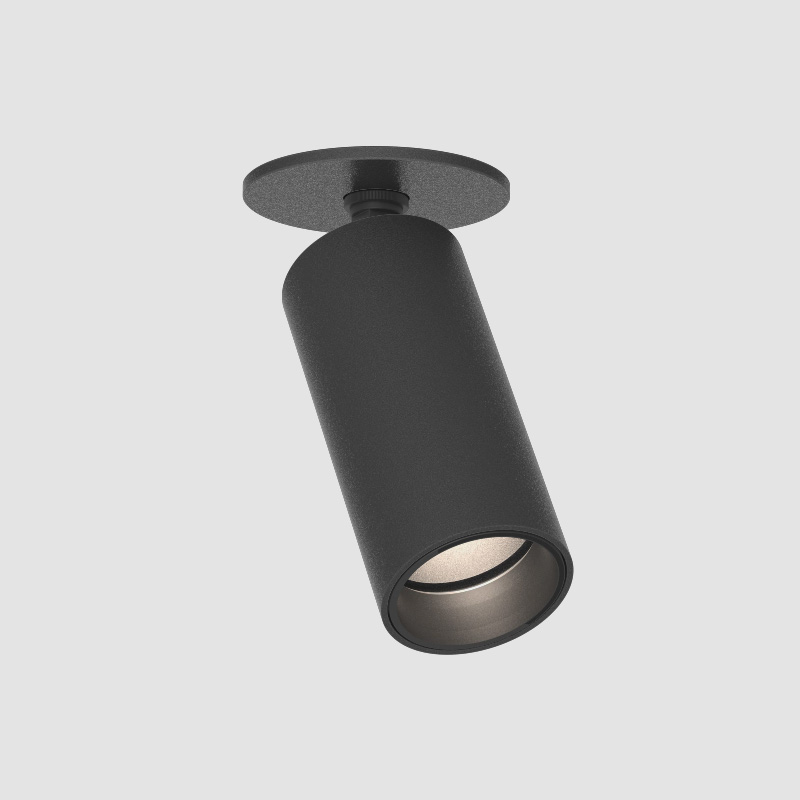

Imagine Micro by Prolicht – 1 3/8″ x 3″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A3D324- Imagine Micro - Recessed Surface ∅35mm / 1 3/8"- 9W LED (Zhaga Standard) - Max 607lm - 2700K / 3000K / 3500K / 4000K - Reflector 22° / 36° / 62°

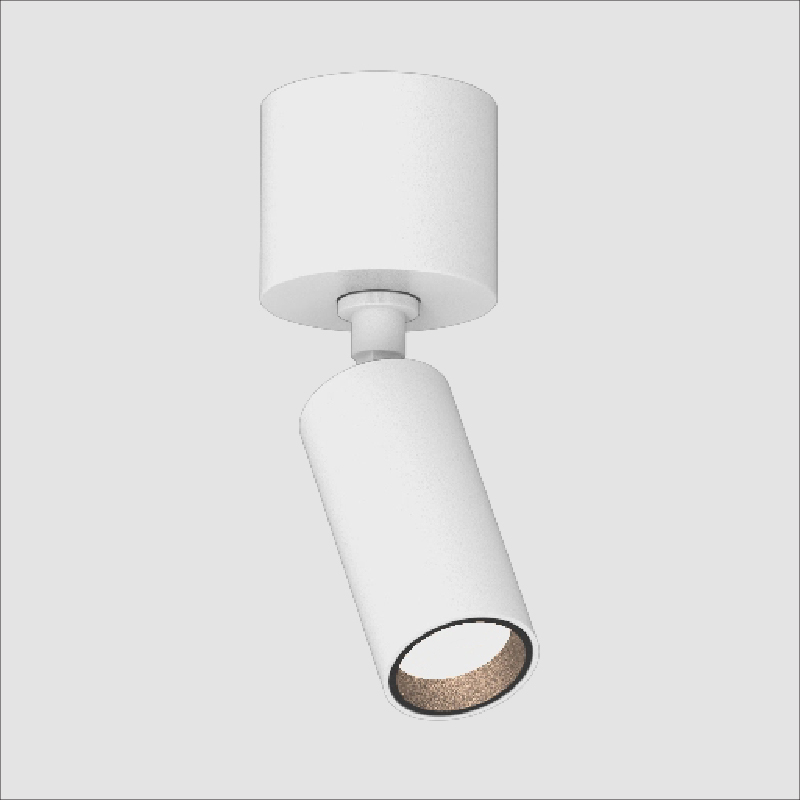

Imagine Micro by Prolicht – 8/9″ x 5″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A3D429- Imagine Micro - Surface ∅23mm / 8/9"- 4.3W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector 26° / 28° / 38° / 46° / 64°
New

Downloads

Request Files

Imagine Micro by Prolicht – 7/8″ x 2 5/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

Imagine Micro by Prolicht – 7/8″ x 2 5/8″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Tilt

90°
Rotation

350°
Free individual colors 01-29
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

252 / 271 / 315 / 290
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red

Holder Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
