2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - End Module - Black Profile - Frame - Color Options 1-29 – Zaneen

General

Reset
Series: 2Look4 130
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Trimless
Trimless products
Product Type: Linear Profiles
Linear Profiles products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Rectangle
Length (mm): 500 / 1000 / 1500 / 1800
Length (in): 19 11⁄16
Width (mm): 130
Width (in): 5 1⁄8
Height (mm): 200
Height (in): 7 7⁄8
Ceiling Thickness (mm): 12.5
Ceiling Thickness (in): 1/2
Min. Recessing Depth (mm): 200
Min. Recessing Depth (in): 7 7⁄8
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum



Electrical



LED



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A38835-

Specify

Description

2Look4 130 is a sophisticated trimless lighting series designed for versatility and ease of use. Featuring a Multi Axis Positioning System (MAP), this series allows for precise adjustments in rotation, height, and side angle, ensuring optimal lighting in any space. The tool free installation with the innovative Twist Lock mechanism makes mounting and repositioning spots effortless. Designed as a trimless channel system with adjustable spots, it also features easy installation through tool free twist and lock spotlights and plug connectors. Enhance your lighting design with the optional LED backlighting, available in various light colors and outputs, which can be independently switched and dimmed to create the perfect ambiance. 2Look4 130’s 130 mm wide channel system delivers both functionality and aesthetic appeal, making it the ideal choice for modern architectural lighting systems. Select from over 25 standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

2Look4 130 by Prolicht – Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A32L4130-TRI-SYS 2LOOK4 - 130 - Trimless - Profile System

Also Available within Series

2Look4 130 by Prolicht – Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A32L4130-TRI-SYS 2LOOK4 - 130 - Trimless - Profile System

Downloads

Request Files

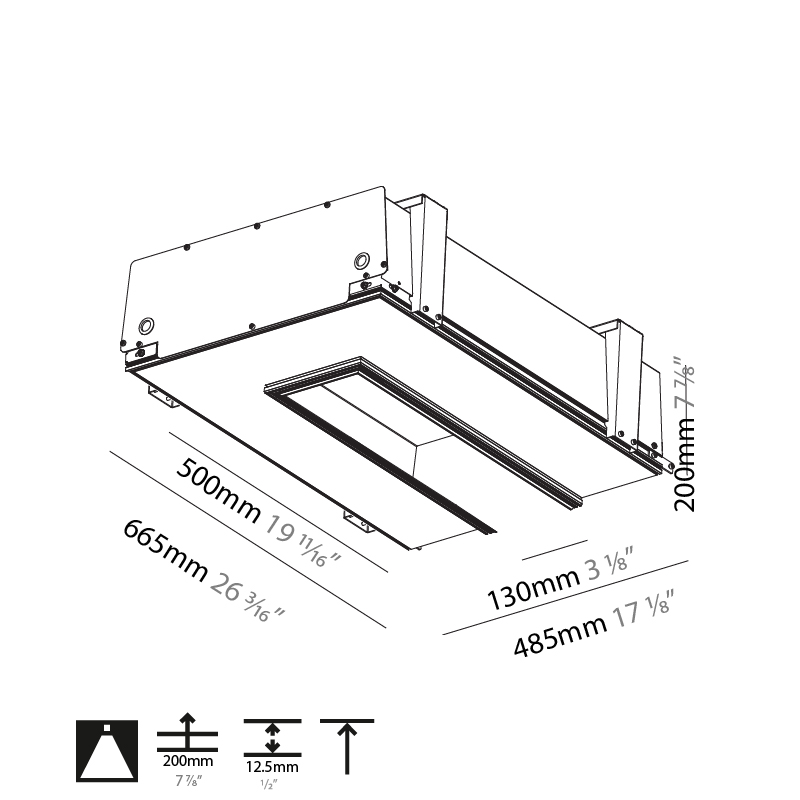

2Look4 130 by Prolicht – 19 11/16 / 39 3/8 / 59 1/16 / 70 7/8″ x 7 7/8″ Trimless, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Min. Recessing Depth

200mm /
7 7⁄8''
Ceiling thickness

12.5mm /
1⁄2''
Ceiling thickness selection
Free individual colors 01-29
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
