General

Series: 2Look4 130

Brand: Prolicht
Prolicht products

Division: Architectural
Architectural products

Mounting Type: Trimless
Trimless products

Mounting Location: Ceiling
Ceiling products

Subcategory: Profile
Profile products



Physical

Ceiling Thickness (mm): 12.5

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / GUM / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below

Fixture Material: Anodized Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Type: Constant Current - Universal

Input Voltage (V): 120 - 277



LED

Lamp Life (hrs): 50000

Upon Request: Special Color Temperature Special Led



Optical

Upon Request: Special Beam Angles



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20





Base Model Number: A32L4130-TRI-SYS

Description

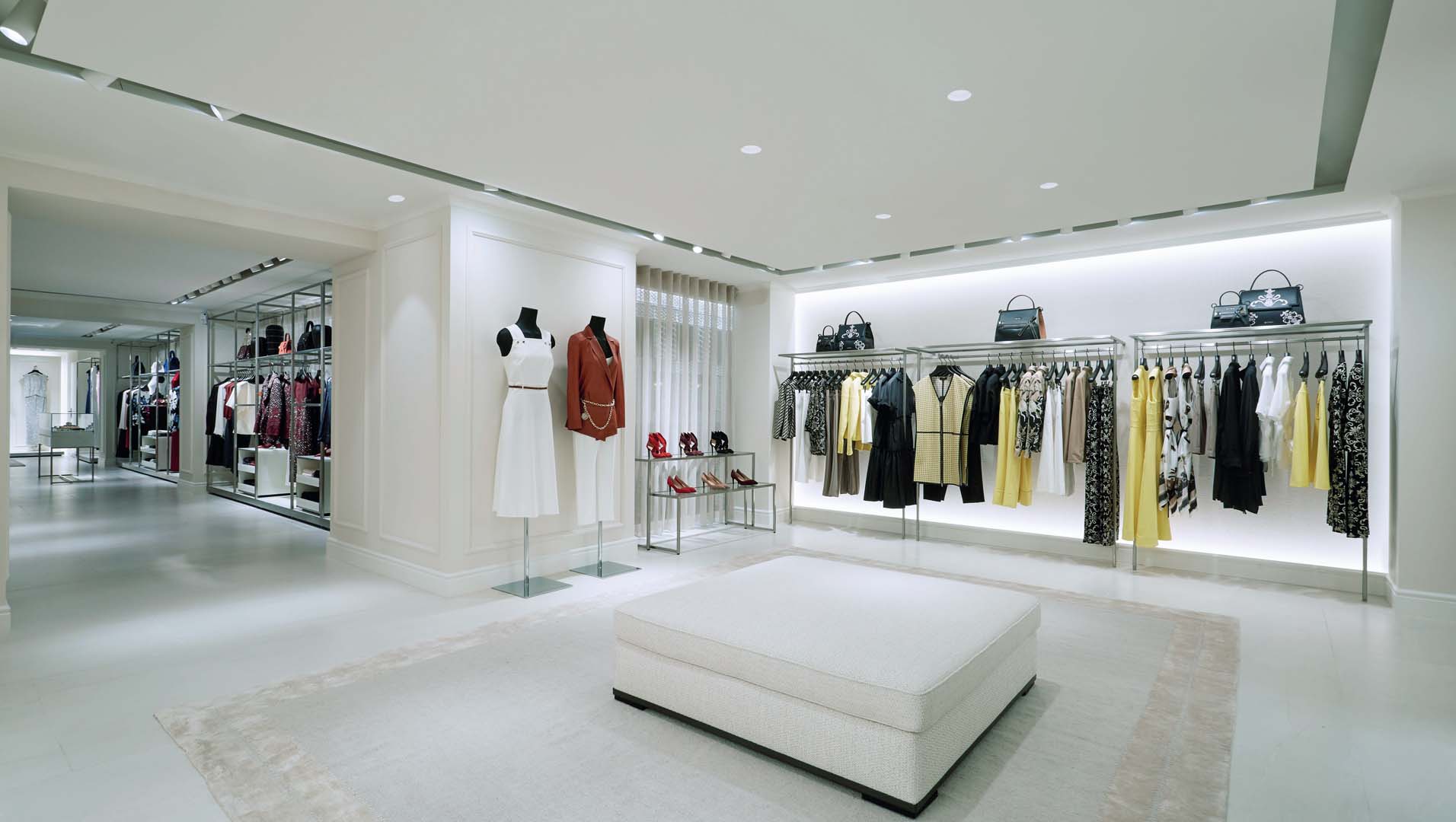

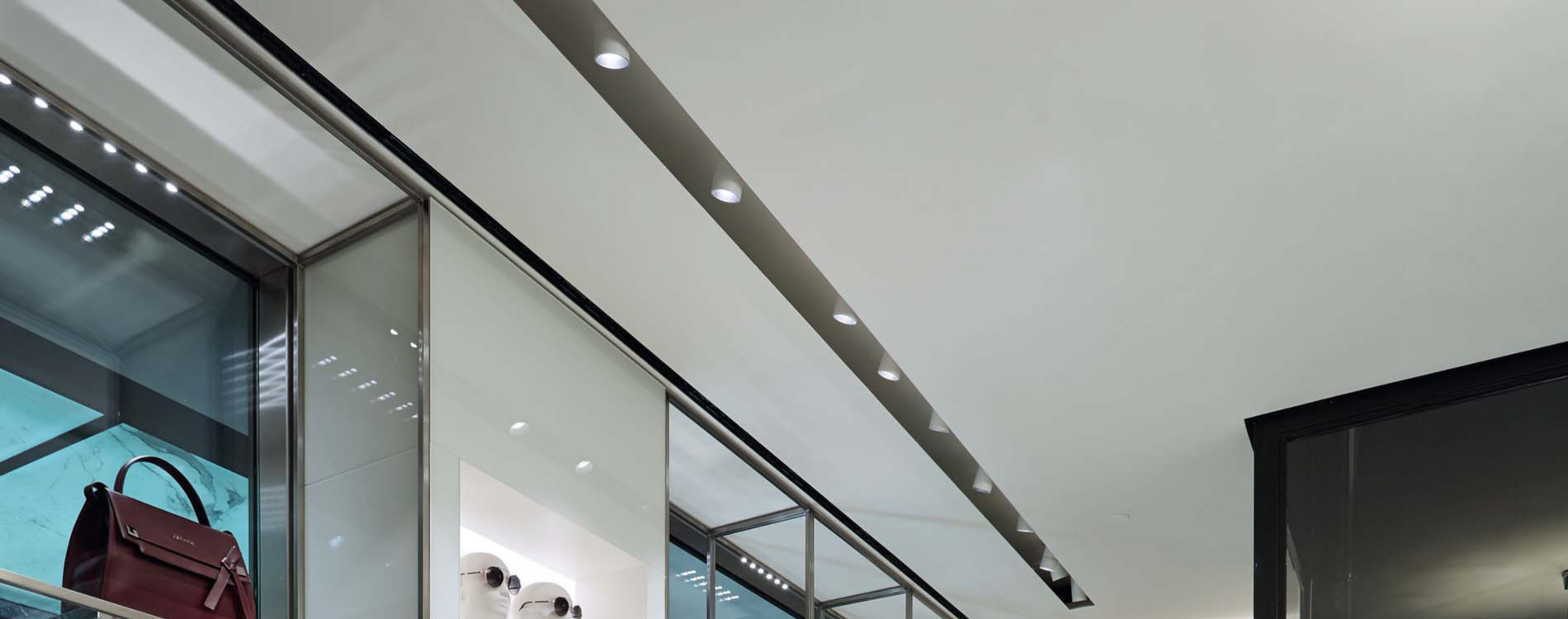

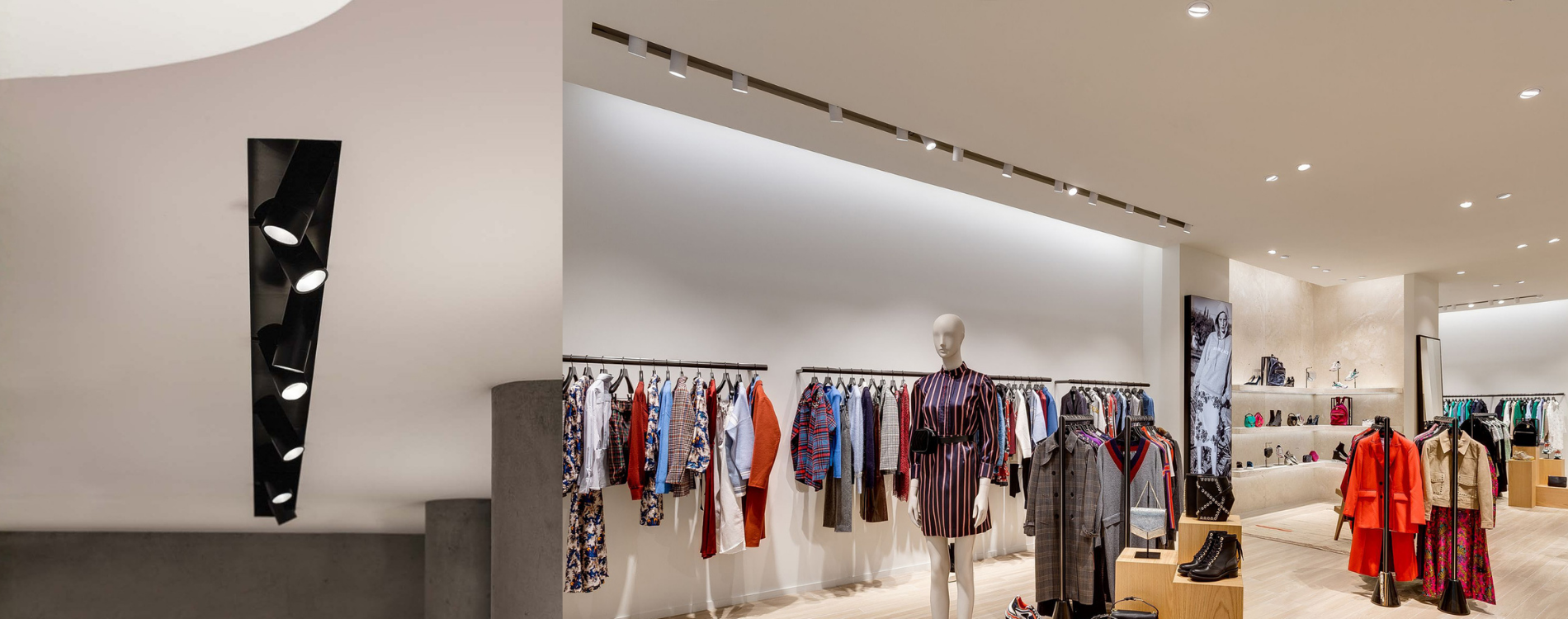

2Look4 130 is a sophisticated trimless lighting series designed for versatility and ease of use. Featuring a Multi Axis Positioning System (MAP), this series allows for precise adjustments in rotation, heigh, and side angle, ensuring optimal lighting in any space. The tool-free installation with the innovative Twist Lock mechanism makes mounting and repositioning spots effortless. Enhance your lighting design with the optional LED backlighting, available in various light colors and outputs, which can be independently switched and dimmed to create the perfect ambiance. 2Look4 130's 130 mm wide channel system delivers both functionality and aesthetic appeal, making it the ideal choice for modern architectural lighting systems.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet

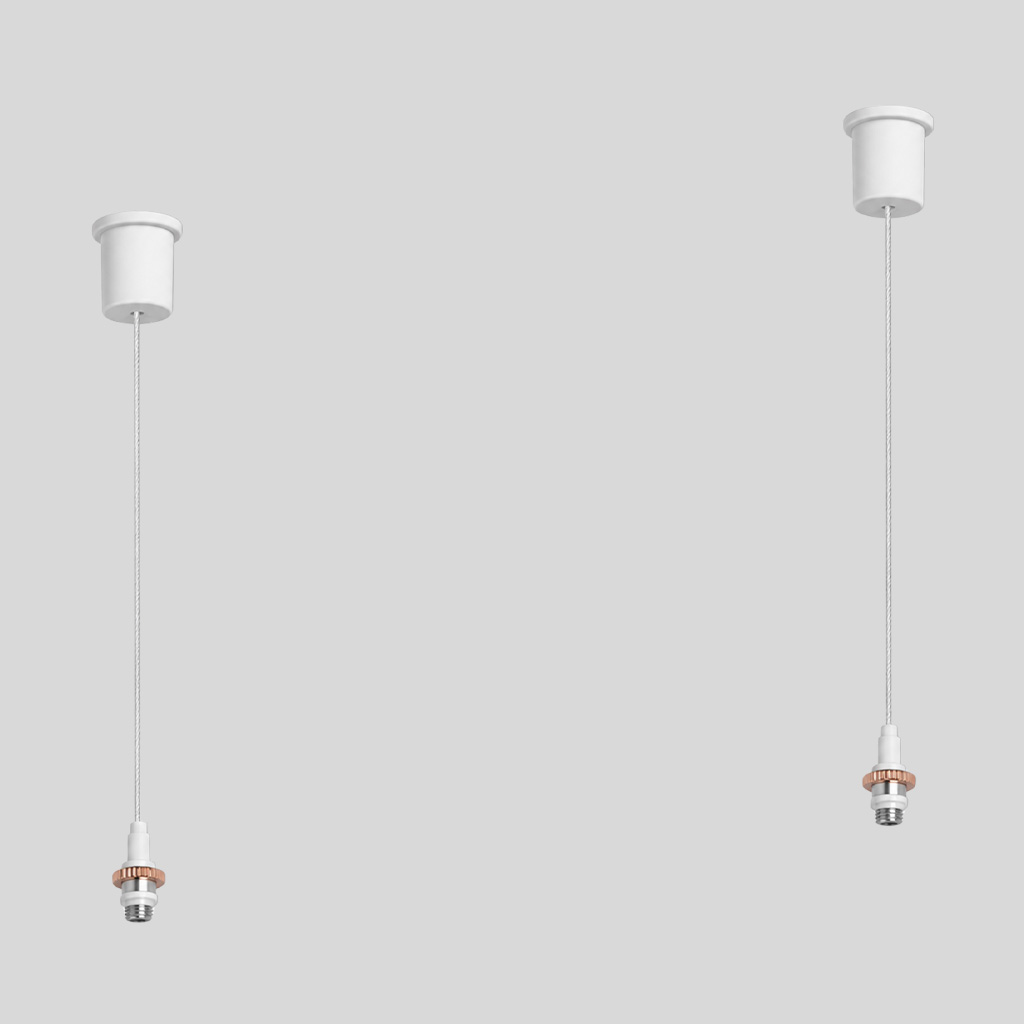

A3859000 2Look4Light Imagine - Support Cable

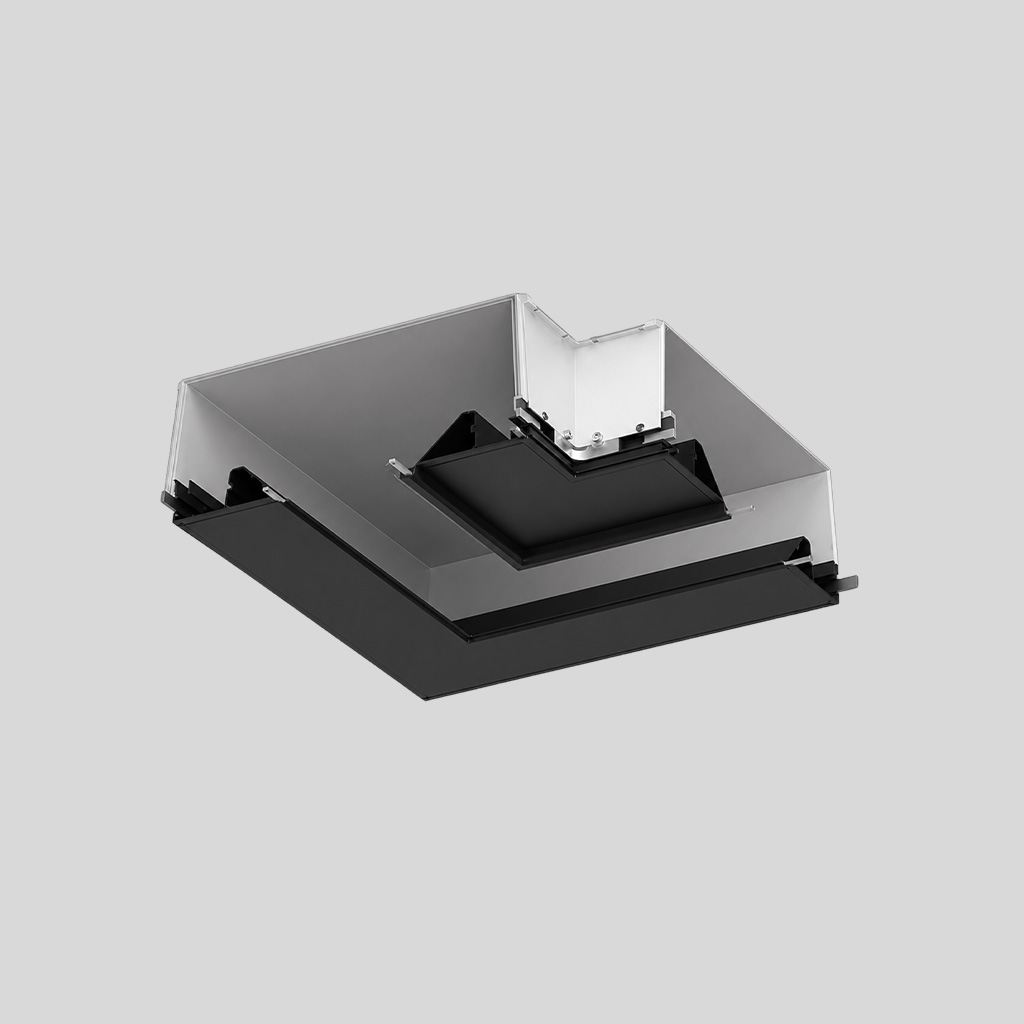

A38592- 2Look4Light 130 System - Corner Coupler 90° - Black

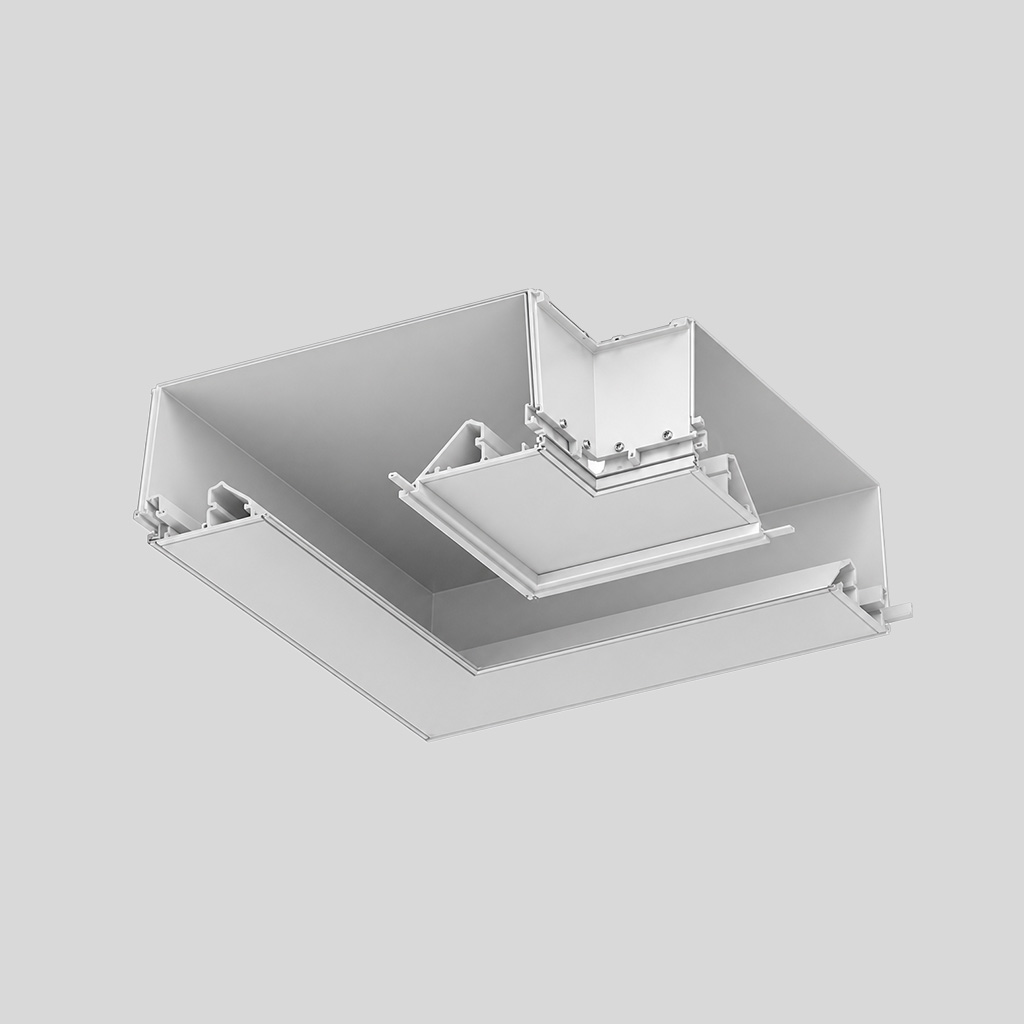

A38593- 2Look4Light 130 System - Corner Coupler 90° - White

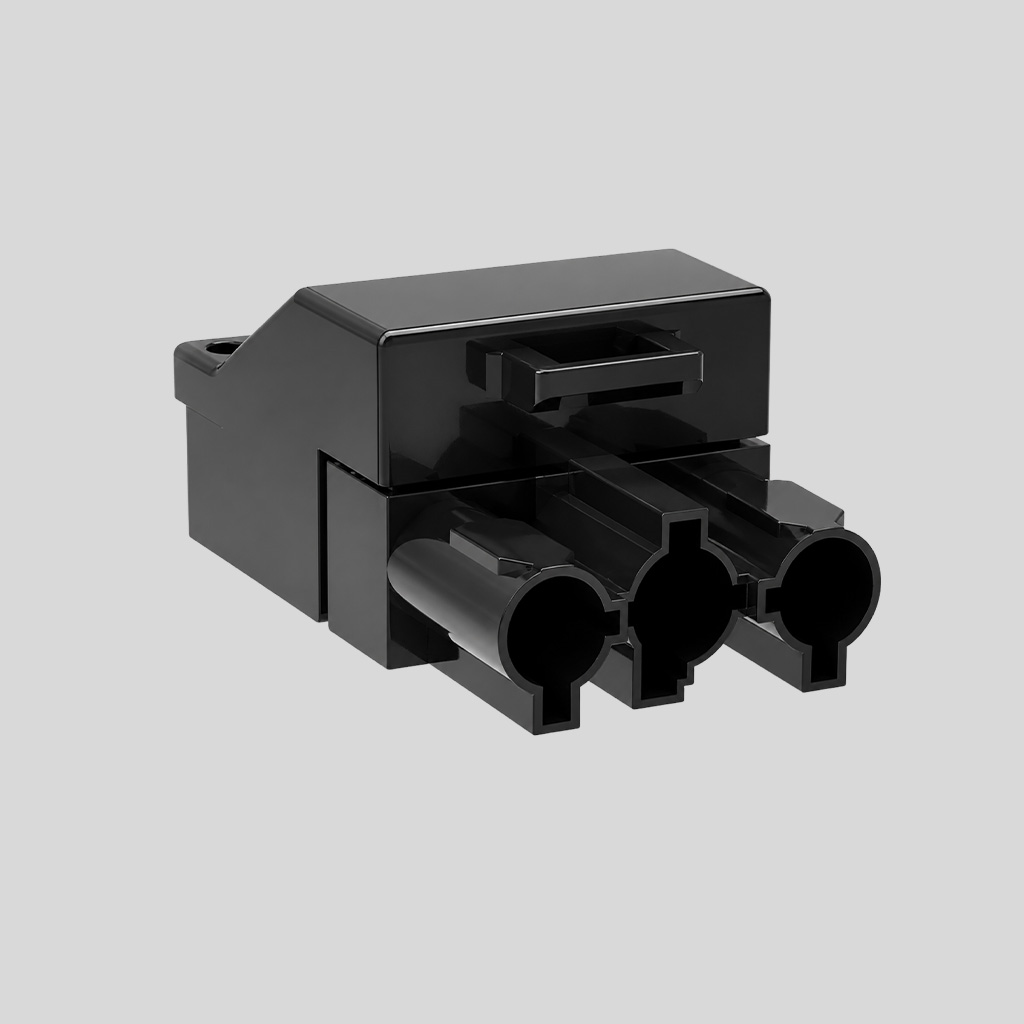

A3859400 2Look4Light Imagine - Power Feed Socket - 3 Wire

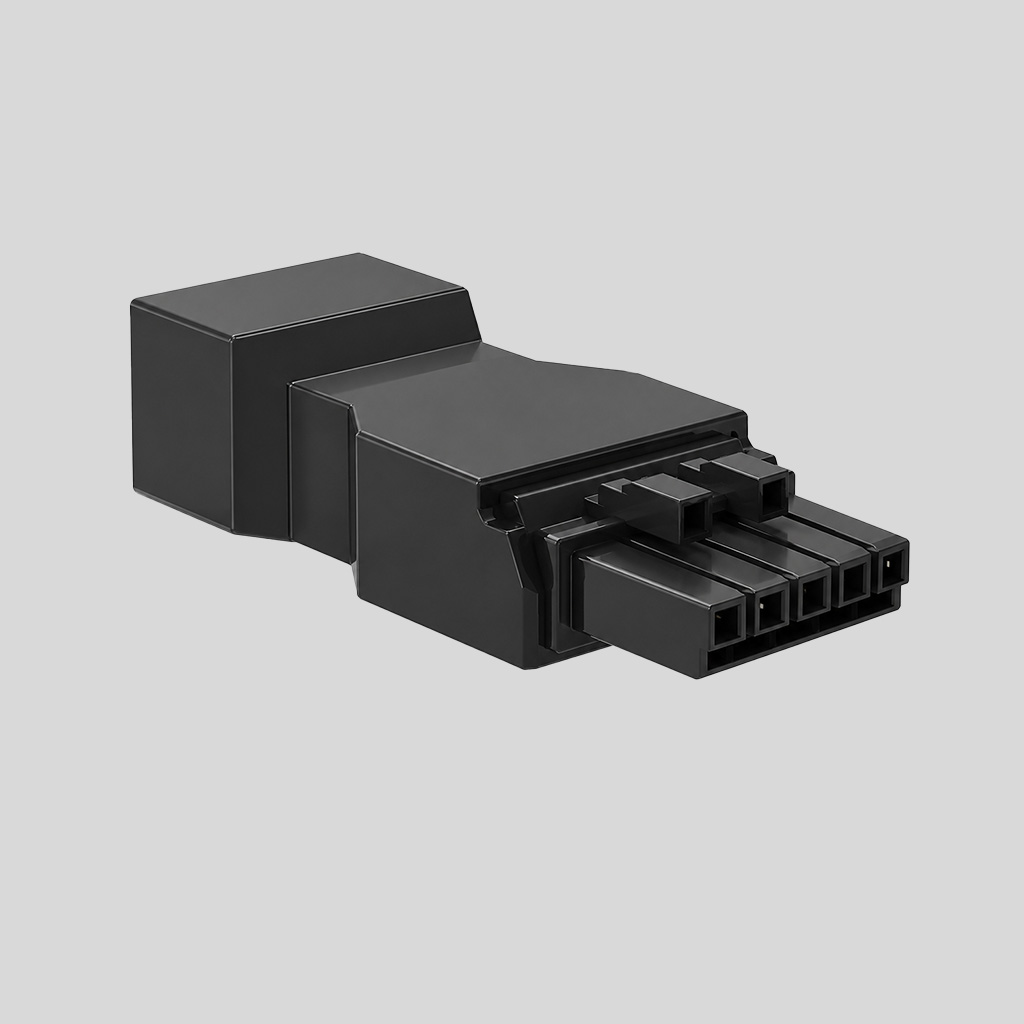

A3859500 2Look4Light Imagine - Power Feed Socket - 5 Wire

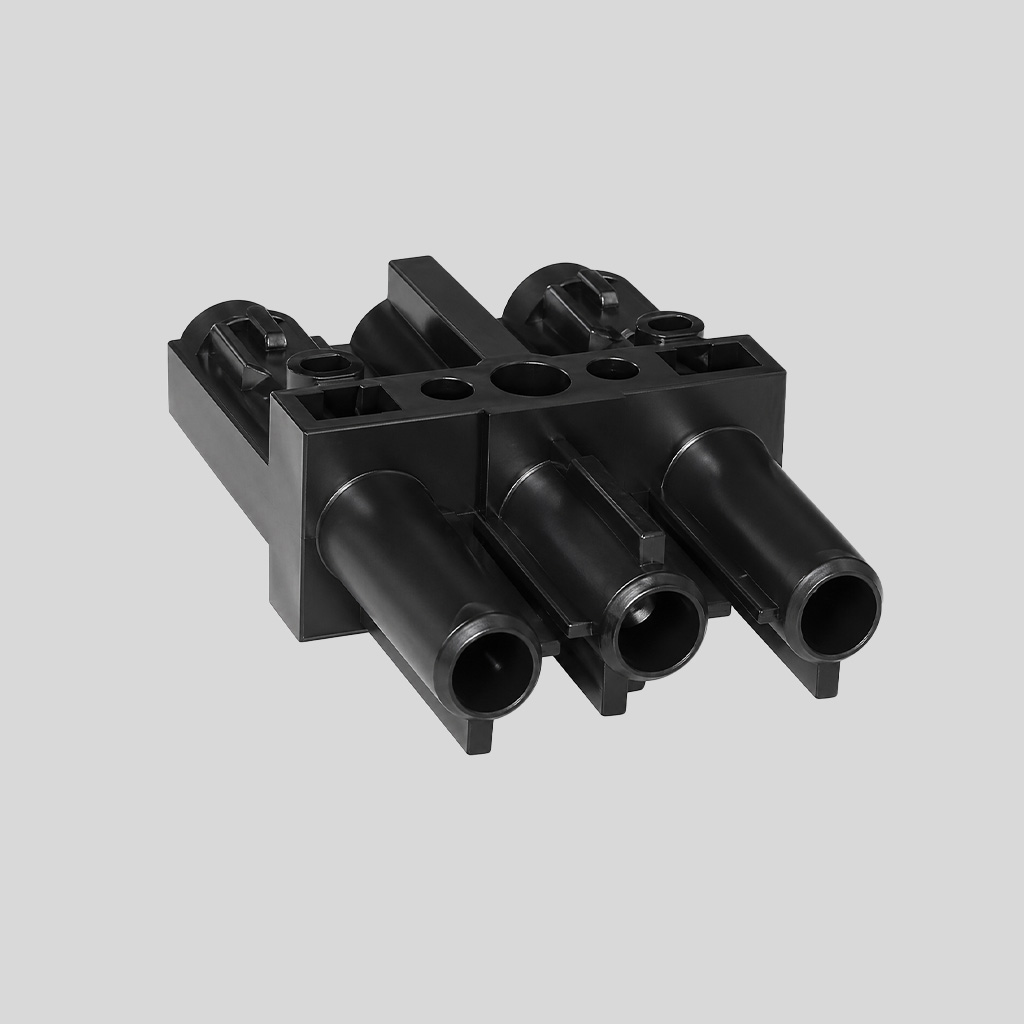

A3859600 2Look4Light Imagine - Plug Connectors - 3 Wire
A3859700 2Look4Light Systems - Plug Connectors - 5 Wire

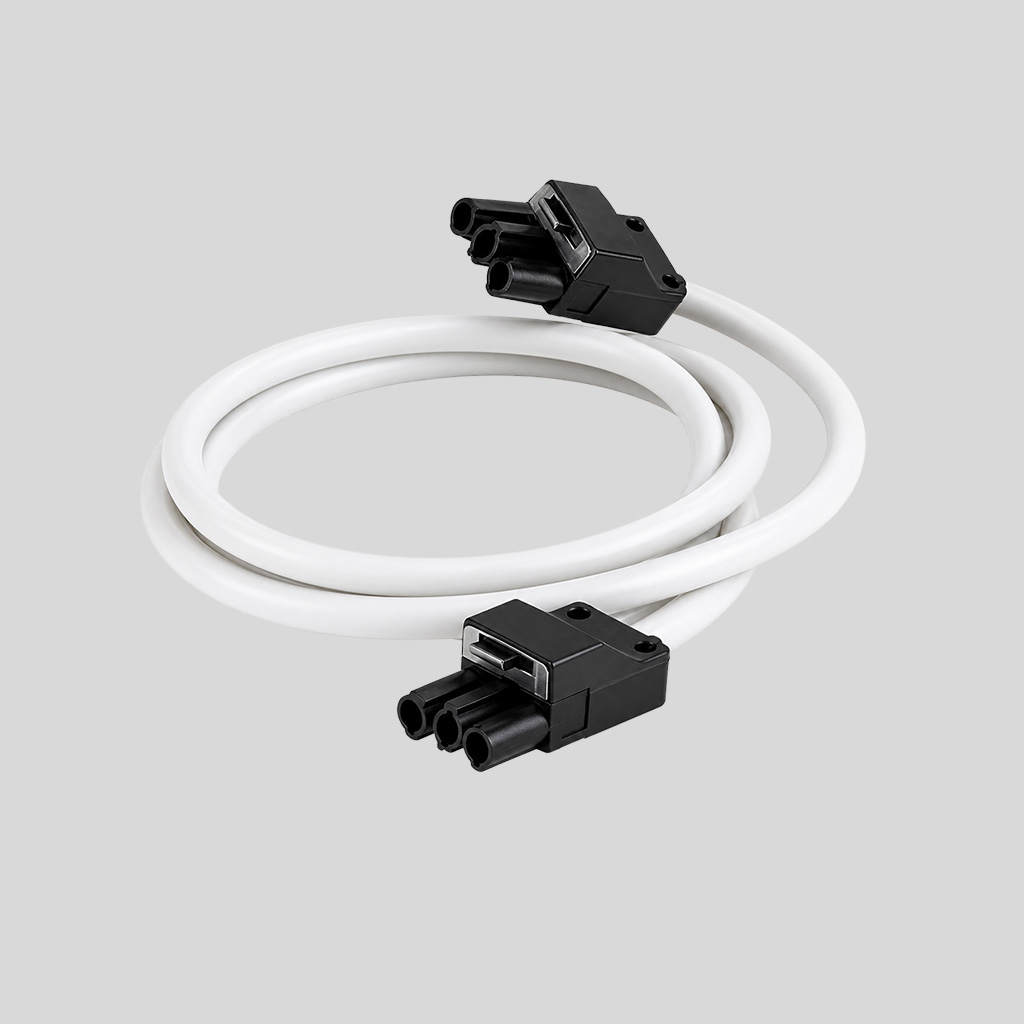

A3859800 2Look4 Systems - Plug Connector 5x1.0 - 1000m
A3859900 2Look4 Systems - Plug Connector 5x1.0 - 2000mm
A3860000 2Look4 Systems - Plug Connector 5x1.0 - 3000mm
A3860100 2Look4 Systems - Plug Connector 3X0.75 - 1000mm Cable
A3860200 2Look4 Systems - Plug Connector 3x0.75 - 2000mm
A3860300 2Look4 Systems - Plug Connector 3x0.75 - 3000mm

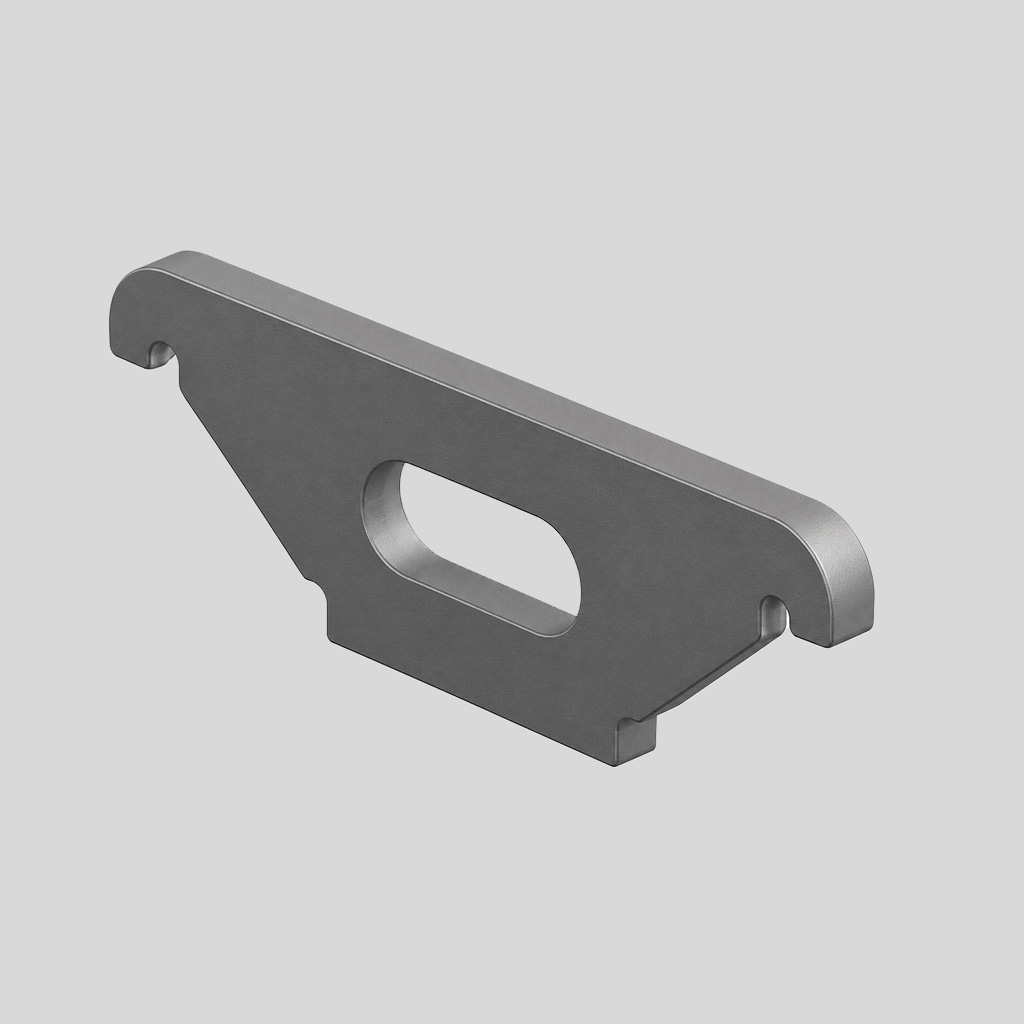

A3860400 2Look4Light 130 System - Frame Alignment Kit

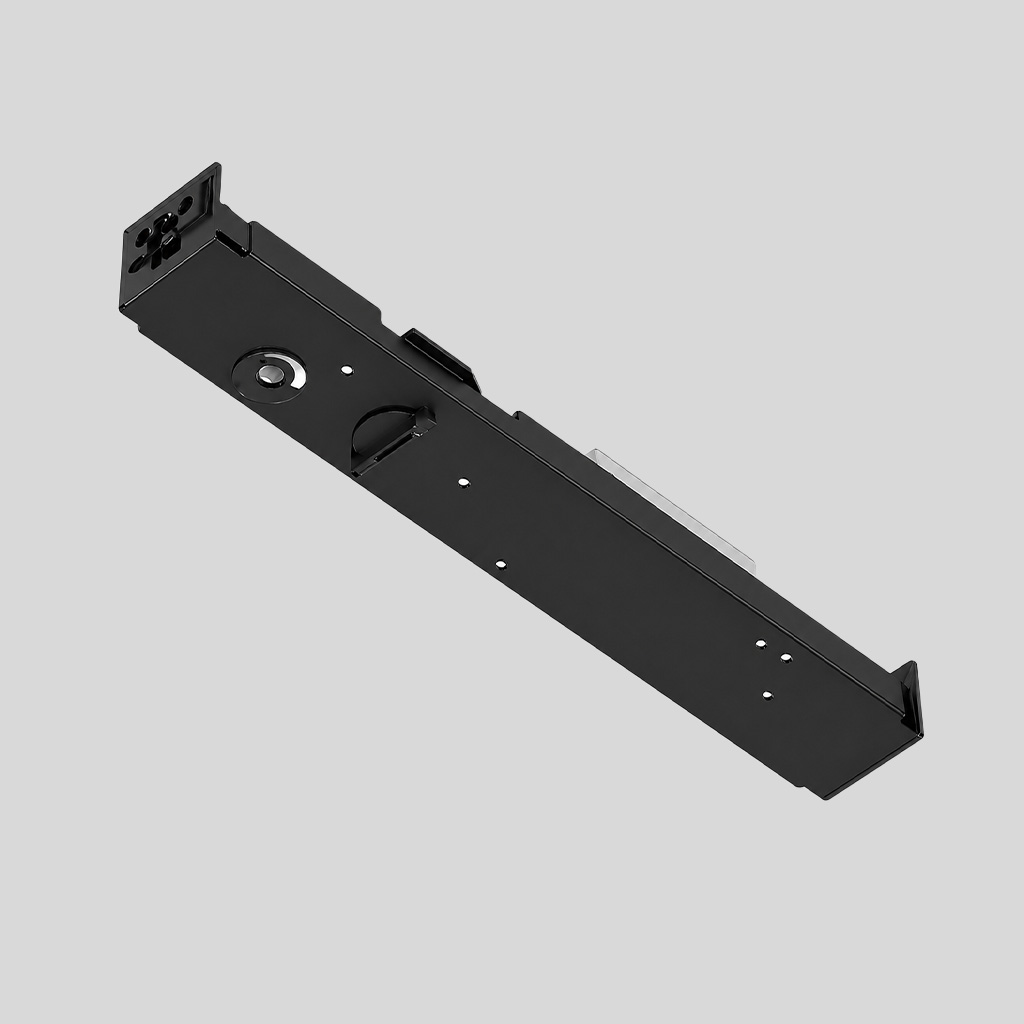

A3860500 2Look4 80 / 130 Systems - 24 Volt Power Feed
A38829 2Look4 80 /130 Trimless System - LED (Zhaga Standard) Power Feed
A38830- 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8"- Start Module - White Profile - Frame - Color Options 1-29
A38831- 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - Start Module - Black Profile - Frame - Color Options 1-29
A38832- 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - Middle Module - White Profile
A38833 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - Middle Module - Black Profile - Frame - Color Options 1-29
A38834- 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - End Module - White Profile - Frame - Color Options 1-29
A38835- 2Look4 130 Track - 500mm/19 11/16" / 1000mm/39 3/8" / 1500mm/59 1/16" / 1800mm/70 7/8" - End Module - Black Profile - Frame - Color Options 1-29
Imagine by Prolicht – 2 15/16″13″ x 4 15/16″ ,  offers LED lighting solutions | Zaneen Architectural A3T199- Imagine - Track Spot for 2L4 80/130 - 27.6W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflectors 16° / 32°
Imagine by Prolicht – 2 15/16″13″ x 4 15/16″ ,  offers LED lighting solutions | Zaneen Architectural A3T200- Imagine - Track Spot LED (Zhaga Standard) for 2L4 80/130 - 13.7W - 2700K / 3000K / 3500K / 4000K - Reflector 12°

Product Accessories

Image SKU Description Datasheet
Imagine by Prolicht – 2 5/8″ x 1/10″ ,  offers LED lighting solutions | Zaneen Architectural A3855700 Imagine 75 - Linear Spread Lens - 66mm
Imagine by Prolicht – 2 5/8″ ,  offers LED lighting solutions | Zaneen Architectural A3855800 Imagine 75 - Spread Lens - 66mm
Imagine by Prolicht – 2 5/8″ x 1/10″ ,  offers LED lighting solutions | Zaneen Architectural A3855900 Imagine - Honeycomb Louvre - 66mm

Also Available within Series

2Look4 130 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural A32L4130-TRI-SYS 2LOOK4 - 130 - Trimless - Profile System

Downloads

2Look4 130 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural

2Look4 130 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural

Ceiling
Ceiling thickness

12.5mm /
''
Ceiling thickness selection
Lens pack
Dimmable
Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart GUM - Gun Metal CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze	MOS - Moonlight Silver ROR - Rosewood Red
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
