Oiko Pro Slim - Surface Direct LED, 8.1W, Max. 385lm, 2700K / 3000K / 4000K, CRI90, Ref. 14°, IP20 – Zaneen

General

Reset
Series: Oiko Pro Slim
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Surface
Surface products
Product Type: Ceiling Surface
Ceiling Surface products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Round

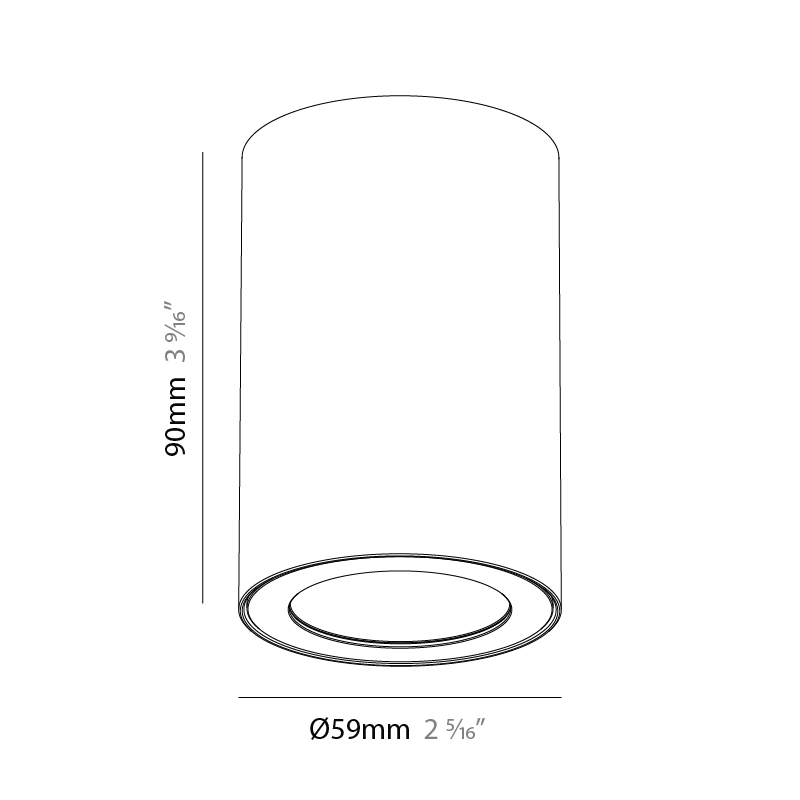

Diameter (mm): 59
Diameter (in): 2 5⁄16
Height (mm): 90
Height (in): 3 9⁄16
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 8.1
Total Output Wattage (W): 7.3
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: Recessed Housing
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 200



LED

Number of LEDs: 1
Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 345 / 367 / 385
Nominal Lumen (lm): 596 / 634 / 664
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Adjustability: Fixed



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A3D365-

Specify

Description

Oiko Pro Slim is an innovative evolution of the renowned Oiko Pro product family. By refining the design with a smaller diameter, this spotlight achieves a perfect balance of sleek aesthetics and exceptional efficiency. Despite its minimalist size, it delivers outstanding performance. Available in both surface-mounted and recessed versions, Oiko Pro Slim provides a discreet, glare-free lighting solution. Its minimal installation depth makes it versatile for both accent and ambient lighting, ensuring seamless integration into any design. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Also Available within Series

Oiko Pro Slim by Prolicht – 2 5/16″ x 2 13/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A350072- Oiko Pro Slim - Recessed LED: Max. 1109lm, 11W, 250mA, IP 20, CRI90, 34°, Depth 80mm,
Oiko Pro Slim by Prolicht – 2 5/16″ x 2 13/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A350089- Oiko Pro Slim - Recessed LED: Max. 385lm, 8.1W, 2700K / 3000K / 4000K, CRI90, Ref. 14°, IP40
Oiko Pro Slim by Prolicht – 2 5/16″ x 2 5/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A350132- Oiko Pro Slim - Recessed LED: Max. 1177lm, 11W, 250mA, IP 20, CRI90, 50°, Depth 70mm,
Oiko Pro Slim by Prolicht – 2 5/16″ x 2 3/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A350133- Oiko Pro Slim - Recessed LED: Max. 1254lm, 11W, 250mA, IP 20, CRI90, 60°, Depth 60mm,
Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D365- Oiko Pro Slim - Surface Direct LED, 8.1W, Max. 385lm, 2700K / 3000K / 4000K, CRI90, Ref. 14°, IP20
Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D366- Oiko Pro Slim - Surface Direct LED, 11W, Max. 1109lm, 2700K / 3000K / 4000K, CRI90, Ref. 34°, IP20
Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D367- Oiko Pro Slim - Surface Direct LED, 11W, Max. 1177lm, 2700K / 3000K / 4000K, CRI90, Ref. 50°, IP20
Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A3D368- Oiko Pro Slim - Surface Direct LED, 11W, Max. 1254lm, 2700K / 3000K / 4000K, CRI90, Ref. 60°, IP20

Downloads

Request Files

Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural

Oiko Pro Slim by Prolicht – 2 5/16″ x 3 9/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural

Ceiling
Free individual colors 01-29
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

345 / 367 / 385
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)

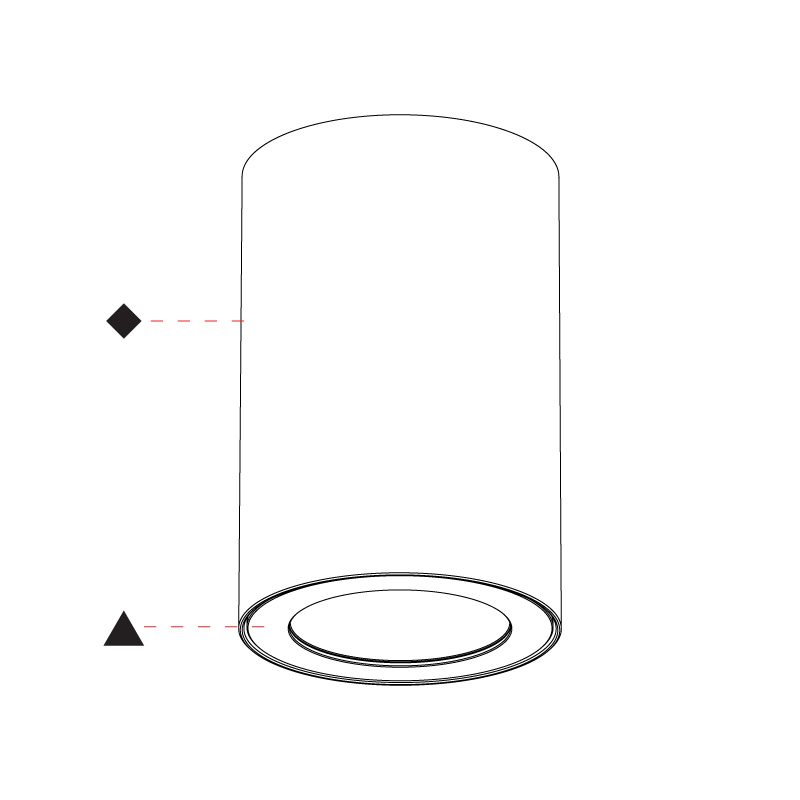

Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
