General

Series: Eyes

Subseries: Eyes Cover

Brand: Side
Side products

Division: Exterior
Exterior products

Mounting Type: Recessed
Recessed products

Mounting Location: In-Ground
In-Ground products

Subcategory: Walk Over
Walk Over products



Physical

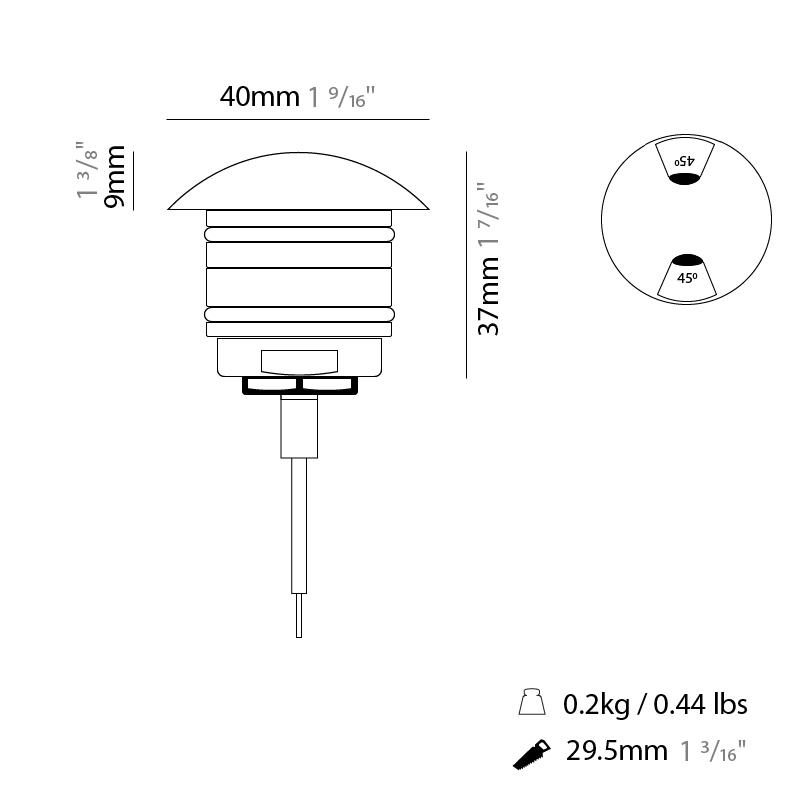

Shape: Dome

Diameter (mm): 40

Height (mm): 37

Light Distribution: Direct

Weight (kg): 0.2

Diffuser: Polycarbonate clear diffuser

Gasket: Silicon rubber

Fixture Finish: PSS
see color chart below

Fixture Material: Stainless Steel



Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 3

Total Output Wattage (W): 2

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: No

Driver Location: Remote

Driver Type: Constant Current - 120 / 277Vac

Input Voltage (V): 120 - 277

Constant Current (MA): 500

Upon Request: (Not included - see components [IP65 or higher enclosure to be supplied by others]) 0-10Vdc dimming / Phase dimming @120Vac only / Non-dimming 120Vac / Non-dimming 277Vac



LED

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 145 / 155 / 165

CRI: >80 CRI

Lamp Life (hrs): 50000



Optical

Optic°: 2 Openings

Beam Angle: 2 x 45



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP68

IK Rating: IK09





Base Model Number: E10I0044-

Description

Eyes is a collection of compact exterior recessed lights for in-ground, wall and ceiling installation with a range of performance specifications. Sizes range between 20-40mm with light outputs up to 380 lumens. The body is constructed of stainless steel AISI 316L, and the fixtures have ingress protection up to IP68. Available as a circle or square, Eyes can be fixed by a lock nut for accessible-false ceilings/walls. Eyes Wall Flat uses a COB LED that generates 285-300lm at 3.5W. With similar features, the Eyes Ground IP68 uses a COB LED for more lumens.

Manufactured in Italy, by Side.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0060500GS G.E. Lightech - GELD6DMV500SL - Non-dimming - 6W - 500mA - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DND0060500TM TCI - DC 6W 500mA STM/U - Non-dimmable - 6W - 500mA - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0060500ES ERP - ESS010W-0500-12 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 6W - 500mA - 120 / 277Vac - LED power supply - Used with ENCP3 - Used with IP68 - Outdoor Rated - ENCP20, ENCP22
DTM0090500ES ERP - ESS010W-0500-18 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 9W - 500mA - 120 / 277Vac - LED power supply
DTM0160500ES ERP - ESS020W-0500-32 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 16W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
E10A0001 Eyes Cover - In-ground Housing
 by  – 6 1/8″ x 1 3/8″ ,  offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
 by  – 3 5/8″ x 1 9/16″ ,  offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

Eyes by Side – 1 7/16″ x 2 3/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E10I0006- Eyes In-ground - 36 mm / 1 7/16" - 3.5W LED - 3000K / 4000K - 350mA - Satin Stainless Steel
Eyes by Side – 1 9/16″ x 1 7/16″ Recessed, Walk Over offers high performance and quality material | Zaneen Exterior E10I0041- Eyes Cover - In-ground - 40 mm / 1 9/16" - Single Emission - 1 x 2W LED - 3000K / 4000K - 500mA - Stainless Steel
Eyes by Side – 1 9/16″ x 1 7/16″ Recessed, Walk Over offers high performance and quality material | Zaneen Exterior E10I0044- Eyes Cover - 40 mm / 1 9/16" - Double Emission - 1 x 2W LED - 3000K / 4000K - 500mA - Stainless Steel
Eyes by Side – 1 7/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0013- Eyes Wall Flat - Round - 36 mm / 1 7/16" - 3.5W LED - 3000K / 4000K - 350mA - Chrome
Eyes by Side – 1 7/16″ x 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0015- Eyes Wall Flat - Square - 36 mm / 1 7/16" - 4.5W LED - 3000K / 4000K - 350mA - Chrome
Eyes by Side – 13/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0107- Eyes A-1 - Round - 20 mm / 13/16" - 1.2W LED - 3000K / 4000K / 6000K / Blue - 350mA - With Locknut - Chrome
Eyes by Side – 13/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0113- Eyes A-1 - Square - 20 mm / 13/16" - 1.2W LED - 3000K / 4000K / 6000K / Blue - 350mA - With Locknut - Chrome
Eyes by Side – 13/16″ x 1 1/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0120- Eyes A-1 - Round - 20 mm / 13/16" - 1.2W LED - 3000K / 4000K / 6000K / Blue - 350mA - With Lock Spring
Eyes by Side – 13/16″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E10R0126- Eyes A-1 - Square - 20 mm / 13/16" - 1.2W LED - 3000K / 4000K / 6000K / Blue - 350mA - With Lockspring

Downloads

Eyes by Side – 1 9/16″ x 1 7/16″ Recessed, Walk Over offers high performance and quality material | Zaneen Exterior

Direct
Lens

2 Openings
Dimmable
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

145 / 155 / 165
Walk over
Certified for North American Standards
Protected against ingress of dust; protected against immersion of water under pressure for long periods
Protected against 10 joules impact (equivalent to 5.0kg mass dropped from 200mm above the surface)


Fixture Finishes

PSS - Polished Stainless Steel
