Terra 25 XS - Walk-Over - In-ground - ∅25mm / 1" - 1W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 40° / 180° - Dimmable (Requires min.) - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C – Zaneen

General

Reset
Series: Terra
Subseries: Terra 25 XS
Partner: Zaneen
Zaneen products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Uplight
Uplight products
Mounting Location: In-Ground
In-Ground products
Light Distribution: Uplight
Uplight products

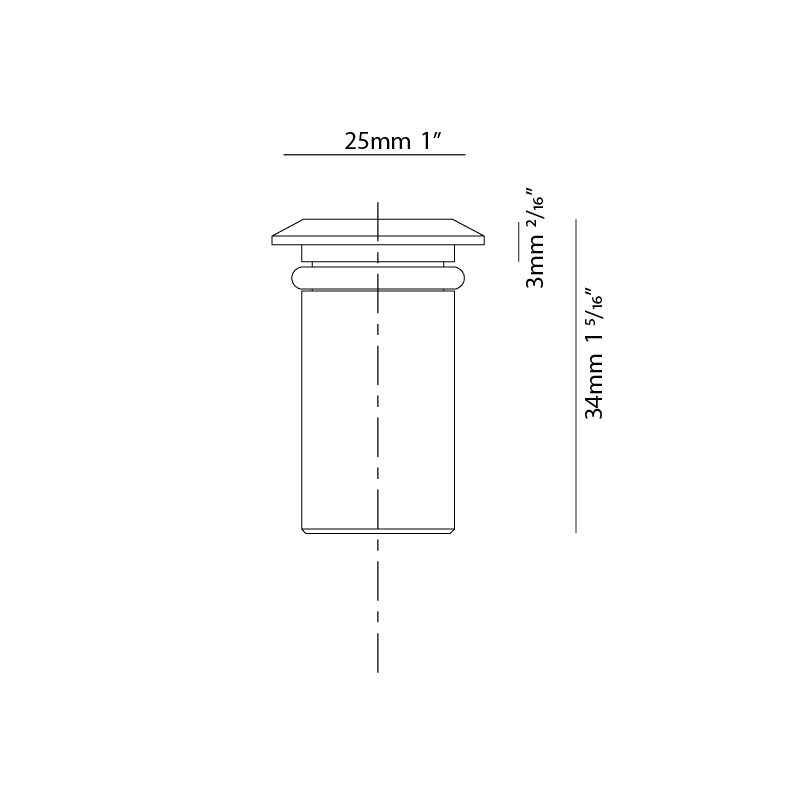

Physical

Shape: Round
Diameter (mm): 25
Diameter (in): 1
Height (mm): 34
Height (in): 1 5⁄16
Weight (kg): 0.11
Weight (lbs): 0.24
Load Resistance (kg): 1500
Load Resistance (lbs): 3306
Installation Requirement: Housing box / Fixing springs
Diffuser: Extra clear / Frosted glass 2mm
Fixture Finish: SST / ABA / ANA
see color chart below
Fixture Material: Stainless Steel AISI 316L / Anodized Aluminum
Primary Material: Stainless Steel
Cable Details: 350mm NS20N PCP 2x0.5 mm2



Electrical

Lamp Type: LED
Total Output Wattage (W): 1
Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - 120 / 277Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 350



LED

Number of LEDs: 1
Color Temperature (°K): 2200 / 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 94
CRI: >90 CRI
Lamp Life (hrs): 100000



Optical

Optic°: 10 / 40 / 180
Beam Angle: Narrow / Wide / Diffused



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP68 (not for permanent immersion)
IK Rating: IK08
Marine Grade: Stainless Steel AISI 316L





Base Model Number: E12I0008-

Specify

Description

Terra is a versatile series of compact recessed lights designed for in-ground applications. The series includes various subseries, each named after their diameter ranging from 25mm to 150mm. Constructed from stainless steel and rated IP67-68 for outdoor use, the fixtures offer durability and reliability. Specific models offer high power outputs, drive-over ratings, deep recessed LED engines for glare reduction, and various mounting accessories.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0060350GS G.E. Lightech GELD6DMV350SL - Non-dimming - 6W - 350mA - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DPH0140350HC Hatch - LC14-0350P-120-C - Phase Dimming - Dim-to-Off - 3.5-14W - 350mA - 120Vac - LED power supply -Used with ENCP1 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0080350ES ERP - ESS010W-0350-24 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 8W - 350mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
Terra by Unonovesette – 1″ x 1 9/16″ , offers high performance and quality material | Zaneen Exterior E12A0012 Caliber 25 XS - Housing box
Terra by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0013 Caliber 25 XS - Fixing springs
by Unonovesette – 2 5/16″ x 1″ , offers high performance and quality material | Zaneen Exterior E12A0074 0/1-10V dimmer fader sequencer - input 12/24/48Vdc - 1 ch. - Constant Voltage (Required for 0-10V dimming. To be used with Non Dimming Driver)
E12A0075 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage (Required for DALI dimming. To be used with Non Dimming Driver)
E12A0076 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage - IP67 (Required for DALI dimming. To be used with Non Dimming Driver)
ENCP1 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 3 5/8″ x 1 9/16″ , offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
by Unonovesette – 196 7/8 / 393 11/16 / 787 3/8 / 984 1/4″ , offers high performance and quality material | Zaneen Exterior E12A0014- Cable in 5m / 10m / 15m / 20m / 25m lengths - Black

Also Available within Series

Terra by Zaneen – 1″ x 1 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0008- Terra 25 XS - Walk-Over - In-ground - ∅25mm / 1" - 1W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 40° / 180° - Dimmable (Requires min.) - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 1″ x 3 1/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0009- Terra 25 - Walk-Over - In-ground - ∅25mm / 1" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 40° / 180° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 2 1/16″ x 3 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0010- Terra 52 - Drive Over - In-Ground - ∅52mm / 2 1/16" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optic 10° / 23° / 43° / 10°x40° - Stainless Steel - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0011- Terra 80 - Drive Over - In-Ground - ∅80mm / 3 1/8" - 5W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50 / 10°x45° / Diffused - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0012- Terra 80 Q - Drive-over - In-ground - ∅80mm / 3 1/8" - 8.1W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / DIF - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 6″ x 4 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0014- Terra 150 - Drive Over - In-Ground - ∅150mm / 6" - 22W LED - 2700K / 3000K / 4000K - Optic 10° / 20° / 40° / 55° / 10°x45° - Stainless Steel (AISI316L) / Aged Solid Brass - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 60°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0025- Terra 80 - ∅80mm / 3 1/8" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50 / 10°x45° - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0026- Terra 80 Q - ∅80mm / 3 1/8" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / DIF - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 6″ x 4 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0027- Terra 150 - ∅150mm / 6" - 13W LED - 2700K / 3000K / 4000K - Optic 10° / 20° / 40° / 55° / 10°x45° - Stainless Steel (AISI316L) / Aged Solid Brass - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 60°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0028- Terra 80 - ∅80mm / 3 1/8" - 9W LED - RGBW - Optics 35° - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0029- Terra 80 Q - ∅80mm / 3 1/8" - 9W LED - RGBW - Optics 35° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0036- Terra 120D - ∅116mm / 4 9/16" - 8.1W LED - 2700K / 3000K 4000K - Optics: 10° / 35° 50° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0037- Terra 120D - ∅116mm / 4 9/16" - 9W LED - 2700K / 3000K 4000K - Optics: 10° / 35° 50° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 2 1/16″ x 3 3/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0038- Terra 52 Sub - ∅52mm / 2 1/16" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optic 10° / 23° / 43° / 10°x40° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 50°C - Photo biological risk RG0 / RG1
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0039- Terra 120D - ∅116mm / 4 9/16" - 9W LED - RGBW - Optics: 35° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 1″ x 2 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0089- Caliber 35 - Drive-over - In-ground - ∅35mm / 1 3/8" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 20° / 41° / 10° x 45° / Satin - Stainless Steel AISI316L - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C

Downloads

Request Files

Terra by Zaneen – 1″ x 1 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior

Terra by Zaneen – 1″ x 1 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior

Lens

10 / 40 / 180
Dimmable
Color rendering index

>90 CRI
Color temperature

2200 / 2700 / 3000 / 4000
Lumen (luminous flux)

94
Marine grade (AISI 316 stainless steel)
Certified for North American Standards
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)

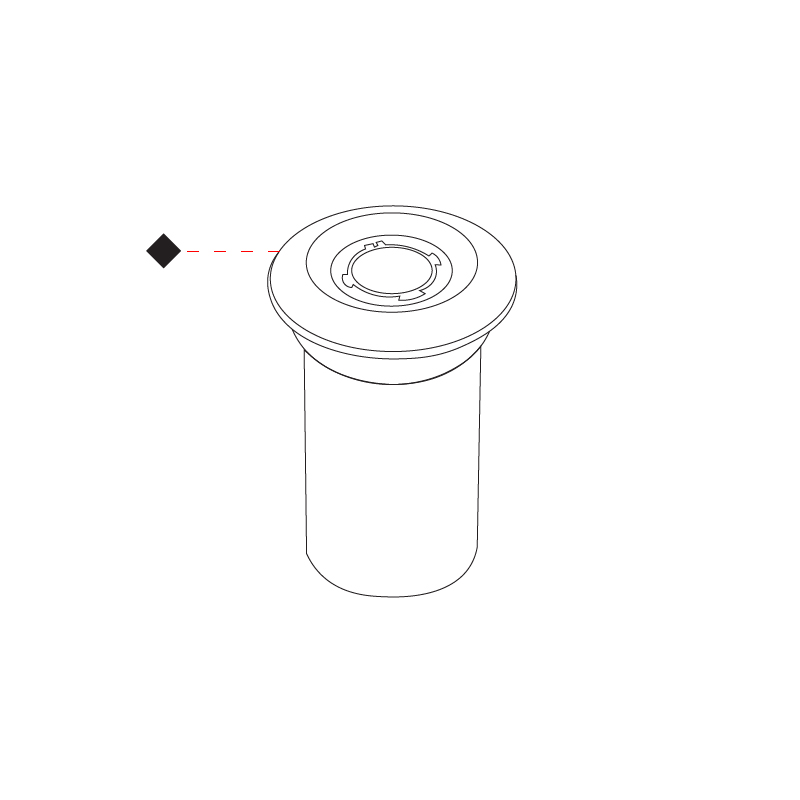

Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
