Caliber 35 - Drive-over - In-ground - ∅35mm / 1 3/8" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 20° / 41° / 10° x 45° / Satin - Stainless Steel AISI316L - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C – Zaneen

General

Reset
Series: Terra
Subseries: Terra 35
Partner: Zaneen
Zaneen products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Uplight
Uplight products
Mounting Location: In-Ground
In-Ground products
Light Distribution: Uplight
Uplight products



Physical

Shape: Round

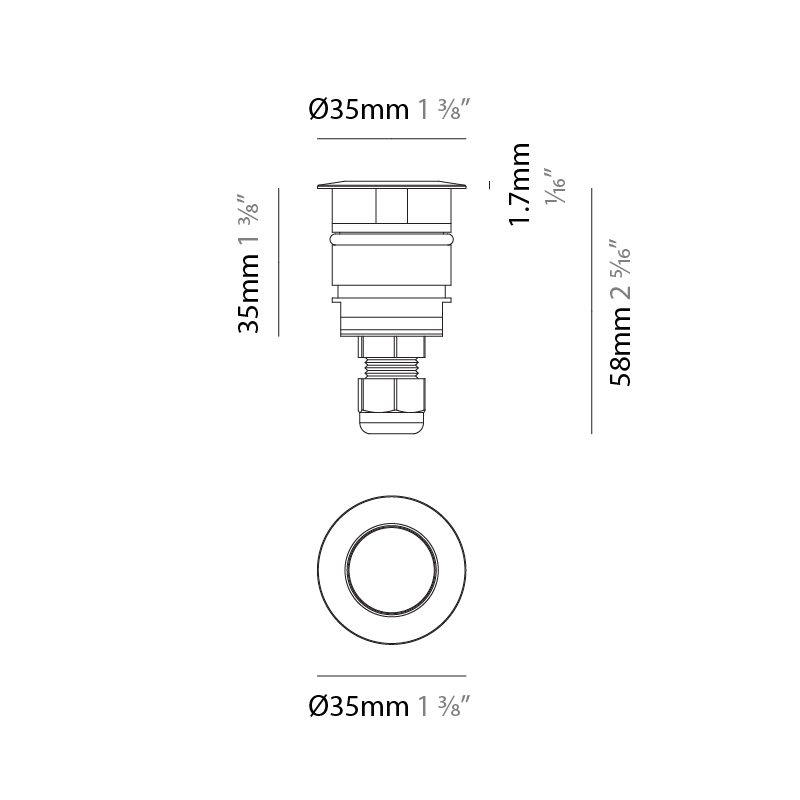

Diameter (mm): 35
Diameter (in): 1
Height (mm): 58
Height (in): 2 5⁄16
Weight (kg): 0.1
Load Resistance (kg): 1500
Load Resistance (lbs): 3306
Installation Requirement: Housing box / Fixing springs
Diffuser: Extra clear / Frosted glass 2mm
Fixture Finish: SST / ASB / PSB
see color chart below
Fixture Material: Stainless Steel AISI 316L
Primary Material: Stainless Steel
Cable Details: 350mm NS20N PCP 2x0.5 mm2



Electrical

Lamp Type: LED
Input Wattage (W): 2
Total Output Wattage (W): 1.7
Dimming: 0-10V / DALI Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120
Output Voltage (V): 24



LED

Number of LEDs: 1
Color Temperature (°K): 2200 / 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 127
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Optic°: 10 / 20 / 41 / 10x45 / DIF
Beam Angle: Narrow / Medium / Wide / Elliptical / Diffused
Adjustability: Fixed



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP68 (not for permanent immersion)
IK Rating: IK08
Marine Grade: Stainless Steel AISI 316L





Base Model Number: E12I0089-

Specify

Description

Terra is a versatile series of compact recessed lights designed for in-ground applications. The series includes various subseries, each named after their diameter ranging from 25mm to 150mm. Constructed from stainless steel and rated IP67-68 for outdoor use, the fixtures offer durability and reliability. Specific models offer high power outputs, drive-over ratings, deep recessed LED engines for glare reduction, and various mounting accessories.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
DAL20150SETTC TCI - MINIJOLLY DALI 20 - DALI Dimming - 2-15W - 250-700mA or 24Vdc - 120Vac - LED power supply / P/N: 125403 -Used with ENCP13 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DND0100024HA Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
by – 5 13/16″ x 1″ , offers LED lighting solutions | Zaneen Architectural DVO0600024TLC Tridonic Driver - LC 60W 24V 0-10V Ip SNC UNV - 0-10Vdc Dimming (5%) - 60W - 24Vdc - 120-277Vac - LED power supply

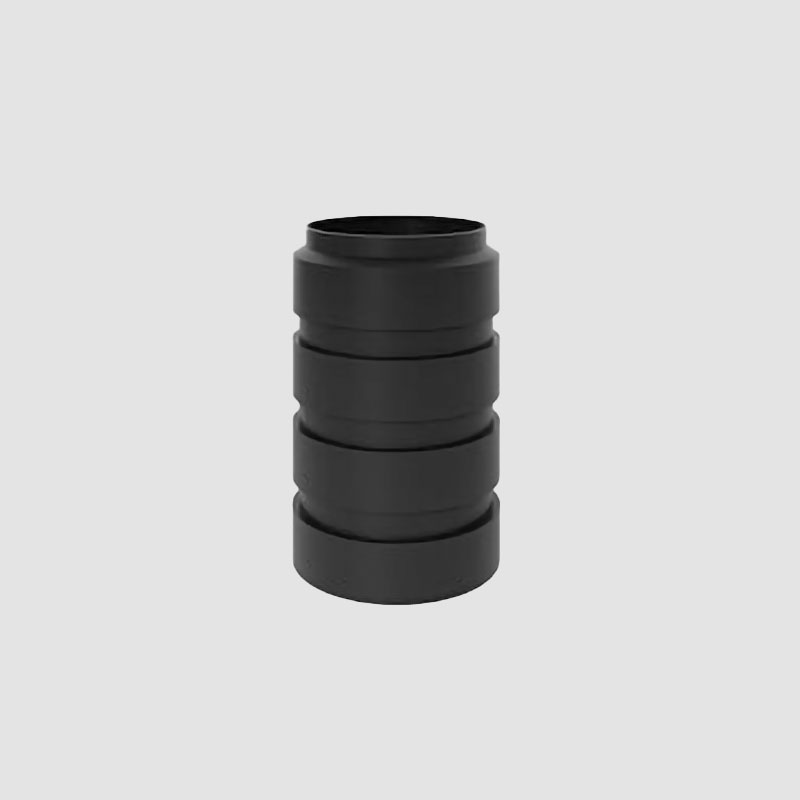

Terra by Unonovesette – 1 3/8″ x 3 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0175 Caliber 35 - IP68 Housing box

Product Accessories

Image SKU Description Datasheet
Terra by Unonovesette – 196 7/8 / 393 11/16 / 787 3/8 / 984 1/4″ , offers high performance and quality material | Zaneen Exterior E12A0017- Caliber 25 - Cable in 5m / 10m / 15m / 20m / 25m lengths - Black

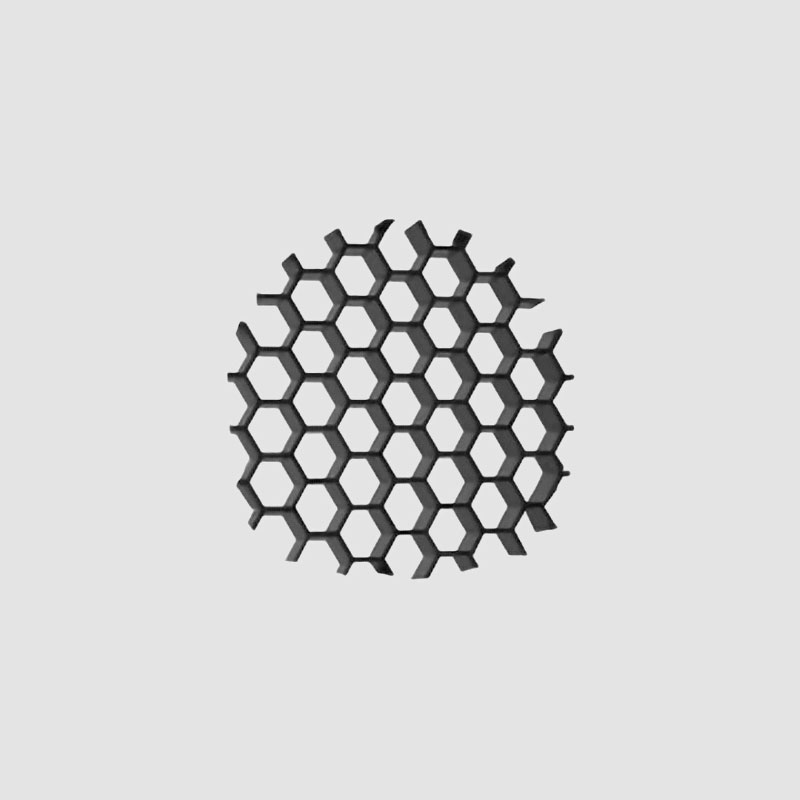

Terra by Unonovesette – 5/8″ x 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0176 Caliber 35 - Honeycomb Louver

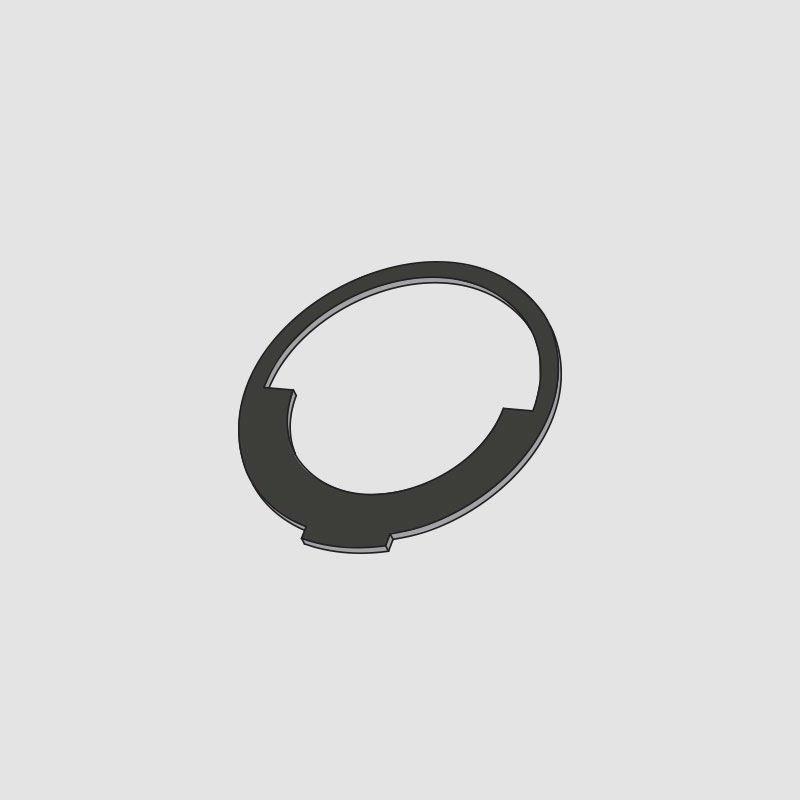

Terra by Unonovesette – 13/16″ x 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0177 Caliber 35 - Anti-Glare Louver 20%

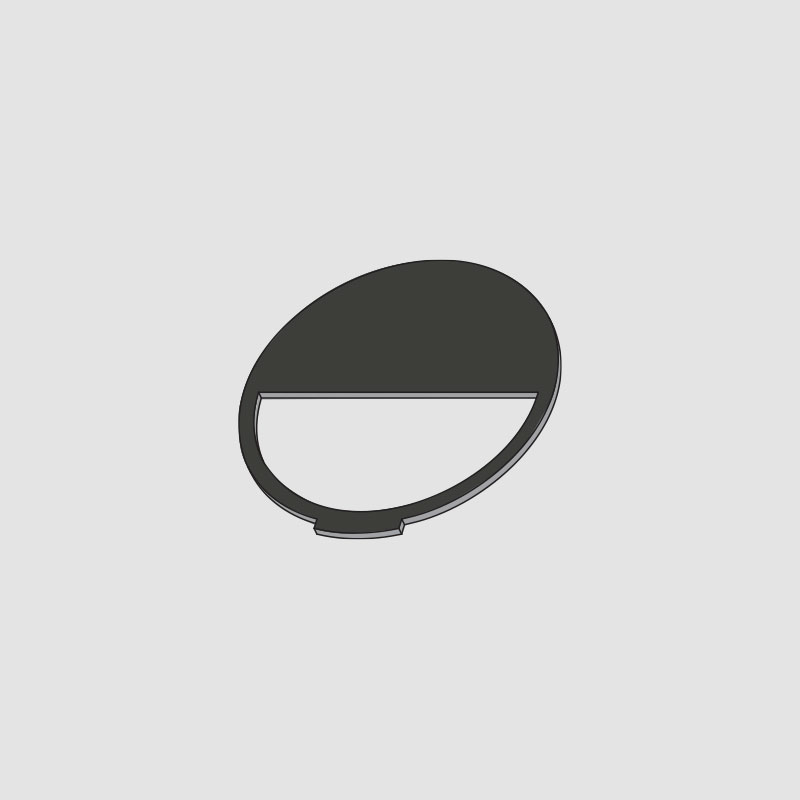

Terra by Unonovesette – 13/16″ x 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0178 Caliber 35 - Anti-Glare Louver 50%

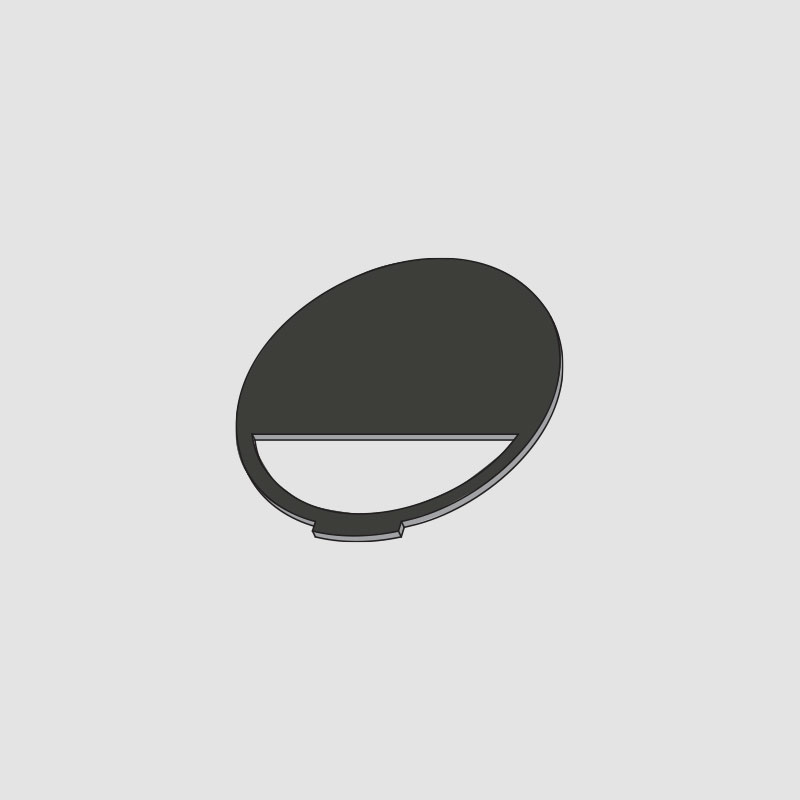

Terra by Unonovesette – 13/16″ x 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0179 Caliber 35 - Anti-Glare Louver 70%

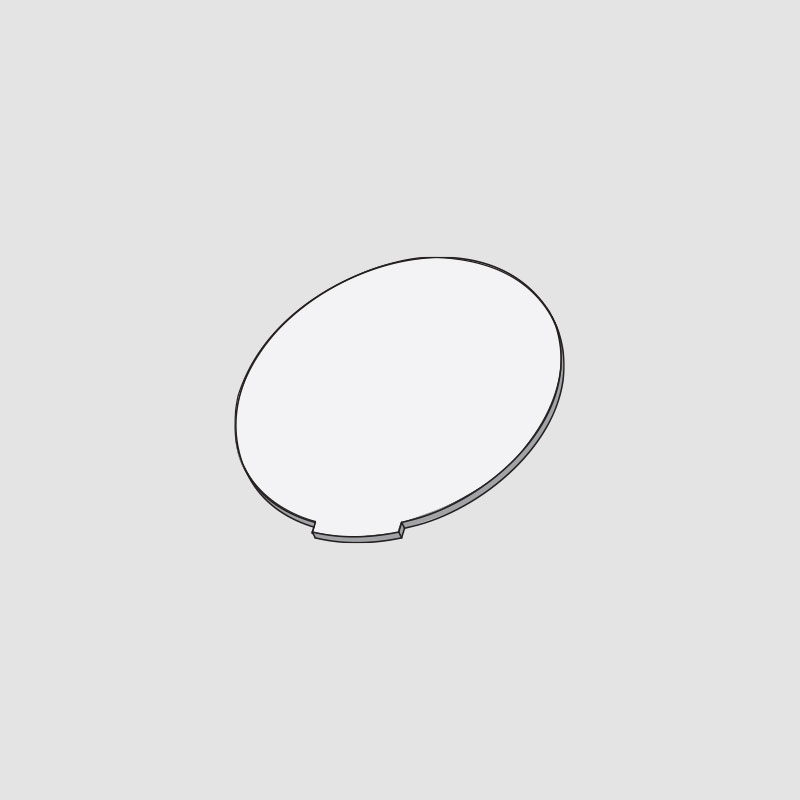

Terra by Unonovesette – 13/16″ , offers high performance and quality material | Zaneen Exterior E12A0180 Caliber 35 - 20° Asymmetric Film

Also Available within Series

Terra by Zaneen – 1″ x 1 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0008- Terra 25 XS - Walk-Over - In-ground - ∅25mm / 1" - 1W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 40° / 180° - Dimmable (Requires min.) - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 1″ x 3 1/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0009- Terra 25 - Walk-Over - In-ground - ∅25mm / 1" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 40° / 180° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 2 1/16″ x 3 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0010- Terra 52 - Drive Over - In-Ground - ∅52mm / 2 1/16" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optic 10° / 23° / 43° / 10°x40° - Stainless Steel - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0011- Terra 80 - Drive Over - In-Ground - ∅80mm / 3 1/8" - 5W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50 / 10°x45° / Diffused - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0012- Terra 80 Q - Drive-over - In-ground - ∅80mm / 3 1/8" - 8.1W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / DIF - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 6″ x 4 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0014- Terra 150 - Drive Over - In-Ground - ∅150mm / 6" - 22W LED - 2700K / 3000K / 4000K - Optic 10° / 20° / 40° / 55° / 10°x45° - Stainless Steel (AISI316L) / Aged Solid Brass - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 60°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0025- Terra 80 - ∅80mm / 3 1/8" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50 / 10°x45° - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0026- Terra 80 Q - ∅80mm / 3 1/8" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / DIF - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 6″ x 4 1/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0027- Terra 150 - ∅150mm / 6" - 13W LED - 2700K / 3000K / 4000K - Optic 10° / 20° / 40° / 55° / 10°x45° - Stainless Steel (AISI316L) / Aged Solid Brass - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 60°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0028- Terra 80 - ∅80mm / 3 1/8" - 9W LED - RGBW - Optics 35° - Stainless Steel - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Terra by Zaneen – 3 1/8″ x 3 3/4″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0029- Terra 80 Q - ∅80mm / 3 1/8" - 9W LED - RGBW - Optics 35° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0036- Terra 120D - ∅116mm / 4 9/16" - 8.1W LED - 2700K / 3000K 4000K - Optics: 10° / 35° 50° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0037- Terra 120D - ∅116mm / 4 9/16" - 9W LED - 2700K / 3000K 4000K - Optics: 10° / 35° 50° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 2 1/16″ x 3 3/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0038- Terra 52 Sub - ∅52mm / 2 1/16" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optic 10° / 23° / 43° / 10°x40° - Stainless Steel AISI316L - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 50°C - Photo biological risk RG0 / RG1
Terra by Zaneen – 4 9/16″ x 4 1/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0039- Terra 120D - ∅116mm / 4 9/16" - 9W LED - RGBW - Optics: 35° - Stainless Steel AISI316L - 360° rotation and up to 15° tilt of the LED engine - Binning free 2 step MacAdam's - Working temperature (-)20°C TO 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C
Terra by Zaneen – 1″ x 2 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E12I0089- Caliber 35 - Drive-over - In-ground - ∅35mm / 1 3/8" - 2W LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 20° / 41° / 10° x 45° / Satin - Stainless Steel AISI316L - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (to Ta 25°C) 50°C

Downloads

Request Files

Terra by Zaneen – 1″ x 2 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior

Terra by Zaneen – 1″ x 2 5/16″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior

Lens

10 / 20 / 41 / 10x45 / DIF
Dimmable
Color rendering index

>90 CRI
Color temperature

2200 / 2700 / 3000 / 4000
Lumen (luminous flux)

127
Marine grade (AISI 316 stainless steel)
Certified for North American Standards
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

ASB - Aged Solid Brass
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
