Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc,

Raygun

ELEGANT RESILIENCE

Get Inspired

Raygun

ELEGANT RESILIENCE

Get Inspired

Raygun

ELEGANT RESILIENCE

Get Inspired

Raygun

ELEGANT RESILIENCE

Get Inspired

General

Reset

Series: Raygun

Subseries: Raygun 80

Partner: Platek

Division: Exterior

Installation: Surface

Product Type: Flood

Mounting Location: Above Ground

Light Distribution: Adjustable / Direct

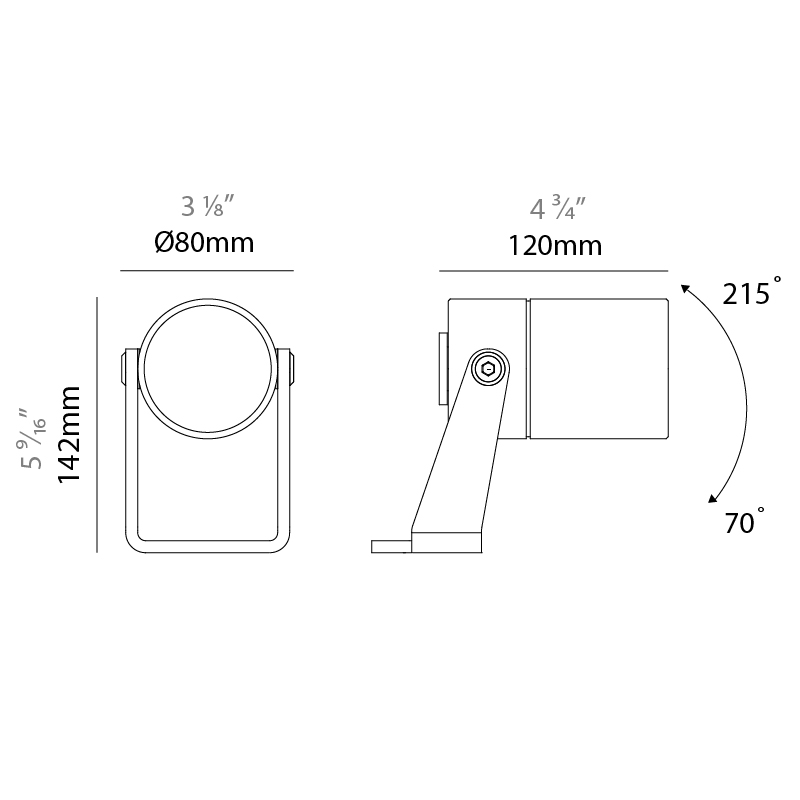

Physical

Shape: Cylinder

Diameter (mm): 80

Diameter (in): 3 ¹⁄₈

Length (mm): 120

Length (in): 4 ³⁄₄

Height (mm): 142

Height (in): 5 ⁹⁄₁₆

Max. Overall Height (mm): 262

Max. Overall Height (in): 10 ⁵⁄₁₆

Diffuser: Clear tempered glass

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ

see color chart below

Fixture Material: Aluminum Alloy

Electrical

Lamp Type: LED

Input Wattage (W): 16.5

Total Output Wattage (W): 14

Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Housing: ENCP 1/3/6 - 20/22

Input Voltage (V): 120 - 277

Output Voltage (V): 24

LED

Color Temperature (°K): 2700 / 3000 / 4000

Max. Delivered Lumen (lm): Max 1150

CRI: >90 CRI

Lamp Life (hrs): 50000

Optical

Beam Angle: 11 / 23 / 32 / 35 / 40 / 46 / 55 / 61 / 65 / 70 / 75 / 80 / 95 / 105 / 115 / 11x56 / 25x60 / 35x60 /

Adjustability: Tilt +215° / - 65°

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP68 (for permanent submersion 2m)

IK Rating: IK08

Bug Rating: B0 U0 G0

Base Model Number: E9F432- New

Specify

Base Model Number:
E9F432-

Raygun 80 - Surface - ⌀80mm - 3 1/8″ - 16.5W LED - 2700 / 3000 / 4000°K - Clear tempered glass

Final Option Selection

Color Temperature

Finish Options

Beam Angle Options

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Reset

Undo

Model Number: E9F432- - -

Get Spec Sheet

Description

Raygun is a robust and high-performance exterior floodlight series engineered for durability and precision. Constructed from premium AISI 316L stainless steel, it is specifically designed to withstand the toughest environmental conditions. Its IP68 protection rating makes it ideal for coastal, industrial, and high-humidity environments. To further enhance its resilience, the Raygun series features SurfShield, a specialized scratch-resistant finish treatment that significantly boosts the steel’s resistance to corrosion, chemical exposure, and atmospheric pollutants. This advanced finish not only extends the product’s lifespan but also maintains its sleek, professional appearance over time. Available with an array of beam optics, Raygun allows for precise light distribution, ensuring optimal illumination for exterior settings.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DND0100024HA	Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
	DVO0600024TLC	Tridonic Driver - LC 60W 24V 0-10V Ip SNC UNV - 0-10Vdc Dimming (5%) - 60W - 24Vdc - 120-277Vac - LED power supply
	E9A02300	IP68 gel connector - max 2 x 0,75 mm^2
	E9A12700	Connection to the pole (60 mm Ø)
	E9A12800	Connection to the pole (Ø 102mm)
	E9A12900	Connection to the pole (Ø 114mm)
	E9A18400	Anchor belt - Accessory
	E9A25400	IP68 Gel Connector for parallel connection - max. 4 x 1.5 mm^2 Ø4.5 - 8.5 mm
	E9A50001	Nano - 300mm - Aluminium rod with carbon finish and steel spike
	E9A50002	Nano - 600mm - Aluminium rod with carbon finish and steel spike
	E9A50003	Nano - 1100mm - Aluminium rod with carbon finish and steel spike
	E9A50004	Nano - 1700mm - Aluminium rod with carbon finish and steel spike
	ENCP1	Empty Metal Enclosure for Driver - IP20 - Indoor Rated
	ENCP20	Polycarbonate - IP68 - Outdoor Rated - UL listed - Power Supply Enclosure in Light Gray
	ENCP22	Polycarbonate - IP68 - Outdoor Rated - UL listed - Power Supply Enclosure in Light Gray
	ENCP3	Empty Metal Enclosure for Driver - IP20 - Indoor Rated
	ENCP6	Empty Metal Enclosure for Driver - IP20 - Indoor Rated
	ENCP8	Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image	SKU	Description	Datasheet

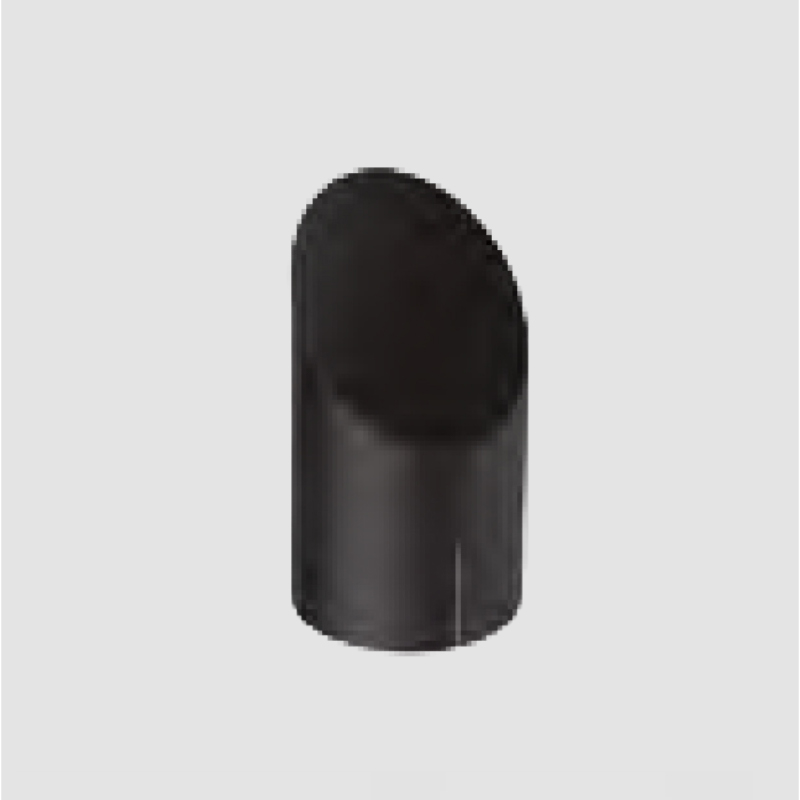

	E9A50120-	Raygun 80 Visor Painted

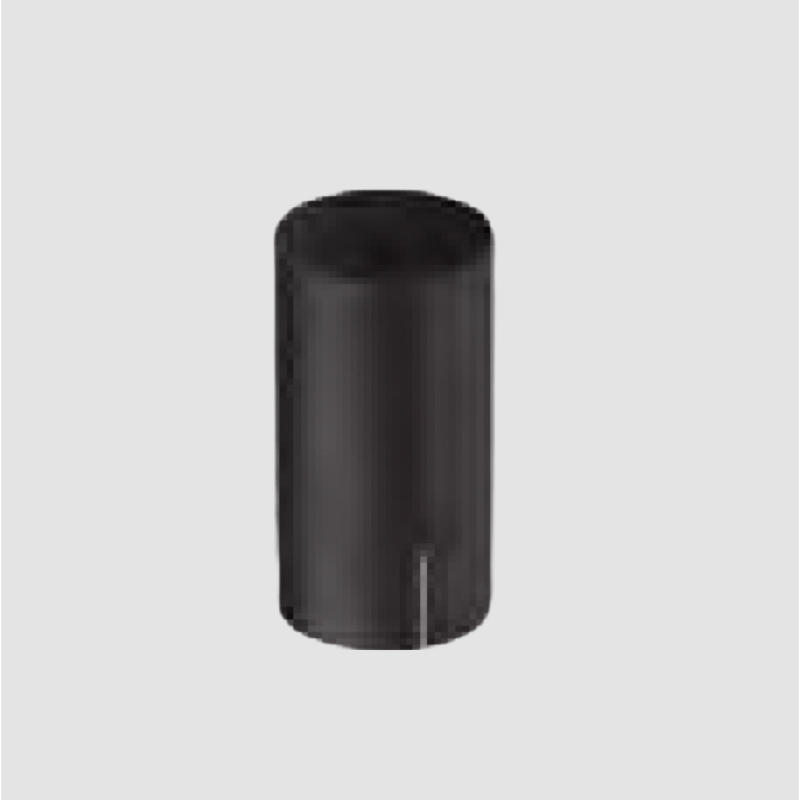

	E9A50121-	Raygun 80 Cylindrical Screen Painted

Also Available within Series New Series

E9F426-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24V DC	New
E9F426-HC-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Fliter	New
E9F427-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Stainless Steel	New
E9F427-HC-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Stainless Steel	New
E9F428-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Surfshield	New
E9F428-HC-	Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Surfshield	New
E9F429-	Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc,	New
E9F429-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter	New
E9F430-	Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, Stainless Steel	New
E9F430-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Stainless Steel	New
E9F431-	Raygun 50 - Floodlight, 50mm/1 15/16", 9..5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, Surfshield	New
E9F431-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Surfshield	New
E9F432-	Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc,	New
E9F432-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter	New
E9F433-	Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc, Stainless Steel	New
E9F433-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Stainless Steel	New
E9F434-	Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc, Surfshield	New
E9F434-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Surfshield	New
E9F435-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc,	New
E9F435-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter	New
E9F436-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Stainless Steel	New
E9F436-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Stainless Steel	New
E9F437-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Surfshield	New
E9F437-HC-	Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Surfshield	New
E9F438-	Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam: 8°	New
E9F438-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°	New
E9F439-	Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam Angle: 8°, Stainless Steel	New
E9F439-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°, Stainless Steel	New
E9F440-	Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam Angle: 8°, Surfshield	New
E9F440-HC-	Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°, Surfshield	New
