Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Surfshield – Zaneen

General

Reset
Series: Raygun
Subseries: Raygun 50
Partner: Platek
Platek products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Flood
Flood products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Adjustable / Direct
Adjustable / Direct products



Physical

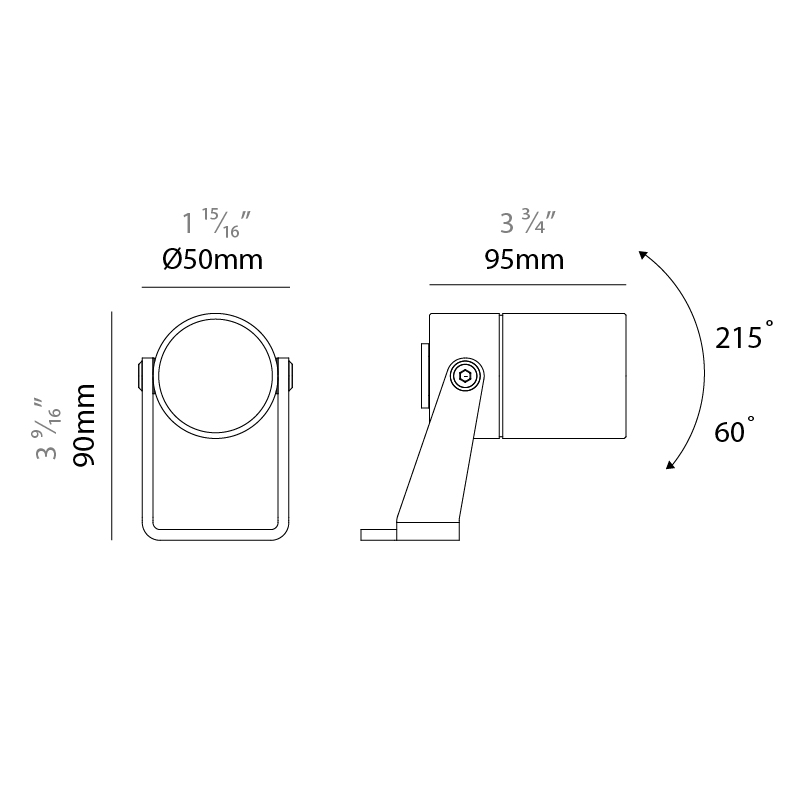

Shape: Cylinder
Diameter (mm): 50
Diameter (in): 1 15⁄16
Length (mm): 90
Length (in): 3 9⁄16
Height (mm): 95
Height (in): 3 3⁄4
Max. Overall Height (mm): 185
Max. Overall Height (in): 7 5⁄16
Diffuser: Clear tempered glass
Fixture Finish: SFS
see color chart below
Fixture Material: Stainless Steel
Primary Material: Stainless Steel



Electrical

Lamp Type: LED
Input Wattage (W): 4
Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - 120 Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): Max 310
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 8
Adjustability: Tilt +215° / - 65°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP68 (for permanent submersion 2m)
IK Rating: IK08
Bug Rating: B0 U0 G0





Base Model Number: E9F437- New

Specify

Description

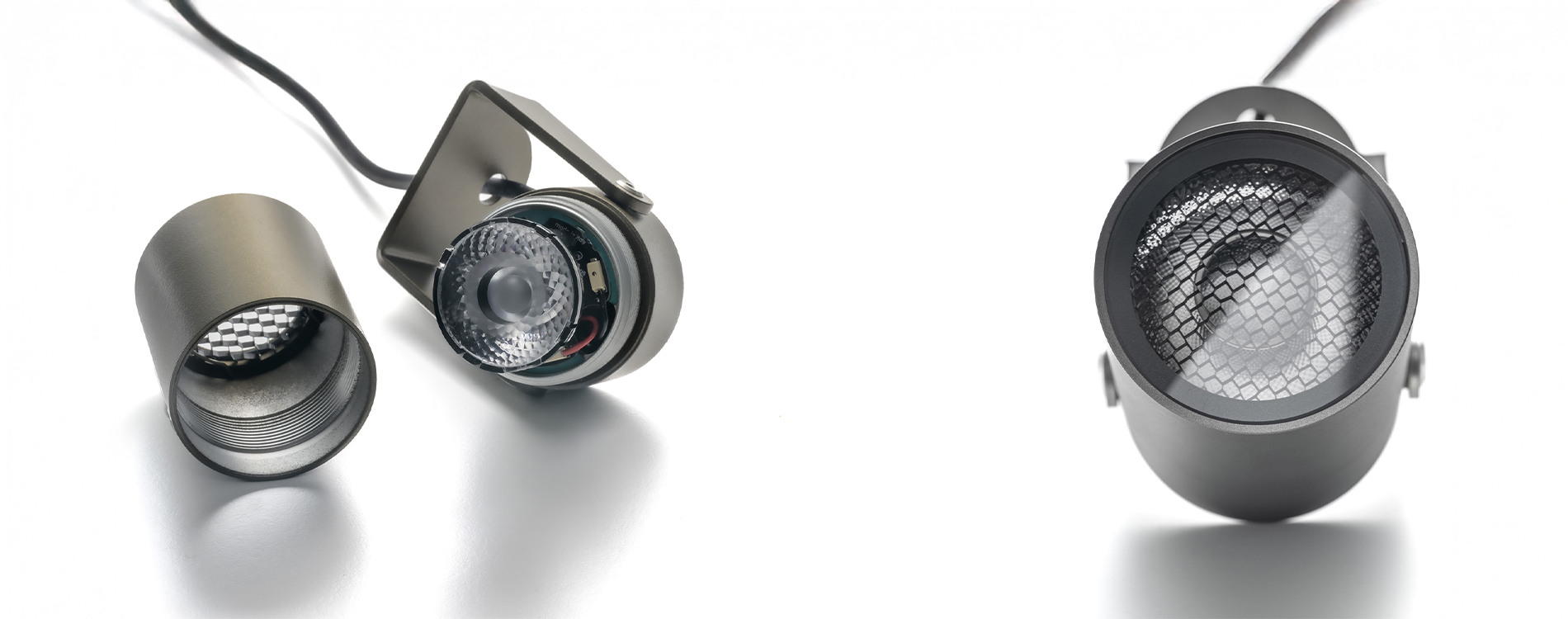

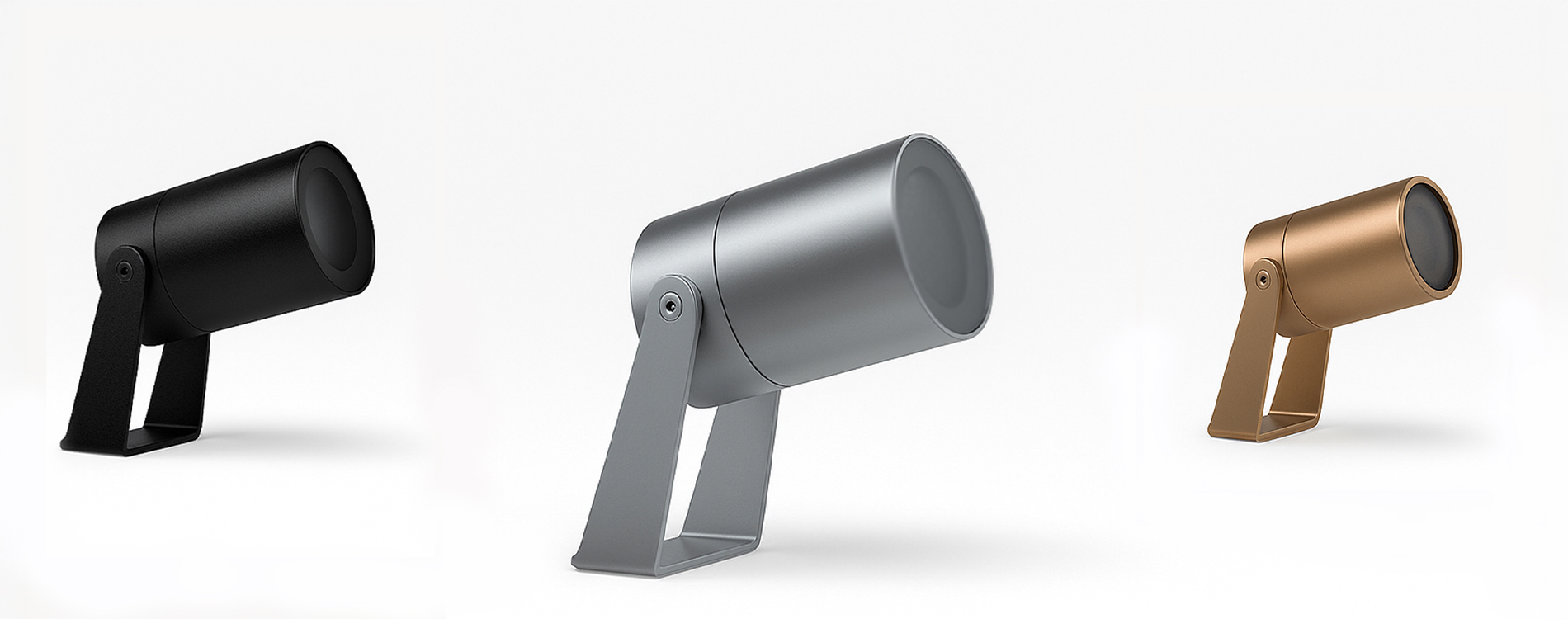

Raygun is a robust and high-performance exterior floodlight series engineered for durability and precision. Constructed from premium AISI 316L stainless steel, it is specifically designed to withstand the toughest environmental conditions. Its IP68 protection rating makes it ideal for coastal, industrial, and high-humidity environments. To further enhance its resilience, the Raygun series features SurfShield, a specialized scratch-resistant finish treatment that significantly boosts the steel’s resistance to corrosion, chemical exposure, and atmospheric pollutants. This advanced finish not only extends the product’s lifespan but also maintains its sleek, professional appearance over time. Available with an array of beam optics, Raygun allows for precise light distribution, ensuring optimal illumination for exterior settings.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DLE0400024ME Magnitude - E40R24DC - Phase Dimming [Leading Edge] - 8-40W - 24Vdc - 120Vac - LED power supply
DND0100024HA Hatch - LV10-24N-120-A - Non-dimming - 10W - 24Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DPH0600024EL EMCOD - MLE60-24DC - Phase dimming (LE / TE) @120Vac only - 3-60W - 24Vdc - 120-277Vac - (Outdoor) LED power supply w/UL approved enclosure
DVO0300024MUL-E Magnitude - CVD30L24DC - 0-10Vdc Dimming (1%) - 30W - 24Vdc - 120-277Vac - LED power supply w/UL Listed Enclosure
DVO0400024MB MeanWell - HLG-40H-24B - 1-10Vdc / Resistance / 10V PWM Dimming - 23.98-40W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP8 -Available with IP68 – Outdoor Rated – Enclosure TBD
by Platek – 3/16″1/4″ , offers high performance and quality material | Zaneen Exterior E9A02300 IP68 gel connector - max 2 x 0,75 mm^2
by Platek – , offers high performance and quality material | Zaneen Exterior E9A18400 Anchor belt - Accessory
by Platek – , offers high performance and quality material | Zaneen Exterior E9A25400 IP68 Gel Connector for parallel connection - max. 4 x 1.5 mm^2 Ø4.5 - 8.5 mm

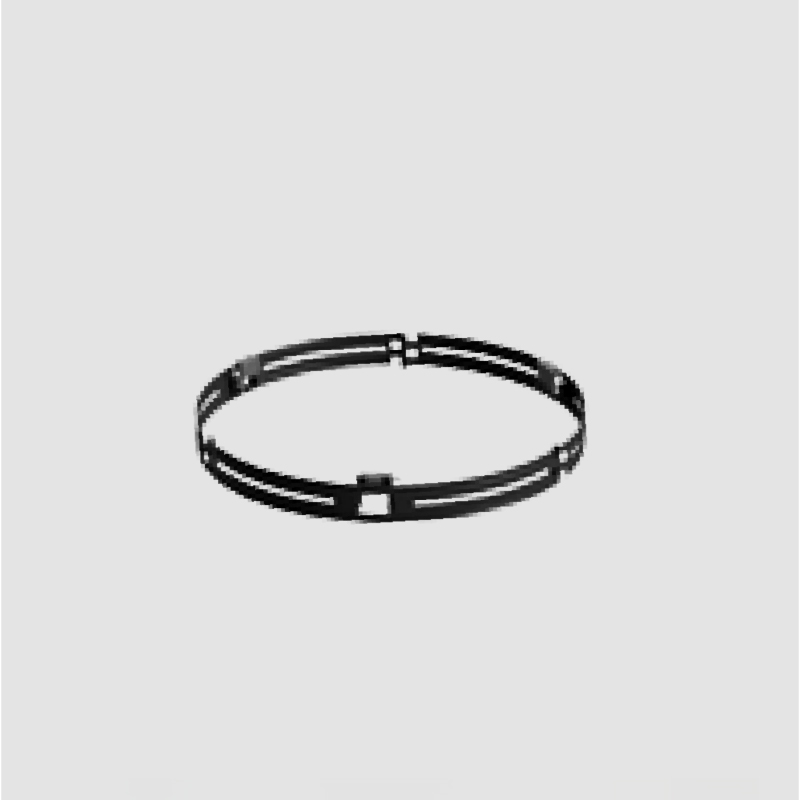

Raygun by Platek – , offers high performance and quality material | Zaneen Exterior E9A50103 Ring for tree application for Raygun 35, 50, 80

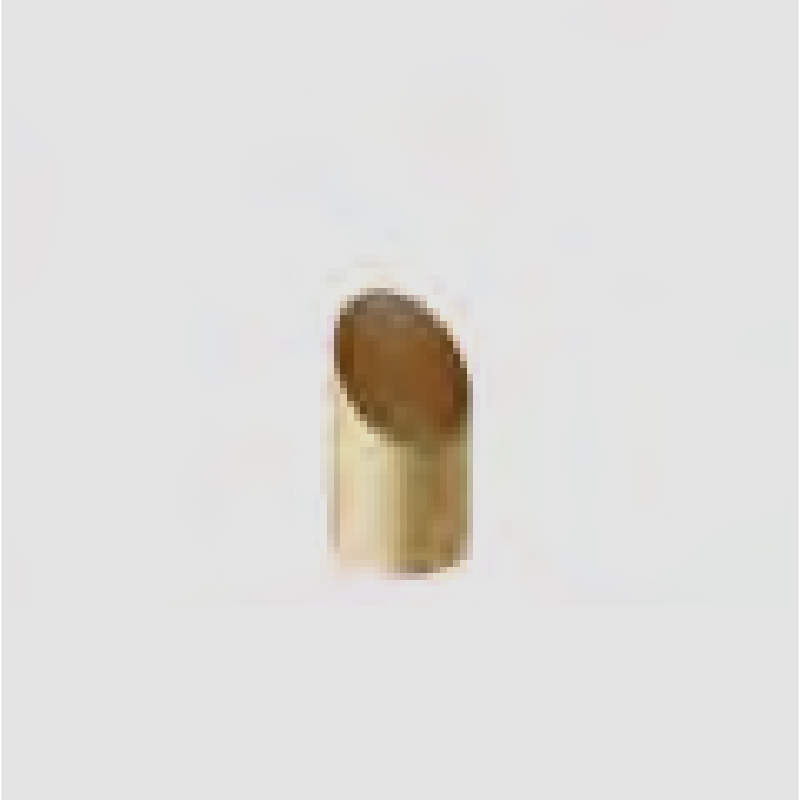

Raygun by Platek – 1 3/8″ x 2 5/8″ , offers high performance and quality material | Zaneen Exterior E9A50109 Raygun 35, Visor Surfshield

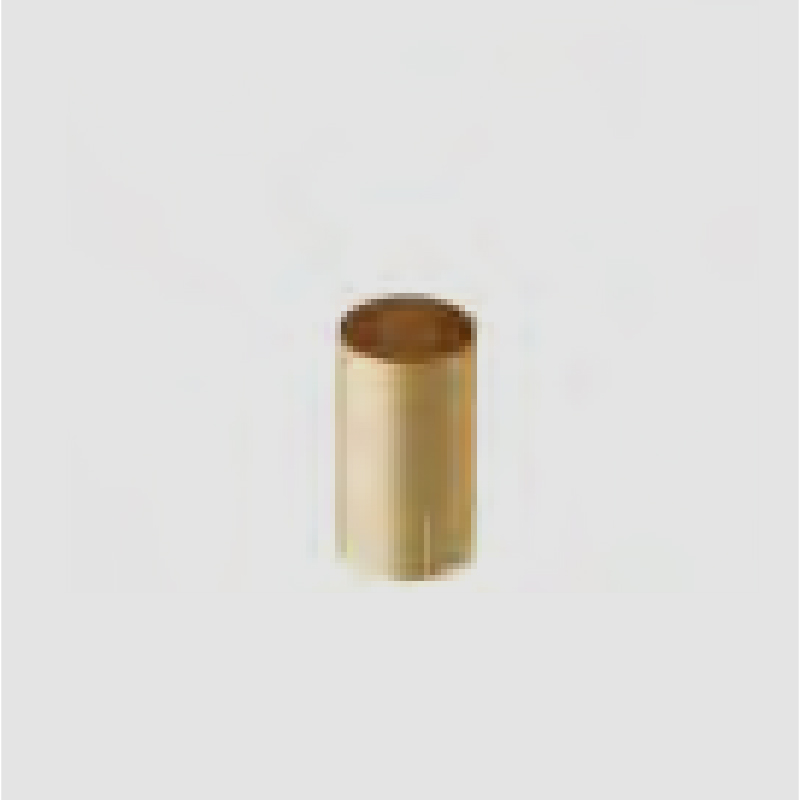

Raygun by Platek – 1 3/8″ x 2 5/8″ , offers high performance and quality material | Zaneen Exterior E9A50110 Raygun 35, Cylindrical Screen Surfshield

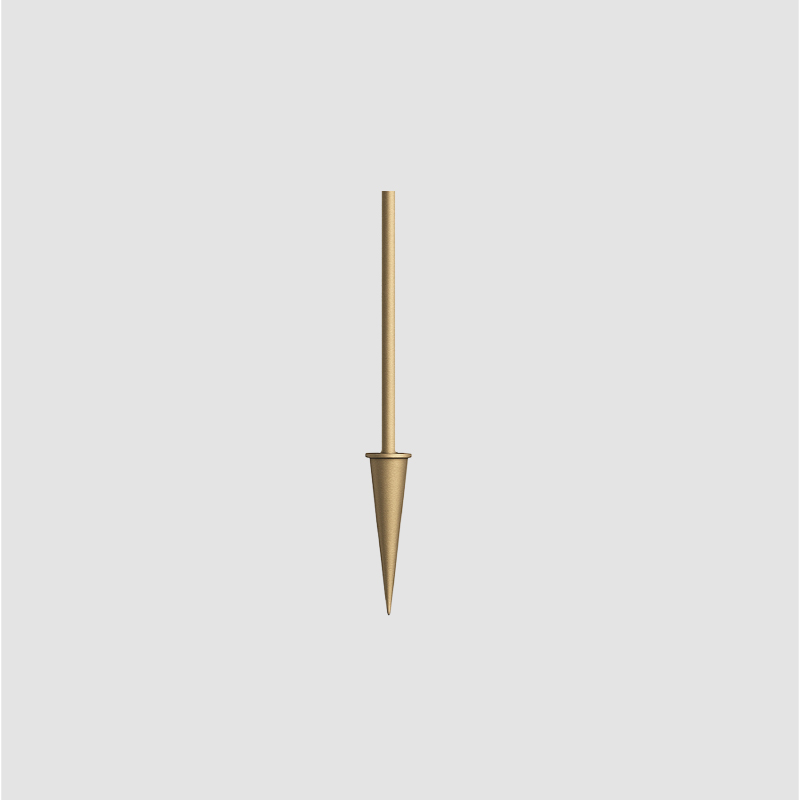

Raygun by Platek – x 11 13/16″ , offers high performance and quality material | Zaneen Exterior E9A50111 Raygun - 300mm/11 13/16" Stainless Steel Rod and Spike - Surfshield

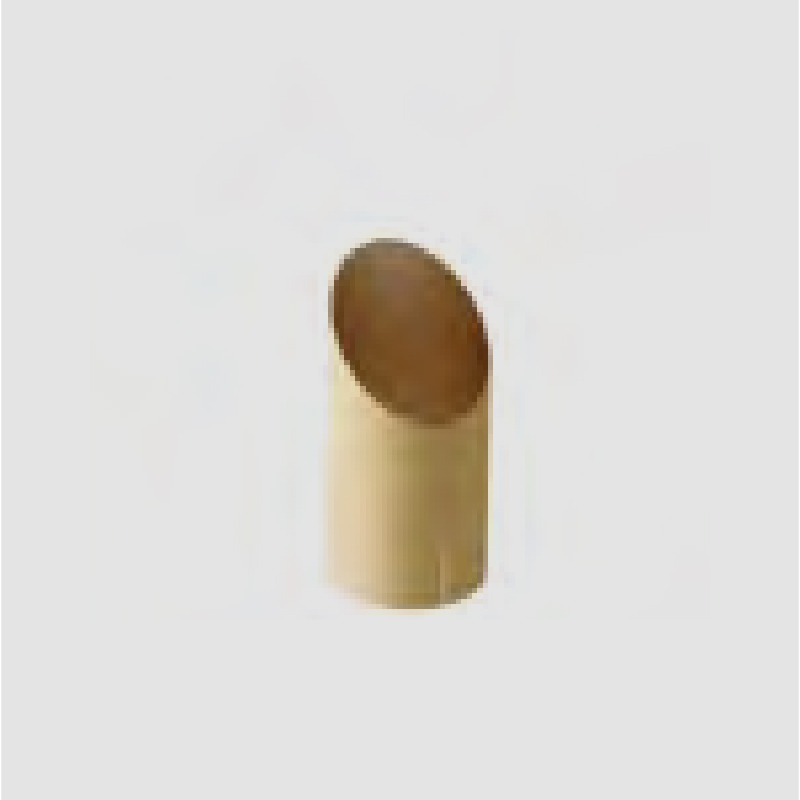

Raygun by Platek – 2 1/16″ x 4 7/16″ , offers high performance and quality material | Zaneen Exterior E9A50118 Raygun 50 Visor Surfshield

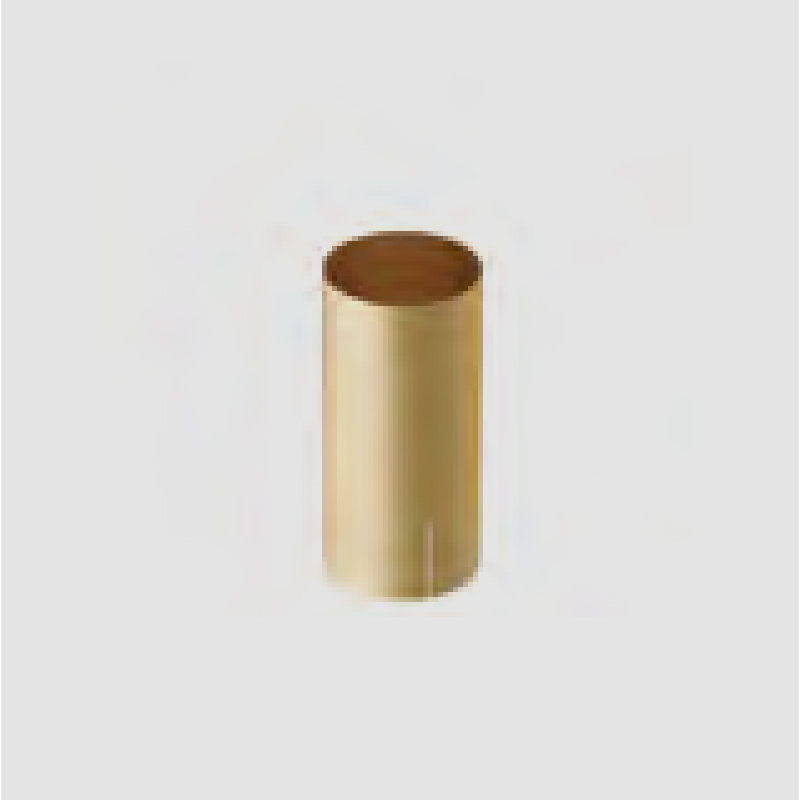

Raygun by Platek – 2 1/16″ x 4 7/16″ , offers high performance and quality material | Zaneen Exterior E9A50119 Raygun 50 Cylindrical Screen Surfshield
ENCP1 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP20 Polycarbonate - IP68 - Outdoor Rated - UL listed - Power Supply Enclosure in Light Gray
ENCP22 Polycarbonate - IP68 - Outdoor Rated - UL listed - Power Supply Enclosure in Light Gray
by – 3 5/8″ x 1 9/16″ , offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP6 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP8 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet

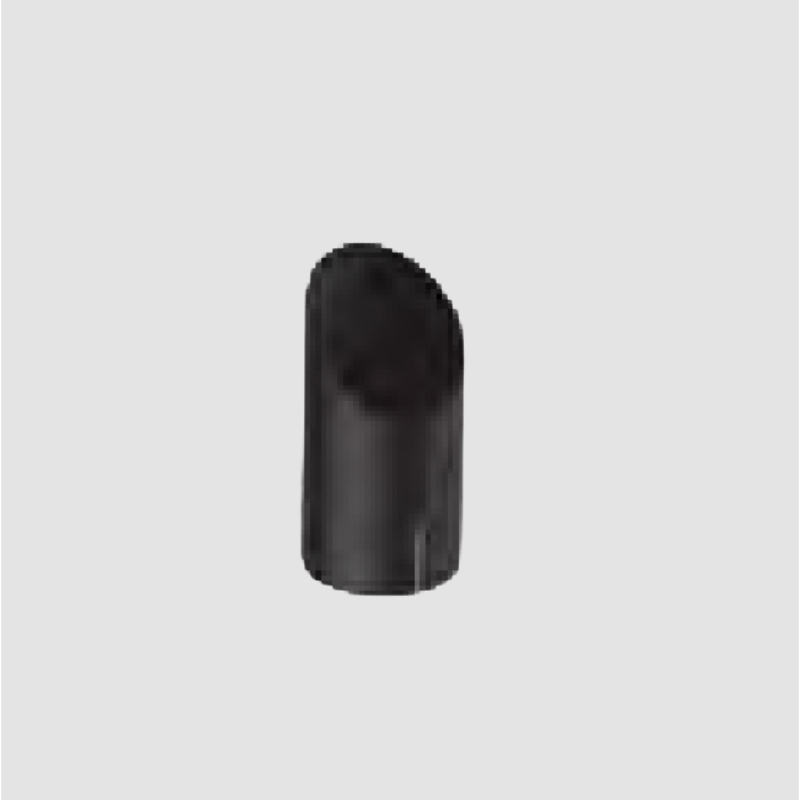

Raygun by Platek – 2 1/16″ x 4 7/16″ , offers high performance and quality material | Zaneen Exterior E9A50114- Raygun 50 Visor Painted

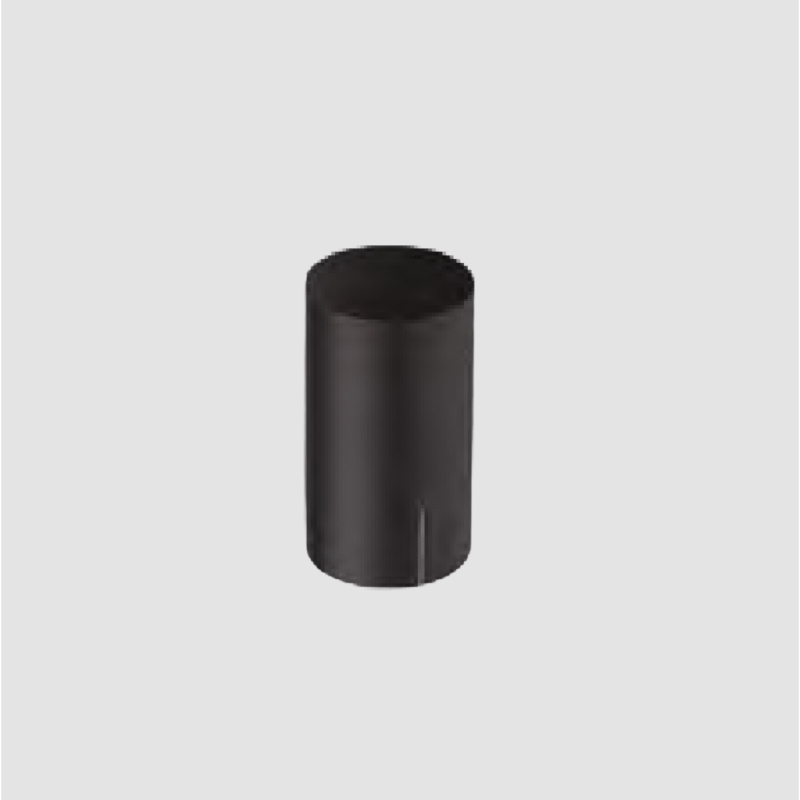

Raygun by Platek – 2 1/16″ x 7/16″ , offers high performance and quality material | Zaneen Exterior E9A50115- Raygun 50 Cylindrical Screen Painted

Also Available within Series New Series

Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F426- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24V DC
New
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F426-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Fliter
New
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F427- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Stainless Steel
New
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F427-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Stainless Steel
New
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F428- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, Surfshield
New
Raygun by Platek – 1 3/8″2 3/16″ x 2 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F428-HC- Raygun 35 - Floodlight, 35mm/1 3/8", 4W LED, Max 140lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Surfshield
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F429- Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc,
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F429-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F430- Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, Stainless Steel
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F430-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Stainless Steel
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F431- Raygun 50 - Floodlight, 50mm/1 15/16", 9..5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, Surfshield
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F431-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 9.5W LED, Max 560lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter - Surfshield
New

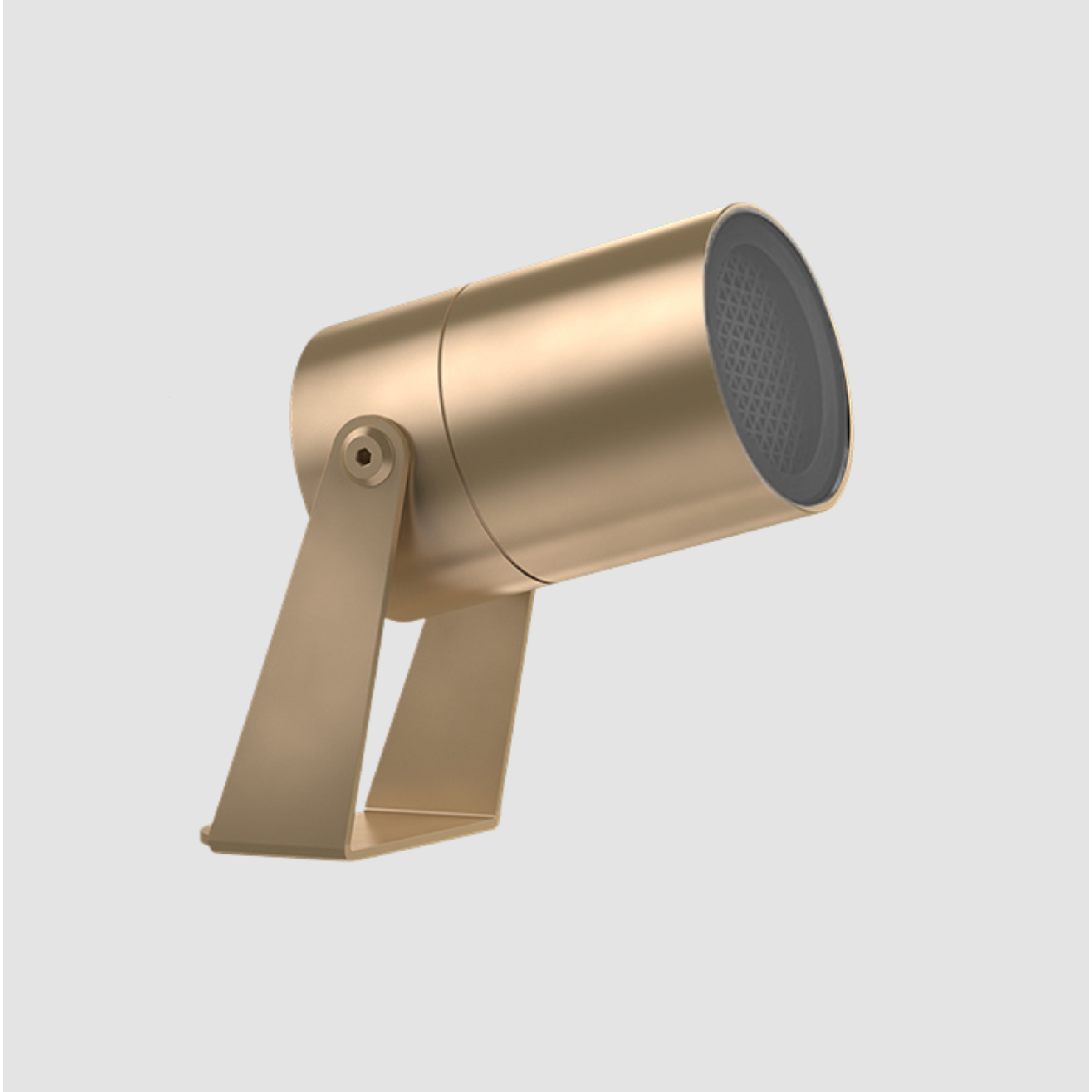

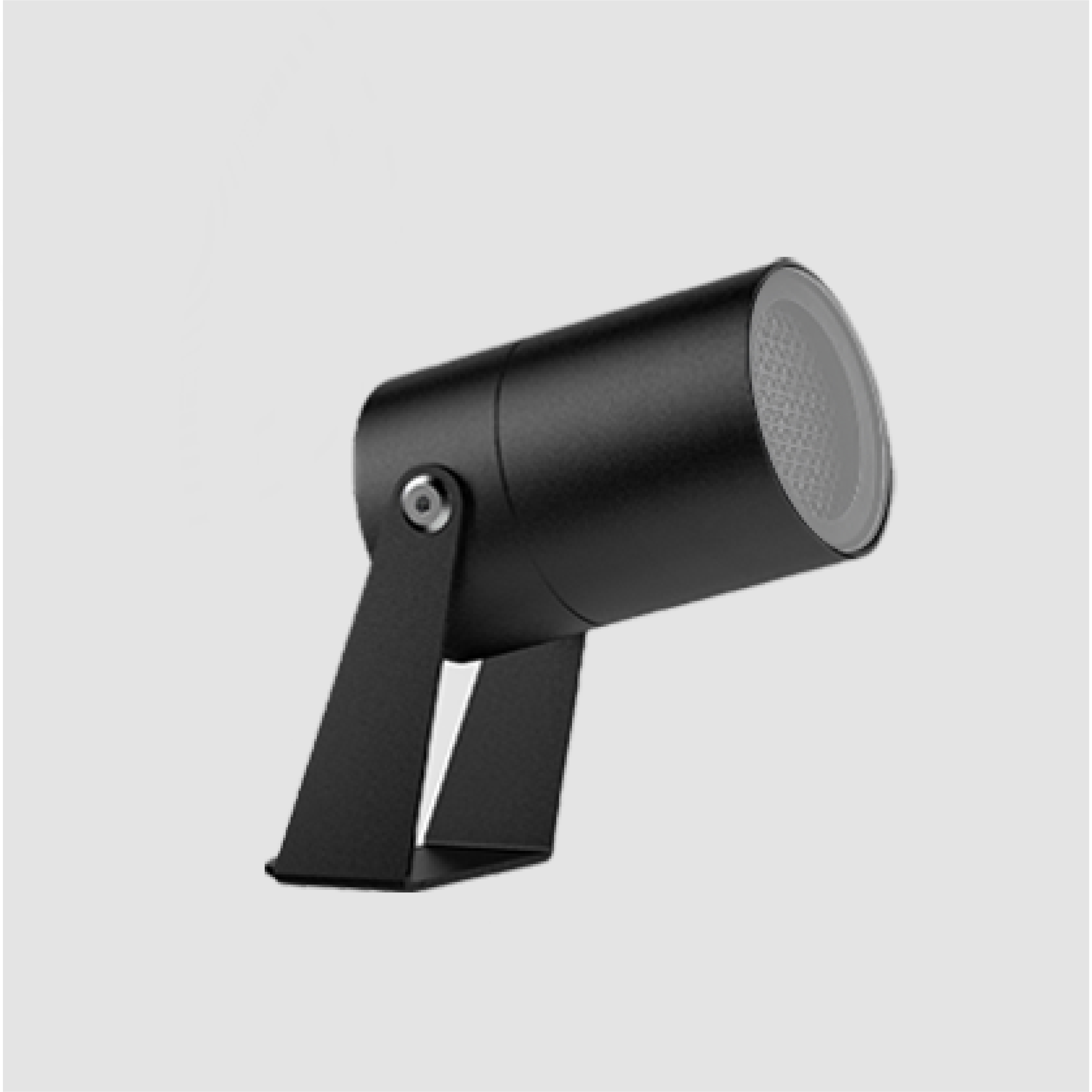

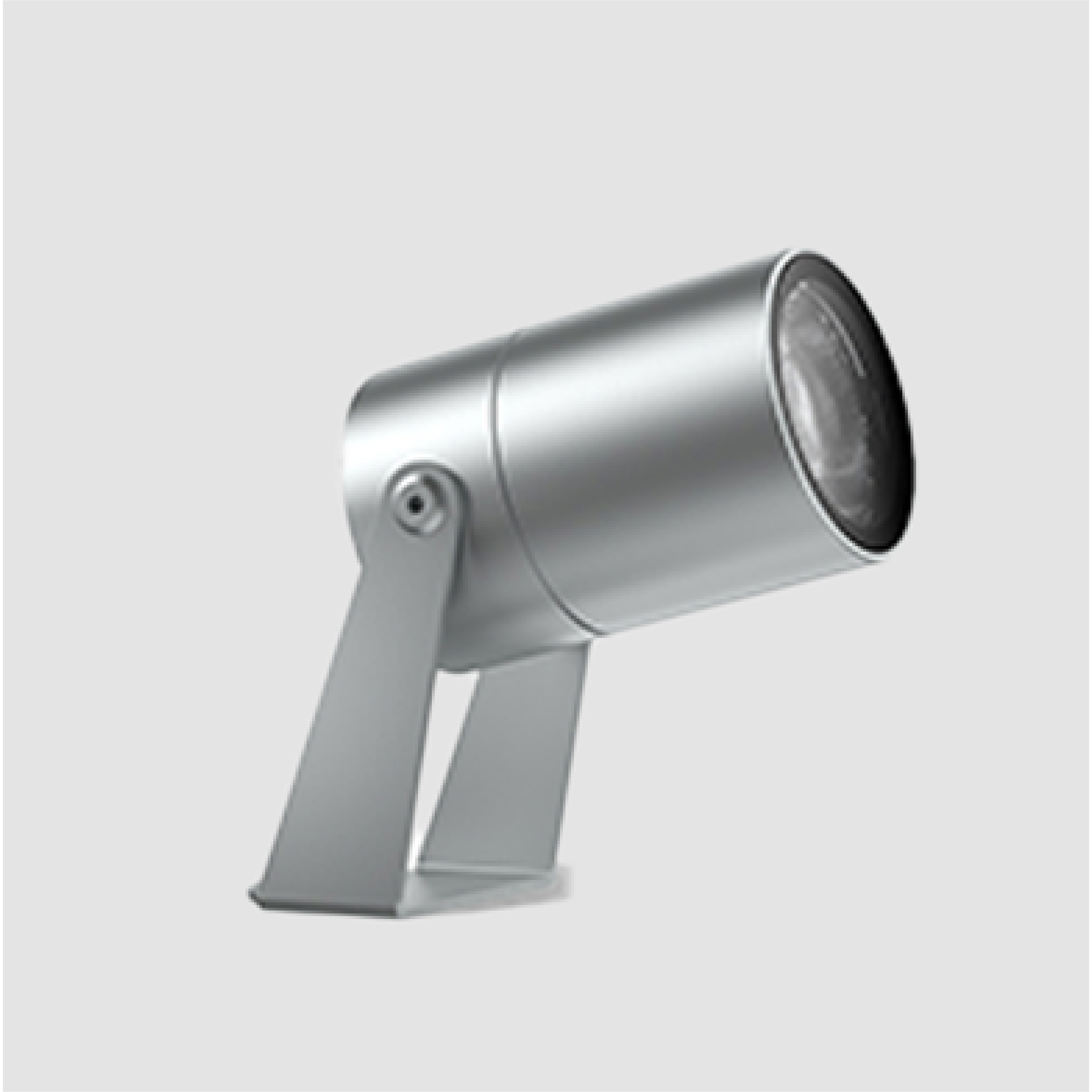

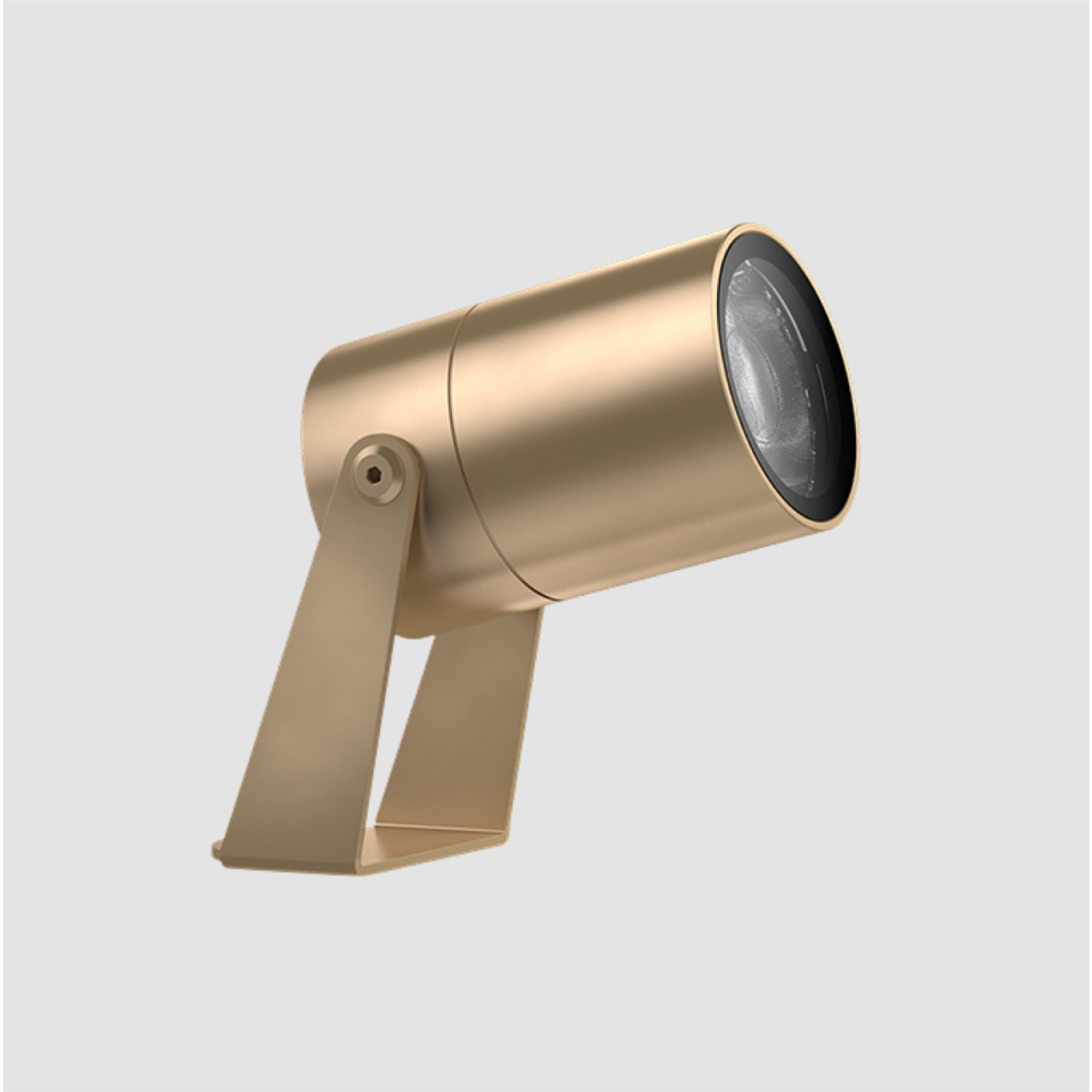

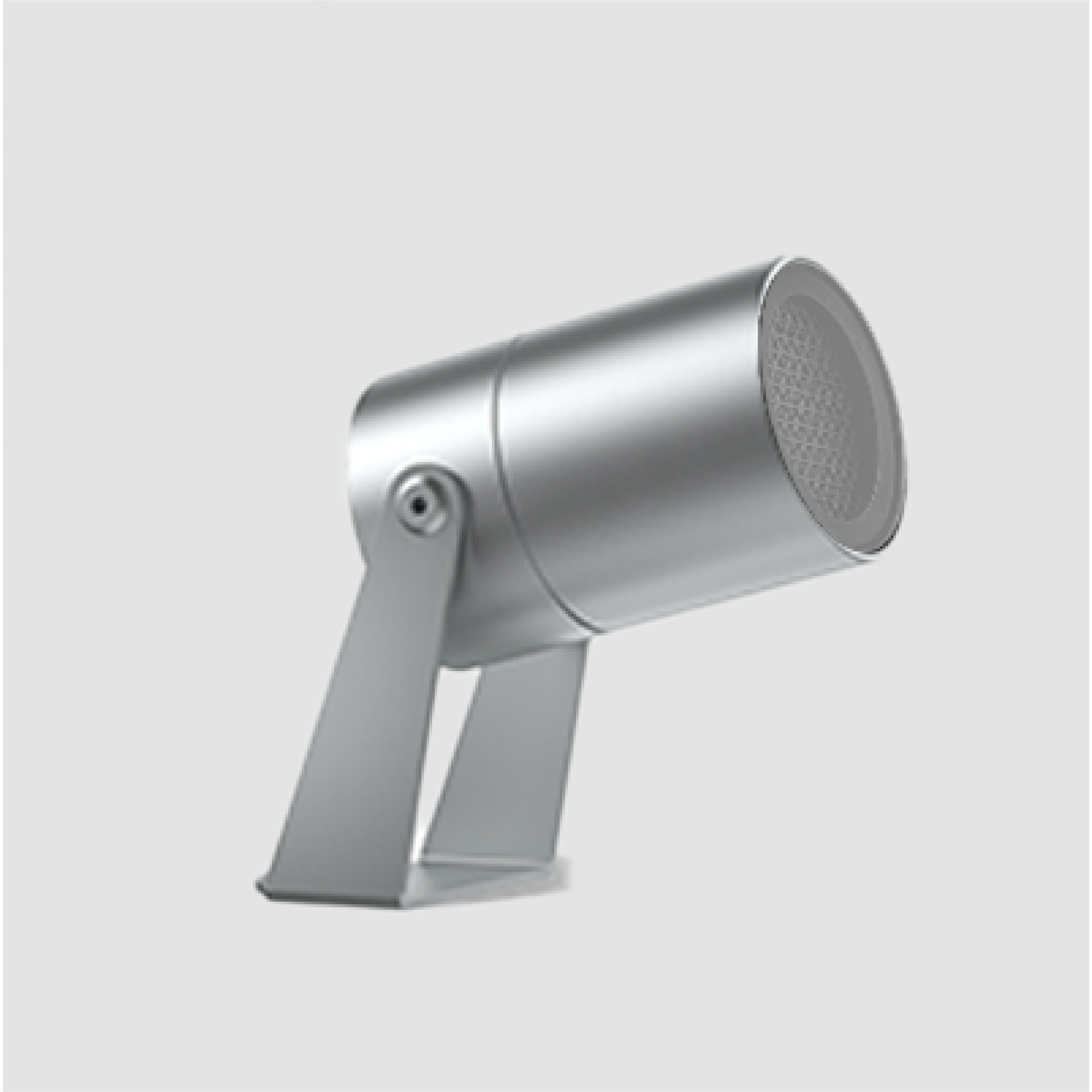

Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F432- Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc,
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F432-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F433- Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc, Stainless Steel
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F433-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Stainless Steel
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F434- Raygun 80 - Floodlight, 80mm/3 1/8", 14W LED, Max 1150lm, CRI: 90, IP66, 24Vdc, Surfshield
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F434-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 14W LED, Max 920lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Surfshield
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F435- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc,
New
Raygun by Platek – 1 15/16″3 3/4″ x 3 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F435-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter
New
Raygun by Platek – 1 15/16″3 3/4″ x 3 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F436- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Stainless Steel
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F436-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Stainless Steel
New
Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F437- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 310lm, CRI: 90, IP66, 24Vdc, Surfshield
New
Raygun by Platek – 1 15/16″3 3/4″ x 3 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F437-HC- Raygun 50 - Floodlight, 50mm/1 15/16", 4W LED, Max 230lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Surfshield
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F438- Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam: 8°
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F438-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F439- Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam Angle: 8°, Stainless Steel
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F439-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°, Stainless Steel
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F440- Raygun 80 - Floodlight, 80mm/3 1/8", 10.5W LED, Max 740lm, CRI: 90, IP66, 24Vdc, Beam Angle: 8°, Surfshield
New
Raygun by Platek – 3 1/8″4 3/4″ x 5 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F440-HC- Raygun 80 - Floodlight, 80mm/83 1/8", 10.5W LED, Max 610lm, CRI: 90, IP66, 24Vdc, with Honeycomb Filter, Beam: 9°, Surfshield
New

Downloads

Request Files

Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior

Raygun by Platek – 1 15/16″3 9/16″ x 3 3/4″ Surface, Flood offers high performance and quality material | Zaneen Exterior

Tilt

+215° / - 65°
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

Max 310
Certified for North American Standards
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

SFS - Surfshield
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
