Recessed




General

Division: Architectural, Exterior


Series: Dixit


Subseries: Dixit RA4, Dixit RA7, Dixit RA8, Dixit RA11, Dixit RA14, Dixit RA16, Dixit RA17, Dixit RA20, Dixit RA23


Mounting Type: Recessed


Mounting Location: Ceiling, Floor


Subcategory: Downlight


Brand: Aria / Ivela




Physical

Shape: Round, Square


Diameter (mm): 41, 50, 67, 80, 95, 96, 103, 110, 126, 140, 141, 160, 168, 200, 235


Diameter (in): 1 58, 1 1516, 2 58, 3 18, 3 34, 4 116, 4 516, 4 1516, 5 12, 5 916, 6 58, 6 516, 7 78, 9 14


Length (mm): 80, 117


Length (in): 3 18, 4 58


Width (mm): 80, 117


Width (in): 3 18, 4 58


Height (mm): 23, 34, 42, 45, 50, 56, 70, 73, 74, 81, 82, 85, 89, 92, 95, 104, 110, 117, 155, 180


Depth (mm): 82


Depth (in): 3 14


Height (in): Array, 1 34, 1 58, 1 516, 1 1516, 2 34, 2 316, 2 44, 2 78, 2 1516, 3 12, 3 14, 3 34, 3 38, 3 316, 3 58, 4 18, 4 58, 4 516, 6 18, 7 116, 7/8


Min. Recessing Depth (mm): 30, 55, 96, 114, 122, 125, 132, 135, 150, 180


Min. Recessing Depth (in): 1 316, 2 316, 3 34, 4 12, 4 1316, 4 1516, 5 316, 5 516, 5 78, 7 116


Light Distribution: Adjustable / Direct, Direct


Weight (kg): 0.1, 0.3, 0.4, 0.6, 0.7, 1.5, 1.8, 2, 3.6


Weight (lbs): 0.22, 0.66, 0.88, 1.32, 1.54, 3.30, 3.97, 4.40, 7.93, 8.81, 15.43


Diffuser: Clear Polycarbonate, Opal Polycarbonate, Polycarbonate - Opal, Tempered Safety Glass 4mm / 5/32"


Fixture Finish: MWH, MWH / SIL
see color chart below


Fixture Material: Aluminum Die Cast


Cut-out Measurements: 86mm / 3 3/8, 15500 / 6 1/8"




Electrical

Lamp Type: LED


Total Output Wattage (W): 2, 4.6, 5.5 / 8.5, 9 / 12, 12, 12 / 18 / 26, 18, 26 / 33 / 38, 33, 36, 37 / 43, 51


Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming, Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)


Driver Included: No


Driver Location: Recessed Housing, Remote


Driver Type: Constant Current - 120 / 277Vac, Constant Current - Universal


Driver Class: Class 2


Housing: See Components


Input Voltage (V): 120, 120 / 277


Constant Current (MA): 250 / 350, 350, 350 / 500, 350 / 500 / 700, 500, 700 / 900 / 1050, 900, 1050, 1050 / 1200, 1400




LED

Number of LEDs: 1


Color Temperature (°K): 2700 / 3000 / 3500, 2700 / 3000 / 3500 / 4000, 3000


Max. Delivered Lumen (lm): 160, 320, 378, 501 - 638 / 592 -729, 501 / 638, 1096 - 1140 / 1447 - 1491, 1096 / 1447, 1447, 1513 - 1602 / 2092 - 2180 / 2759 - 2848, 1513 / 2092 / 2759, 1513 / 2092 / 2759, 1745 / 1781, 2203 / 2248, 2924 - 3100 / 3655 - 3748 / 4214 - 4300, 3770, 4236 - 4489 / 4754 - 5072, 5375 / 5485 / 5543 / 5656, 5711 / 5827 / 5878 / 5998


Nominal Lumen (lm): 1650


CRI: >80 CRI, >85 CRI, >90 CRI


Efficiency (%): 59.3, 72.7, 85.7, 86, 87.7, 88.2, 91


Lamp Life (hrs): 50000




Optical

Reflector°: 26, Mirror-metallized thermoplastic material


Optic°: 14, 25, 26, 30, 55, 60, 100, 110, 120


Beam Angle: 100, Symmetric


Adjustability: Fixed, Tilt 20°, Tilt ±20°


Upon Request: Optic 45° (mirror-metallized) / 65° (white), Optics 45° (mirror-metallized) / 65° (white), Optics 45° (mirror metallized) / 65° (white)




Ratings and Certifications

Certified By: Certified for North American Standards, CSA Certified to UL and CSA Standards


IP rating: IP20, IP43, IP44, IP65, IP66


IK Rating: IK07, IK08


Glare Rating: ≤ 19






31 matching products


Series Description

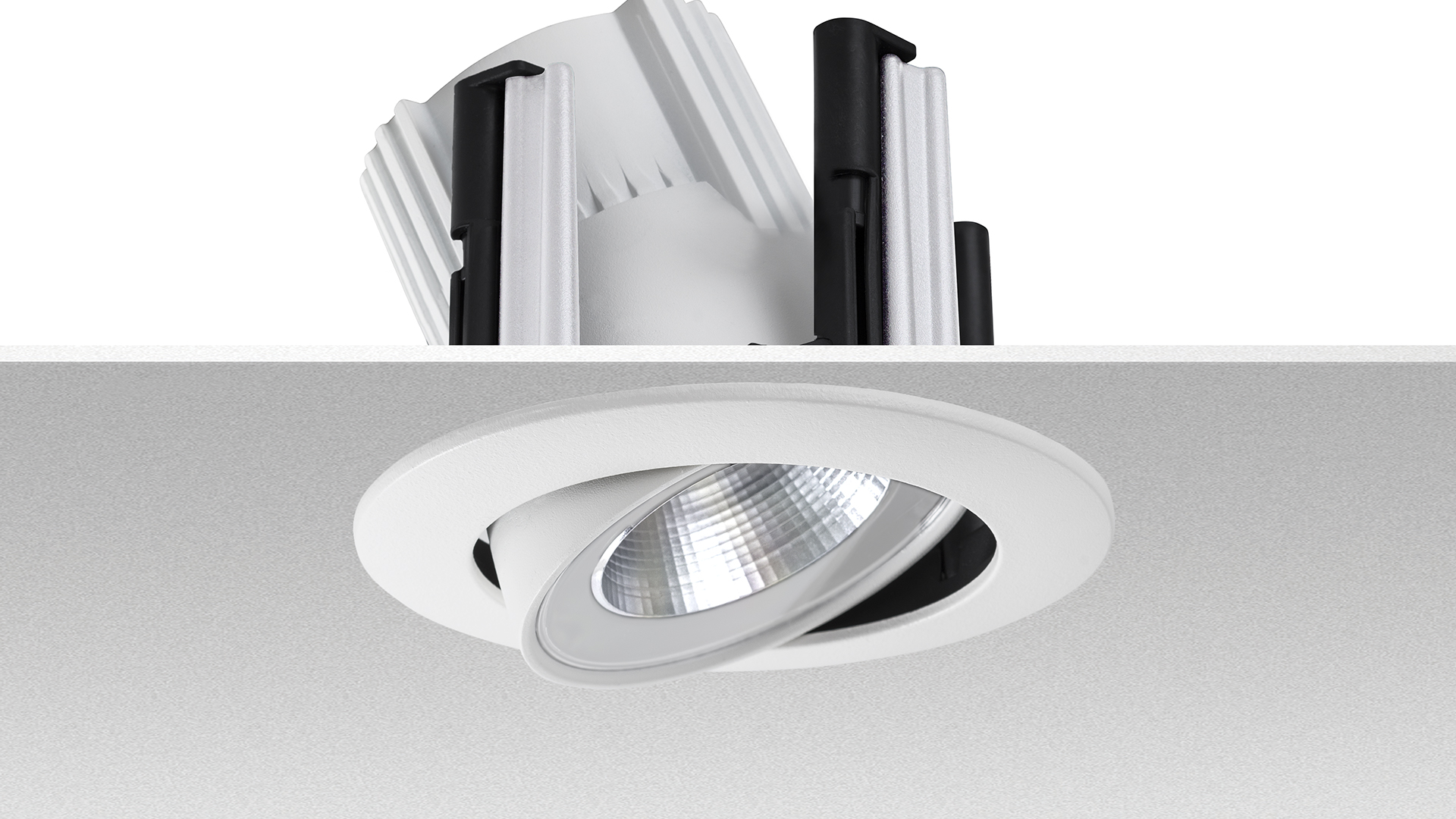

Dixit is a wide family of downlights that are equipped with varying lumen packages, sizes, optics and IP ratings. The family includes seven subseries, where the names of the series reflect the diameter in cm. With the vase range of technical options, these downlights can be a single resource for a complete project. Optics range from 14° – 120°, delivered lumens are up to 6000lm, the color temperature is available in 2700K, 3000K, 3500K, and 4000K and IP ratings range from IP20 to IP66 (3 products are exterior rated).

All Matching Products

L5601121- RA8 DIXIT LED - Recessed - Adjustable - 9W / 12W - 2700K / 3000K / 3500K / 4000K - 26° - White
L56015- RA20 DIXIT LED - Recessed - 51W LED - 2700K / 3000K / 3500K / 4000K - CRI 85 - 100°
L56019-30K RA17 DIXIT LED - Recessed - 33W LED - 3000K - 3770lm - CRI 85 - Adjustable - 30° - White
L56020- RA11 DIXIT LED - Recessed - 12W / 18W / 26W LED - 2700K / 3000K / 3500K / 4000K - 55° - CRI 85 - Matte White
L56024- RA11 DIXIT LED - Recessed - 12W / 18W / 26W LED - 2700K / 3000K / 3500K / 4000K - 55° - CRI 85 - Matte White
L56028- RA11 DIXIT LED - Recessed - 12W / 18W / 26W LED - 2700K / 3000K / 3500K / 4000K - 55° - CRI 85 - Matte White
L56032- RA11 SOFT DIXIT LED - Recessed - 12W / 18W / 26W LED - 2700K / 3000K / 3500K - 55° - CRI 85 - Matte White
L56036-40K RA17 DIXIT LED - Recessed - 36W LED - 4000K - 4639lm - CRI 85 - Adjustable - 25° - White
L5603721 Dixit RA4 L with Lens - 41mm / 1 5/8" - 2W LED - Warm White 3000K - Matte White
L5603821 Dixit RA4 L - Adjustable with Lens - 50mm / 1 15/16" - 2W LED - Warm White 3000K - Matte White
L5604521 Dixit RA4 L - 41mm / 1 5/8" - 5.2W - LED - 3000K - Matte White
L56051- RA11 Q DIXIT LED - Recessed - 12W LED - 2700K / 3000K / 3500K / 4000K - CRI 85 - 55°
L56056- RA8 L Q DIXIT LED - Recessed - 5.5W / 8.5W LED - 2700K / 3000K / 3500K - CRI 90 - Optic 26° - Matte White
L56057- RA8 Q DIXIT LED - Recessed - 9W / 12W LED - 2700K - 3000K / 3500K - CRI 80 - 26° - Matte White
L56061- RA8 L TL DIXIT LED - Recessed - 5.5W / 8.5W LED - 2700K / 3000K / 3500K - CRI 90 - Optics 26° - Matte White
L56063- RA8 TL DIXIT LED - Recessed - 9W / 12W LED - 2700K - 3000K / 3500K - CRI 80 - 26° - Matte White
L56065- RA8 L DIXIT LED - Recessed - 5.5W / 8.5W LED - 2700K / 3000K / 3500K - CRI 90 - Optics 26° - Matte White
L56069- RA8 DIXIT LED - Recessed - 9W / 12W LED - 2700K / 3000K / 3500K - CRI 80 - Optic 26° - Matte White
L5607021- RA8 DIXIT LED - Recessed - 1575lm - 12W LED - 2700K - CRI >80 - IP44 - 26° - White
L56073- RA8 DIXIT LED - Recessed - 9W / 12W LED - 2700K - 3000K / 3500K - CRI 80 - 26° - Matte White
L56077- RA8 Soft Dixit LED - Recessed - 9W / 12W LED - 2700K / 3000K / 3500K - CRI 80 - Optic 26° - Matte White
L56093- RA14 DIXIT LED - Recessed - 26W / 33W / 38W - 2700K / 3000K / 3500K / 4000K - CRI 85 - IP44 - Optic 60°
L56096- RA8 DIXIT LED IP65 - Recessed - 12W LED - 2700K / 3000K / 3500K - CRI 80 - Optic 26° - IP65 - Matte White
L56097- RA8 DIXIT LED IP65 - Recessed - 5.5W / 8.5W - 2700K / 3000K / 3500K / 4000K - CRI 90 - Optic 26° - IP65 - White - Black Baffle
L56102- RA16 - Dixit - Recessed - 18W LED - 2700K / 3000K / 3500K / 4000K - CRI 85 - IP44 - Matte White - Optic 110°
L56103- RA8 DIXIT LED - Recessed - 9W / 12W - LED - 2700K / 3000K / 3500K / 4000K - IP65 - Optic 26° - White - Black Baffle
L56108- RA23 S DIXIT LED - Recessed - 18W LED - 2700K / 3000K / 3500K - CRI 85 - IP44 - Matte White - Optic 100°
L56110- RA23 S DIXIT LED - Recessed - 37W / 43W LED - 2700K / 3000K / 3500K / 4000K - CRI 85 - IP44 - Matte White - Optic 100°
L56112- RA23 SP DIXIT LED - Recessed - 51W LED - 2700K / 3000K / 3500K / 4000K - CRI 85 - IP44 - Matte White - Optic 100°
L5612021 RA 7 - Recessed - LED - 540lm - 4.6W - 3000K - 120° - White - Remote Driver Required (sold separately)
L56121- RA8 DIXIT LED - Recessed - 5.5W / 8.5W LED - 2700K / 3000K / 3500K / 4000K - Optic 26° - White - Black Baffle
...
