Elisa - Surface
Surface



General

Division: Design


Series: Elisa


Mounting Type: Surface


Mounting Location: Wall


Subcategory: Ambient


Brand: Milan




Physical

Shape: Round


Diameter (mm): 400


Diameter (in): 15 34


Height (mm): 82


Height (in): 3 18


Extension (mm): 82


Extension (in): 3 18


Light Distribution: Indirect


Diffuser: PMMA - Satin Opal


Fixture Finish: BUL / GLL / MAG
see color chart below


Fixture Material: Stamped Steel




Electrical

Lamp Type: LED


Input Wattage (W): 28.7


Total Output Wattage (W): 25.03


Dimming: Non-Dimmable


Driver Included: Yes


Driver Location: Integrated


Driver Type: Constant Voltage - Universal


Driver Class: Class 2


Input Voltage (V): 120 / 277


Output Voltage (V): 24




LED

Color Temperature (°K): 2700


Max. Delivered Lumen (lm): 2300


CRI: >90 CRI


Lamp Life (hrs): 50000




Optical



Ratings and Certifications

Certified By: Certified for North American Standards


IP rating: IP20






Base Model Number: D93233-

Series Description

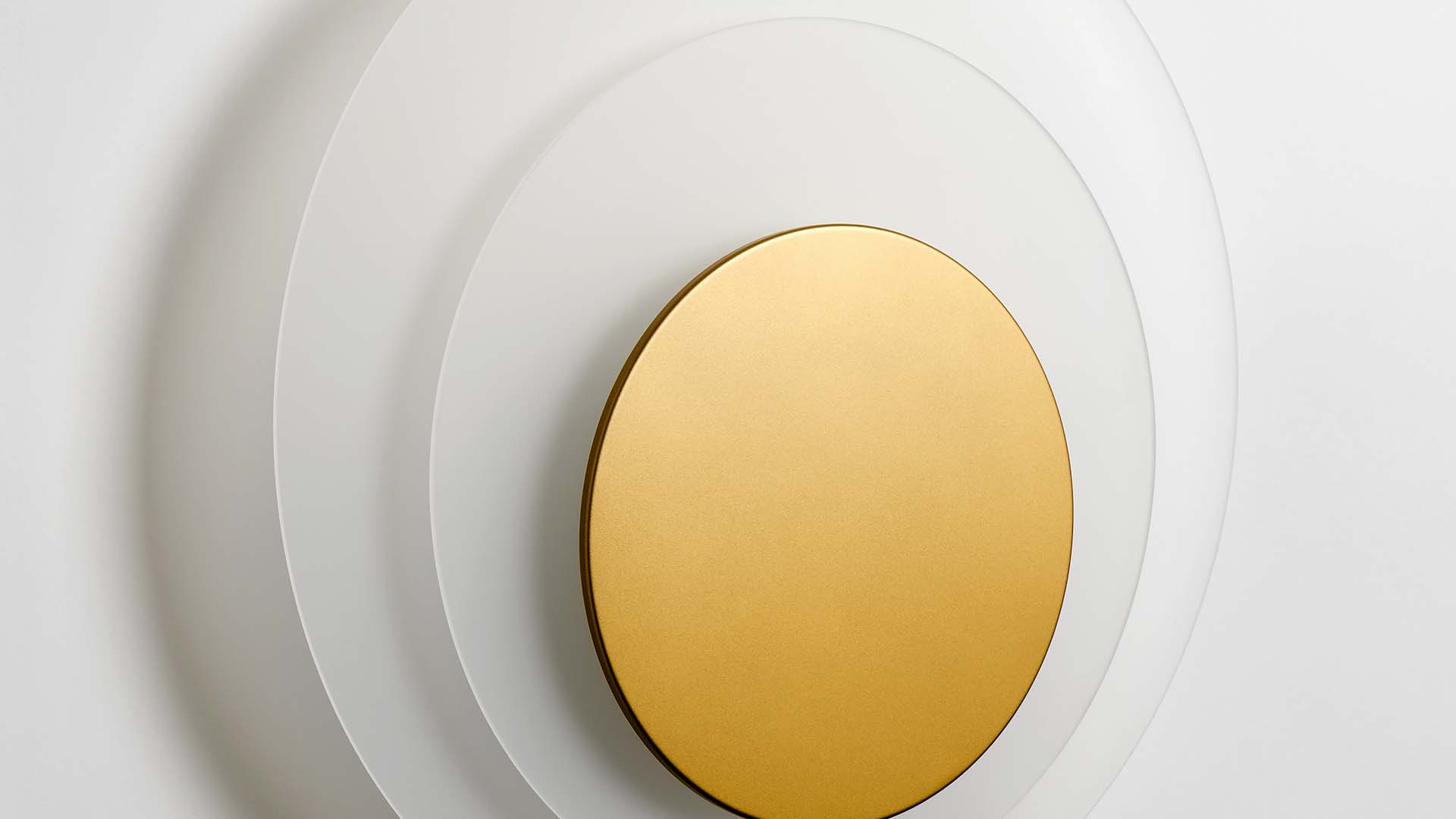

Elisa is designed to create a wash of light through two concentric rings of emerging lights. An integral drive, dimming available and light output of 2300 lumens make this fixture more than a decorative light. It is also available in three color finishes - gold, burgundy and marengo grey lacquer. Inspired by the solar system, Elisa is a surface wall light that is both minimalist and timeless. Elisa's globe-like elegant aesthetic showcases pristine lines and top-quality finishes. Elisa is the perfect collection to enhance spaces that seek a minimalist effect imbedded with personality.

Manufactured in Spain, by Milan.

Also Available within Series

Elisa by Milan – 15 3/4″ x 3 1/8″ Surface, Ambient offers quality European interior lighting design | Zaneen Design D93233- Elisa - Surface - Wall Mount - 28.7W - 120/277Vac - 2700K - 2300lm - CRI 90 - Non-dimming

Downloads

Elisa by Milan – 15 3/4″ x 3 1/8″ Surface, Ambient offers quality European interior lighting design | Zaneen Design

Elisa by Milan – 15 3/4″ x 3 1/8″ Surface, Ambient offers quality European interior lighting design | Zaneen Design / Line art

Wall
Indirect
Included or excluded LED driver/transformer/ control gear
Color rendering index

>90 CRI
Color temperature

2700
Lumen (luminous flux)

2300
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Finishes

BUL - Burgundy Lacquer GLL - Gold Lacquer MAG - Marengo Gray
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
