Surface

Downloads Features Finishes Inspiration

General

Reset

Series: Ovalis

Partner: Prolicht

Division: Architectural

Installation: Surface

Product Type: Wall Surface

Mounting Location: Wall

Light Distribution: Asymmetric

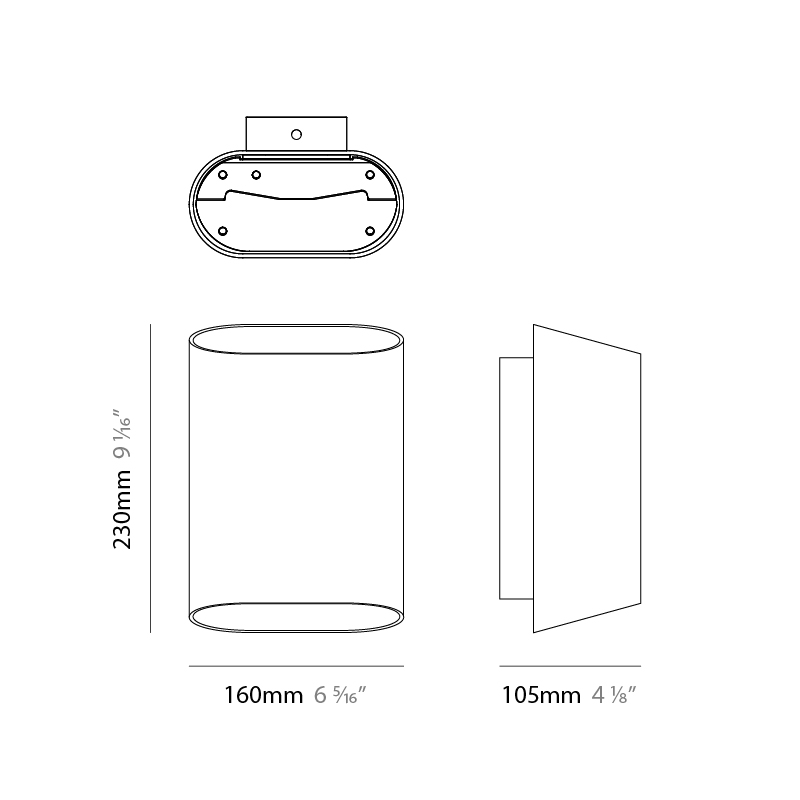

Physical

Shape: Oval

Width (mm): 160

Width (in): 6 ²⁄₇

Height (mm): 230

Depth (mm): 105

Height (in): 9

Depth (in): 4 ¹⁄₈

Weight (kg): 1.38

Weight (lbs): 3.04

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR

see color chart below

Fixture Material: Aluminum

Upon Request: Second Finish Option - Available Upon request (Minimum Quantiles Apply)

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 27

Total Output Wattage (W): 24.5

Dimming: Non-Dimming / Phase Dimming / 0-10V Dimming / DALI Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 1050mA

LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 1797 / 1854 / 1911 / 1950

Nominal Lumen (lm): 2520 / 2592 / 2665 / 2720

CRI: >90 CRI

Lamp Life (hrs): 50000

Optical

Beam Angle: Asymmetric

Adjustability: Fixed

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20

Ovalis Model Number: A33380-

Specify

Base Model Number:
A33380-

Ovalis - Surface - 27W LED - 2700 / 3000 / 3500 / 4000°K - Beam Angle Asymmetric°

Final Option Selection

LED Dimming

Color Temperature

Finishes (Diamond)

Reset

Undo

Reset

Undo

Reset

Undo

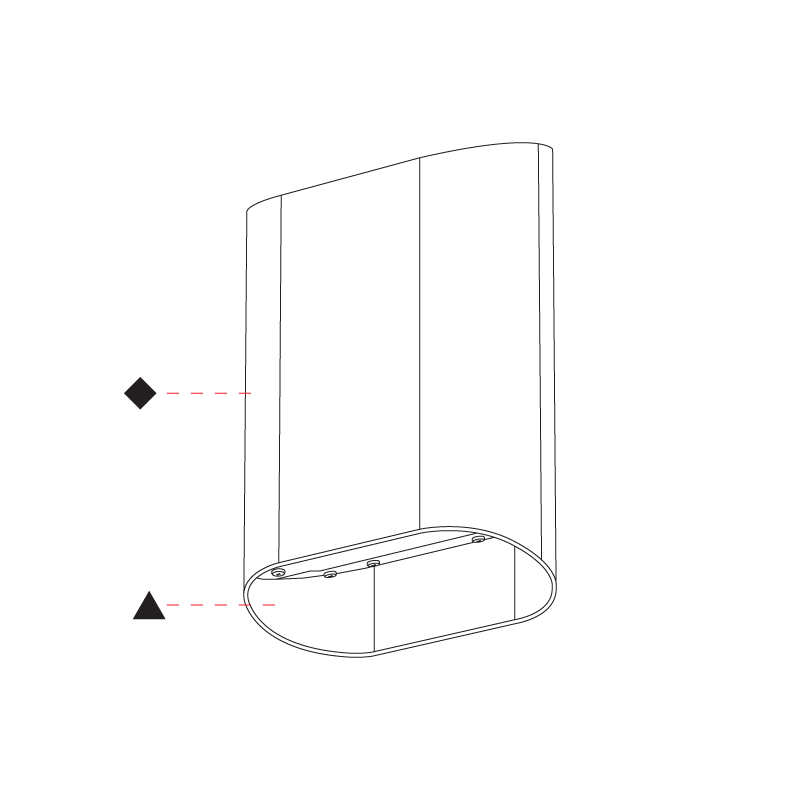

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Model Number: A33380- - -

Get Spec Sheet

Key Features

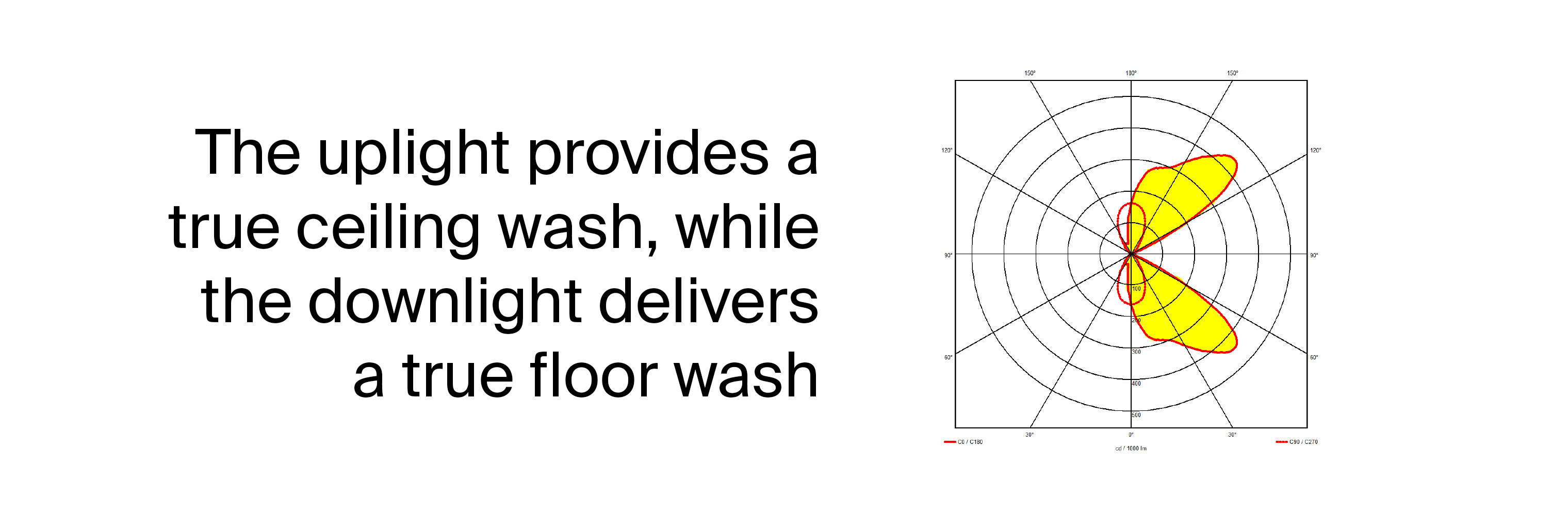

Direct / indirect wall sconce for efficient floor wash and wall-to-ceiling wash.
Asymmetric beam distribution for smooth, controlled light.
Ideal for corridors, arched ceilings, and spaces where ceiling installation is not permitted.
Prevents the need of overhead light sources that create glare.

Series Description

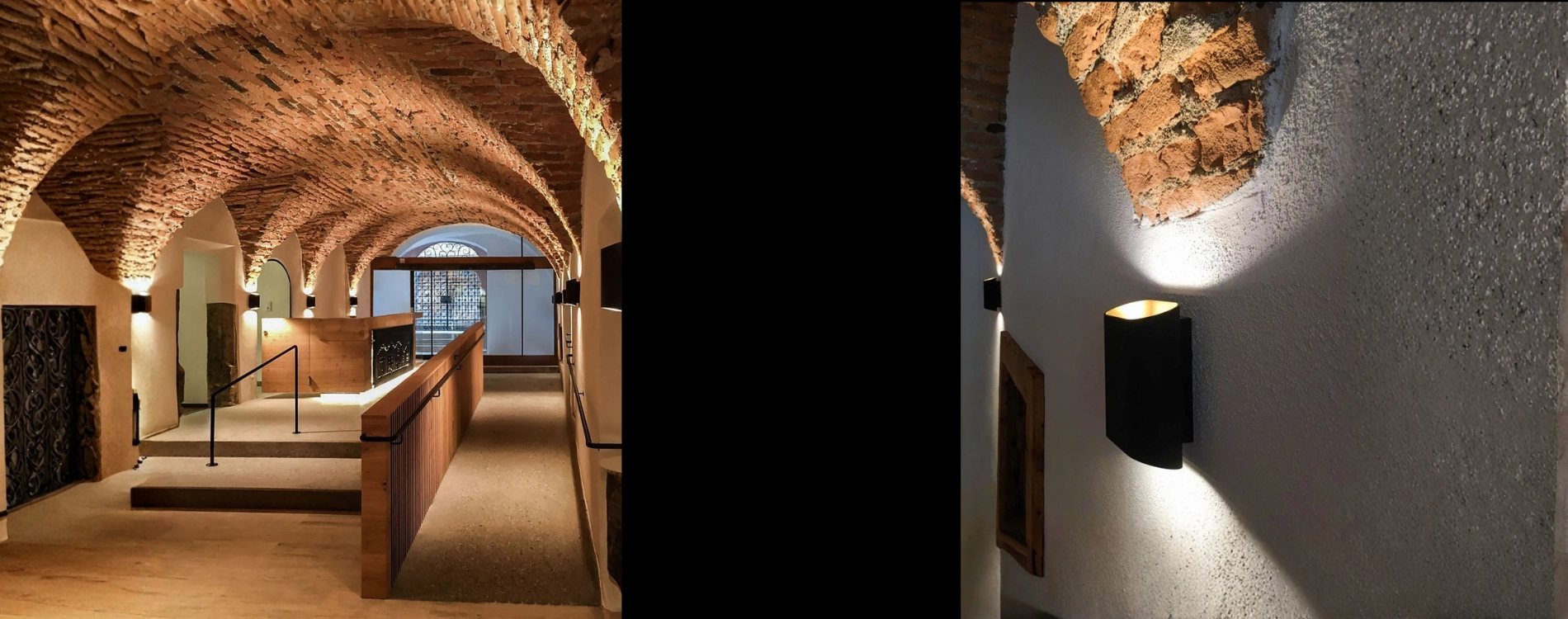

Ovalis is a sophisticated lighting solution and the first ceiling wash decorative wall sconce. Its unique and innovative design allows light to shine up and down from the fixture, casting a beautiful, layered illumination that enhances both functional and decorative spaces. Featuring a unique oval shape with a striking central cut out, Ovalis emits both direct and indirect light, creating a balanced, atmospheric glow. Concealed wall washing optics provide excellent glare control, while the wallwash reflectors are engineered at a specific angle to achieve a special full wash light distribution. This unique feature makes Ovalis ideal for a variety of settings, including large corridors, heritage buildings with brick facades, lobbies, large gathering areas, and so much more. Ovalis also features a glass cover that protects the LED and reflectors, allowing for ease of cleaning. Select from over 25 standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.
