Suspension

Downloads Finishes Inspiration

General

Reset

Series: Parallel

Partner: Prolicht

Division: Architectural

Installation: Suspension

Product Type: Acoustic

Mounting Location: Ceiling

Light Distribution: Direct

Physical

Shape: Oblong

Length (mm): 1800, 2400

Length (in): 70 ⁷⁄₈, 94 ¹⁄₂

Width (mm): 500

Width (in): 19 ¹¹⁄₁₆

Diffuser: PMMA - Opal / Micro-Prism

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR

see color chart below

Acoustic Finish: SFW / CYW / SEE / SYN / MTS / PMB / TTN / CYB / STO / DPE / BES / SHB / ARE / ANE / VRD / CRF

Fixture Material: Aluminum

Primary Material: Acoustic

Cable Details: 2000mm / 78 3/4" or 6000mm / 236 1/4" Transparent Cable

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 31, 40

Total Output Wattage (W): 28.2, 36

Dimming: Phase Dimming / O-10V Dimming / Matter Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - 120 / 277Vac

Driver Class: Class 2

Input Voltage (V): 120 - 277

LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000

Nominal Lumen (lm): Max 2729

CRI: >90 CRI

Lamp Life (hrs): 50000

Optical

Beam Angle: 46 / 62

Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards

IP rating: IP20

Parallel 4 matching products

	A300374-	Parallel Acoustic - Suspension 1800mm / 70 7/8" x 500mm / 19 11/16" with Linear Insert 1455mm / 57 5/16" - 31W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Max. 2729lm - CRI 90 - Dimming
	A300375-	Parallel Acoustic - Suspension 1800mm / 70 7/8" x 500mm / 19 11/16" with Rico Linear Insert 1455mm / 57 5/16" - 31W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Max. 2729lm - CRI 90 - Dimming - Beam Angle: 46 / 62
	A300376-	Parallel Acoustic - Suspension 2400mm / 94 1/2" x 500mm / 19 11/16" with Linear Insert 1885mm / 74 3/16" - 40W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Max. lm - CRI 90 - Diffuser Option: Dimming
	A300377-	Parallel Acoustic - Suspension 2400mm / 94 1/2" x 500mm / 19 11/16" with Rico Linear Insert 1885mm / 74 3/16" - 40W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Max. 2729lm - CRI 90 - Dimming - Beam Angle: 46 / 62

Series Description

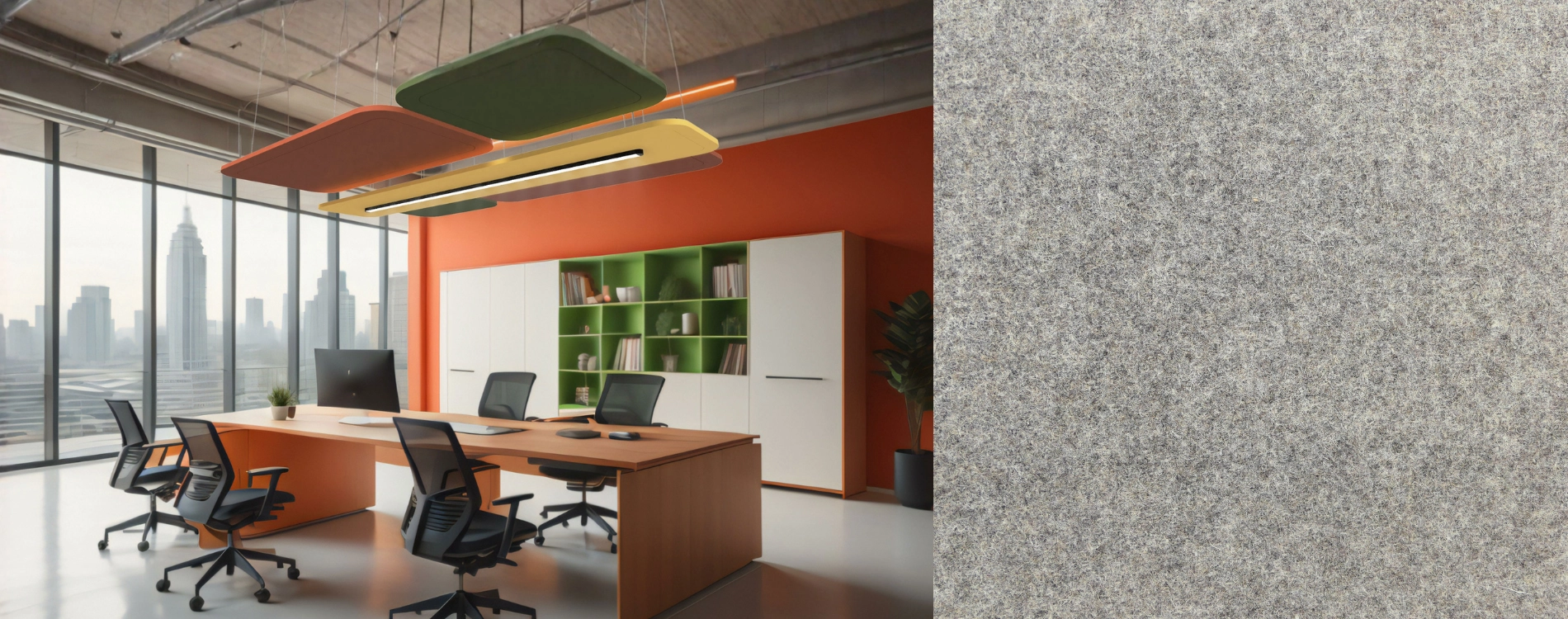

Parallel is a suspended ceiling light that balances the new technology of acoustic lighting with thoughtful design. This luminaire meets the highest requirements in the professional lighting sector by combining the know-how in lighting technology with the best acoustic products. The light of Parallel can be focused and directed in a targeted manner using reflectors, thus guaranteeing the best illumination of workplaces. Having the light source regressed within the suspension luminaire ensures that the light in the acoustic panel almost disappears, while the rounded corners of the floating sail create a secure feeling of space. The fibers from recycled water bottles make the material a sustainable and powerful source to meet your acoustic needs. Choose from a curated and extensive selection of refined colors, ensuring seamless customization to complement any interior design.

Manufactured in Austria, by Prolicht.
