Surface

Downloads Finishes Inspiration

General

Reset

Series: Speed

Partner: Prolicht

Division: Architectural

Installation: Surface

Product Type: Wall Surface

Mounting Location: Wall

Light Distribution: Indirect

Physical

Shape: Rectangle

Length (mm): 320, 605

Length (in): 12 ⁵⁄₈, 23 ¹³⁄₁₆

Height (mm): 50

Depth (mm): 195

Height (in): 1 ¹⁵⁄₁₆

Depth (in): 7 ¹¹⁄₁₆

Weight (kg): 2.393, 4.026

Weight (lbs): 5.276, 8.876

Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR

see color chart below

Fixture Material: Extruded Aluminum

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 25, 50

Total Output Wattage (W): 22.5, 45.6

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

LED

Number of LEDs: 2 strips, 4 strips

Color Temperature (°K): 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 3300 / 3450 / 3520, 6610 / 6899 / 7040

CRI: >80 CRI

Lamp Life (hrs): 50000

Optical

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20

Speed 2 matching products

	A33286-	Speed Wall Uplight - 320mm / 12 5/8" - 25W LED (Zhaga Standard) - 3000K / 3500K / 4000K
	A33287-	Speed Wall Uplight - 605mm / 23 13/16" - 50W LED (Zhaga Standard) - 3000K / 3500K / 4000K

Series Description

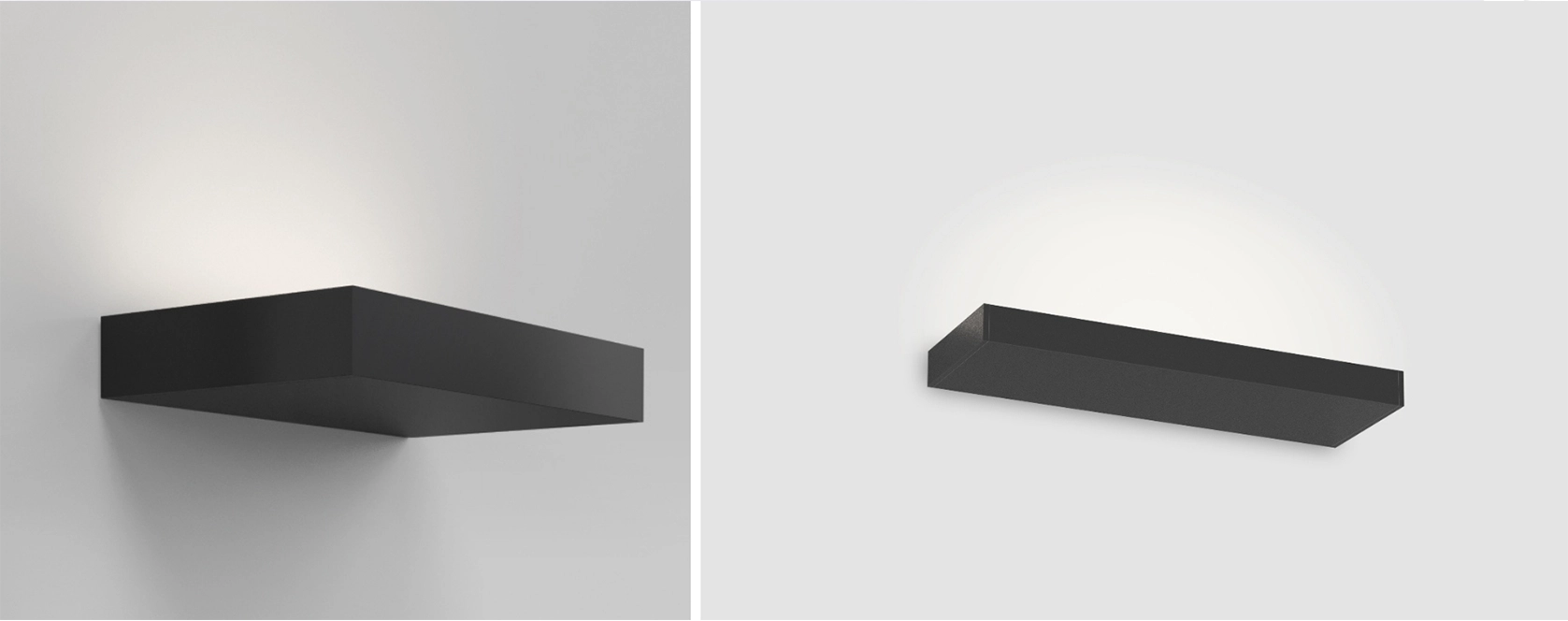

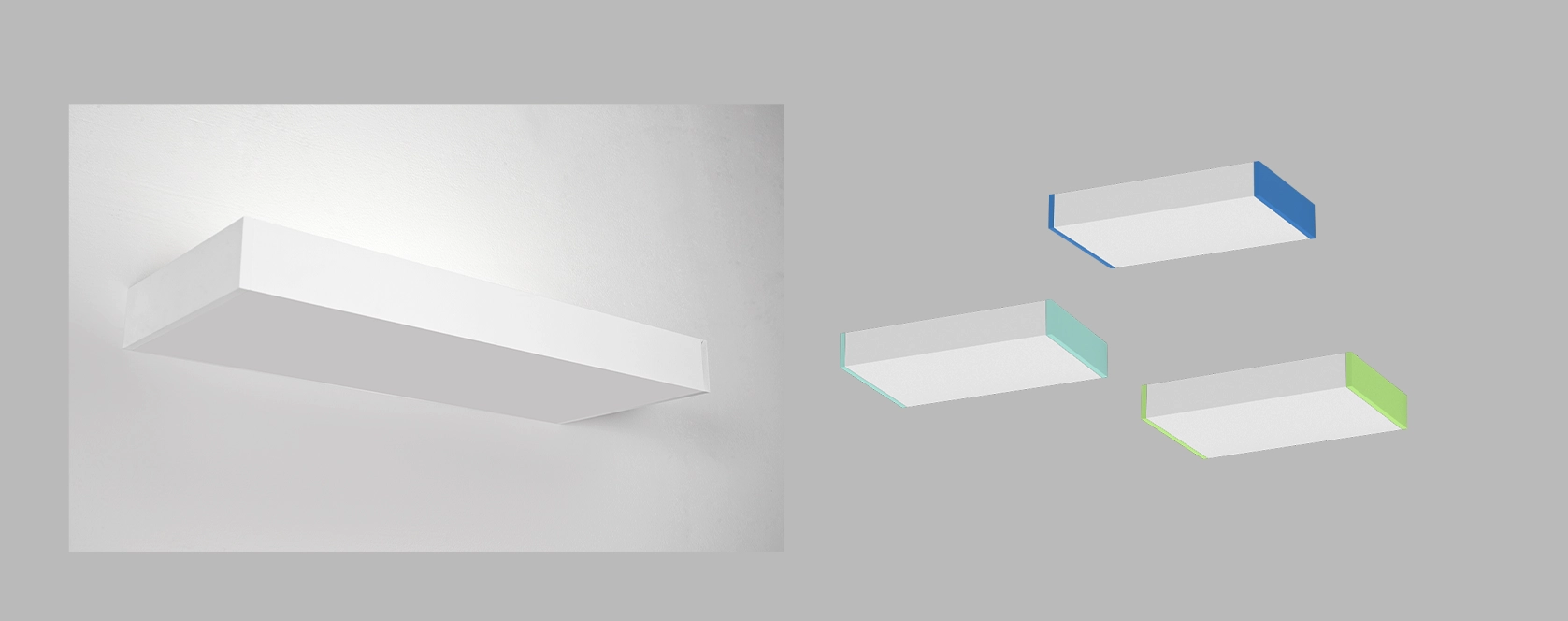

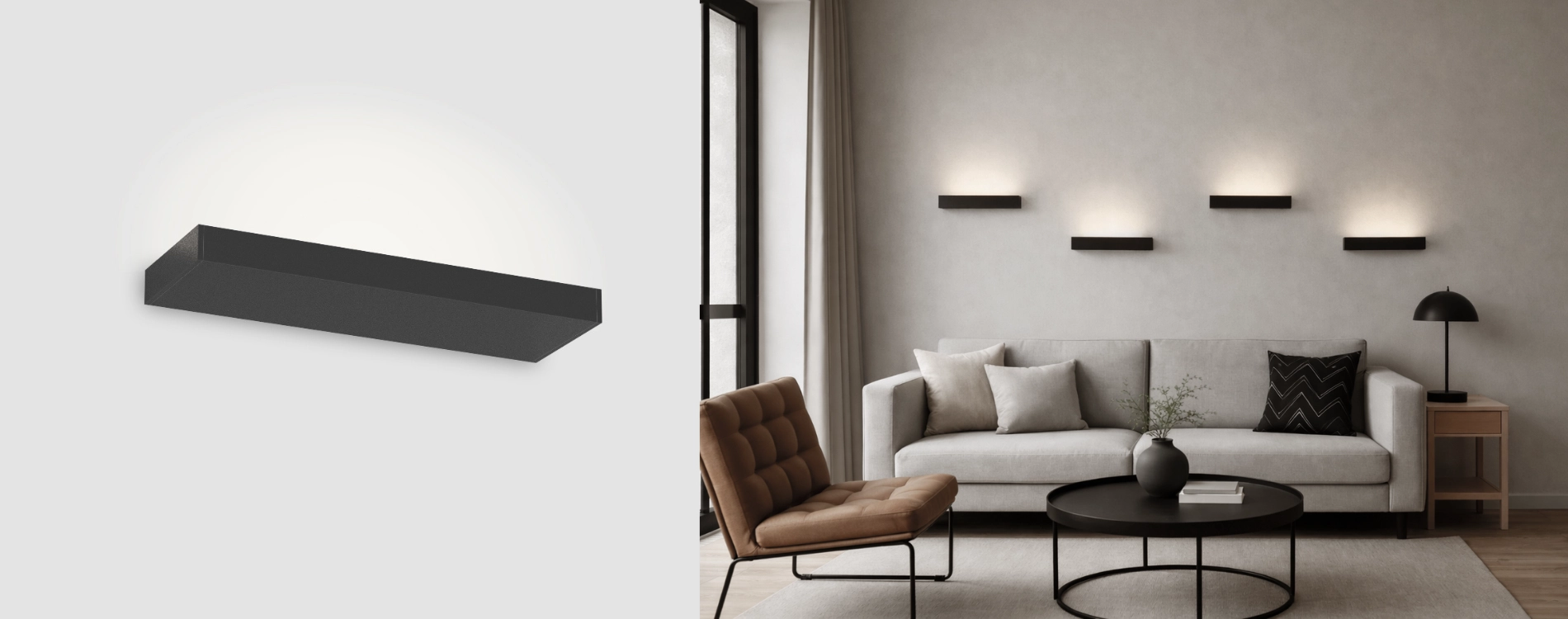

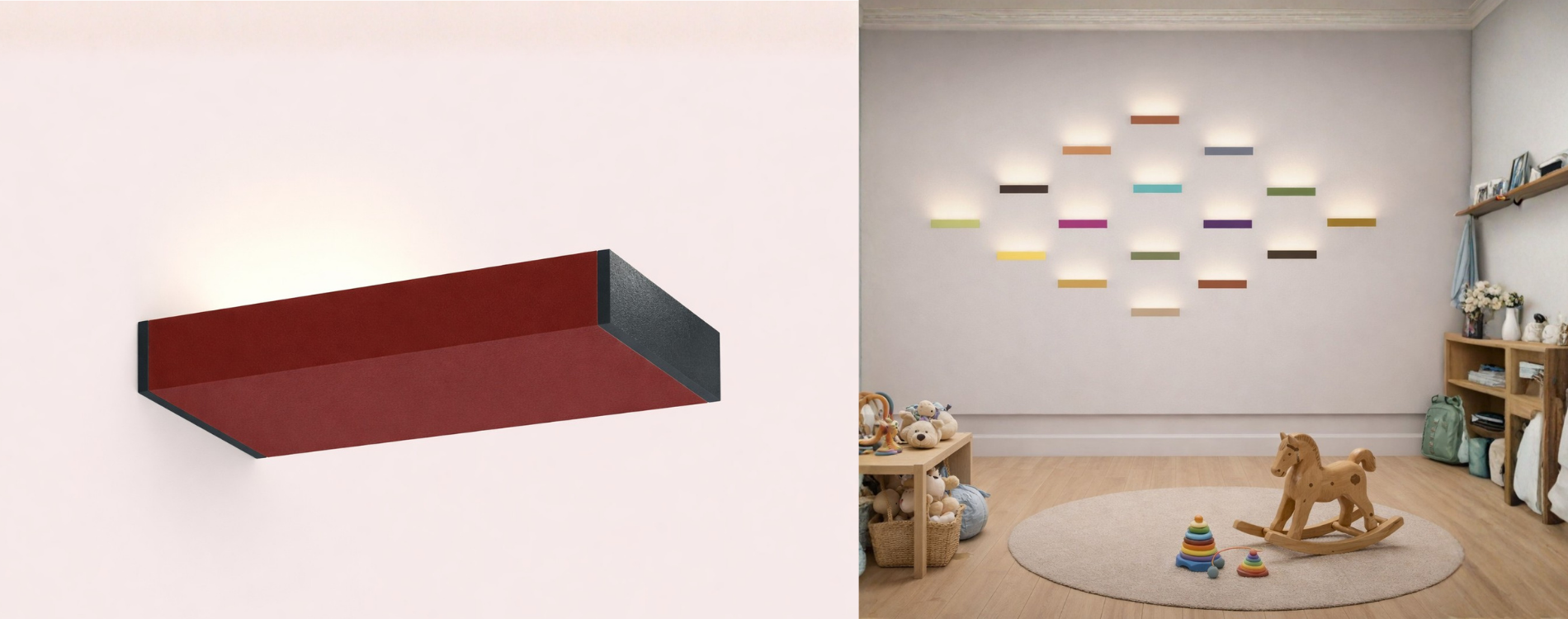

Speed has undergone a fundamental modernization and update. This surface-mounted wallwash luminaire makes economical use of the available resources by using the most up-to-date LED technology and now offers its well-known, attractive, visual effect while reducing energy consumption. The particularly attractive lighting effect on the walls in combination with the possibility of configuring the luminaire in one of the 25+ standard color finish options offers exciting possibilities to visually enhance a room with the lighting solution.

Manufactured in Austria, by Prolicht.
