Cupola - Bollard, 120mm x 47mm, 2W LED, 2400K / 2700K / 3000K, IP66, CRI 90, Diffused (requires Spike to be ordered separately) – Zaneen

General

Reset
Series: Cupola
Partner: Zaneen
Zaneen products
Division: Exterior
Exterior products
Installation: Post
Post products
Product Type: Bollard - Garden
Bollard - Garden products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Downlight
Downlight products



Physical

Shape: Dome

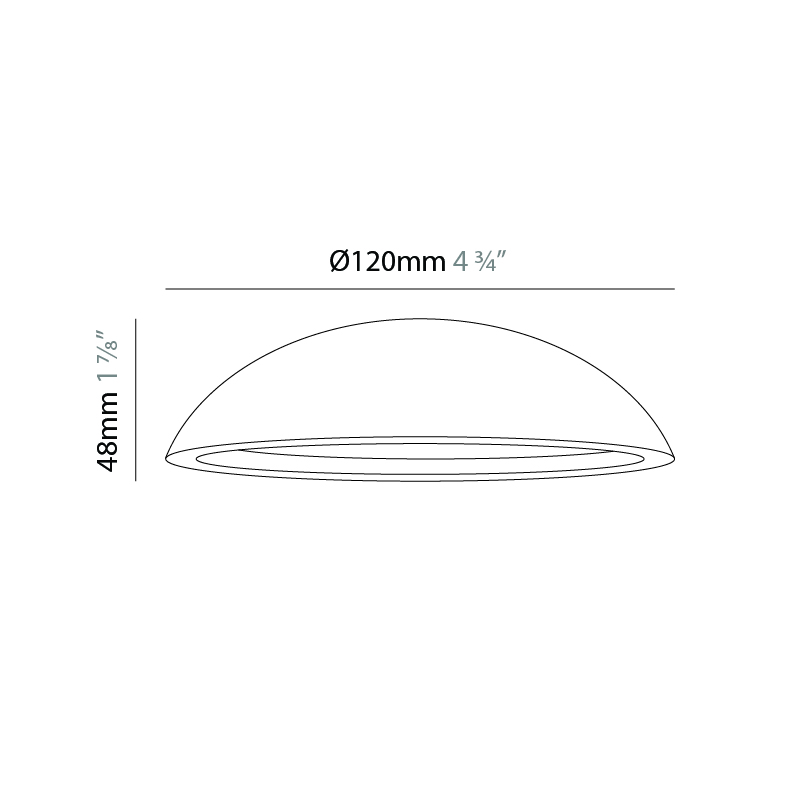

Diameter (mm): 120
Diameter (in): 4 3⁄4
Height (mm): 48
Height (in): 1 7⁄8
Fixture Finish: WHI / BLK / FBZ / COR / GRN
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 7
Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2200 / 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 402 (3000K)
Nominal Lumen (lm): 773 (3000K)
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Optic°: Diffused



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK07
Bug Rating: B0 U0 G0





Base Model Number: E12B0001-

Specify

Description

Cupola is a portable and post fixture designed to evoke a sense of familiarity and comfort, embodying minimalism in its soft, slim form. Whether indoors or outdoors, Cupola Portable sets the stage for intimate gatherings with its rechargeable design, providing up to 8 hours of battery life. With an IP66 rating, including protection for its USB-C port, it’s perfect for any setting. Tailor the ambiance with its diffused optics and choose from a wide range of finishes, with further customization available upon request. For outdoor spaces demanding elegance and charm, Cupola Post offers a graceful silhouette and is dark-sky compliance, casting a warm, inviting glow. Its protection system and four mounting systems ensure both durability and flexibility. With a 24Vdc power supply, Cupola Post effortlessly elevates any environment.


Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0120024HY Hatch - LV12-24N-UNV-Y - Non-dimming - 12W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DPH0300024EL EMCOD - MLE30-24DC - Phase dimming (LE / TE) @120Vac only - 1.2-30W - 24Vdc - 120-277Vac - (Outdoor) LED power supply w/UL approved enclosure
by – 5 15/16″ x 1 17/64″ , offers LED lighting solutions | Zaneen Architectural DVO0160024MF MeanWell - LPF-16D-24 - 1-10Vdc / Resistance / 10V PWM Dimming - 5.28-16.08W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP5 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DVO0300024MUL-E Magnitude - CVD30L24DC - 0-10Vdc Dimming (1%) - 30W - 24Vdc - 120-277Vac - LED power supply w/UL Listed Enclosure
by Unonovesette – 2 5/16″ x 1″ , offers high performance and quality material | Zaneen Exterior E12A0074 0/1-10V dimmer fader sequencer - input 12/24/48Vdc - 1 ch. - Constant Voltage (Required for 0-10V dimming. To be used with Non Dimming Driver)
E12A0075 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage (Required for DALI dimming. To be used with Non Dimming Driver)
E12A0076 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage - IP67 (Required for DALI dimming. To be used with Non Dimming Driver)
E12A0139- Apollo Giardino Ground Spike 600mm
E12A0140- Apollo Giardino Ground Spike 900mm
E12A0149- Apollo Giardino Base with Anchor Bolts for 600mm Spike
E12A0150- Apollo Giardino Base with Anchor Bolts for 900mm Spike
E12A0151 Apollo Giardino Base for Housing box for Power Supply for 600mm
E12A0152 Apollo Giardino Base for Housing box for Power Supply for 900mm
by – 3 5/8″ x 1 9/16″ , offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP9 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

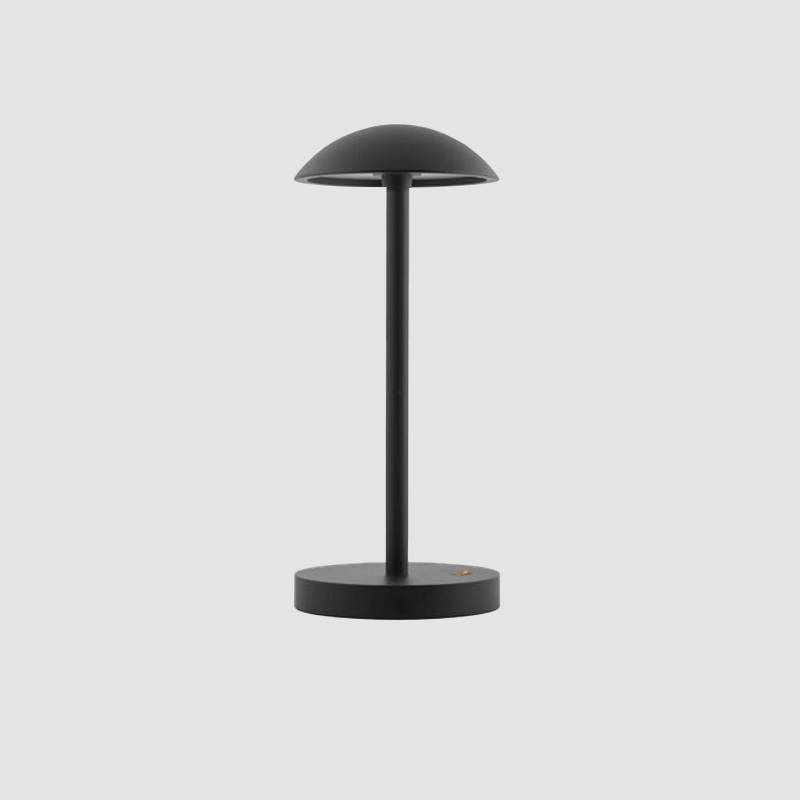

Cupola by Zaneen – 4 3/4″ x 4 3/4″ Portable, Battery Operated offers high performance and quality material | Zaneen Exterior E12B0000- Cupola - Table Lamp, 120mm x 330mm, 2W LED, 2400K / 2700K / 3000K, Integrated Battery, IP66, CRI 90, Diffused - USB-C Charging time Approx. 8 hours Flicker-free dimmable down to 0.1%
Cupola by Zaneen – 4 3/4″ x 1 7/8″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior E12B0001- Cupola - Bollard, 120mm x 47mm, 2W LED, 2400K / 2700K / 3000K, IP66, CRI 90, Diffused (requires Spike to be ordered separately)

Downloads

Request Files

Cupola by Zaneen – 4 3/4″ x 1 7/8″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior

Cupola by Zaneen – 4 3/4″ x 1 7/8″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior

Lens

Diffused
Dimmable
Color rendering index

>90 CRI
Color temperature

2200 / 2700 / 3000 / 4000
Lumen (luminous flux)

402 (3000K)
Certified for North American Standards
Protected against ingress of dust; protected against powerful jets of water or heavy seas
Protected against 2 joules impact (equivalent to 0.5kg mass


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
