Series: Diversi
Subseries: Diversi 60
Partner: Zaneen
Zaneen products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Flood
Flood products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Adjustable
Adjustable products



Physical

Shape: Cylinder
Diameter (mm): 60
Diameter (in): 2 3⁄8
Length (mm): 116
Length (in): 4 9⁄16
Weight (kg): 0.5
Weight (lbs): 1.102
Installation Requirement: Surface mounted / Spike / Tree strap
Diffuser: Extra clear tempered / Frosted glass 6mm
Fixture Finish: ABA / ANB / ASB / PSB
see color chart below
Fixture Material: Machined Anticorodal Aluminium
Cable Details: 350mm NS20N PCP 2x0.5 mm2



Electrical

Lamp Type: LED
Total Output Wattage (W): 12
Dimming: Phase Dimming (120Vac Only)
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 350



LED

Number of LEDs: 1
Color Temperature (°K): 1800-3000 - Dim to Warm
Max. Delivered Lumen (lm): 824 to 22
CRI: >90 CRI
Lamp Life (hrs): 100000
Special LEDs offerings: Dim to Warm



Optical

Optic°: 20 / 40
Adjustability: Rotational 355°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK08





Diversi Model Number: E12F0006-

Specify

Series Description

Diversi is a compact family of LED fixtures renowned for their efficiency, optical excellence, and resilience, available in floodlight, surface, and suspension applications. The range includes a variety of subseries, each reflecting its size and offering superior performance. With an IP66 rating and construction from either hard-anodized aluminum or machined aged solid brass, Diversi is built to endure the harshest environments. The fixtures are equipped with a protection system and feature an integrated constant current driver, allowing them to be powered in parallel with a 24Vdc constant voltage power supply.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0150350ES ERP - ESS015W-0350-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 15W - 350mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
Diversi by Unonovesette – x 13 3/4 / 19 11/16 / 39 3/8 / 59 1/16″ , offers high performance and quality material | Zaneen Exterior E12A0036- Vario - Ground spike 350mm / 500mm / 1000mm / 1500mm
Diversi by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0063- Vario - Base
by Unonovesette – 2 5/16″ x 1″ , offers high performance and quality material | Zaneen Exterior E12A0074 0/1-10V dimmer fader sequencer - input 12/24/48Vdc - 1 ch. - Constant Voltage (Required for 0-10V dimming. To be used with Non Dimming Driver)
E12A0075 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage (Required for DALI dimming. To be used with Non Dimming Driver)
E12A0076 DALI dimmer fader sequencer input - 12/24/48Vdc 1 ch. constant voltage - IP67 (Required for DALI dimming. To be used with Non Dimming Driver)
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
by Unonovesette – 196 7/8 / 393 11/16 / 787 3/8 / 984 1/4″ , offers high performance and quality material | Zaneen Exterior E12A0014- Cable in 5m / 10m / 15m / 20m / 25m lengths - Black
by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0025 Honeycomb louver
by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0026 Anti-Glare louver
Diversi by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0034- Vario 60 - Snoot - 45° Optics
Diversi by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0040 Tree strap - with 2 Base - Black Anodized
Diversi by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0064 Tree strap - with 1 Base - Black Anodized
Diversi by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0065 Tree strap - with 3 Base - Black Anodized

Also Available within Series

Diversi by Zaneen – 2 7/16″ x 5 1/8″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior E12C0000- Diversi 60 P HV - Ceiling - ∅62mm / 2 27/16" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10 X 45° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C
Diversi by Zaneen – 1 3/4″ x 4 3/4″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior E12C0001- Diversi 40 P - Surface Ceiling - ∅45mm / 1 3/4" - 2.6W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10 X 45° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C
Diversi by Zaneen – 1 3/4″ x 4 3/4″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior E12C0002- Diversi 40 P - Surface Ceiling - ∅45mm / 1 3/4" - 3.4W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10 X 45° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C
Diversi by Zaneen – 2 3/8″ x 4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0000- Diversi 60 - Floodlight - ∅60mm / 2 3/8" - 5W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / 45°x10° - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 1 3/4″ x 4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0002- Diversi 40 - Floodlight - ∅40mm / 1 3/4" - 2.6W - LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 23° / 43 / 10°x40° / 40°x10° - Min. 4 fixtures Required for Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 1 3/4″ x 4″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0003- Diversi 40 - Floodlight - ∅40mm / 1 3/4" - 3.6W - LED - 2200K / 2700K / 3000K / 4000K - Optics 10° / 23° / 43 / 10°x40° / 40°x10° - Min. 3 fixtures Required for Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 2 3/8″ x 4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0004- Diversi 60 - Floodlight - ∅60mm / 2 3/8" - 9W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / 45°x10° - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 2 3/8″ x 4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0005- Diversi 60 - Floodlight - ∅60mm / 2 3/8" - 11W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10°x45° / 45°x10° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 2 3/8″4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0006- Diversi 60 - Floodlight - ∅60mm / 2 3/8" - 12W LED - Dim to Warm (3000K-1800K) - Optics 20° / 40° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 2 3/8″4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0007- Diversi 60 - Floodlight - ∅60mm / 2 3/8" - 9W LED - RGBW - Optics 35° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 45°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 55°C
Diversi by Zaneen – 1 5/16″3 1/2″ x 2 11/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior E12F0010- Diversi 33 Zoom - Floodlight - ∅33mm / 1 5/16" - 2W LED - 2700K / 3000K / 4000K - IP66 - CRI: <90 - Optics: Zoom 6° - 52° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Diversi by Zaneen – 1 3/4″ x 4 3/4″ Suspension, Pendant offers high performance and quality material | Zaneen Exterior E12S0002- Diversi 40 S - Suspension - ∅45mm / 1 3/4" - 2.6W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10 X 45° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C
Diversi by Zaneen – 1 3/4″ x 4 3/4″ Suspension, Pendant offers high performance and quality material | Zaneen Exterior E12S0003- Diversi 40 S - Suspension - ∅45mm / 1 3/4" - 3.4W LED - 2700K / 3000K / 4000K - Optics 10° / 30° / 50° / 10 X 45° - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C

Downloads

Request Files

Diversi by Zaneen – 2 3/8″4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior

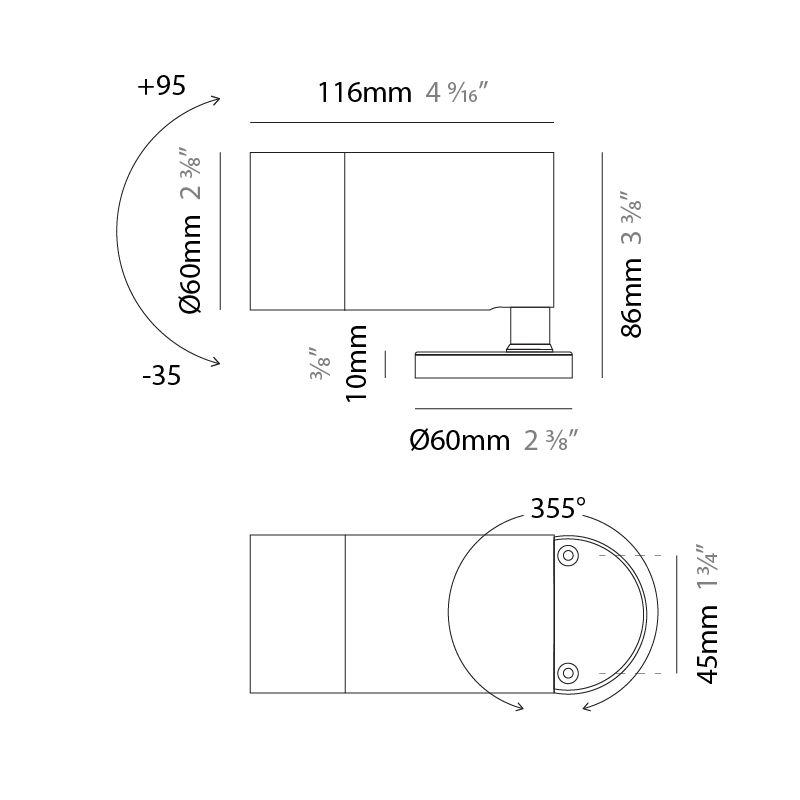

Diversi by Zaneen – 2 3/8″4 9/16″ Surface, Flood offers high performance and quality material | Zaneen Exterior / Line art

Rotation

355°
Lens

20 / 40
Dimmable
Color rendering index

>90 CRI
Color temperature

1800-3000 - Dim to Warm
Lumen (luminous flux)

824 to 22
Certified for North American Standards
Protected against ingress of dust; protected against powerful jets of water or heavy seas
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

ASB - Aged Solid Brass
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
