Division: Architectural
Series: Smoothy
Subseries: Smoothline, Smoothy Flat, Smoothy Standard
Mounting Type: Recessed, Surface, Suspension, Trimless
Mounting Location: Ceiling
Brand: Prolicht
Shape: Oblong, Oval, Rectangle, Square
Length (mm): 370, 392, 600, 622, 630, 652, 900, 930, 952, 1200, 1222, 1230, 1252, 1500, 1530, 1552
Length (in): 14 9⁄16, 15 7⁄16, 23 5⁄8, 24 1⁄2, 24 13⁄16, 25 11⁄16, 35 7⁄16, 36 5⁄8, 37 1⁄2, 47 1⁄4, 48 1⁄8, 48 7⁄16, 49 5⁄16, 59 1⁄16, 60 1⁄4, 61 1⁄8
Width (mm): 195, 200, 222, 370, 392, 600, 622
Width (in): 7 7⁄8, 7 11⁄16, 8 3⁄4, 14 9⁄16, 15 7⁄16, 23 5⁄8, 24 1⁄2
Height (mm): 120, 150, 370, 600
Depth (mm): 60, 150, 156, 165, 176
Height (in): 4 3⁄4, 5 7⁄8, 14 9⁄16, 23 5⁄8
Depth (in): 2 3⁄8, 5 7⁄8, 6 1⁄2, 6 1⁄8, 6 15⁄16
Max. Overall Height (mm): 2120, 2120mm / 83-7/16
Max. Overall Height (in): 82 1⁄2, 83 7⁄16
Ceiling Thickness (mm): 10 / 12.5 / 15 / 25, 10 / 12.5 / 15 / 25 / 30
Ceiling Thickness (in): 3/8 or 1/2 or 9/16 or 1, 3/8 or 1/2 or 9/16 or 1 or 1 3/16
Min. Recessing Depth (mm): 160, 180, 200
Min. Recessing Depth (in): 6 5⁄16, 7 1⁄16, 7 7⁄8
Light Distribution: Direct
Weight (kg): 3.8, 3.16, 3.403, 3.458, 4.033, 4.15, 4.236, 4.341, 5.043, 5.93, 5.108, 5.756, 6.973, 7.6, 7.634, 8.458, 8.855, 8.895, 9.4, 10.86, 10.765, 11.315, 12.317, 12.549, 20.33, 24.4
Weight (lbs): 6.94, 7.6, 7.49, 7.61, 8.87, 9.13, 9.32, 9.57, 11.24, 11.40, 12.66, 13.05, 15.34, 16.72, 16.80, 18.61, 19.48, 19.57, 20.68, 23.73, 23.94, 24.89, 27.10, 27.61, 44.82, 53.68
Diffuser: PMMA - Opal, PMMA - Opal or Micro-Prism
Fixture Finish:
SSR / BKV / CWI / CRY / HAB / LAG / UFT / ITA / RUA / RUR / MIC / FTG / MYG / TWT / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / GUM / CHC / COM / ABZ / JAG
see color chart below
Fixture Material: Extruded Aluminum / Steel
Cable Details: 2000mm / 78 3/4"
Cut-out Measurements: 375mm / 14 3/4" x 375mm / 14 3/4", 405mm / 15 15/16" x 405mm 15 15/16", 605mm / 23 13/16" x 605mm / 23 13/16", 635mm / 25" x 205mm / 8 1/16", 635mm / 25" x 230mm / 9 1/16", 635mm / 25" x 635mm / 25", 935mm / 36 13/16" x 205mm / 8 1/16", 935mm / 36 15/16" x 230mm / 9 1/16", 1205mm / 47 7/16" x 605mm / 23 13/16", 1235mm / 48 5/8" x 205mm / 8 1/16", 1235mm / 48 5/8" x 230mm / 9 1/16", 1535mm / 60 7/16" x 205mm / 8 1/16", 1535mm / 60 7/16" x 230mm / 9 1/16"
Upon Request: Unique Sizes Unique Ceiling Thickness Unique Mounting Depth Spot Inserts
Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 12, 13.2, 20.5, 21, 31.5, 31.9, 41.8, 42, 50, 52, 52.5, 52.8, 55, 108.9
Total Output Wattage (W): 10, 12, 12.4, 18, 27, 36, 38, 45, 49.7, 99
Dimming: Non-Dimmable, Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal, Constant Current -Universal
Driver Class: Class 1, Class 2
Input Voltage (V): 120 / 277
Constant Current (MA): 350, 500
Upon Request: (Not included - see components) Integral: 0-10Vdc dimming / Phase dimming 120Vac only, 0-10Vdc dimming / Phase dimming 120Vac only
Number of LEDs: 6 x 3W, 9, 12, 15
Color Temperature (°K): 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 1090 / 1107 / 1130, 1200 / 1225 / 1250, 1380 / 1401 / 1430, 1430 / 1539 / 1570, 1460 / 1568 / 1600, 1530 / 1646 / 1680, 1560 / 1635 / 1710, 2140 / 2303 / 2350, 2190 / 2362 / 2410, 2340 / 2518 / 2570, 2860 / 3077 / 3140, 2920 / 3146 / 3210, 3120 / 3352 / 3420, 3570 / 3842 / 3920, 3650 / 3930 / 4010, 3890 / 4194 / 4280, 4810 / 4880 / 4980, 5370 / 5449 / 5560, 5520 / 5606 / 5720, 5520 / 5606 / 5720, 11050 / 11221 / 11450, 11050 / 11250 / 11450
Nominal Lumen (lm): 3285lm, 6680lm
CRI: >80 CRI
Efficiency (%): 0.804, 0.827, 0.867, 65 (5mm Perspex) / 80.40, 82.7, 82.7%
Lamp Life (hrs): 50000
Upon Request: RGB-W Tunable White Special Color Temperature CRI90
Certified By: Certified for North American Standards
IP rating: IP20
|
L30269- | Smoothline - Suspension - Direct - 630mm / 24 13/16" - 21W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal or Micro-Prism | |
|
L30271- | Smoothline - Suspension - Direct - 930mm / 36 5/8" - 31.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal or Micro-Prism | |
|
L30273- | Smoothline - Suspension - Direct - 1230mm / 48 7/16" - 42W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal or Micro-Prism | |
|
L30275- | Smoothline - Suspension - Direct - 1530mm / 60 1/4" - 52.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal or Micro-Prism | |
|
L31672- | Smoothy - Suspension - Ceiling - 370mm / 14 9/16" - 12W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80 | |
|
L31679- | Smoothy - Suspension - Ceiling - 600mm / 23 5/8" x 600mm / 23 5/8" - 50W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80 | |
|
L31684- | Smoothy - Suspension - 1200mm / 47 1/4" x 600mm / 23 5/8" - 108.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80 | |
|
L32365- | Smoothy - Surface - Ceiling - 370mm / 14 9/16" - 13.2W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80 | |
|
L32966- | Smoothline - Surface - Ceiling - 630mm / 24-13/16" - 20.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L32968- | Smoothline - Surface - Ceiling - 930mm / 36-5/8" - 31.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L32970- | Smoothline - Surface - Ceiling - 1230mm / 48 7/16" - 42W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L32972- | Smoothline - Surface - Ceiling - 1530mm / 60 1/4" - 52.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L36697- | Smoothy - Trimless - 370mm - 13.2W - 3000K / 3500K / 4000K | |
|
L37514- | Smoothline - Trimless - 600mm / 23-5/8" - 21W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37516- | Smoothline - Trimless - 900mm / 35-7/16" - 31.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37518- | Smoothline - Trimless - 1200mm / 47-1/4" - 42W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37520- | Smoothline - Trimless - 1500mm / 59-1/16" - 52.5W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37595- | Smoothy - Recessed - 392mm - 13.2W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37599- | Smoothy - Recessed - 622mm - 55W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37603- | Smoothy - Recessed - 1222mm - 108.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37652- | Smoothy - Trimless - 600mm - 55W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37749- | Smoothline - Recessed - Ceiling - 652mm / 25 11/16" - 20.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37756- | Smoothline - Recessed - Ceiling - 952mm / 37-1/2" - 31.9W LED (Zhaga Standard) - 3000K / 3500K / 4000K - Tri-Mode Dimming (Phase 120V / 0-10V 120/277V) | |
|
L37757- | Smoothline - Recessed - Ceiling - 1252mm / 49-5/16" - 41.8W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L37761- | Smoothline - Recessed - Ceiling - 1552mm / 61-1/8" - 52.8W LED (Zhaga Standard) - 3000K / 3500K / 4000K | |
|
L3C005- | Smoothy - Surface - Ceiling - 600mm - 55W - 3000K / 3500K / 4000K | |
|
L3D050- | Smoothy Flat - Surface - Ceiling - 370mm / 14 9/16" - 13.2W - 3000K / 3500K / 4000K | |
|
L3D052- | Smoothy Flat - Surface - Ceiling - 600mm / 23 5/8" - 55W - 3000K / 3500K / 4000K |

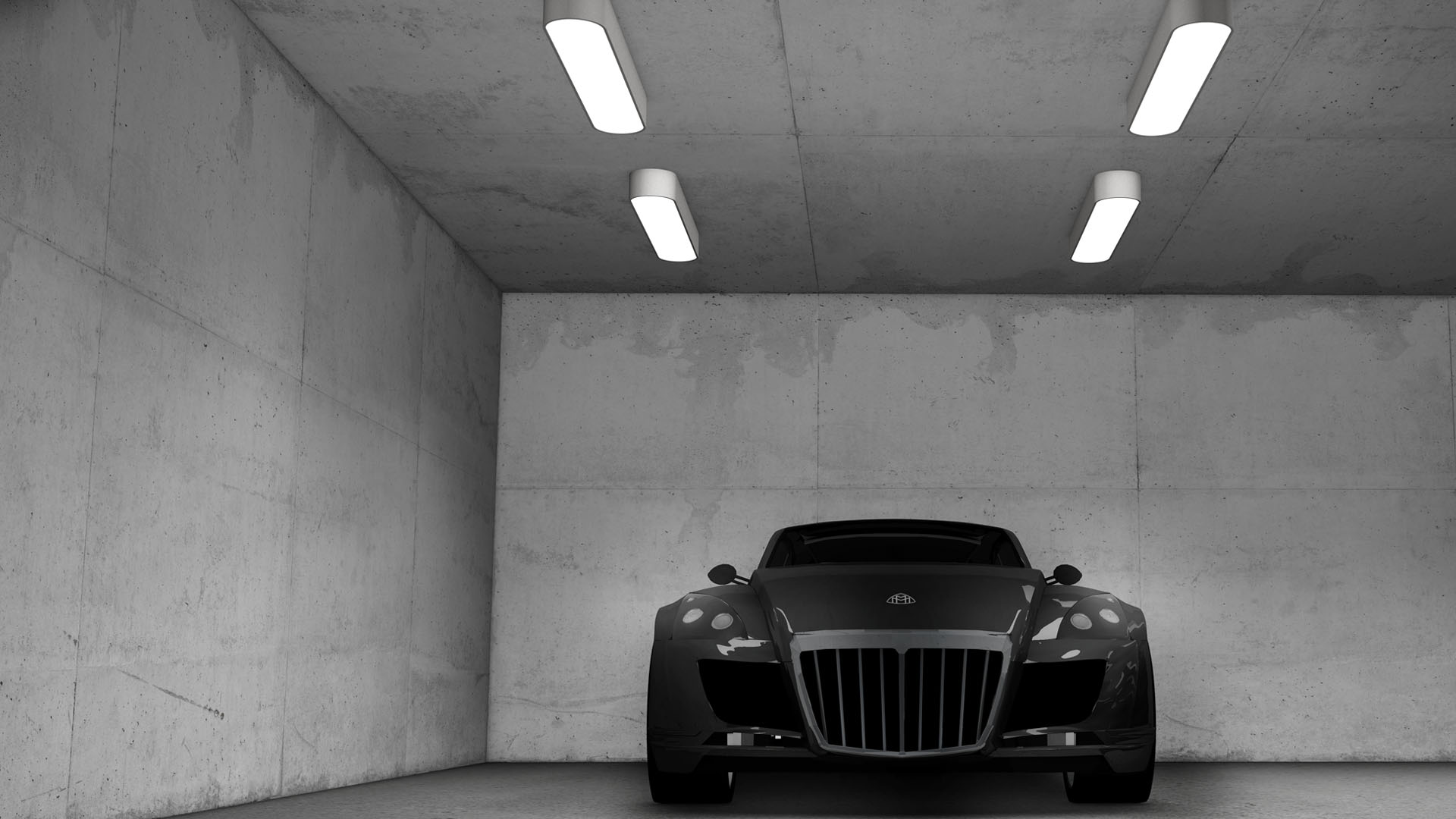

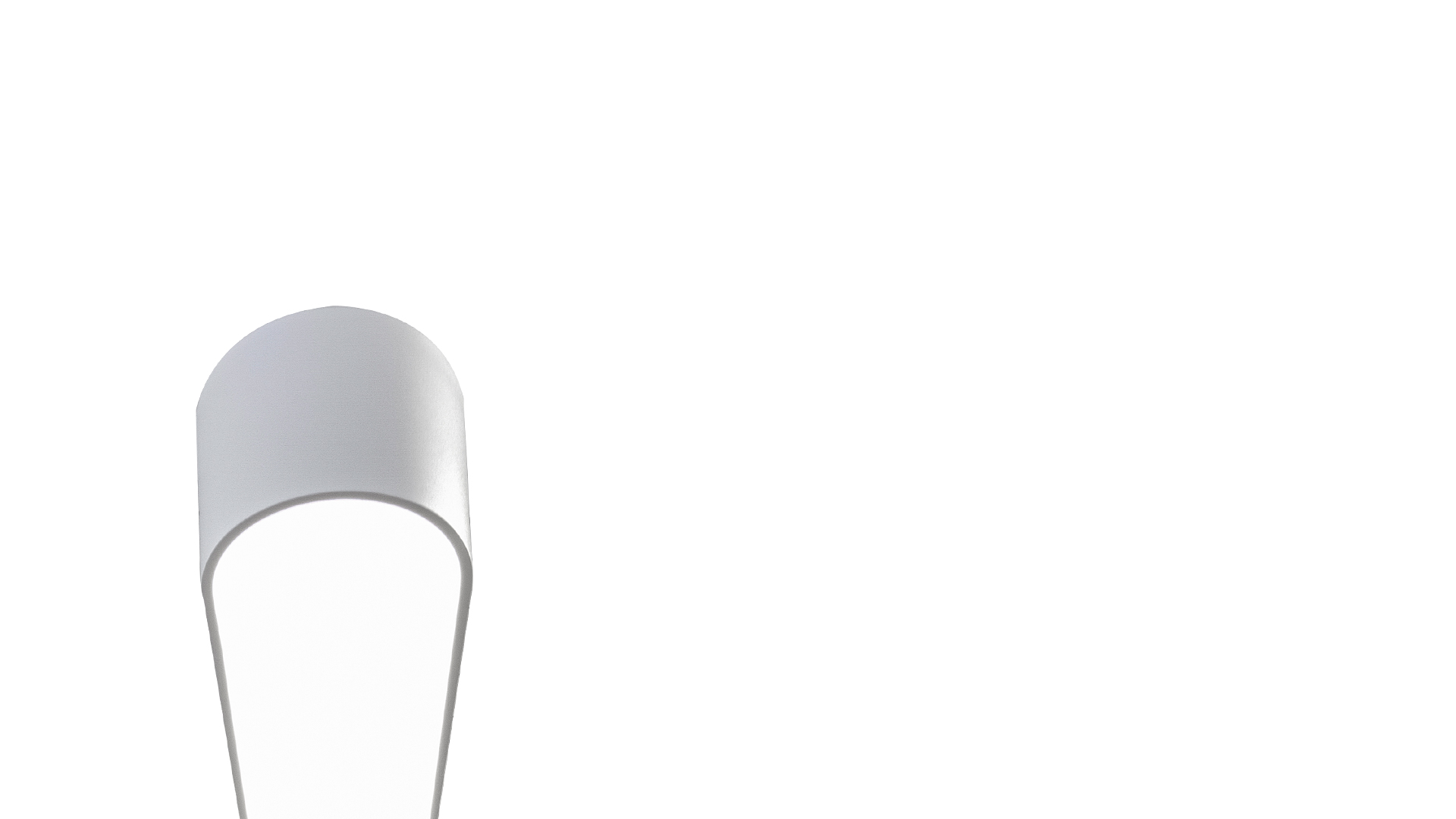

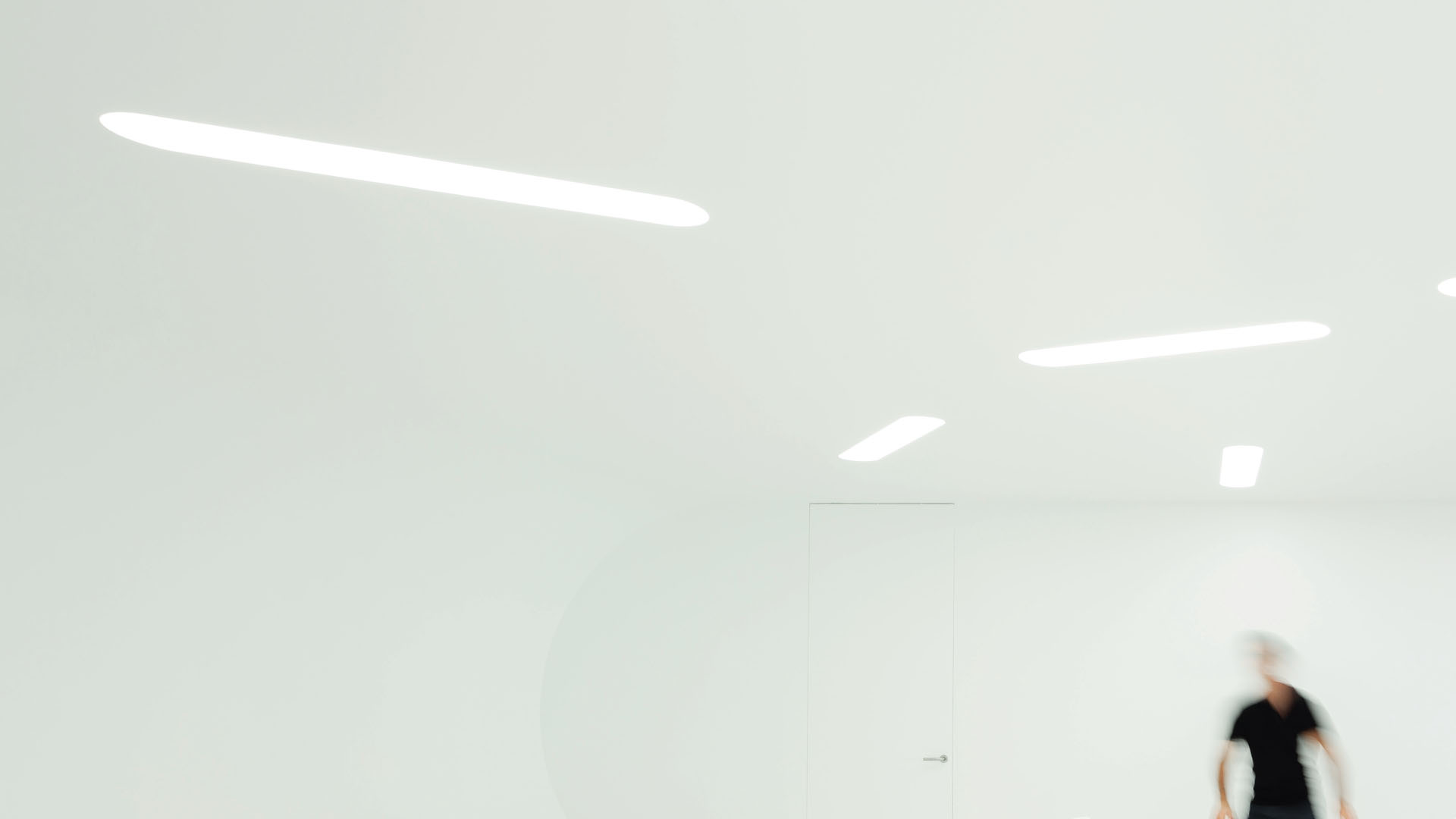

Smoothy creates a communicative, friendly atmosphere and provide flawless illumination. Characterized by their minimalist form and discreet, elegant appearance, Smoothy is a rectangular shaped family of flush mount, ceiling light, recessed and suspension applications. The trimless luminaires can be enhanced with korona effect by selecting the recessing frame with color baffle. All Smoothy luminaries are available with opal or micro-prismatic diffuser, LED color temperatures of 3000K, 3500K, and 4000K, and 29 standard color finish options for the fixture body or trim. On the Smoothy Flat, the height of the body is kept to a minimum. Whether for shops, offices or public areas, Smoothy is a harmonious additional to any interior and provides pleasant general lighting. The stylish Soft-Edge design gives it a unique identity - the corners are softly rounded, while the angularity of the light is accentuated, creating a striking commitment to clear design that is easily recognizable.
Manufactured in Austria, by Prolicht.
