Magiq Pro Trimless – Zaneen

General

Reset
Series: Magiq Pro
Subseries: Magiq Pro
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Trimless
Trimless products
Product Type: Downlight
Downlight products
Mounting Location: Ceiling
Ceiling products



Physical

Ceiling Thickness (mm): 10 / 12.5 / 15
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Input Voltage (V): 120 - 277
Constant Current (MA): 1050 / 500



LED

Lamp Life (hrs): 50000
Upon Request: RGBW Special Color Temperature Special LED



Optical

Upon Request: Special Beam Angles



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20





Base Model Number: A3MAGPRO-TRI-SYS

Specify

Description

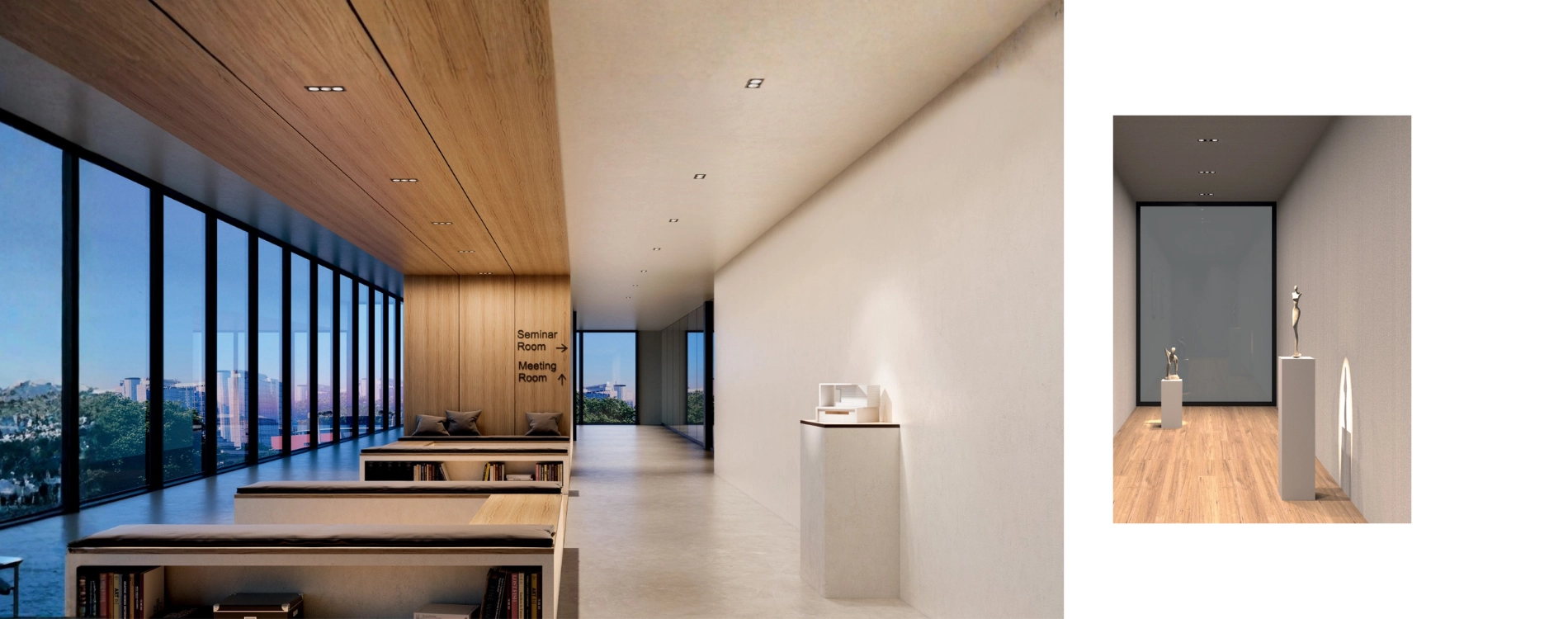

Magiq Pro highlights advanced technology for extraordinary lighting concepts with this family of spotlights. Designed to perfectly highlight architecture and interior design, Magiq Pro spots utilize state-of-the-art lighting technology while requiring minimal space. The aluminium die-casted housing functions as a passive cooling unit, ensuring optimal heat management and the ideal temperature environment for the LEDs. Each Maqiq Pro spot can be fitted with colored Korona Cones, which simply click into place in front of the spots, create a stunning effect by appearing to be colorfully lit from within without altering the light's color. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

Product Components to be ordered separately

Image SKU Description Datasheet
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35767- Magiq Pro - Wallwash - 48mm / 1 7/8" - 10.9W LED (Zhaga Standard) - 2700K / 3000K / 4000K
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35768- Magiq Pro - Spot - 48mm / 1 7/8" - 9W LED (Zhaga Standard) - 2700K / 3000K / 4000K - Reflector 14°
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35769- Magiq Pro - 48mm / 1 7/8" - 10.9W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - Reflector: 34°/ 52° / 68° - Lens - No Lens / Linear Spread Lens / Spread Lens / Honeycomb Louvre
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35770- Magiq Pro - Wallwash IP44 - 48mm / 1 7/8" - 10.9W LED (Zhaga Standard) - 2700K / 3000K / 4000K
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35771- Magiq Pro - IP44 - 48mm / 1 7/8" - 10.9W LED (Zhaga Standard) - 2700K / 3000K / 4000K - Beam Angle 14° - Dimmable
Magiq Pro by Prolicht – 1 7/8″ x 3 1/2″ Recessed, Ceiling Recessed offers LED lighting solutions | Zaneen Architectural A35772- Magiq Pro - IP44 - 48mm / 1 7/8" - 10.9W LED (Zhaga Standard) - 2700K / 3000K / 4000K - Reflectors 34°/ 52° / 68° - Lens: No Lens / Linear Spread Lens / Spread Lens / Honeycomb Louvre
Magiq Pro by Prolicht – 2 1/4″ x 1 9/16″ Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A380148- Magiq Pro - Trimless Recessing Frame - 57mm x 57mm
Magiq Pro by Prolicht – 4 7/16″ x 1 9/16″ Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A380149- Magiq Pro - Trimless Recessing Frame - 112mm x 57mm
Magiq Pro by Prolicht – 6 9//16″ x 1 9/16″ Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A380150- Magiq Pro - Trimless Recessing Frame - 166mm x 57mm
Magiq Pro by Prolicht – 8 11/16″ x 1 9/16″ Trimless, Modular Systems offers LED lighting solutions | Zaneen Architectural A380151- Magiq Pro - Trimless Recessing Frame - 220mm x 57mm
DAL0150SETTC TCI - MINIJOLLY DALI 20 - DALI Dimming - 2-15W - 250-700mA or 24Vdc - 120Vac - LED power supply / P/N: 123403 -Used with ENCP13 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0090500ES ERP - ESS010W-0500-18 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 9W - 500mA - 120 / 277Vac - LED power supply
DTM0210500ES ERP - ESS030W-0500-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 21W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
ENCP1 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP13 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

Magiq Pro by Prolicht – Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A3MAGPRO-REC-SYS Magiq Pro Recessed
Magiq Pro by Prolicht – Trimless, Downlight offers LED lighting solutions | Zaneen Architectural A3MAGPRO-TRI-SYS Magiq Pro Trimless

Downloads

Request Files

Magiq Pro by Prolicht – Trimless, Downlight offers LED lighting solutions | Zaneen Architectural

Ceiling
Ceiling thickness

10 / 12.5 / 15mm /
''
Ceiling thickness selection
Included or excluded LED driver/transformer/ control gear
Dimmable
Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
CSA Certified to UL and CSA Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
